Schema GreenBuildingXML_Ver7.02.xsd


schema location E:\Data\Carmel\gbXML\Schemas_Archived\GreenBuildingXML_Ver7.02.xsd
attributeFormDefault unqualified
elementFormDefault unqualified
targetNamespace http://www.gbxml.org/schema

Elements  Simple types
Absorptance  absorptanceUnitEnum
Address1  airTemperatureTypeEnum
Address2  areaUnitEnum
AdjacentSpaceId  baseboardHeatingTypeEnum
aecXML  blowerDoorUnitEnum
Age  buildingTypeEnum
AirChangesPerHour  capacityTypeEnum
AirLoop  capacityUnitEnum
AirLoopEquipment  chillerTypeEnum
AirLoopEquipmentId  coilTypeEnum
AirLoopId  conditioningTypeEnum
AirStreamFraction  conditioningUnitEnum
AirSystem  conditionTypeEnum
AirSystemId  conductivityFofTUnitEnum
AirTemperature  conductivityUnitEnum
Albedo  controlTypeEnum
AltEnergySource  coolingCoilSetpointResetTypeEnum
AnalysisParameter  coolingCoilTypeEnum
Area  costTypeEnum
AverageNumberOfFloors  currencyTypeEnum
Azimuth  damperHeatingActionEnum
Ballast  dayTypeEnum
BaseboardHeatingCapacity  defrostControlEnum
BaseboardHeatingType  defrostStrategyEnum
BeginDate  deltaPUnitEnum
BiomassDensity  densityFofTUnitEnum
Blind  densityUnitEnum
BlowerDoorValue  directionUnitEnum
Building  economizerLockoutEnum
BuildingStorey  efficiencyTypeEnum
CADMaterialId  emissionUnitEnum
CADModelAzimuth  emittanceTypeEnum
CADModelId  energyUnitEnum
CADObjectId  enthalpyTypeEnum
Campus  enthalpyUnitEnum
Capacity  entityTypeEnum
CartesianPoint  equipmentTypeEnum
CDD  extEquipTypeEnum
CDDValue  fanTypeEnum
City  floorCategoryEnum
ClosedShell  floorSlabPerimeterHeatLossCoefficientUnitTypeEnum
CLTDParameters  flowPerAreaUnitEnum
CoefficientOfUtilization  flowTypeEnum
CompanyName  flowUnitEnum
Conductivity  fluidTypeEnum
ConductivityFofT  frameTypeEnum
Construction  fuelLoadUnitEnum
Control  gasTypeEnum

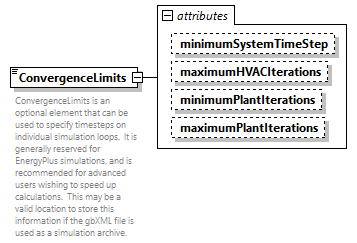

ConvergenceLimits  heatExchangerTypeEnum
CoolingCoilSetpointResetType  heatingCoilSetpointResetTypeEnum
CoolingCoilType  heatingCoilTypeEnum
CoolingSizingFactor  heatRecoveryTypeEnum
Coordinate  hOutsideUnitTypeEnum
Cost  hydronicEquipTypeEnum
CostValue  illuminanceUnitEnum
Country  infiltrationTypeEnum

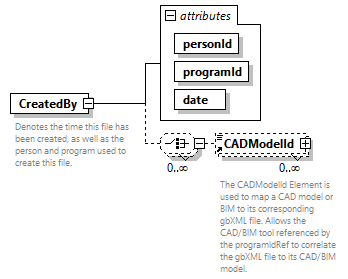

CreatedBy  intEquipTypeEnum
CyclesPerWeek  interactionType
CyclingRateMax  inverseTempUnitEnum
DamperHeatingAction  lengthUnitEnum
Data  lifeUnitEnum
Day  lightControlTypeEnum
DaylightSavings  loadUnitEnum

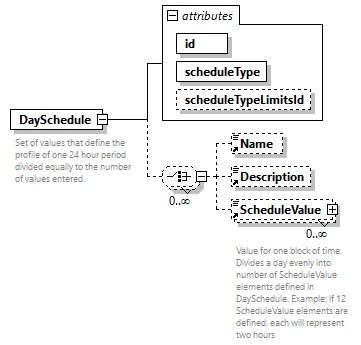

DaySchedule  loopTypeEnum
DDDayCool  minimumOutdoorAirControlTypeEnum
DDDayHeat  nightCycleControlEnum
DDDaylightCool  openingTypeEnum
DDDaylightHeat  operationTypeEnum
DDDBCool  peopleHeatGainTypeEnum
DDDBHeat  peopleHeatGainUnitEnum
DDDBRangeCool  peopleNumberUnitEnum
DDDBRangeHeat  permUnitEnum
DDGroundTCool  powerPerAreaUnitEnum
DDGroundTHeat  powerTypeEnum
DDHiHrCool  powerUnitEnum
DDHiHrHeat  powerUseTypeEnum
DDLoHrCool  preheatCoilTypeEnum
DDLoHrHeat  pressureUnitEnum
DDMonthCool  radiationWavelengthTypeEnum
DDMonthHeat  reflectanceTypeEnum
DDPressureCool  resetTemperatureTypeEnum
DDPressureHeat  resistanceUnitEnum
DDRainCool  resourceTypeEnum
DDRainHeat  resultsExtraResourceTypeEnum
DDSkyClearnessCool  resultsTypeEnum
DDSkyClearnessHeat  roofASHRAENumberEnum
DDSnowCool  roofCLTDIndexEnum
DDSnowHeat  roofColorEnum
DDWBCool  roofCTSTypeEnum
DDWBHeat  roughnessValueEnum
DDWindDirCool  scheduleTypeEnum
DDWindDirHeat  scheduleTypeLimitsEnum
DDWindSpeedCool  shadeOperationEnum
DDWindSpeedHeat  shadeScheduleTypeEnum
DeltaP  shadeTypeEnum
DeltaT  sinkRateUnitEnum
Density  spaceTypeEnum
DensityFofT  specificHeatUnitEnum
DependentValue  stageTypeEnum

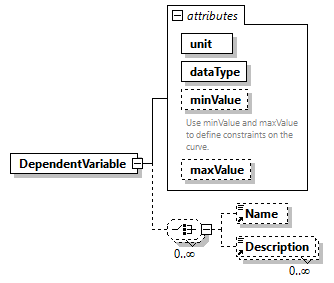

DependentVariable  standardsTypeEnum
Description  stationIdTypeEnum
DesignCoolRH  supplementalHeatingCoilTypeEnum
DesignCoolT  surfaceDescriptionEnum
DesignFlow  surfaceReferenceLocationEnum
DesignHeatRH  surfaceTypeEnum
DesignHeatT  systemTypeEnum
DesignPressure  temperatureUnitEnum
DesignTemp  tempTypeEnum
Dimensions  timePeriodEnum

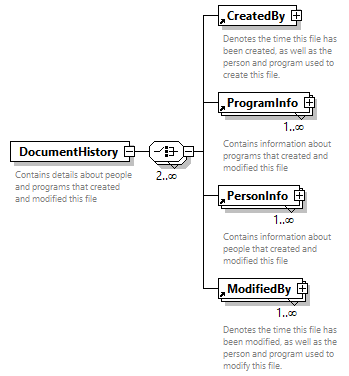

DocumentHistory  timeUnitEnum
EconomizerLockout  transportationTypeEnum
Efficiency  unitlessSmallUnitEnum
ElecLoad  unitlessUnitEnum
Elevation  uValueUnitEnum
Email1Address  valueTypeEnum
EmissionRate  vegetationTypeEnum
Emittance  velocityUnitEnum
EndDate  versionEnum
Energy  viscosityFofTUnitEnum
Enthalpy  viscosityUnitEnum

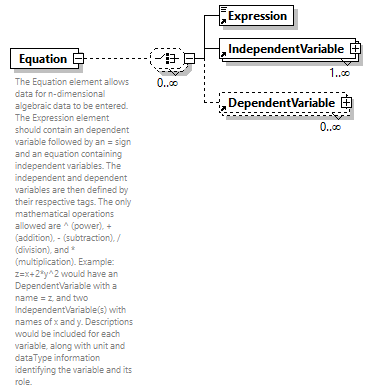

Equation  volumeUnitEnum

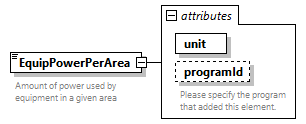

EquipPowerPerArea  wallASHRAEGroupEnum
Expression  wallColorEnum

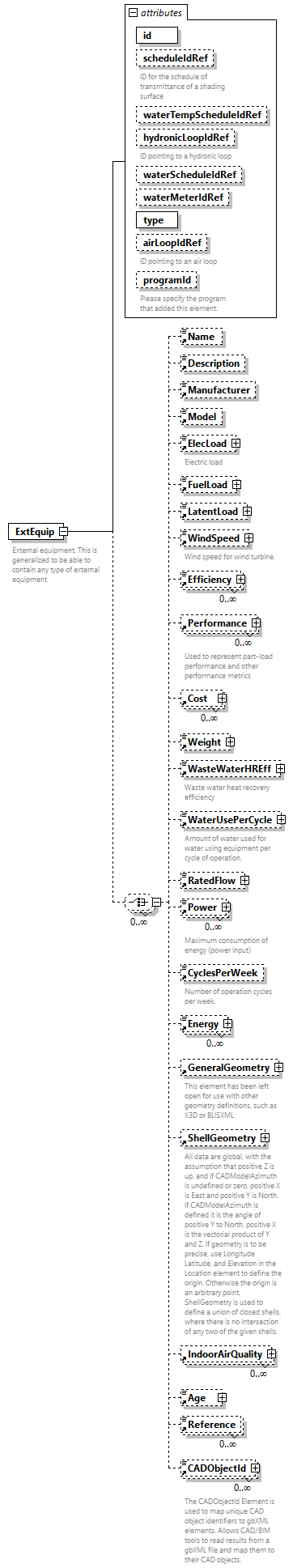

ExtEquip  wallCTSTypeEnum
ExtEquipId  wallGroupManualJEnum
FamilyName  waterUseUnitEnum
FileName  weightUnitEnum

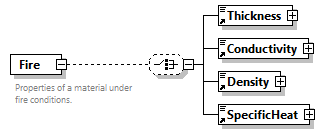

Fire  windSpeedEnum

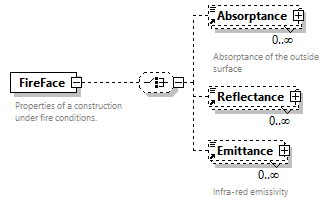

FireFace  zoneHVACEquipmentTypeEnum
FirstName

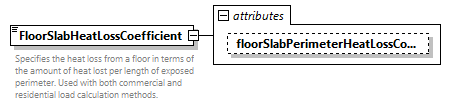

FloorSlabHeatLossCoefficient
Flow

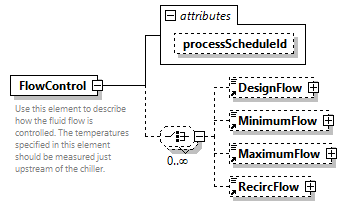

FlowControl
FlowPerArea
FlowPerPerson
FlowType
FractionOnCyclePowerUse
Frame
FuelLoad

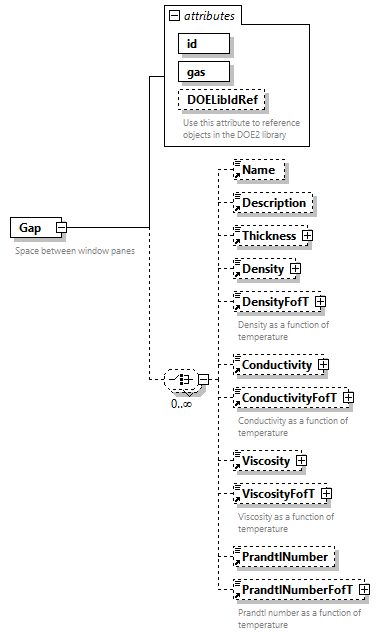

Gap
GapId
GasPreheatCoilEfficiency
GasPreheatCoilParasiticElectricLoad

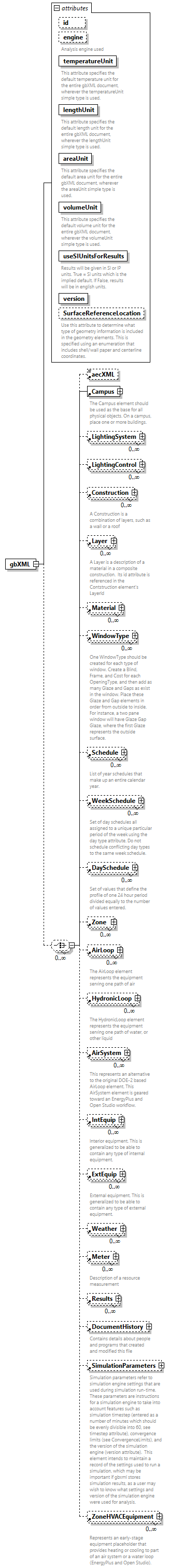

gbXML
GeneralGeometry
Glare

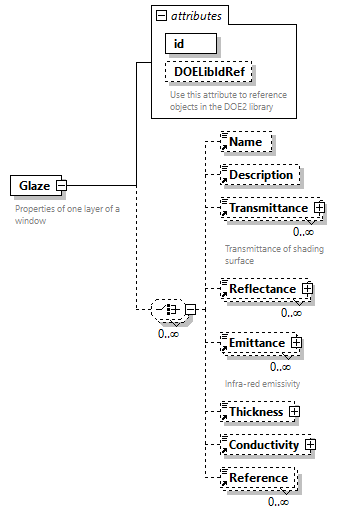

Glaze
GlazeConductivity
GlazeId
GroundTemp
GroundTempValue
GUID

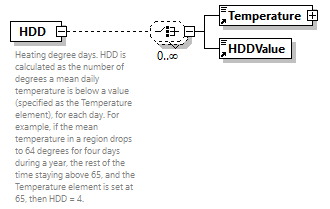

HDD
HDDValue
HeatingCoilSetpointResetType
HeatingSizingFactor
HeatPumpDefrostControl
HeatPumpDefrostStrategy
HeatPumpFanDelayTime
HeatPumpTimeConstant
HeatRecoveryType
HeatRejectedtoSpace
Height
HighLimit
HighValue
HolidayDate

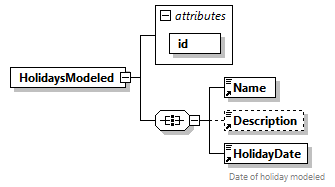

HolidaysModeled
HorizontalSolar

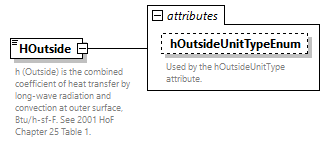

HOutside

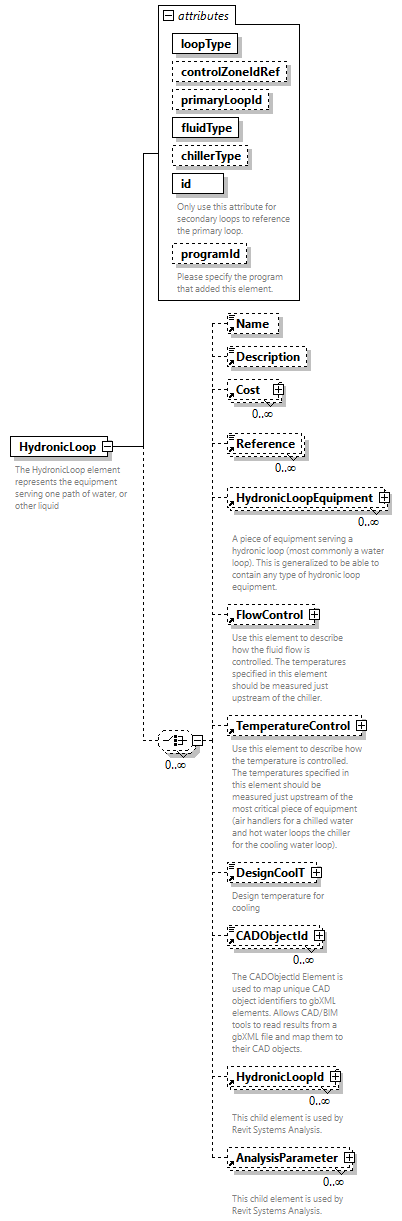

HydronicLoop

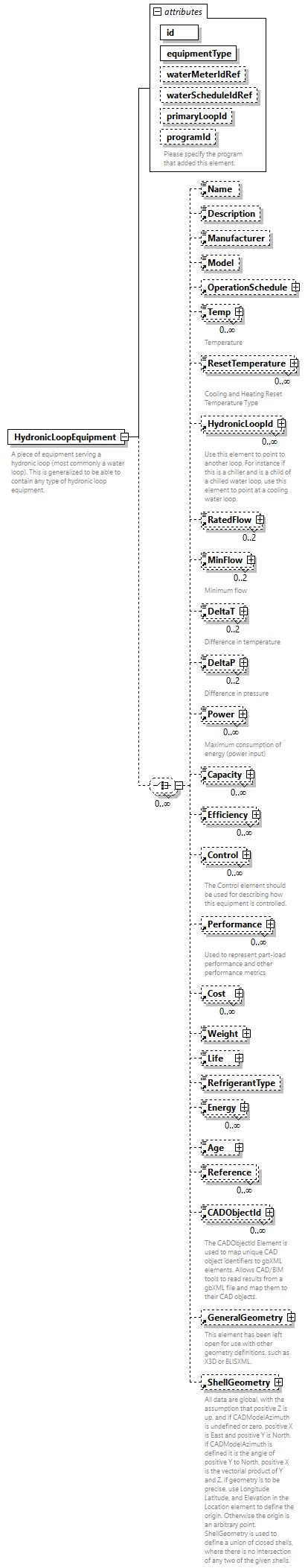

HydronicLoopEquipment
HydronicLoopEquipmentId
HydronicLoopId
Illuminance

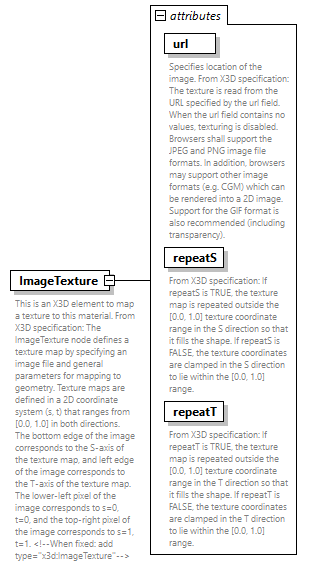

ImageTexture
IndependentValue

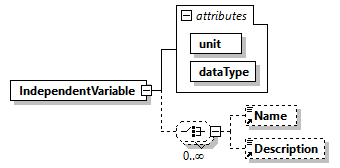

IndependentVariable

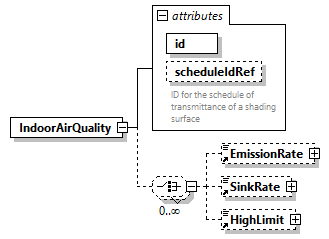

IndoorAirQuality

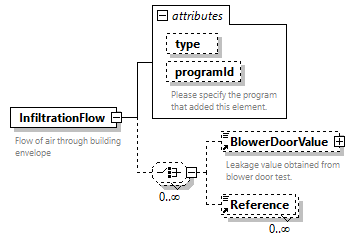

InfiltrationFlow
InputWatts
InsideAirFilmResistance
IntEquip
IntEquipId
Lamp
LastName
LatentHeatRecoveryEffectiveness
LatentLoad
Latitude

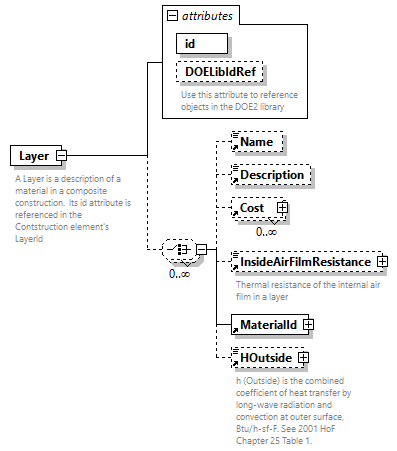

Layer
LayerId
Length
Level
Life
LightControlId
LightId

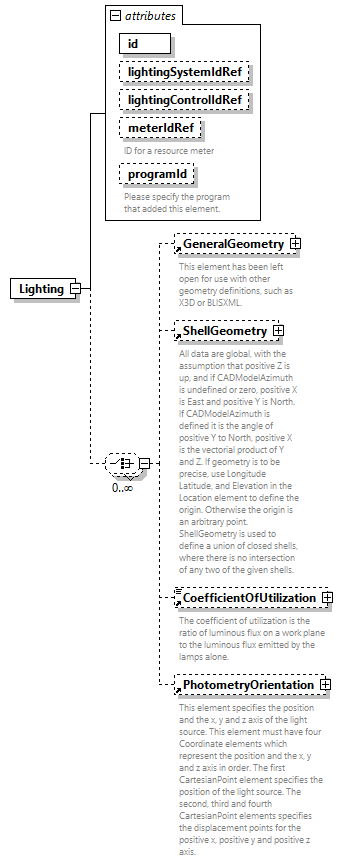

Lighting

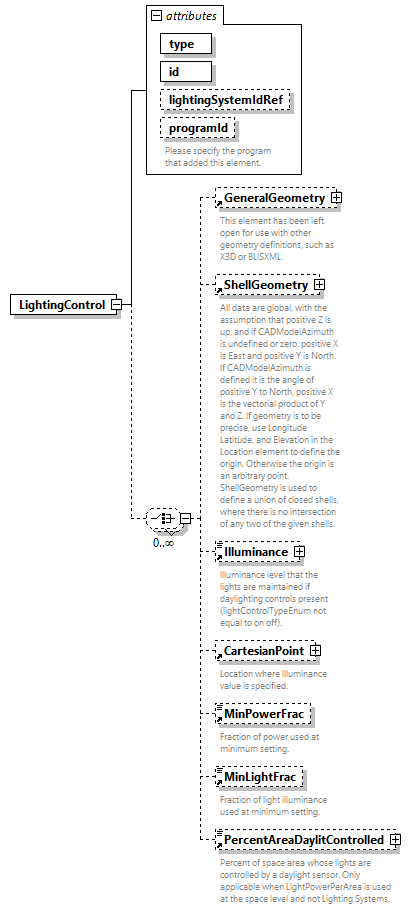

LightingControl

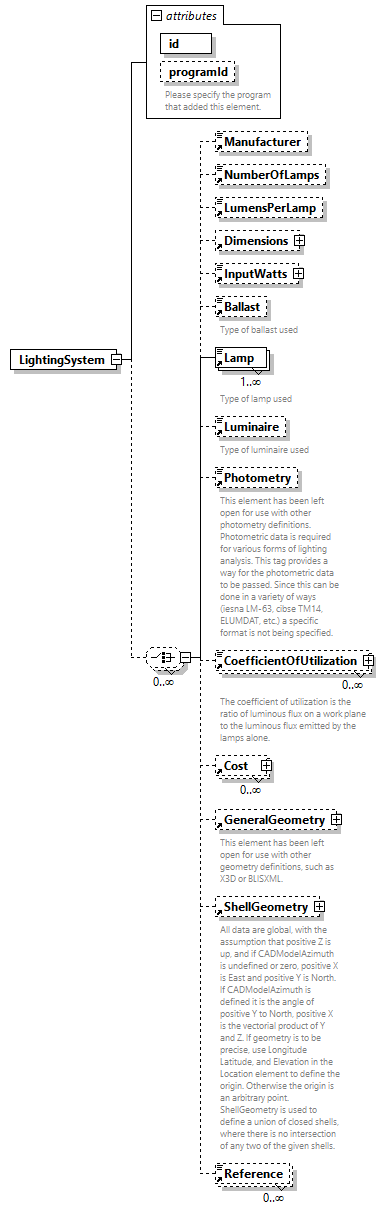

LightingSystem
LightPowerPerArea

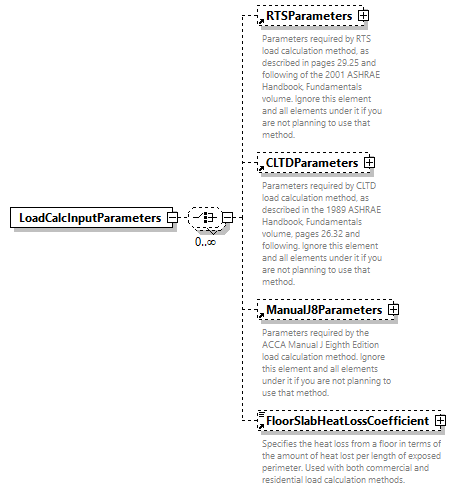

LoadCalcInputParameters

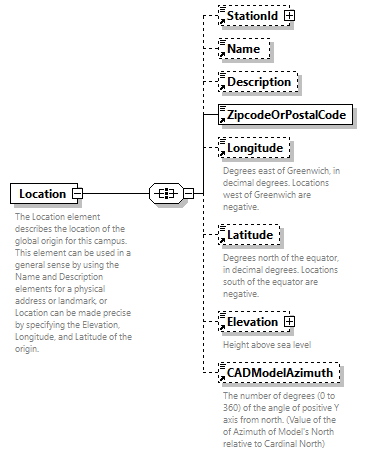

Location
Longitude
LowerLimitValue
LowValue
LumensPerLamp
Luminaire

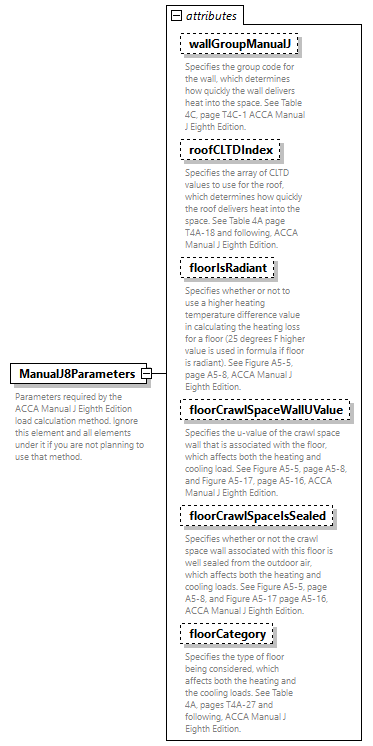

ManualJ8Parameters
Manufacturer
Material
MaterialId
MaximumFlow
MaximumFlowFractionDuringReheat
MaxOAFlowPerZone
MaxPressure
MaxRelativeHumidity
MaxTemp
Meter
MeterId
MiddleName
MinFlow
MinimumFlow
MinimumOutdoorAirControlType
MinLightFrac
MinOAFlowPerZone
MinPowerFrac
MinPressure
MinRelativeHumidity
MinTemp
Model
ModifiedBy
MotorInAirstream
Name
NaturalVentHiTemp
NaturalVentLoTemp
NaturalVentOccDep
NightCycleControl
NumberOfLamps
OAFlowPerArea
OAFlowPerPerson
OAFlowPerZone
ObjectId
Opening
OperationRange
OperationSchedule
ParallelFanOnFlowFraction
PeakDomesticHotWaterFlow
PeopleHeatGain
PeopleNumber
PercentAreaDaylitControlled
PercentExisting
Performance
Permeance
PersonInfo
PhoneNumber
Photometry
PhotometryOrientation

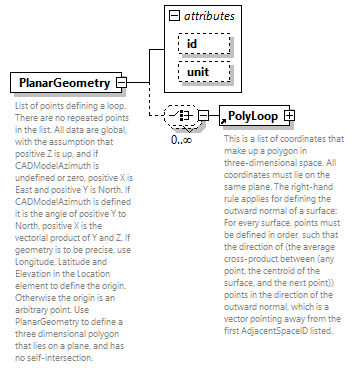

PlanarGeometry
Platform

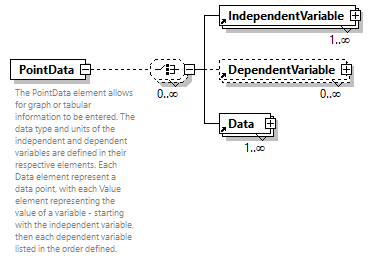

PointData

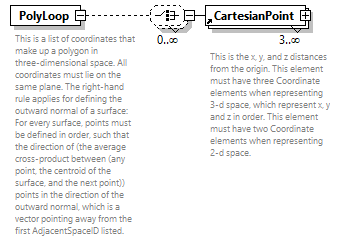

PolyLoop
Porosity
Power
PrandtlNumber
PrandtlNumberFofT
PreheatCoilType

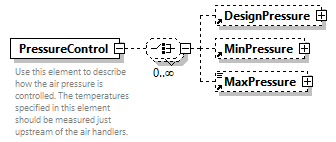

PressureControl
ProductName

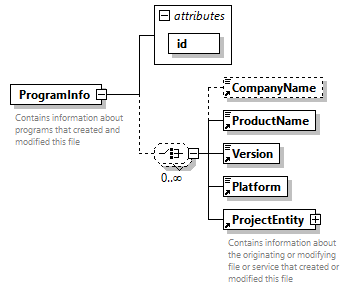

ProgramInfo
ProjectEntity
R-value
RatedFlow
RecircFlow

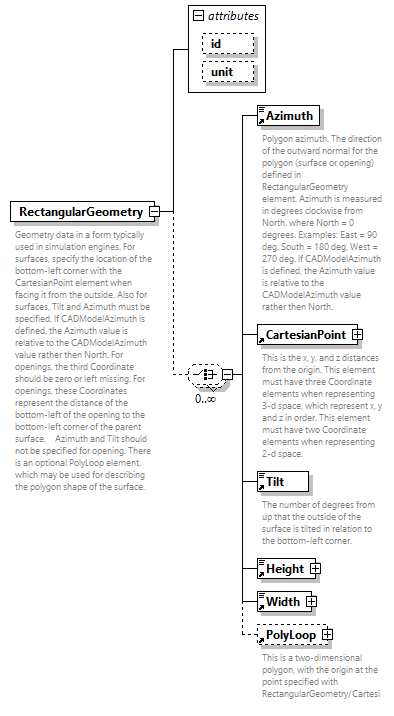

RectangularGeometry
RecycledContent
Reference
Reflectance
RefrigerantType

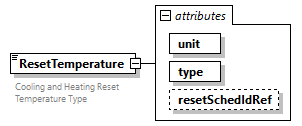

ResetTemperature

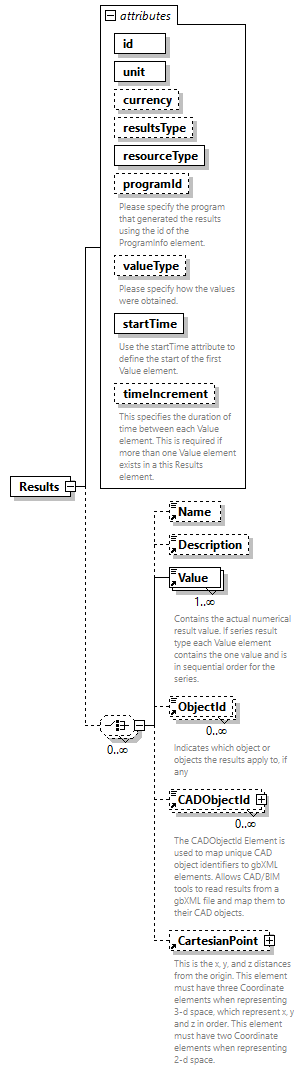

Results
Roughness

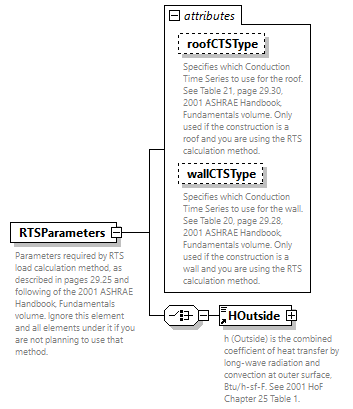

RTSParameters

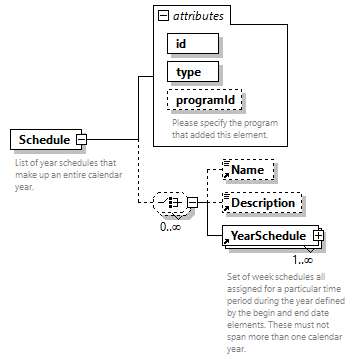

Schedule

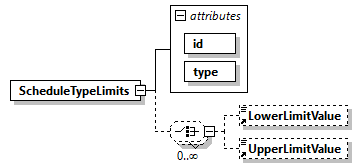

ScheduleTypeLimits

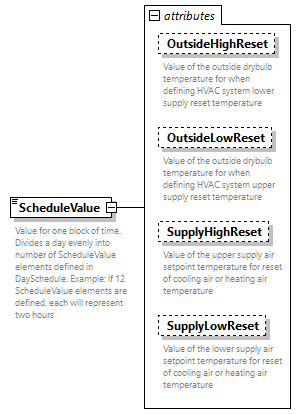

ScheduleValue
SecondaryFlow
SensibleHeatRecoveryEffectiveness
Setback

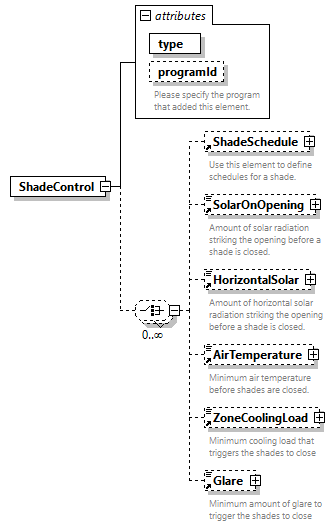

ShadeControl
ShadeSchedule
ShadingCoeff

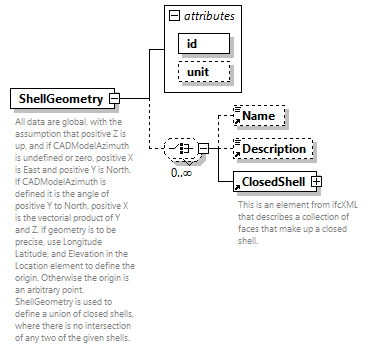

ShellGeometry

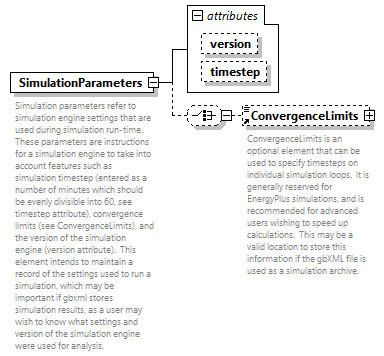

SimulationParameters
SinkRate

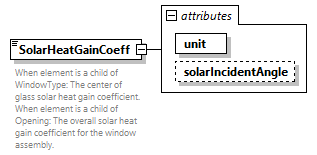

SolarHeatGainCoeff
SolarOnOpening

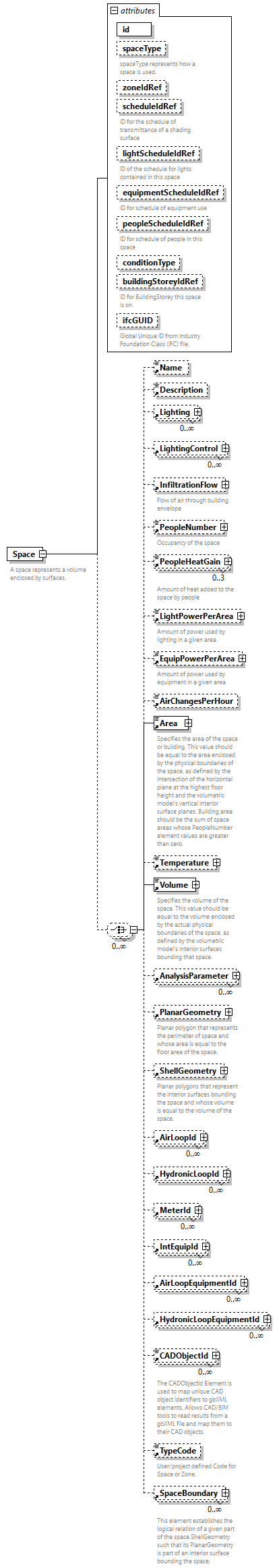

Space

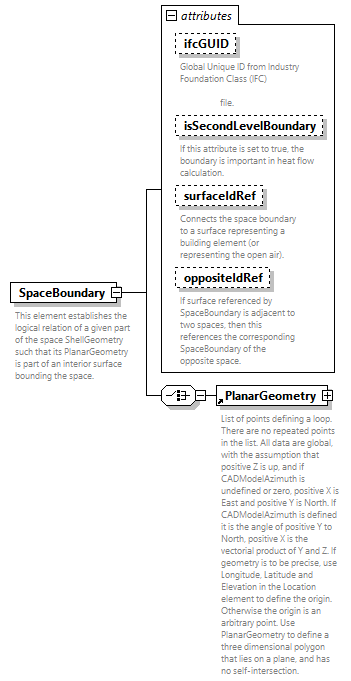

SpaceBoundary
SpecificHeat
State
StateOrProvince
StationId
StreetAddress
SupplementalGasHeatingCoilEfficiency
SupplementalGasHeatingCoilParasiticElectricLoad
SupplementalHeatingCoilCapacity
SupplementalHeatingCoilType

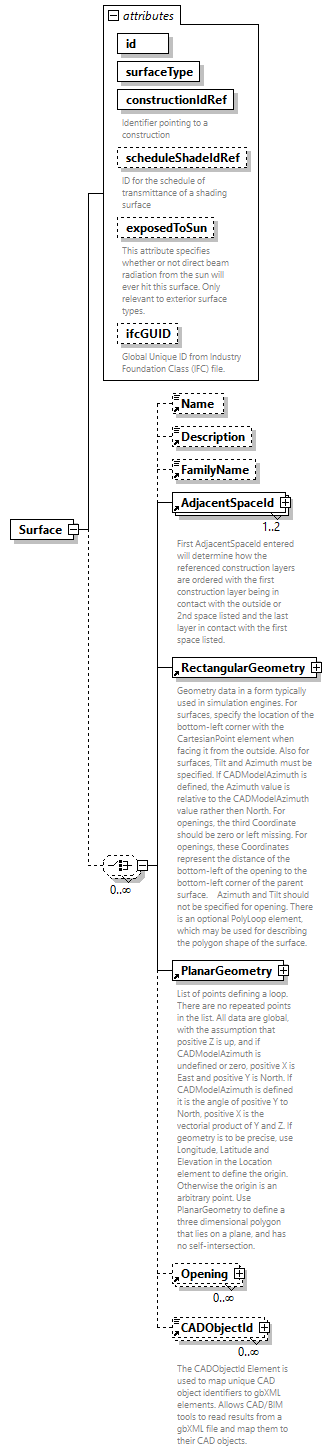

Surface
Temp
Temperature

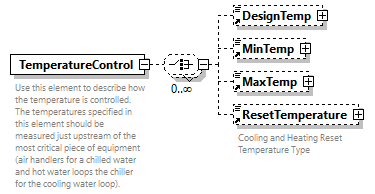

TemperatureControl
Thickness
Tilt
TimeIncrement
Transmittance

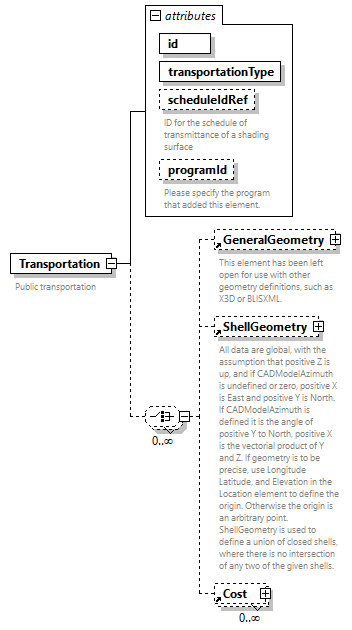

Transportation
TypeCode
U-value
UpperLimitValue
URI
UtilityRate
Value

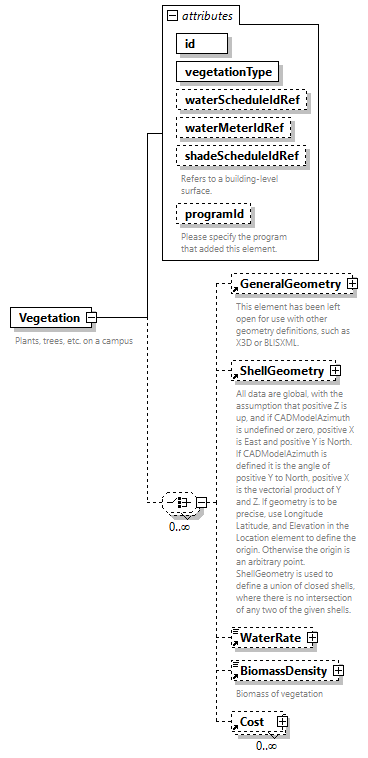

Vegetation
Version
Viscosity
ViscosityFofT
Volume

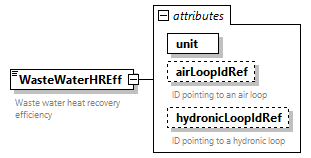

WasteWaterHREff
WaterLoss
WaterRate
WaterUsePerCycle

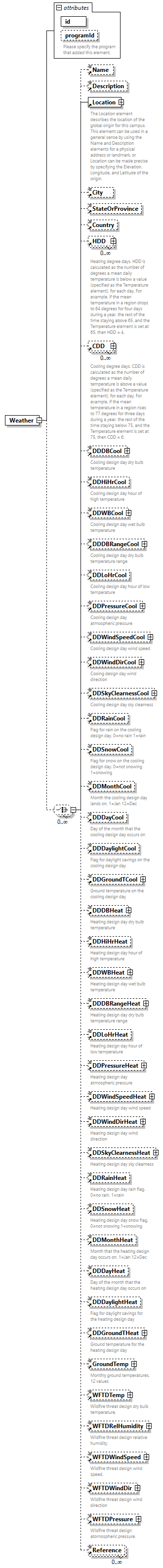

Weather
WebPage

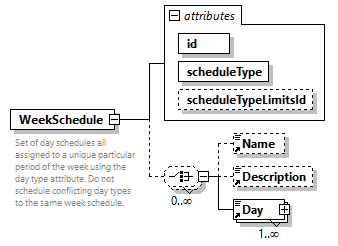

WeekSchedule
WeekScheduleId
Weight
WFTDPressure
WFTDRelHumidity
WFTDTemp
WFTDWindDir
WFTDWindSpeed
Width

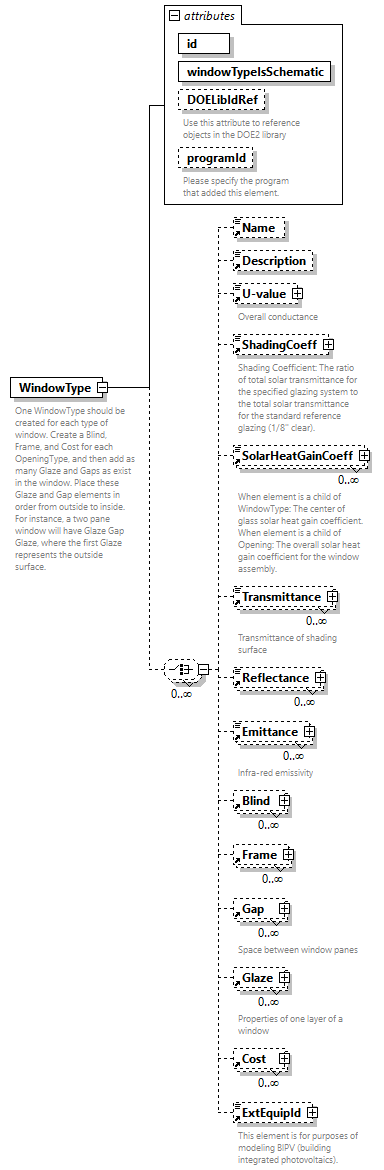

WindowType
WindSpeed
XAxis
YAxis

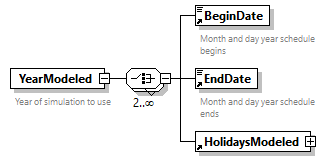

YearModeled

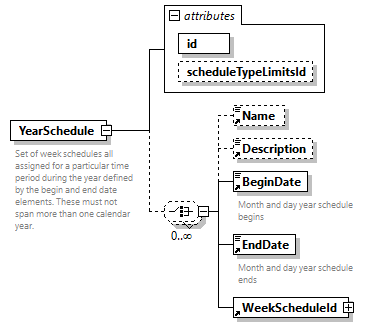

YearSchedule
ZipCode
ZipcodeOrPostalCode

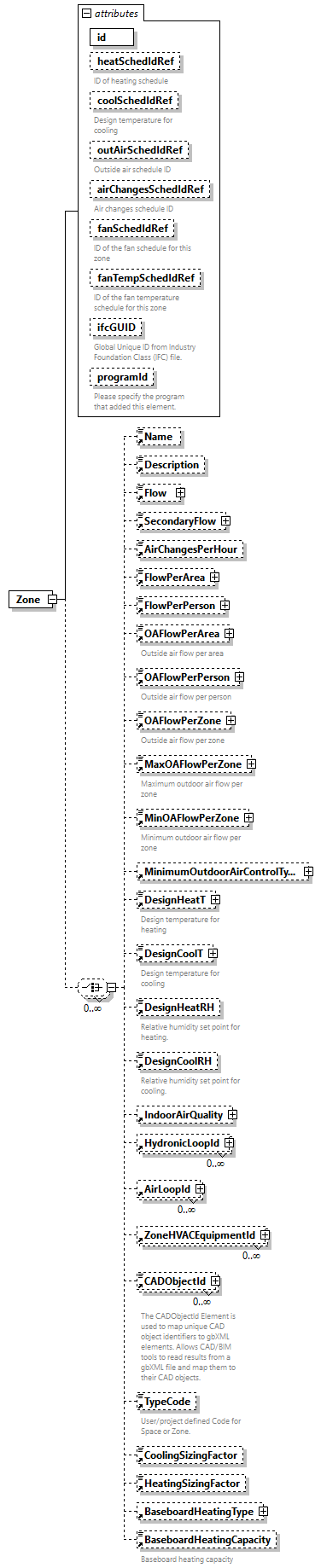

Zone
ZoneCoolingLoad

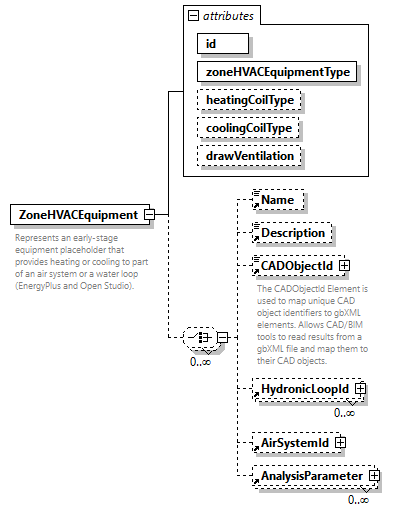

ZoneHVACEquipment
ZoneHVACEquipmentId


element Absorptance
diagram GreenBuildingXML_Ver7.02_p1.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Construction FireFace Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
type  absorptanceUnitEnum  required
annotation
documentation
Absorptance of the outside surface
source <xsd:element name="Absorptance">

<xsd:annotation>

<xsd:documentation>Absorptance of the outside surface</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

<xsd:attribute name="type" type="absorptanceUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Absorptance/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

attribute Absorptance/@type
type absorptanceUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration IntIR
enumeration IntSolar
enumeration IntVisible
enumeration IntTotal
enumeration ExtIR
enumeration ExtSolar
enumeration ExtVisible
enumeration ExtTotal
source <xsd:attribute name="type" type="absorptanceUnitEnum" use="required"/>

element Address1
diagram GreenBuildingXML_Ver7.02_p2.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="Address1" type="xsd:string"/>

element Address2
diagram GreenBuildingXML_Ver7.02_p3.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="Address2" type="xsd:string"/>

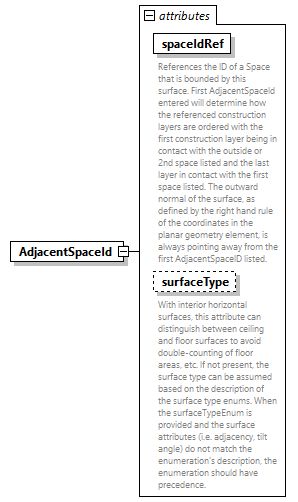

element AdjacentSpaceId
diagram GreenBuildingXML_Ver7.02_p4.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Surface
attributes
Name  Type  Use  Default  Fixed  Annotation
spaceIdRef  xsd:IDREF  required
documentation
References the ID of a Space that is bounded by this surface. First AdjacentSpaceId entered will determine how the referenced construction layers are ordered with the first construction layer being in contact with the outside or 2nd space listed and the last layer in contact with the first space listed. The outward normal of the surface, as defined by the right hand rule of the coordinates in the planar geometry element, is always pointing away from the first AdjacentSpaceID listed.
surfaceType  surfaceTypeEnum  optional
documentation
With interior horizontal surfaces, this attribute can distinguish between ceiling and floor surfaces to avoid double-counting of floor areas, etc. If not present, the surface type can be assumed based on the description of the surface type enums. When the surfaceTypeEnum is provided and the surface attributes (i.e. adjacency, tilt angle) do not match the enumeration's description, the enumeration should have precedence.
source <xsd:element name="AdjacentSpaceId">

<xsd:complexType>

<xsd:attribute name="spaceIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>References the ID of a Space that is bounded by this surface. First AdjacentSpaceId entered will determine how the referenced construction layers are ordered with the first construction layer being in contact with the outside or 2nd space listed and the last layer in contact with the first space listed. The outward normal of the surface, as defined by the right hand rule of the coordinates in the planar geometry element, is always pointing away from the first AdjacentSpaceID listed.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="surfaceType" type="surfaceTypeEnum" use="optional">

<xsd:annotation>

<xsd:documentation>With interior horizontal surfaces, this attribute can distinguish between ceiling and floor surfaces to avoid double-counting of floor areas, etc. If not present, the surface type can be assumed based on the description of the surface type enums. When the surfaceTypeEnum is provided and the surface attributes (i.e. adjacency, tilt angle) do not match the enumeration's description, the enumeration should have precedence.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute AdjacentSpaceId/@spaceIdRef
type xsd:IDREF
properties
use required
annotation
documentation
References the ID of a Space that is bounded by this surface. First AdjacentSpaceId entered will determine how the referenced construction layers are ordered with the first construction layer being in contact with the outside or 2nd space listed and the last layer in contact with the first space listed. The outward normal of the surface, as defined by the right hand rule of the coordinates in the planar geometry element, is always pointing away from the first AdjacentSpaceID listed.
source <xsd:attribute name="spaceIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>References the ID of a Space that is bounded by this surface. First AdjacentSpaceId entered will determine how the referenced construction layers are ordered with the first construction layer being in contact with the outside or 2nd space listed and the last layer in contact with the first space listed. The outward normal of the surface, as defined by the right hand rule of the coordinates in the planar geometry element, is always pointing away from the first AdjacentSpaceID listed.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute AdjacentSpaceId/@surfaceType
type surfaceTypeEnum
properties
use optional
facets
Kind Value Annotation
enumeration InteriorWall
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to two conditioned or unconditioned spaces and that is vertical or tilted at an angle of 60° from horizontal or greater.
enumeration ExteriorWall
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and that is vertical or tilted at an angle of 60° from horizontal or greater.
enumeration Roof
documentation
The upper portion of the building envelope, including opaque areas and fenestration, that is adjacent to one conditioned or unconditioned space and that is horizontal or tilted at an angle of less than 60° from horizontal.
enumeration InteriorFloor
documentation
The lower portion of the building envelope, including opaque area and fenestration, that has conditioned or semiheated space above and is horizontal or tilted at an angle of less than 60 degrees from horizontal but excluding slab-on-grade floors.
enumeration ExposedFloor
documentation
The floor area exposed to non-conditioned space or outside.
enumeration Shade
documentation
Surface not adjacent to any spaces with tilt between 0° and 180°.
enumeration UndergroundWall
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) and that is vertical or tilted at an angle of 60° from horizontal or greater.
enumeration UndergroundSlab
documentation
Surface adjacent to one conditioned or unconditioned space and earth (soil) below grade with a tilt between 150° and 180°.
enumeration Ceiling
documentation
The upper portion of the building envelope that is adjacent to two conditioned or unconditioned spaces and that is horizontal or tilted at an angle of less than 60° from horizontal.
enumeration Air
documentation
Air membrane between two conditioned or unconditioned spaces with a tilt between 0° and 180°.
enumeration UndergroundCeiling
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) and that is horizontal or tilted at an angle of less than 60° from horizontal.
enumeration RaisedFloor
documentation
The lower portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and the outside and is horizontal or tilted at an angle between 150° and 180°.
enumeration SlabOnGrade
documentation
The lower portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) at grade with a tilt between 150° and 180°.
enumeration FreestandingColumn
documentation
Freestanding column in space specified by its top surface having the same ifcGUID.
enumeration EmbeddedColumn
documentation
Embedded column in wall specified by a surface which is coplanar with (one of) the embedding wall(s).
annotation
documentation
With interior horizontal surfaces, this attribute can distinguish between ceiling and floor surfaces to avoid double-counting of floor areas, etc. If not present, the surface type can be assumed based on the description of the surface type enums. When the surfaceTypeEnum is provided and the surface attributes (i.e. adjacency, tilt angle) do not match the enumeration's description, the enumeration should have precedence.
source <xsd:attribute name="surfaceType" type="surfaceTypeEnum" use="optional">

<xsd:annotation>

<xsd:documentation>With interior horizontal surfaces, this attribute can distinguish between ceiling and floor surfaces to avoid double-counting of floor areas, etc. If not present, the surface type can be assumed based on the description of the surface type enums. When the surfaceTypeEnum is provided and the surface attributes (i.e. adjacency, tilt angle) do not match the enumeration's description, the enumeration should have precedence.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element aecXML
diagram GreenBuildingXML_Ver7.02_p5.png
namespace http://www.gbxml.org/schema
used by
element gbXML
source <xsd:element name="aecXML"/>

element Age
diagram GreenBuildingXML_Ver7.02_p6.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
elements ExtEquip HydronicLoopEquipment IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  derived by: xsd:NMTOKEN  required
source <xsd:element name="Age">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="unit" use="required">

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Years"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Age/@unit
type restriction of xsd:NMTOKEN
properties
use required
facets
Kind Value Annotation
enumeration Years
source <xsd:attribute name="unit" use="required">

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Years"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:attribute>

element AirChangesPerHour
diagram GreenBuildingXML_Ver7.02_p7.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
elements Space Zone
source <xsd:element name="AirChangesPerHour" type="xsd:decimal"/>

element AirLoop

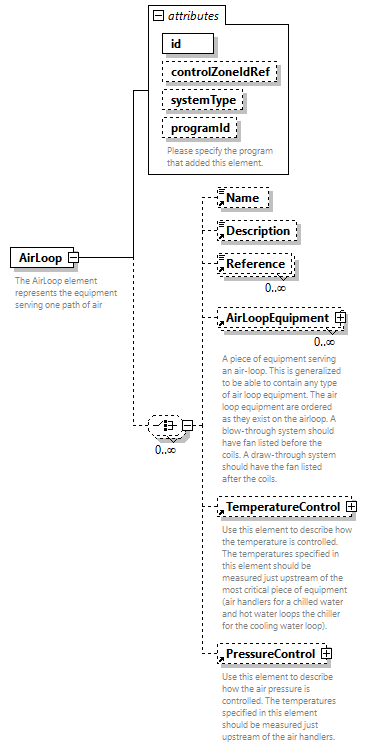

diagram GreenBuildingXML_Ver7.02_p8.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Reference AirLoopEquipment TemperatureControl PressureControl
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
controlZoneIdRef  xsd:IDREF
systemType  systemTypeEnum
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
The AirLoop element represents the equipment serving one path of air
source <xsd:element name="AirLoop">

<xsd:annotation>

<xsd:documentation>The AirLoop element represents the equipment serving one path of air</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="AirLoopEquipment" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="TemperatureControl" minOccurs="0"/>

<xsd:element ref="PressureControl" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="controlZoneIdRef" type="xsd:IDREF"/>

<xsd:attribute name="systemType" type="systemTypeEnum"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute AirLoop/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute AirLoop/@controlZoneIdRef
type xsd:IDREF
source <xsd:attribute name="controlZoneIdRef" type="xsd:IDREF"/>

attribute AirLoop/@systemType
type systemTypeEnum
facets
Kind Value Annotation
enumeration SingleZoneReheat
documentation
Variable Temperature
enumeration PackagedSingleZone
documentation
Packaged Single-zone
enumeration SingleZoneCeilingInduction
documentation
Ceiling Induction
enumeration ReheatFan
documentation
Constant-volume Reheat Fan
enumeration VariableAirVolume
documentation
Variable-volume Fan
enumeration PoweredInductionUnit
documentation
Powered Induction Unit
enumeration PackagedVariableAirVolume
documentation
Packaged Variable Air Volume
enumeration PackagedVariableVolumeVariableTemperature
documentation
Packaged Variable-Volume Variable-Temperature
enumeration CeilingBypassVariableAirVolume
documentation
Ceiling Bypass
enumeration EvaporativeCooling
documentation
Evaporative Cooling
enumeration MultiZone
documentation
Multizone Fan
enumeration PackagedMultiZone
documentation
Packaged Multizone
enumeration DualDuct
documentation
Dual-duct Fan
enumeration FanCoil
documentation
Fan Coil
enumeration InductionUnit
documentation
Induction Unit
enumeration PackagedTerminalAirConditioner
documentation
Packaged Terminal Air Conditioner
enumeration WaterLoopHeatPump
documentation
Water Loop Heat Pump
enumeration ResidentialCyclingFurnaceCyclingAC
documentation
Residential with cycling furnace and cycling air-conditioner
enumeration ResidentialVariableAirVolumeVariableTemperature
documentation
Residential Variable-Volume Variable-Temperature
enumeration FloorPanelHeating
documentation
Floor Panel Heating
enumeration HeatingAndVentilating
documentation
Heating and Ventilating
enumeration UnitHeater
documentation
Unit Heater
enumeration UnitVentilator
documentation
Unit Ventilator
enumeration CentralHeatingRadiators
documentation
Central Heating Radiators
enumeration CentralHeatingConvectors
documentation
Central Heating Convectors
enumeration CentralHeatingRadiantFloor
documentation
Central Heating Radiant Floor
enumeration CentralHeatingHotAir
documentation
Central Heating Hot Air
enumeration OtherRoomHeater
documentation
Other Room Heater
enumeration RadiantHeaterNoFlue
documentation
Radiant Heater No Flue
enumeration RadiantHeaterFlue
documentation
Radiant Heater Flue
enumeration RadiantHeaterMultiburner
documentation
Radiant Heater Multiburner
enumeration ForcedConvectionHeaterFlue
documentation
Forced Convection Heater Flue
enumeration ForcedConvectionHeaterNoFlue
documentation
Forced Convection Heater No Flue
enumeration VAVSingleDuct
documentation
VAV Single Duct
enumeration VAVDualDuct
documentation
VAV Dual Duct
enumeration VAVReheatFan
documentation
VAV Reheat Fan
enumeration VAVIndoorPackagedCabinet
documentation
VAV Indoor Packaged Cabinet
enumeration ConstantVolumeFixedOA
documentation
Constant Volume Fixed OA
enumeration ConstantVolumeVariableOA
documentation
Constant Volume Variable OA
enumeration ConstantVolumeTerminalReheat
documentation
Constant Volume Terminal Reheat
enumeration MultizoneHotDeckColdDeck
documentation
Multizone Hot Deck Cold Deck
enumeration ConstantVolumeDualDuct
documentation
Constant Volume Dual Duct
enumeration RadiantCooledCeilings
documentation
Radiant Cooled Ceilings
enumeration ActiveChilledBeams
documentation
Active Chilled Beams
enumeration VariableRefrigerantFlow
documentation
Variable Refrigerant Flow
enumeration SplitSystemsWithNaturalVentilation
documentation
Split Systems With Natural Ventilation
enumeration SplitSystemsWithMechanicalVentilation
documentation
Split Systems With Mechanical Ventilation
enumeration SplitSystemsWithMechanicalVentilationWithCooling
documentation
Split Systems With Mechanical Ventilation With Cooling
enumeration Exhaust
documentation
Exhaust Air Systems
source <xsd:attribute name="systemType" type="systemTypeEnum"/>

attribute AirLoop/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element AirLoopEquipment

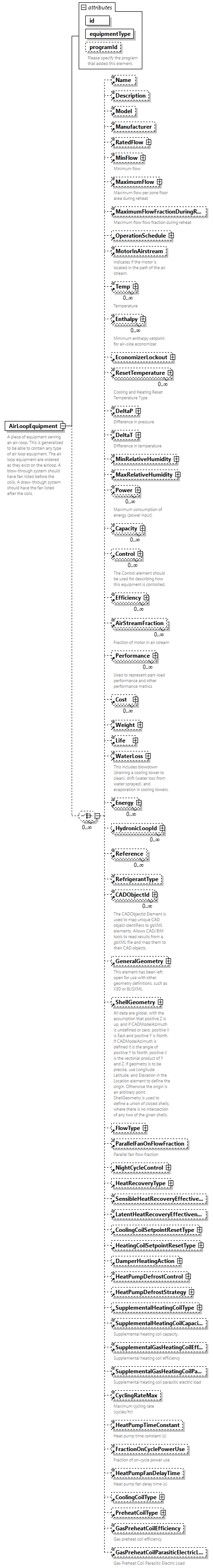

diagram GreenBuildingXML_Ver7.02_p9.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Model Manufacturer RatedFlow MinFlow MaximumFlow MaximumFlowFractionDuringReheat OperationSchedule MotorInAirstream Temp Enthalpy EconomizerLockout ResetTemperature DeltaP DeltaT MinRelativeHumidity MaxRelativeHumidity Power Capacity Control Efficiency AirStreamFraction Performance Cost Weight Life WaterLoss Energy HydronicLoopId Reference RefrigerantType CADObjectId GeneralGeometry ShellGeometry FlowType ParallelFanOnFlowFraction NightCycleControl HeatRecoveryType SensibleHeatRecoveryEffectiveness LatentHeatRecoveryEffectiveness CoolingCoilSetpointResetType HeatingCoilSetpointResetType DamperHeatingAction HeatPumpDefrostControl HeatPumpDefrostStrategy SupplementalHeatingCoilType SupplementalHeatingCoilCapacity SupplementalGasHeatingCoilEfficiency SupplementalGasHeatingCoilParasiticElectricLoad CyclingRateMax HeatPumpTimeConstant FractionOnCyclePowerUse HeatPumpFanDelayTime CoolingCoilType PreheatCoilType GasPreheatCoilEfficiency GasPreheatCoilParasiticElectricLoad
used by
element AirLoop
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
equipmentType  equipmentTypeEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
A piece of equipment serving an air-loop. This is generalized to be able to contain any type of air loop equipment. The air loop equipment are ordered as they exist on the airloop. A blow-through system should have fan listed before the coils. A draw-through system should have the fan listed after the coils.
source <xsd:element name="AirLoopEquipment">

<xsd:annotation>

<xsd:documentation>A piece of equipment serving an air-loop. This is generalized to be able to contain any type of air loop equipment. The air loop equipment are ordered as they exist on the airloop. A blow-through system should have fan listed before the coils. A draw-through system should have the fan listed after the coils.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Model" minOccurs="0"/>

<xsd:element ref="Manufacturer" minOccurs="0"/>

<xsd:element ref="RatedFlow" minOccurs="0"/>

<xsd:element ref="MinFlow" minOccurs="0"/>

<xsd:element ref="MaximumFlow" minOccurs="0">

<xsd:annotation>

<xsd:documentation>Maximum flow per zone floor area during reheat</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="MaximumFlowFractionDuringReheat" minOccurs="0">

<xsd:annotation>

<xsd:documentation>Maximum flow flow fraction during reheat</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="OperationSchedule" minOccurs="0"/>

<xsd:element ref="MotorInAirstream" minOccurs="0"/>

<xsd:element ref="Temp" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Enthalpy" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="EconomizerLockout" minOccurs="0"/>

<xsd:element ref="ResetTemperature" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="DeltaP" minOccurs="0"/>

<xsd:element ref="DeltaT" minOccurs="0"/>

<xsd:element ref="MinRelativeHumidity" minOccurs="0"/>

<xsd:element ref="MaxRelativeHumidity" minOccurs="0"/>

<xsd:element ref="Power" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Capacity" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Control" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Efficiency" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="AirStreamFraction" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Performance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Weight" minOccurs="0"/>

<xsd:element ref="Life" minOccurs="0"/>

<xsd:element ref="WaterLoss" minOccurs="0"/>

<xsd:element ref="Energy" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="HydronicLoopId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="RefrigerantType" minOccurs="0"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="GeneralGeometry" minOccurs="0"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

<xsd:element ref="FlowType" minOccurs="0"/>

<xsd:element ref="ParallelFanOnFlowFraction" minOccurs="0"/>

<xsd:element ref="NightCycleControl" minOccurs="0"/>

<xsd:element ref="HeatRecoveryType" minOccurs="0"/>

<xsd:element ref="SensibleHeatRecoveryEffectiveness" minOccurs="0"/>

<xsd:element ref="LatentHeatRecoveryEffectiveness" minOccurs="0"/>

<xsd:element ref="CoolingCoilSetpointResetType" minOccurs="0"/>

<xsd:element ref="HeatingCoilSetpointResetType" minOccurs="0"/>

<xsd:element ref="DamperHeatingAction" minOccurs="0"/>

<xsd:element ref="HeatPumpDefrostControl" minOccurs="0"/>

<xsd:element ref="HeatPumpDefrostStrategy" minOccurs="0"/>

<xsd:element ref="SupplementalHeatingCoilType" minOccurs="0"/>

<xsd:element ref="SupplementalHeatingCoilCapacity" minOccurs="0"/>

<xsd:element ref="SupplementalGasHeatingCoilEfficiency" minOccurs="0"/>

<xsd:element ref="SupplementalGasHeatingCoilParasiticElectricLoad" minOccurs="0"/>

<xsd:element ref="CyclingRateMax" minOccurs="0"/>

<xsd:element ref="HeatPumpTimeConstant" minOccurs="0"/>

<xsd:element ref="FractionOnCyclePowerUse" minOccurs="0"/>

<xsd:element ref="HeatPumpFanDelayTime" minOccurs="0"/>

<xsd:element ref="CoolingCoilType" minOccurs="0"/>

<xsd:element ref="PreheatCoilType" minOccurs="0"/>

<xsd:element ref="GasPreheatCoilEfficiency" minOccurs="0"/>

<xsd:element ref="GasPreheatCoilParasiticElectricLoad" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="equipmentType" type="equipmentTypeEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute AirLoopEquipment/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute AirLoopEquipment/@equipmentType
type equipmentTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Fan
enumeration HeatExchanger
enumeration Coil
enumeration Furnace
enumeration Evaporative
enumeration Radiant
enumeration Economizer
enumeration Duct
enumeration Humidifier
enumeration Dehumidifier
enumeration UnitaryAC
enumeration UnitaryHP
enumeration SplitAC
enumeration SplitHP
enumeration TerminalUnit
enumeration Register
enumeration VAVBox
enumeration EvaporativePreCooler
enumeration PreheatCoil
source <xsd:attribute name="equipmentType" type="equipmentTypeEnum" use="required"/>

attribute AirLoopEquipment/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element AirLoopEquipmentId
diagram GreenBuildingXML_Ver7.02_p10.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Space
attributes
Name  Type  Use  Default  Fixed  Annotation
airLoopEquipIdRef  xsd:IDREF  required
documentation
ID pointing at an air loop equipment object
source <xsd:element name="AirLoopEquipmentId">

<xsd:complexType>

<xsd:attribute name="airLoopEquipIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing at an air loop equipment object</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute AirLoopEquipmentId/@airLoopEquipIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID pointing at an air loop equipment object
source <xsd:attribute name="airLoopEquipIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing at an air loop equipment object</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element AirLoopId
diagram GreenBuildingXML_Ver7.02_p11.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
elements Space Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
airLoopIdRef  xsd:IDREF  required
documentation
ID pointing to an air loop
source <xsd:element name="AirLoopId">

<xsd:complexType>

<xsd:attribute name="airLoopIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing to an air loop</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute AirLoopId/@airLoopIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID pointing to an air loop
source <xsd:attribute name="airLoopIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing to an air loop</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element AirStreamFraction
diagram GreenBuildingXML_Ver7.02_p12.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element AirLoopEquipment
annotation
documentation
Fraction of motor in air stream
source <xsd:element name="AirStreamFraction">

<xsd:annotation>

<xsd:documentation>Fraction of motor in air stream</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal"/>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

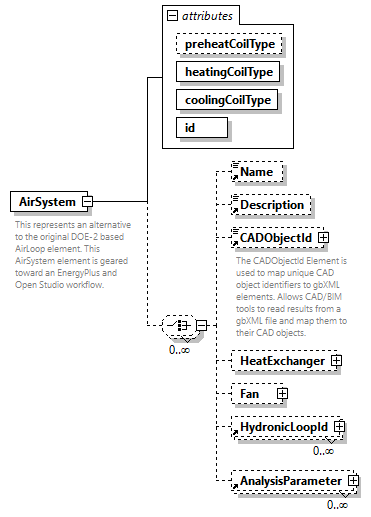

element AirSystem
diagram GreenBuildingXML_Ver7.02_p13.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description CADObjectId HeatExchanger Fan HydronicLoopId AnalysisParameter
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
preheatCoilType  heatingCoilTypeEnum  optional
heatingCoilType  heatingCoilTypeEnum  required
coolingCoilType  coolingCoilTypeEnum  required
id  xsd:ID  required
annotation
documentation
This represents an alternative to the original DOE-2 based AirLoop element. This AirSystem element is geared toward an EnergyPlus and Open Studio workflow.
source <xsd:element name="AirSystem">

<xsd:annotation>

<xsd:documentation>This represents an alternative to the original DOE-2 based AirLoop element. This AirSystem element is geared toward an EnergyPlus and Open Studio workflow.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="CADObjectId" minOccurs="0"/>

<xsd:element name="HeatExchanger" minOccurs="0">

<xsd:complexType>

<xsd:attribute name="heatExchangerType" type="heatExchangerTypeEnum" use="required"/>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>

</xsd:element>

<xsd:element name="Fan" minOccurs="0">

<xsd:complexType>

<xsd:attribute name="fanType" type="fanTypeEnum" use="required"/>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>

</xsd:element>

<xsd:element ref="HydronicLoopId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="AnalysisParameter" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="preheatCoilType" type="heatingCoilTypeEnum" use="optional"/>

<xsd:attribute name="heatingCoilType" type="heatingCoilTypeEnum" use="required"/>

<xsd:attribute name="coolingCoilType" type="coolingCoilTypeEnum" use="required"/>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>
</xsd:element>

attribute AirSystem/@preheatCoilType
type heatingCoilTypeEnum
properties
use optional
facets
Kind Value Annotation
enumeration ElectricResistance
enumeration Furnace
enumeration HotWater
source <xsd:attribute name="preheatCoilType" type="heatingCoilTypeEnum" use="optional"/>

attribute AirSystem/@heatingCoilType
type heatingCoilTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration ElectricResistance
enumeration Furnace
enumeration HotWater
source <xsd:attribute name="heatingCoilType" type="heatingCoilTypeEnum" use="required"/>

attribute AirSystem/@coolingCoilType
type coolingCoilTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration ChilledWater
enumeration ChilledWaterDetailedFlatModel
enumeration DirectExpansion
source <xsd:attribute name="coolingCoilType" type="coolingCoilTypeEnum" use="required"/>

attribute AirSystem/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

element AirSystem/HeatExchanger
diagram GreenBuildingXML_Ver7.02_p14.png
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
heatExchangerType  heatExchangerTypeEnum  required
id  xsd:ID  required
source <xsd:element name="HeatExchanger" minOccurs="0">

<xsd:complexType>

<xsd:attribute name="heatExchangerType" type="heatExchangerTypeEnum" use="required"/>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>
</xsd:element>

attribute AirSystem/HeatExchanger/@heatExchangerType
type heatExchangerTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Enthalpy
enumeration Sensible
source <xsd:attribute name="heatExchangerType" type="heatExchangerTypeEnum" use="required"/>

attribute AirSystem/HeatExchanger/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

element AirSystem/Fan
diagram GreenBuildingXML_Ver7.02_p15.png
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
fanType  fanTypeEnum  required
id  xsd:ID  required
source <xsd:element name="Fan" minOccurs="0">

<xsd:complexType>

<xsd:attribute name="fanType" type="fanTypeEnum" use="required"/>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>
</xsd:element>

attribute AirSystem/Fan/@fanType
type fanTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration ConstantVolume
enumeration VariableVolume
source <xsd:attribute name="fanType" type="fanTypeEnum" use="required"/>

attribute AirSystem/Fan/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

element AirSystemId
diagram GreenBuildingXML_Ver7.02_p16.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element ZoneHVACEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
airSystemIdRef  xsd:IDREF  required
documentation
An unique identifier pointing to an air system.
source <xsd:element name="AirSystemId">

<xsd:complexType>

<xsd:attribute name="airSystemIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>An unique identifier pointing to an air system.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute AirSystemId/@airSystemIdRef
type xsd:IDREF
properties
use required
annotation
documentation
An unique identifier pointing to an air system.
source <xsd:attribute name="airSystemIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>An unique identifier pointing to an air system.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element AirTemperature
diagram GreenBuildingXML_Ver7.02_p17.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element ShadeControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum  required
type  airTemperatureTypeEnum  required
annotation
documentation
Minimum air temperature before shades are closed.
source <xsd:element name="AirTemperature">

<xsd:annotation>

<xsd:documentation>Minimum air temperature before shades are closed.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum" use="required"/>

<xsd:attribute name="type" type="airTemperatureTypeEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute AirTemperature/@unit
type temperatureUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum" use="required"/>

attribute AirTemperature/@type
type airTemperatureTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Outside
enumeration Zone
source <xsd:attribute name="type" type="airTemperatureTypeEnum" use="required"/>

element Albedo
diagram GreenBuildingXML_Ver7.02_p18.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Construction Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
Reflectance of solar radiation
source <xsd:element name="Albedo">

<xsd:annotation>

<xsd:documentation>Reflectance of solar radiation</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Albedo/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

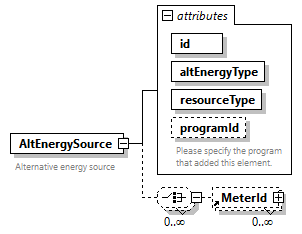

element AltEnergySource
diagram GreenBuildingXML_Ver7.02_p19.png
namespace http://www.gbxml.org/schema
properties
content complex
children MeterId
used by
element Campus
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
altEnergyType  derived by: xsd:NMTOKEN  required
resourceType  resourceTypeEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Alternative energy source
source <xsd:element name="AltEnergySource">

<xsd:annotation>

<xsd:documentation>Alternative energy source</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="MeterId" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="altEnergyType" use="required">

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Solar"/>

<xsd:enumeration value="Wind"/>

<xsd:enumeration value="Geothermal"/>

<xsd:enumeration value="HeatRecovery"/>

<xsd:enumeration value="NaturalGas"/>

<xsd:enumeration value="Electrical"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:attribute>

<xsd:attribute name="resourceType" type="resourceTypeEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute AltEnergySource/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute AltEnergySource/@altEnergyType
type restriction of xsd:NMTOKEN
properties
use required
facets
Kind Value Annotation
enumeration Solar
enumeration Wind
enumeration Geothermal
enumeration HeatRecovery
enumeration NaturalGas
enumeration Electrical
source <xsd:attribute name="altEnergyType" use="required">

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Solar"/>

<xsd:enumeration value="Wind"/>

<xsd:enumeration value="Geothermal"/>

<xsd:enumeration value="HeatRecovery"/>

<xsd:enumeration value="NaturalGas"/>

<xsd:enumeration value="Electrical"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:attribute>

attribute AltEnergySource/@resourceType
type resourceTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Electricity
enumeration NaturalGas
enumeration Propane
enumeration FuelOil1
enumeration FuelOil2
enumeration FuelOil4
enumeration Water
enumeration ChilledWater
enumeration HotWater
enumeration Steam
source <xsd:attribute name="resourceType" type="resourceTypeEnum" use="required"/>

attribute AltEnergySource/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

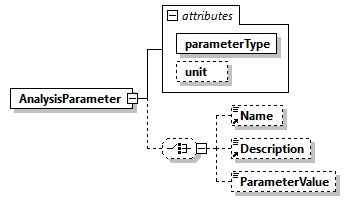

element AnalysisParameter
diagram GreenBuildingXML_Ver7.02_p20.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description ParameterValue
used by
elements AirSystem Building HydronicLoop Space ZoneHVACEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
parameterType  xsd:string  required
unit  xsd:string
source <xsd:element name="AnalysisParameter">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="1">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element name="ParameterValue" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="parameterType" type="xsd:string" use="required"/>

<xsd:attribute name="unit" type="xsd:string"/>

</xsd:complexType>
</xsd:element>

attribute AnalysisParameter/@parameterType
type xsd:string
properties
use required
source <xsd:attribute name="parameterType" type="xsd:string" use="required"/>

attribute AnalysisParameter/@unit
type xsd:string
source <xsd:attribute name="unit" type="xsd:string"/>

element AnalysisParameter/ParameterValue
diagram GreenBuildingXML_Ver7.02_p21.png
properties
minOcc 0
maxOcc 1
source <xsd:element name="ParameterValue" minOccurs="0"/>

element Area
diagram GreenBuildingXML_Ver7.02_p22.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Building Space
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  areaUnitEnum
annotation
documentation
Specifies the area of the space or building. This value should be equal to the area enclosed by the physical boundaries of the space, as defined by the intersection of the horizontal plane at the highest floor height and the volumetric model's vertical interior surface planes. Building area should be the sum of space areas whose PeopleNumber element values are greater than zero.
source <xsd:element name="Area">

<xsd:annotation>

<xsd:documentation>Specifies the area of the space or building. This value should be equal to the area enclosed by the physical boundaries of the space, as defined by the intersection of the horizontal plane at the highest floor height and the volumetric model's vertical interior surface planes. Building area should be the sum of space areas whose PeopleNumber element values are greater than zero.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="areaUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Area/@unit
type areaUnitEnum
facets
Kind Value Annotation
enumeration SquareKilometers
enumeration SquareMeters
enumeration SquareCentimeters
enumeration SquareMillimeters
enumeration SquareMiles
enumeration SquareYards
enumeration SquareFeet
enumeration SquareInches
source <xsd:attribute name="unit" type="areaUnitEnum"/>

element AverageNumberOfFloors
diagram GreenBuildingXML_Ver7.02_p23.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Building
source <xsd:element name="AverageNumberOfFloors" type="xsd:decimal"/>

element Azimuth
diagram GreenBuildingXML_Ver7.02_p24.png
namespace http://www.gbxml.org/schema
type restriction of xsd:double
properties
content simple
used by
element RectangularGeometry
facets
Kind Value Annotation
minInclusive 0
maxInclusive 360
annotation
documentation
Polygon azimuth. The direction of the outward normal for the polygon (surface or opening) defined in RectangularGeometry element. Azimuth is measured in degrees clockwise from North, where North = 0 degrees. Examples: East = 90 deg, South = 180 deg, West = 270 deg. If CADModelAzimuth is defined, the Azimuth value is relative to the CADModelAzimuth value rather then North.
source <xsd:element name="Azimuth">

<xsd:annotation>

<xsd:documentation>Polygon azimuth. The direction of the outward normal for the polygon (surface or opening) defined in RectangularGeometry element. Azimuth is measured in degrees clockwise from North, where North = 0 degrees. Examples: East = 90 deg, South = 180 deg, West = 270 deg. If CADModelAzimuth is defined, the Azimuth value is relative to the CADModelAzimuth value rather then North.</xsd:documentation>

</xsd:annotation>

<xsd:simpleType>

<xsd:restriction base="xsd:double">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="360"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element Ballast
diagram GreenBuildingXML_Ver7.02_p25.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element LightingSystem
annotation
documentation
Type of ballast used
source <xsd:element name="Ballast" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Type of ballast used</xsd:documentation>

</xsd:annotation>
</xsd:element>

element BaseboardHeatingCapacity
diagram GreenBuildingXML_Ver7.02_p26.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Zone
annotation
documentation
Baseboard heating capacity
source <xsd:element name="BaseboardHeatingCapacity" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Baseboard heating capacity</xsd:documentation>

</xsd:annotation>
</xsd:element>

element BaseboardHeatingType
diagram GreenBuildingXML_Ver7.02_p27.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  baseboardHeatingTypeEnum
source <xsd:element name="BaseboardHeatingType">

<xsd:complexType>

<xsd:attribute name="unit" type="baseboardHeatingTypeEnum"/>

</xsd:complexType>
</xsd:element>

attribute BaseboardHeatingType/@unit
type baseboardHeatingTypeEnum
facets
Kind Value Annotation
enumeration ACH
enumeration HotWater
enumeration Electric
source <xsd:attribute name="unit" type="baseboardHeatingTypeEnum"/>

element BeginDate
diagram GreenBuildingXML_Ver7.02_p28.png
namespace http://www.gbxml.org/schema
type xsd:date
properties
content simple
used by
elements YearModeled YearSchedule
annotation
documentation
Month and day year schedule begins
source <xsd:element name="BeginDate" type="xsd:date">

<xsd:annotation>

<xsd:documentation>Month and day year schedule begins</xsd:documentation>

</xsd:annotation>
</xsd:element>

element BiomassDensity
diagram GreenBuildingXML_Ver7.02_p29.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Vegetation
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  densityUnitEnum  required
annotation
documentation
Biomass of vegetation
source <xsd:element name="BiomassDensity">

<xsd:annotation>

<xsd:documentation>Biomass of vegetation</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="densityUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute BiomassDensity/@unit
type densityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration GramsPerCubicCm
enumeration LbsPerCubicIn
enumeration LbsPerCubicFt
enumeration KgPerCubicM
source <xsd:attribute name="unit" type="densityUnitEnum" use="required"/>

element Blind
diagram GreenBuildingXML_Ver7.02_p30.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Transmittance Reflectance Emittance Thickness Conductivity
used by
element WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
source <xsd:element name="Blind">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Transmittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Reflectance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Emittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Thickness" minOccurs="0"/>

<xsd:element ref="Conductivity" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>
</xsd:element>

attribute Blind/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

element BlowerDoorValue
diagram GreenBuildingXML_Ver7.02_p31.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element InfiltrationFlow
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  blowerDoorUnitEnum  required
annotation
documentation
Leakage value obtained from blower door test.
source <xsd:element name="BlowerDoorValue">

<xsd:annotation>

<xsd:documentation>Leakage value obtained from blower door test.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="blowerDoorUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute BlowerDoorValue/@unit
type blowerDoorUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration ACH
enumeration AirChangesPerHour
enumeration SquareFeet
enumeration SquareMeter
source <xsd:attribute name="unit" type="blowerDoorUnitEnum" use="required"/>

element Building
diagram GreenBuildingXML_Ver7.02_p32.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description StreetAddress Area Space AverageNumberOfFloors InfiltrationFlow AnalysisParameter ShellGeometry SpaceBoundary Lighting IntEquipId MeterId PeakDomesticHotWaterFlow BuildingStorey
used by
element Campus
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
buildingType  buildingTypeEnum  required
ifcGUID  xsd:string  optional
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:element name="Building">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="StreetAddress" minOccurs="0"/>

<xsd:element ref="Area"/>

<xsd:element ref="Space" maxOccurs="unbounded"/>

<xsd:element ref="AverageNumberOfFloors" minOccurs="0"/>

<xsd:element ref="InfiltrationFlow" minOccurs="0"/>

<xsd:element ref="AnalysisParameter" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="ShellGeometry" minOccurs="0">

<xsd:annotation>

<xsd:documentation>Use this element to define the shell of the building.</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="SpaceBoundary" minOccurs="0">

<xsd:annotation>

<xsd:documentation>This element establishes the logical relation of a given part of the building envelope such that its PlanarGeometry is part of an exterior surface of the building.</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="Lighting" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="IntEquipId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="MeterId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="PeakDomesticHotWaterFlow" minOccurs="0"/>

<xsd:element ref="BuildingStorey" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="buildingType" type="buildingTypeEnum" use="required"/>

<xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Building/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Building/@buildingType
type buildingTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration AutomotiveFacility
enumeration ConventionCenter
enumeration Courthouse
enumeration DataCenter
enumeration DiningBarLoungeOrLeisure
enumeration DiningCafeteriaFastFood
enumeration DiningFamily
enumeration Dormitory
enumeration ExerciseCenter
enumeration FireStation
enumeration Gymnasium
enumeration HospitalOrHealthcare
enumeration Hotel
enumeration Library
enumeration Manufacturing
enumeration Motel
enumeration MotionPictureTheatre
enumeration MultiFamily
enumeration Museum
enumeration Office
enumeration ParkingGarage
enumeration Penitentiary
enumeration PerformingArtsTheater
enumeration PoliceStation
enumeration PostOffice
enumeration ReligiousBuilding
enumeration Retail
enumeration SchoolOrUniversity
enumeration SingleFamily
enumeration SportsArena
enumeration TownHall
enumeration Transportation
enumeration Unknown
documentation
Enumeration value to be used when there is no building type information available.
enumeration Warehouse
enumeration Workshop
source <xsd:attribute name="buildingType" type="buildingTypeEnum" use="required"/>

attribute Building/@ifcGUID
type xsd:string
properties
use optional
annotation
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element BuildingStorey
diagram GreenBuildingXML_Ver7.02_p33.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Level PlanarGeometry
used by
element Building
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
ifcGUID  xsd:string  optional
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
annotation
documentation
Captures Building Storey Structure
source <xsd:element name="BuildingStorey">

<xsd:annotation>

<xsd:documentation>Captures Building Storey Structure</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Level"/>

<xsd:element ref="PlanarGeometry" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute BuildingStorey/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute BuildingStorey/@ifcGUID
type xsd:string
properties
use optional
annotation
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element CADMaterialId
diagram GreenBuildingXML_Ver7.02_p34.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Material
attributes
Name  Type  Use  Default  Fixed  Annotation
CADMaterialIdRef  xsd:string  required
documentation
ID used by a CAD/BIM program to reference its internal materials library
source <xsd:element name="CADMaterialId">

<xsd:complexType>

<xsd:attribute name="CADMaterialIdRef" type="xsd:string" use="required">

<xsd:annotation>

<xsd:documentation>ID used by a CAD/BIM program to reference its internal materials library</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute CADMaterialId/@CADMaterialIdRef
type xsd:string
properties
use required
annotation
documentation
ID used by a CAD/BIM program to reference its internal materials library
source <xsd:attribute name="CADMaterialIdRef" type="xsd:string" use="required">

<xsd:annotation>

<xsd:documentation>ID used by a CAD/BIM program to reference its internal materials library</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element CADModelAzimuth
diagram GreenBuildingXML_Ver7.02_p35.png
namespace http://www.gbxml.org/schema
type xsd:double
properties
content simple
used by
element Location
annotation
documentation
The number of degrees (0 to 360) of the angle of positive Y axis from north. (Value of the of Azimuth of Model's North relative to Cardinal North)
source <xsd:element name="CADModelAzimuth" type="xsd:double">

<xsd:annotation>

<xsd:documentation>The number of degrees (0 to 360) of the angle of positive Y axis from north. (Value of the of Azimuth of Model's North relative to Cardinal North)</xsd:documentation>

</xsd:annotation>
</xsd:element>

element CADModelId
diagram GreenBuildingXML_Ver7.02_p36.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
element CreatedBy
attributes
Name  Type  Use  Default  Fixed  Annotation
programIdRef  xsd:IDREF
documentation
ID reference to unique CAD/BIM program defined in DocumentHistory/ProgramInfo element.
annotation
documentation
The CADModelId Element is used to map a CAD model or BIM to its corresponding gbXML file. Allows the CAD/BIM tool referenced by the programIdRef to correlate the gbXML file to its CAD/BIM model.
source <xsd:element name="CADModelId">

<xsd:annotation>

<xsd:documentation>The CADModelId Element is used to map a CAD model or BIM to its corresponding gbXML file. Allows the CAD/BIM tool referenced by the programIdRef to correlate the gbXML file to its CAD/BIM model.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="programIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID reference to unique CAD/BIM program defined in DocumentHistory/ProgramInfo element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute CADModelId/@programIdRef
type xsd:IDREF
annotation
documentation
ID reference to unique CAD/BIM program defined in DocumentHistory/ProgramInfo element.
source <xsd:attribute name="programIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID reference to unique CAD/BIM program defined in DocumentHistory/ProgramInfo element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element CADObjectId
diagram GreenBuildingXML_Ver7.02_p37.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
elements AirLoopEquipment AirSystem ExtEquip HydronicLoop HydronicLoopEquipment IntEquip Opening Results Space Surface Zone ZoneHVACEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
programIdRef  xsd:IDREF
documentation
ID reference to unique CAD/BIM program defined in DocumentHistory/ProgramInfo element.
annotation
documentation
The CADObjectId Element is used to map unique CAD object identifiers to gbXML elements. Allows CAD/BIM tools to read results from a gbXML file and map them to their CAD objects.
source <xsd:element name="CADObjectId">

<xsd:annotation>

<xsd:documentation>The CADObjectId Element is used to map unique CAD object identifiers to gbXML elements. Allows CAD/BIM tools to read results from a gbXML file and map them to their CAD objects.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="programIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID reference to unique CAD/BIM program defined in DocumentHistory/ProgramInfo element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute CADObjectId/@programIdRef
type xsd:IDREF
annotation
documentation
ID reference to unique CAD/BIM program defined in DocumentHistory/ProgramInfo element.
source <xsd:attribute name="programIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID reference to unique CAD/BIM program defined in DocumentHistory/ProgramInfo element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Campus
diagram GreenBuildingXML_Ver7.02_p38.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Location Building Surface YearModeled DaylightSavings Life AltEnergySource ShellGeometry Vegetation Transportation MeterId ExtEquipId Lighting LightControlId
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
designHeatWeathIdRef  xsd:IDREF
documentation
ID for the weather data used for a heating design day
designCoolWeathIdRef  xsd:IDREF
documentation
ID for the weather data used for a cooling design day
ifcGUID  xsd:string  optional
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
annotation
documentation
The Campus element should be used as the base for all physical objects. On a campus, place one or more buildings.
source <xsd:element name="Campus">

<xsd:annotation>

<xsd:documentation>The Campus element should be used as the base for all physical objects. On a campus, place one or more buildings.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Location"/>

<xsd:element ref="Building" maxOccurs="unbounded"/>

<xsd:element ref="Surface" minOccurs="4" maxOccurs="unbounded"/>

<xsd:element ref="YearModeled" minOccurs="0"/>

<xsd:element ref="DaylightSavings" minOccurs="0"/>

<xsd:element ref="Life" minOccurs="0"/>

<xsd:element ref="AltEnergySource" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

<xsd:element ref="Vegetation" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Transportation" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="MeterId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="ExtEquipId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Lighting" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="LightControlId" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="designHeatWeathIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the weather data used for a heating design day</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="designCoolWeathIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the weather data used for a cooling design day</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Campus/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Campus/@designHeatWeathIdRef
type xsd:IDREF
annotation
documentation
ID for the weather data used for a heating design day
source <xsd:attribute name="designHeatWeathIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the weather data used for a heating design day</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Campus/@designCoolWeathIdRef
type xsd:IDREF
annotation
documentation
ID for the weather data used for a cooling design day
source <xsd:attribute name="designCoolWeathIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the weather data used for a cooling design day</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Campus/@ifcGUID
type xsd:string
properties
use optional
annotation
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Capacity
diagram GreenBuildingXML_Ver7.02_p39.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment HydronicLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  capacityUnitEnum  required
capacityType  capacityTypeEnum  required
source <xsd:element name="Capacity">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="capacityUnitEnum" use="required"/>

<xsd:attribute name="capacityType" type="capacityTypeEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Capacity/@unit
type capacityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Tons
enumeration kW
enumeration BtuPerHour
enumeration kBtuPerHour
enumeration Gallons
enumeration Liters
enumeration CubicMeters
enumeration CubicFeet
source <xsd:attribute name="unit" type="capacityUnitEnum" use="required"/>

attribute Capacity/@capacityType
type capacityTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Heating
enumeration CoolingTotal
enumeration CoolingSensible
enumeration CoolingLatent
enumeration CoolingSHR
enumeration Volume
source <xsd:attribute name="capacityType" type="capacityTypeEnum" use="required"/>

element CartesianPoint
diagram GreenBuildingXML_Ver7.02_p40.png
namespace http://www.gbxml.org/schema
properties
content complex
children Coordinate
used by
elements LightingControl PhotometryOrientation PolyLoop RectangularGeometry Results
annotation
documentation
This is the x, y, and z distances from the origin. This element must have three Coordinate elements when representing 3-d space, which represent x, y and z in order. This element must have two Coordinate elements when representing 2-d space.
appinfo
<xhtml:a href="http://cig.bre.co.uk/iai_uk/documentation/IfcR2x_Final/ifcgeometryresource/lexical/ifccartesianpoint.html">IfcCartesianPoint</xhtml:a>
source <xsd:element name="CartesianPoint">

<xsd:annotation>

<xsd:documentation>This is the x, y, and z distances from the origin. This element must have three Coordinate elements when representing 3-d space, which represent x, y and z in order. This element must have two Coordinate elements when representing 2-d space.</xsd:documentation>

<xsd:appinfo>

<xhtml:a href="http://cig.bre.co.uk/iai_uk/documentation/IfcR2x_Final/ifcgeometryresource/lexical/ifccartesianpoint.html">IfcCartesianPoint</xhtml:a>

</xsd:appinfo>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Coordinate" minOccurs="2" maxOccurs="3"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element CDD
diagram GreenBuildingXML_Ver7.02_p41.png
namespace http://www.gbxml.org/schema
properties
content complex
children Temperature CDDValue
used by
element Weather
annotation
documentation
Cooling degree days. CDD is calculated as the number of degrees a mean daily temperature is above a value (specified as the Temperature element), for each day. For example, if the mean temperature in a region rises to 77 degrees for three days during a year, the rest of the time staying below 75, and the Temperature element is set at 75, then CDD = 6.
source <xsd:element name="CDD">

<xsd:annotation>

<xsd:documentation>Cooling degree days. CDD is calculated as the number of degrees a mean daily temperature is above a value (specified as the Temperature element), for each day. For example, if the mean temperature in a region rises to 77 degrees for three days during a year, the rest of the time staying below 75, and the Temperature element is set at 75, then CDD = 6.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Temperature"/>

<xsd:element ref="CDDValue"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element CDDValue
diagram GreenBuildingXML_Ver7.02_p42.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element CDD
annotation
documentation
Cooling degree day value
source <xsd:element name="CDDValue" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Cooling degree day value</xsd:documentation>

</xsd:annotation>
</xsd:element>

element City
diagram GreenBuildingXML_Ver7.02_p43.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements PersonInfo Weather
source <xsd:element name="City" type="xsd:string"/>

element ClosedShell
diagram GreenBuildingXML_Ver7.02_p44.png
namespace http://www.gbxml.org/schema
properties
content complex
children PolyLoop
used by
element ShellGeometry
annotation
documentation
This is an element from ifcXML that describes a collection of faces that make up a closed shell.
appinfo
<xhtml:a href="http://cig.bre.co.uk/iai_uk/documentation/IfcR2x_Final/IFCTOPOLOGYRESOURCE/lexical/ifcclosedshell">IfcClosedShell</xhtml:a>
source <xsd:element name="ClosedShell">

<xsd:annotation>

<xsd:documentation>This is an element from ifcXML that describes a collection of faces that make up a closed shell.</xsd:documentation>

<xsd:appinfo>

<xhtml:a href="http://cig.bre.co.uk/iai_uk/documentation/IfcR2x_Final/IFCTOPOLOGYRESOURCE/lexical/ifcclosedshell">IfcClosedShell</xhtml:a>

</xsd:appinfo>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="PolyLoop" minOccurs="4" maxOccurs="unbounded"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element CLTDParameters
diagram GreenBuildingXML_Ver7.02_p45.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element LoadCalcInputParameters
attributes
Name  Type  Use  Default  Fixed  Annotation
roofASHRAENumber  roofASHRAENumberEnum
documentation
Specifies the number 1 to 13 to use for a roof. See Table 29 page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.
wallASHRAEGroup  wallASHRAEGroupEnum
documentation
Specifies the wall group code A to G to use for a wall. See Table 31, page 26.36, 1989 ASHRAE Handbook, Fundamentals volume.
roofColor  roofColorEnum
documentation
Specifies the effective roof color, which depends on the actual color and whether the location is industrial or rural. See page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.
roofHasSuspendedCeiling  xsd:boolean
documentation
Specifies whether or not a roof has a suspended ceiling under it. See table 29, page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.
wallColor  wallColorEnum
documentation
Specifies the effective wall color, which depends on the actual color and whether the location is industrial or rural. See page 26.36, 1989 ASHRAE Handbook, Fundamentals volume.
annotation
documentation
Parameters required by CLTD load calculation method, as described in the 1989 ASHRAE Handbook, Fundamentals volume, pages 26.32 and following. Ignore this element and all elements under it if you are not planning to use that method.
source <xsd:element name="CLTDParameters">

<xsd:annotation>

<xsd:documentation>Parameters required by CLTD load calculation method, as described in the 1989 ASHRAE Handbook, Fundamentals volume, pages 26.32 and following. Ignore this element and all elements under it if you are not planning to use that method.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:attribute name="roofASHRAENumber" type="roofASHRAENumberEnum">

<xsd:annotation>

<xsd:documentation>Specifies the number 1 to 13 to use for a roof. See Table 29 page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="wallASHRAEGroup" type="wallASHRAEGroupEnum">

<xsd:annotation>

<xsd:documentation>Specifies the wall group code A to G to use for a wall. See Table 31, page 26.36, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="roofColor" type="roofColorEnum">

<xsd:annotation>

<xsd:documentation>Specifies the effective roof color, which depends on the actual color and whether the location is industrial or rural. See page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="roofHasSuspendedCeiling" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>Specifies whether or not a roof has a suspended ceiling under it. See table 29, page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="wallColor" type="wallColorEnum">

<xsd:annotation>

<xsd:documentation>Specifies the effective wall color, which depends on the actual color and whether the location is industrial or rural. See page 26.36, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute CLTDParameters/@roofASHRAENumber
type roofASHRAENumberEnum
facets
Kind Value Annotation
enumeration 0
documentation
Undefined
enumeration 1
documentation
Steel sheet with 1 or 2 inches insulation
enumeration 2
documentation
One inch wood with 1 inch insulation
enumeration 3
documentation
Four inch light weight concrete
enumeration 4
documentation
Two inch heavy weight concrete
enumeration 5
documentation
One inch wood with 2 inch insulation
enumeration 6
documentation
Six inch light weight concrete
enumeration 7
documentation
2.5 inch wood with 1 inch insulation
enumeration 8
documentation
Eight inch light weight concrete
enumeration 9
documentation
4 inch hvy wt concrete with 1-2 inch insulation
enumeration 10
documentation
2.5 inch wood with 2 inches of insulation
enumeration 11
documentation
Roof Terrace System
enumeration 12
documentation
6 inch hvy wt concrete with 1-2 inch insulation
enumeration 13
documentation
4 inch wood with 1-2 inches of insulation
annotation
documentation
Specifies the number 1 to 13 to use for a roof. See Table 29 page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.
source <xsd:attribute name="roofASHRAENumber" type="roofASHRAENumberEnum">

<xsd:annotation>

<xsd:documentation>Specifies the number 1 to 13 to use for a roof. See Table 29 page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute CLTDParameters/@wallASHRAEGroup
type wallASHRAEGroupEnum
facets
Kind Value Annotation
enumeration A
documentation
4-in. face brick, insulation + 8-in. com. brick
enumeration B
documentation
4-in. face brick, 2-in. insul., 4-in. com. brick
enumeration C
documentation
4-in. face brick, air space + 4-in. face brick
enumeration D
documentation
4-in. face brick + 4-in. common brick
enumeration E
documentation
4-in. face brick + 4-in. block
enumeration F
documentation
4-in. block + air space or insulation
enumeration G
documentation
Metal curtain wall + 1 to 3-in. insulation
annotation
documentation
Specifies the wall group code A to G to use for a wall. See Table 31, page 26.36, 1989 ASHRAE Handbook, Fundamentals volume.
source <xsd:attribute name="wallASHRAEGroup" type="wallASHRAEGroupEnum">

<xsd:annotation>

<xsd:documentation>Specifies the wall group code A to G to use for a wall. See Table 31, page 26.36, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute CLTDParameters/@roofColor
type roofColorEnum
facets
Kind Value Annotation
enumeration Dark
documentation
Dark colored or light colored in an industrial area
enumeration Light
documentation
Permanently light colored and in a rural area
annotation
documentation
Specifies the effective roof color, which depends on the actual color and whether the location is industrial or rural. See page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.
source <xsd:attribute name="roofColor" type="roofColorEnum">

<xsd:annotation>

<xsd:documentation>Specifies the effective roof color, which depends on the actual color and whether the location is industrial or rural. See page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute CLTDParameters/@roofHasSuspendedCeiling
type xsd:boolean
annotation
documentation
Specifies whether or not a roof has a suspended ceiling under it. See table 29, page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.
source <xsd:attribute name="roofHasSuspendedCeiling" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>Specifies whether or not a roof has a suspended ceiling under it. See table 29, page 26.34, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute CLTDParameters/@wallColor
type wallColorEnum
facets
Kind Value Annotation
enumeration Dark
documentation
Dark colored or light colored in an industrial area
enumeration Medium
documentation
Permanently medium colored and in a rural area
enumeration Light
documentation
Permanently light colored and in a rural area
annotation
documentation
Specifies the effective wall color, which depends on the actual color and whether the location is industrial or rural. See page 26.36, 1989 ASHRAE Handbook, Fundamentals volume.
source <xsd:attribute name="wallColor" type="wallColorEnum">

<xsd:annotation>

<xsd:documentation>Specifies the effective wall color, which depends on the actual color and whether the location is industrial or rural. See page 26.36, 1989 ASHRAE Handbook, Fundamentals volume.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element CoefficientOfUtilization
diagram GreenBuildingXML_Ver7.02_p46.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Lighting LightingSystem
attributes
Name  Type  Use  Default  Fixed  Annotation
wallReflectance  xsd:decimal
ceilingCavityReflectance  xsd:decimal
floorReflectance  xsd:decimal
roomCavityRatio  xsd:decimal
documentation
Room cavity ratio is a measure of the room cavity proportions.
annotation
documentation
The coefficient of utilization is the ratio of luminous flux on a work plane to the luminous flux emitted by the lamps alone.
source <xsd:element name="CoefficientOfUtilization">

<xsd:annotation>

<xsd:documentation>The coefficient of utilization is the ratio of luminous flux on a work plane to the luminous flux emitted by the lamps alone. </xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="wallReflectance" type="xsd:decimal"/>

<xsd:attribute name="ceilingCavityReflectance" type="xsd:decimal"/>

<xsd:attribute name="floorReflectance" type="xsd:decimal"/>

<xsd:attribute name="roomCavityRatio" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Room cavity ratio is a measure of the room cavity proportions.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute CoefficientOfUtilization/@wallReflectance
type xsd:decimal
source <xsd:attribute name="wallReflectance" type="xsd:decimal"/>

attribute CoefficientOfUtilization/@ceilingCavityReflectance
type xsd:decimal
source <xsd:attribute name="ceilingCavityReflectance" type="xsd:decimal"/>

attribute CoefficientOfUtilization/@floorReflectance
type xsd:decimal
source <xsd:attribute name="floorReflectance" type="xsd:decimal"/>

attribute CoefficientOfUtilization/@roomCavityRatio
type xsd:decimal
annotation
documentation
Room cavity ratio is a measure of the room cavity proportions.
source <xsd:attribute name="roomCavityRatio" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Room cavity ratio is a measure of the room cavity proportions.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element CompanyName
diagram GreenBuildingXML_Ver7.02_p47.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements PersonInfo ProgramInfo
source <xsd:element name="CompanyName" type="xsd:string"/>

element Conductivity
diagram GreenBuildingXML_Ver7.02_p48.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Blind Fire Gap Glaze Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  conductivityUnitEnum  required
source <xsd:element name="Conductivity">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="conductivityUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Conductivity/@unit
type conductivityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration WPerCmC
enumeration WPerMeterK
enumeration BtuPerHourFtF
source <xsd:attribute name="unit" type="conductivityUnitEnum" use="required"/>

element ConductivityFofT
diagram GreenBuildingXML_Ver7.02_p49.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Gap
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  conductivityFofTUnitEnum  required
annotation
documentation
Conductivity as a function of temperature
source <xsd:element name="ConductivityFofT">

<xsd:annotation>

<xsd:documentation>Conductivity as a function of temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="conductivityFofTUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute ConductivityFofT/@unit
type conductivityFofTUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration WPerMSquareK
enumeration BtuPerHourFtSquareF
source <xsd:attribute name="unit" type="conductivityFofTUnitEnum" use="required"/>

element Construction
diagram GreenBuildingXML_Ver7.02_p50.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description U-value Absorptance Roughness Albedo Reflectance Transmittance Emittance Cost PercentExisting FireFace LayerId ExtEquipId LoadCalcInputParameters
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
DOELibIdRef  xsd:string
documentation
Use this attribute to reference objects in the DOE2 library
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
constructionIsSchematic  xsd:boolean  required
annotation
documentation
A Construction is a combination of layers, such as a wall or a roof
source <xsd:element name="Construction">

<xsd:annotation>

<xsd:documentation>A Construction is a combination of layers, such as a wall or a roof</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="U-value" minOccurs="0"/>

<xsd:element ref="Absorptance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Roughness" minOccurs="0"/>

<xsd:element ref="Albedo" minOccurs="0"/>

<xsd:element ref="Reflectance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Transmittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Emittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="PercentExisting" minOccurs="0"/>

<xsd:element ref="FireFace" minOccurs="0" maxOccurs="2"/>

<xsd:element ref="LayerId" minOccurs="0" maxOccurs="unbounded">

<xsd:annotation>

<xsd:documentation>Reference to layers that comprise this construction. Multiple LayerId's order is important and specifies the layering of the layer's referenced materials. The first Surface/AdjacentSpaceId entered will determine how the referenced construction layers are ordered with the first construction layer being in contact with the outside or 2nd Surface/AdjacentSpaceId listed and the last layer in contact with the first Surface/AdjacentSpaceId listed.</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="ExtEquipId" minOccurs="0" maxOccurs="1">

<xsd:annotation>

<xsd:documentation>This element is for purposes of modeling BIPV (building integrated photovoltaics).</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="LoadCalcInputParameters" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="constructionIsSchematic" type="xsd:boolean" use="required"/>

</xsd:complexType>
</xsd:element>

attribute Construction/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Construction/@DOELibIdRef
type xsd:string
annotation
documentation
Use this attribute to reference objects in the DOE2 library
source <xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Construction/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Construction/@constructionIsSchematic
type xsd:boolean
properties
use required
source <xsd:attribute name="constructionIsSchematic" type="xsd:boolean" use="required"/>

element Control
diagram GreenBuildingXML_Ver7.02_p51.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
elements AirLoopEquipment HydronicLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
controlType  controlTypeEnum
stages  stageTypeEnum  optional
minPowerRatio  xsd:float
operationType  operationTypeEnum
performanceIdRef  xsd:IDREF
annotation
documentation
The Control element should be used for describing how this equipment is controlled.
source <xsd:element name="Control">

<xsd:annotation>

<xsd:documentation>The Control element should be used for describing how this equipment is controlled.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:attribute name="controlType" type="controlTypeEnum"/>

<xsd:attribute name="stages" type="stageTypeEnum" use="optional"/>

<xsd:attribute name="minPowerRatio" type="xsd:float"/>

<xsd:attribute name="operationType" type="operationTypeEnum"/>

<xsd:attribute name="performanceIdRef" type="xsd:IDREF"/>

</xsd:complexType>
</xsd:element>

attribute Control/@controlType
type controlTypeEnum
facets
Kind Value Annotation
enumeration Boiler
enumeration Chiller
enumeration Damper
enumeration Fan
enumeration Pump
enumeration Valve
source <xsd:attribute name="controlType" type="controlTypeEnum"/>

attribute Control/@stages
type stageTypeEnum
properties
use optional
facets
Kind Value Annotation
enumeration 1Stage
enumeration 2Stage
enumeration Variable
source <xsd:attribute name="stages" type="stageTypeEnum" use="optional"/>

attribute Control/@minPowerRatio
type xsd:float
source <xsd:attribute name="minPowerRatio" type="xsd:float"/>

attribute Control/@operationType
type operationTypeEnum
facets
Kind Value Annotation
enumeration Cycling
enumeration Continuous
source <xsd:attribute name="operationType" type="operationTypeEnum"/>

attribute Control/@performanceIdRef
type xsd:IDREF
source <xsd:attribute name="performanceIdRef" type="xsd:IDREF"/>

element ConvergenceLimits
diagram GreenBuildingXML_Ver7.02_p52.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
element SimulationParameters
attributes
Name  Type  Use  Default  Fixed  Annotation
minimumSystemTimeStep  xsd:integer
maximumHVACIterations  xsd:integer
minimumPlantIterations  xsd:integer
maximumPlantIterations  xsd:integer
annotation
documentation
ConvergenceLimits is an optional element that can be used to specify timesteps on individual simulation loops.  It is generally reserved for EnergyPlus simulations, and is recommended for advanced users wishing to speed up calculations.  This may be a valid location to store this information if the gbXML file is used as a simulation archive.
source <xsd:element name="ConvergenceLimits">

<xsd:annotation>

<xsd:documentation>ConvergenceLimits is an optional element that can be used to specify timesteps on individual simulation loops.  It is generally reserved for EnergyPlus simulations, and is recommended for advanced users wishing to speed up calculations.  This may be a valid location to store this information if the gbXML file is used as a simulation archive.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="minimumSystemTimeStep" type="xsd:integer"/>

<xsd:attribute name="maximumHVACIterations" type="xsd:integer"/>

<xsd:attribute name="minimumPlantIterations" type="xsd:integer"/>

<xsd:attribute name="maximumPlantIterations" type="xsd:integer"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute ConvergenceLimits/@minimumSystemTimeStep
type xsd:integer
source <xsd:attribute name="minimumSystemTimeStep" type="xsd:integer"/>

attribute ConvergenceLimits/@maximumHVACIterations
type xsd:integer
source <xsd:attribute name="maximumHVACIterations" type="xsd:integer"/>

attribute ConvergenceLimits/@minimumPlantIterations
type xsd:integer
source <xsd:attribute name="minimumPlantIterations" type="xsd:integer"/>

attribute ConvergenceLimits/@maximumPlantIterations
type xsd:integer
source <xsd:attribute name="maximumPlantIterations" type="xsd:integer"/>

element CoolingCoilSetpointResetType
diagram GreenBuildingXML_Ver7.02_p53.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  coolingCoilSetpointResetTypeEnum
source <xsd:element name="CoolingCoilSetpointResetType">

<xsd:complexType>

<xsd:attribute name="unit" type="coolingCoilSetpointResetTypeEnum"/>

</xsd:complexType>
</xsd:element>

attribute CoolingCoilSetpointResetType/@unit
type coolingCoilSetpointResetTypeEnum
facets
Kind Value Annotation
enumeration None
enumeration Warmest
enumeration OutdoorAirTemperatureReset
enumeration WarmestTemperatureFirst
source <xsd:attribute name="unit" type="coolingCoilSetpointResetTypeEnum"/>

element CoolingCoilType
diagram GreenBuildingXML_Ver7.02_p54.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  coolingCoilTypeEnum
source <xsd:element name="CoolingCoilType">

<xsd:complexType>

<xsd:attribute name="unit" type="coolingCoilTypeEnum"/>

</xsd:complexType>
</xsd:element>

attribute CoolingCoilType/@unit
type coolingCoilTypeEnum
facets
Kind Value Annotation
enumeration ChilledWater
enumeration ChilledWaterDetailedFlatModel
enumeration DirectExpansion
source <xsd:attribute name="unit" type="coolingCoilTypeEnum"/>

element CoolingSizingFactor
diagram GreenBuildingXML_Ver7.02_p55.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Zone
source <xsd:element name="CoolingSizingFactor" type="xsd:decimal"/>

element Coordinate
diagram GreenBuildingXML_Ver7.02_p56.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element CartesianPoint
annotation
documentation
This is the an x, y, or z length measurement from the origin.
appinfo
<xhtml:a href="http://cig.bre.co.uk/iai_uk/documentation/IfcR2x_Final/ifcmeasureresource/lexical/ifclengthmeasure.html">IfcLengthMeasure</xhtml:a>
source <xsd:element name="Coordinate">

<xsd:annotation>

<xsd:documentation>This is the an x, y, or z length measurement from the origin.</xsd:documentation>

<xsd:appinfo>

<xhtml:a href="http://cig.bre.co.uk/iai_uk/documentation/IfcR2x_Final/ifcmeasureresource/lexical/ifclengthmeasure.html">IfcLengthMeasure</xhtml:a>

</xsd:appinfo>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal"/>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

element Cost
diagram GreenBuildingXML_Ver7.02_p57.png
namespace http://www.gbxml.org/schema
properties
content complex
children CostValue Reference
used by
elements AirLoopEquipment Construction ExtEquip HydronicLoop HydronicLoopEquipment IntEquip Layer LightingSystem Material Transportation Vegetation WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
costType  costTypeEnum  required
source <xsd:element name="Cost">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="CostValue"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="costType" type="costTypeEnum" use="required"/>

</xsd:complexType>
</xsd:element>

attribute Cost/@costType
type costTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration CO2
enumeration SOx
enumeration NOx
enumeration EmbodiedEnergyTransportation
enumeration EmbodiedEnergyManufacture
enumeration EmbodiedEnergyInstallation
enumeration EmbodiedEnergyTotal
enumeration PurchaseCost
enumeration DeliveryCost
enumeration FirstCost
enumeration MonthlyCost
enumeration AnnualCost
enumeration MaintenanceCost
enumeration OverhaulCost
enumeration InstallationCost
source <xsd:attribute name="costType" type="costTypeEnum" use="required"/>

element CostValue
diagram GreenBuildingXML_Ver7.02_p58.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Cost
attributes
Name  Type  Use  Default  Fixed  Annotation
currency  currencyTypeEnum
unit  xsd:string  optional
source <xsd:element name="CostValue">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="currency" type="currencyTypeEnum"/>

<xsd:attribute name="unit" type="xsd:string" use="optional"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute CostValue/@currency
type currencyTypeEnum
facets
Kind Value Annotation
enumeration USDollars
enumeration CanadianDollars
enumeration Pesos
enumeration Euros
enumeration Yen
enumeration IndianRupee
enumeration Yuan
enumeration TaiwanDollar
enumeration EnglishPound
enumeration Mark
enumeration Franc
enumeration Ruble
enumeration Real
enumeration NewZealandDollar
enumeration AustralianDollar
source <xsd:attribute name="currency" type="currencyTypeEnum"/>

attribute CostValue/@unit
type xsd:string
properties
use optional
source <xsd:attribute name="unit" type="xsd:string" use="optional"/>

element Country
diagram GreenBuildingXML_Ver7.02_p59.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements PersonInfo Weather
source <xsd:element name="Country" type="xsd:string"/>

element CreatedBy
diagram GreenBuildingXML_Ver7.02_p60.png
namespace http://www.gbxml.org/schema
properties
content complex
children CADModelId
used by
element DocumentHistory
attributes
Name  Type  Use  Default  Fixed  Annotation
personId  xsd:IDREF  required
programId  xsd:IDREF  required
date  xsd:dateTime  required
annotation
documentation
Denotes the time this file has been created, as well as the person and program used to create this file.
source <xsd:element name="CreatedBy">

<xsd:annotation>

<xsd:documentation>Denotes the time this file has been created, as well as the person and program used to create this file.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="CADModelId" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="personId" type="xsd:IDREF" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="required"/>

<xsd:attribute name="date" type="xsd:dateTime" use="required"/>

</xsd:complexType>
</xsd:element>

attribute CreatedBy/@personId
type xsd:IDREF
properties
use required
source <xsd:attribute name="personId" type="xsd:IDREF" use="required"/>

attribute CreatedBy/@programId
type xsd:IDREF
properties
use required
source <xsd:attribute name="programId" type="xsd:IDREF" use="required"/>

attribute CreatedBy/@date
type xsd:dateTime
properties
use required
source <xsd:attribute name="date" type="xsd:dateTime" use="required"/>

element CyclesPerWeek
diagram GreenBuildingXML_Ver7.02_p61.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
elements ExtEquip IntEquip
annotation
documentation
Number of operation cycles per week.
source <xsd:element name="CyclesPerWeek" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Number of operation cycles per week.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element CyclingRateMax
diagram GreenBuildingXML_Ver7.02_p62.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Maximum cycling rate (cycles/hr)
source <xsd:element name="CyclingRateMax" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Maximum cycling rate (cycles/hr)</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DamperHeatingAction
diagram GreenBuildingXML_Ver7.02_p63.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  damperHeatingActionEnum
source <xsd:element name="DamperHeatingAction">

<xsd:complexType>

<xsd:attribute name="unit" type="damperHeatingActionEnum"/>

</xsd:complexType>
</xsd:element>

attribute DamperHeatingAction/@unit
type damperHeatingActionEnum
facets
Kind Value Annotation
enumeration Normal
enumeration Reverse
source <xsd:attribute name="unit" type="damperHeatingActionEnum"/>

element Data
diagram GreenBuildingXML_Ver7.02_p64.png
namespace http://www.gbxml.org/schema
properties
content complex
children IndependentValue DependentValue
used by
element PointData
source <xsd:element name="Data">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="IndependentValue" maxOccurs="2"/>

<xsd:element ref="DependentValue" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element Day
diagram GreenBuildingXML_Ver7.02_p65.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
element WeekSchedule
attributes
Name  Type  Use  Default  Fixed  Annotation
dayScheduleIdRef  xsd:IDREF  required
documentation
ID for operation schedules
dayType  dayTypeEnum  required
source <xsd:element name="Day">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="dayScheduleIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID for operation schedules</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="dayType" type="dayTypeEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Day/@dayScheduleIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID for operation schedules
source <xsd:attribute name="dayScheduleIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID for operation schedules</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Day/@dayType
type dayTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Weekday
enumeration Weekend
enumeration Holiday
enumeration WeekendOrHoliday
enumeration HeatingDesignDay
enumeration CoolingDesignDay
enumeration Sun
enumeration Mon
enumeration Tue
enumeration Wed
enumeration Thu
enumeration Fri
enumeration Sat
enumeration Custom
enumeration All
source <xsd:attribute name="dayType" type="dayTypeEnum" use="required"/>

element DaylightSavings
diagram GreenBuildingXML_Ver7.02_p66.png
namespace http://www.gbxml.org/schema
type xsd:boolean
properties
content simple
used by
element Campus
annotation
documentation
Allows for including daylight savings time
source <xsd:element name="DaylightSavings" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>Allows for including daylight savings time</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DaySchedule
diagram GreenBuildingXML_Ver7.02_p67.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description ScheduleValue
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
scheduleType  scheduleTypeEnum  required
scheduleTypeLimitsId  xsd:string
annotation
documentation
Set of values that define the profile of one 24 hour period divided equally to the number of values entered.
source <xsd:element name="DaySchedule">

<xsd:annotation>

<xsd:documentation>Set of values that define the profile of one 24 hour period divided equally to the number of values entered.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="ScheduleValue" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="scheduleType" type="scheduleTypeEnum" use="required"/>

<xsd:attribute name="scheduleTypeLimitsId" type="xsd:string"/>

</xsd:complexType>
</xsd:element>

attribute DaySchedule/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute DaySchedule/@scheduleType
type scheduleTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Temp
enumeration Fraction
enumeration OnOff
enumeration ResetTemp
enumeration ActivityLevel
source <xsd:attribute name="scheduleType" type="scheduleTypeEnum" use="required"/>

attribute DaySchedule/@scheduleTypeLimitsId
type xsd:string
source <xsd:attribute name="scheduleTypeLimitsId" type="xsd:string"/>

element DDDayCool
diagram GreenBuildingXML_Ver7.02_p68.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Day of the month that the cooling design day occurs on
source <xsd:element name="DDDayCool" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Day of the month that the cooling design day occurs on</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDDayHeat
diagram GreenBuildingXML_Ver7.02_p69.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Day of the month that the heating design day occurs on
source <xsd:element name="DDDayHeat" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Day of the month that the heating design day occurs on</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDDaylightCool
diagram GreenBuildingXML_Ver7.02_p70.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Flag for daylight savings on the cooling design day
source <xsd:element name="DDDaylightCool" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Flag for daylight savings on the cooling design day</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDDaylightHeat
diagram GreenBuildingXML_Ver7.02_p71.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Flag for daylight savings for the heating design day
source <xsd:element name="DDDaylightHeat" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Flag for daylight savings for the heating design day</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDDBCool
diagram GreenBuildingXML_Ver7.02_p72.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Cooling design day dry bulb temperature
source <xsd:element name="DDDBCool">

<xsd:annotation>

<xsd:documentation>Cooling design day dry bulb temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDDBCool/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element DDDBHeat
diagram GreenBuildingXML_Ver7.02_p73.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Heating design day dry bulb temperature
source <xsd:element name="DDDBHeat">

<xsd:annotation>

<xsd:documentation>Heating design day dry bulb temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDDBHeat/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element DDDBRangeCool
diagram GreenBuildingXML_Ver7.02_p74.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Cooling design day dry bulb temperature range
source <xsd:element name="DDDBRangeCool">

<xsd:annotation>

<xsd:documentation>Cooling design day dry bulb temperature range</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDDBRangeCool/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element DDDBRangeHeat
diagram GreenBuildingXML_Ver7.02_p75.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Heating design day dry bulb temperature range
source <xsd:element name="DDDBRangeHeat">

<xsd:annotation>

<xsd:documentation>Heating design day dry bulb temperature range</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDDBRangeHeat/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element DDGroundTCool
diagram GreenBuildingXML_Ver7.02_p76.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Ground temperature on the cooling design day
source <xsd:element name="DDGroundTCool">

<xsd:annotation>

<xsd:documentation>Ground temperature on the cooling design day</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDGroundTCool/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element DDGroundTHeat
diagram GreenBuildingXML_Ver7.02_p77.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Ground temperature for the heating design day
source <xsd:element name="DDGroundTHeat">

<xsd:annotation>

<xsd:documentation>Ground temperature for the heating design day</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDGroundTHeat/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element DDHiHrCool
diagram GreenBuildingXML_Ver7.02_p78.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Weather
annotation
documentation
Cooling design day hour of high temperature
source <xsd:element name="DDHiHrCool" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Cooling design day hour of high temperature</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDHiHrHeat
diagram GreenBuildingXML_Ver7.02_p79.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Weather
annotation
documentation
Heating design day hour of high temperature
source <xsd:element name="DDHiHrHeat" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Heating design day hour of high temperature</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDLoHrCool
diagram GreenBuildingXML_Ver7.02_p80.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Weather
annotation
documentation
Cooling design day hour of low temperature
source <xsd:element name="DDLoHrCool" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Cooling design day hour of low temperature</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDLoHrHeat
diagram GreenBuildingXML_Ver7.02_p81.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Weather
annotation
documentation
Heating design day hour of low temperature
source <xsd:element name="DDLoHrHeat" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Heating design day hour of low temperature</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDMonthCool
diagram GreenBuildingXML_Ver7.02_p82.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Month the cooling design day lands on. 1=Jan 12=Dec
source <xsd:element name="DDMonthCool" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Month the cooling design day lands on. 1=Jan 12=Dec</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDMonthHeat
diagram GreenBuildingXML_Ver7.02_p83.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Month that the heating design day occurs on. 1=Jan 12=Dec
source <xsd:element name="DDMonthHeat" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Month that the heating design day occurs on. 1=Jan 12=Dec</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDPressureCool
diagram GreenBuildingXML_Ver7.02_p84.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  pressureUnitEnum
annotation
documentation
Cooling design day atmospheric pressure
source <xsd:element name="DDPressureCool">

<xsd:annotation>

<xsd:documentation>Cooling design day atmospheric pressure</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="pressureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDPressureCool/@unit
type pressureUnitEnum
facets
Kind Value Annotation
enumeration PSI
enumeration kPa
enumeration Atmospheres
enumeration InchesOfH2O
enumeration CentimetersOfH2O
enumeration InchesOfMercury
enumeration CentimetersOfMercury
enumeration MillimetersOfMercury
enumeration Pascals
source <xsd:attribute name="unit" type="pressureUnitEnum"/>

element DDPressureHeat
diagram GreenBuildingXML_Ver7.02_p85.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  pressureUnitEnum
annotation
documentation
Heating design day atmospheric pressure
source <xsd:element name="DDPressureHeat">

<xsd:annotation>

<xsd:documentation>Heating design day atmospheric pressure</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="pressureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDPressureHeat/@unit
type pressureUnitEnum
facets
Kind Value Annotation
enumeration PSI
enumeration kPa
enumeration Atmospheres
enumeration InchesOfH2O
enumeration CentimetersOfH2O
enumeration InchesOfMercury
enumeration CentimetersOfMercury
enumeration MillimetersOfMercury
enumeration Pascals
source <xsd:attribute name="unit" type="pressureUnitEnum"/>

element DDRainCool
diagram GreenBuildingXML_Ver7.02_p86.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Flag for rain on the cooling design day. 0=no rain 1=rain
source <xsd:element name="DDRainCool" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Flag for rain on the cooling design day. 0=no rain 1=rain</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDRainHeat
diagram GreenBuildingXML_Ver7.02_p87.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Heating design day rain flag. 0=no rain, 1=rain
source <xsd:element name="DDRainHeat" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Heating design day rain flag. 0=no rain, 1=rain</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDSkyClearnessCool
diagram GreenBuildingXML_Ver7.02_p88.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
Cooling design day sky clearness
source <xsd:element name="DDSkyClearnessCool">

<xsd:annotation>

<xsd:documentation>Cooling design day sky clearness</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDSkyClearnessCool/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element DDSkyClearnessHeat
diagram GreenBuildingXML_Ver7.02_p89.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
Heating design day sky clearness
source <xsd:element name="DDSkyClearnessHeat">

<xsd:annotation>

<xsd:documentation>Heating design day sky clearness</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDSkyClearnessHeat/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element DDSnowCool
diagram GreenBuildingXML_Ver7.02_p90.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Flag for snow on the cooling design day. 0=not snowing 1=snowing
source <xsd:element name="DDSnowCool" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Flag for snow on the cooling design day. 0=not snowing 1=snowing</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDSnowHeat
diagram GreenBuildingXML_Ver7.02_p91.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element Weather
annotation
documentation
Heating design day snow flag. 0=not snowing 1=snowing
source <xsd:element name="DDSnowHeat" type="xsd:integer">

<xsd:annotation>

<xsd:documentation>Heating design day snow flag. 0=not snowing 1=snowing</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DDWBCool
diagram GreenBuildingXML_Ver7.02_p92.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Cooling design day wet bulb temperature
source <xsd:element name="DDWBCool">

<xsd:annotation>

<xsd:documentation>Cooling design day wet bulb temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDWBCool/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element DDWBHeat
diagram GreenBuildingXML_Ver7.02_p93.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Heating design day wet bulb temperature
source <xsd:element name="DDWBHeat">

<xsd:annotation>

<xsd:documentation>Heating design day wet bulb temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDWBHeat/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element DDWindDirCool
diagram GreenBuildingXML_Ver7.02_p94.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  directionUnitEnum  required
annotation
documentation
Cooing design day wind direction
source <xsd:element name="DDWindDirCool">

<xsd:annotation>

<xsd:documentation>Cooing design day wind direction</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="directionUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDWindDirCool/@unit
type directionUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration DegreeDecimalFromNorth
source <xsd:attribute name="unit" type="directionUnitEnum" use="required"/>

element DDWindDirHeat
diagram GreenBuildingXML_Ver7.02_p95.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  directionUnitEnum  required
annotation
documentation
Heating design day wind direction
source <xsd:element name="DDWindDirHeat">

<xsd:annotation>

<xsd:documentation>Heating design day wind direction</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="directionUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDWindDirHeat/@unit
type directionUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration DegreeDecimalFromNorth
source <xsd:attribute name="unit" type="directionUnitEnum" use="required"/>

element DDWindSpeedCool
diagram GreenBuildingXML_Ver7.02_p96.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  velocityUnitEnum  required
annotation
documentation
Cooling design day wind speed
source <xsd:element name="DDWindSpeedCool">

<xsd:annotation>

<xsd:documentation>Cooling design day wind speed</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="velocityUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDWindSpeedCool/@unit
type velocityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration MetersPerSecond
enumeration MilesPerHour
enumeration Knots
source <xsd:attribute name="unit" type="velocityUnitEnum" use="required"/>

element DDWindSpeedHeat
diagram GreenBuildingXML_Ver7.02_p97.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  velocityUnitEnum  required
annotation
documentation
Heating design day wind speed
source <xsd:element name="DDWindSpeedHeat">

<xsd:annotation>

<xsd:documentation>Heating design day wind speed</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="velocityUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DDWindSpeedHeat/@unit
type velocityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration MetersPerSecond
enumeration MilesPerHour
enumeration Knots
source <xsd:attribute name="unit" type="velocityUnitEnum" use="required"/>

element DeltaP
diagram GreenBuildingXML_Ver7.02_p98.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment HydronicLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  deltaPUnitEnum  required
hydronicLoopType  loopTypeEnum
hydronicLoopIdRef  xsd:IDREF
conditioningType  conditioningTypeEnum
documentation
Use this attribute for conditioning units with both heating and cooling.
performanceId  xsd:IDREF
documentation
Use this attribute to point to a performance curve if one is provided
annotation
documentation
Difference in pressure
source <xsd:element name="DeltaP">

<xsd:annotation>

<xsd:documentation>Difference in pressure</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="deltaPUnitEnum" use="required"/>

<xsd:attribute name="hydronicLoopType" type="loopTypeEnum"/>

<xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF"/>

<xsd:attribute name="conditioningType" type="conditioningTypeEnum">

<xsd:annotation>

<xsd:documentation>Use this attribute for conditioning units with both heating and cooling.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="performanceId" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Use this attribute to point to a performance curve if one is provided</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DeltaP/@unit
type deltaPUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration PSI
enumeration kPa
enumeration Atmospheres
enumeration InchesOfH2O
enumeration CentimetersOfH2O
enumeration InchesOfMercury
enumeration CentimetersOfMercury
enumeration MillimetersOfMercury
enumeration Pascals
source <xsd:attribute name="unit" type="deltaPUnitEnum" use="required"/>

attribute DeltaP/@hydronicLoopType
type loopTypeEnum
facets
Kind Value Annotation
enumeration PrimaryChilledWater
enumeration SecondaryChilledWater
enumeration HotWater
enumeration CondenserWater
enumeration DomesticHotWater
enumeration WaterLoopHeatPump
enumeration TwoPipe
enumeration PotableWaterLoop
enumeration VRFLoop
source <xsd:attribute name="hydronicLoopType" type="loopTypeEnum"/>

attribute DeltaP/@hydronicLoopIdRef
type xsd:IDREF
source <xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF"/>

attribute DeltaP/@conditioningType
type conditioningTypeEnum
facets
Kind Value Annotation
enumeration Heating
enumeration Cooling
enumeration HeatingAndCooling
annotation
documentation
Use this attribute for conditioning units with both heating and cooling.
source <xsd:attribute name="conditioningType" type="conditioningTypeEnum">

<xsd:annotation>

<xsd:documentation>Use this attribute for conditioning units with both heating and cooling.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute DeltaP/@performanceId
type xsd:IDREF
annotation
documentation
Use this attribute to point to a performance curve if one is provided
source <xsd:attribute name="performanceId" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Use this attribute to point to a performance curve if one is provided</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element DeltaT
diagram GreenBuildingXML_Ver7.02_p99.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment HydronicLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
conditioningType  conditioningTypeEnum
documentation
Use this attribute for conditioning units with both heating and cooling.
annotation
documentation
Difference in temperature
source <xsd:element name="DeltaT">

<xsd:annotation>

<xsd:documentation>Difference in temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

<xsd:attribute name="conditioningType" type="conditioningTypeEnum">

<xsd:annotation>

<xsd:documentation>Use this attribute for conditioning units with both heating and cooling.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DeltaT/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

attribute DeltaT/@conditioningType
type conditioningTypeEnum
facets
Kind Value Annotation
enumeration Heating
enumeration Cooling
enumeration HeatingAndCooling
annotation
documentation
Use this attribute for conditioning units with both heating and cooling.
source <xsd:attribute name="conditioningType" type="conditioningTypeEnum">

<xsd:annotation>

<xsd:documentation>Use this attribute for conditioning units with both heating and cooling.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Density
diagram GreenBuildingXML_Ver7.02_p100.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Fire Gap Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  densityUnitEnum  required
source <xsd:element name="Density">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="densityUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Density/@unit
type densityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration GramsPerCubicCm
enumeration LbsPerCubicIn
enumeration LbsPerCubicFt
enumeration KgPerCubicM
source <xsd:attribute name="unit" type="densityUnitEnum" use="required"/>

element DensityFofT
diagram GreenBuildingXML_Ver7.02_p101.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Gap
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  densityFofTUnitEnum  required
annotation
documentation
Density as a function of temperature
source <xsd:element name="DensityFofT">

<xsd:annotation>

<xsd:documentation>Density as a function of temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="densityFofTUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DensityFofT/@unit
type densityFofTUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration LbsPerCubicFtF
enumeration KgPerCubicMK
source <xsd:attribute name="unit" type="densityFofTUnitEnum" use="required"/>

element DependentValue
diagram GreenBuildingXML_Ver7.02_p102.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Data
annotation
documentation
Value of a dependent variable for this data point
source <xsd:element name="DependentValue" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Value of a dependent variable for this data point</xsd:documentation>

</xsd:annotation>
</xsd:element>

element DependentVariable
diagram GreenBuildingXML_Ver7.02_p103.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description
used by
elements Equation PointData
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  xsd:string  required
dataType  xsd:string  required
minValue  xsd:decimal
documentation
Use minValue and maxValue to define constraints on the curve.
maxValue  xsd:decimal
source <xsd:element name="DependentVariable">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="unit" type="xsd:string" use="required"/>

<xsd:attribute name="dataType" type="xsd:string" use="required"/>

<xsd:attribute name="minValue" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Use minValue and maxValue to define constraints on the curve.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="maxValue" type="xsd:decimal"/>

</xsd:complexType>
</xsd:element>

attribute DependentVariable/@unit
type xsd:string
properties
use required
source <xsd:attribute name="unit" type="xsd:string" use="required"/>

attribute DependentVariable/@dataType
type xsd:string
properties
use required
source <xsd:attribute name="dataType" type="xsd:string" use="required"/>

attribute DependentVariable/@minValue
type xsd:decimal
annotation
documentation
Use minValue and maxValue to define constraints on the curve.
source <xsd:attribute name="minValue" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Use minValue and maxValue to define constraints on the curve.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute DependentVariable/@maxValue
type xsd:decimal
source <xsd:attribute name="maxValue" type="xsd:decimal"/>

element Description
diagram GreenBuildingXML_Ver7.02_p104.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements AirLoop AirLoopEquipment AirSystem AnalysisParameter Blind Building Campus Construction DaySchedule DependentVariable ExtEquip Frame Gap Glaze HolidaysModeled HydronicLoop HydronicLoopEquipment IndependentVariable IntEquip Layer Location Material Meter Opening Results Schedule ShellGeometry Space Surface Weather WeekSchedule WindowType XAxis YAxis YearSchedule Zone ZoneHVACEquipment
source <xsd:element name="Description" type="xsd:string"/>

element DesignCoolRH
diagram GreenBuildingXML_Ver7.02_p105.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
annotation
documentation
Relative humidity set point for cooling.
source <xsd:element name="DesignCoolRH">

<xsd:annotation>

<xsd:documentation>Relative humidity set point for cooling.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal"/>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

element DesignCoolT
diagram GreenBuildingXML_Ver7.02_p106.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements HydronicLoop Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Design temperature for cooling
source <xsd:element name="DesignCoolT">

<xsd:annotation>

<xsd:documentation>Design temperature for cooling</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DesignCoolT/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

attribute DesignCoolT/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element DesignFlow
diagram GreenBuildingXML_Ver7.02_p107.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element FlowControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum
source <xsd:element name="DesignFlow">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DesignFlow/@unit
type flowUnitEnum
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum"/>

element DesignHeatRH
diagram GreenBuildingXML_Ver7.02_p108.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
annotation
documentation
Relative humidity set point for heating.
source <xsd:element name="DesignHeatRH">

<xsd:annotation>

<xsd:documentation>Relative humidity set point for heating.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal"/>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

element DesignHeatT
diagram GreenBuildingXML_Ver7.02_p109.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Design temperature for heating
source <xsd:element name="DesignHeatT">

<xsd:annotation>

<xsd:documentation>Design temperature for heating</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DesignHeatT/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

attribute DesignHeatT/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element DesignPressure
diagram GreenBuildingXML_Ver7.02_p110.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element PressureControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  pressureUnitEnum
source <xsd:element name="DesignPressure">

<xsd:complexType>

<xsd:attribute name="unit" type="pressureUnitEnum"/>

</xsd:complexType>
</xsd:element>

attribute DesignPressure/@unit
type pressureUnitEnum
facets
Kind Value Annotation
enumeration PSI
enumeration kPa
enumeration Atmospheres
enumeration InchesOfH2O
enumeration CentimetersOfH2O
enumeration InchesOfMercury
enumeration CentimetersOfMercury
enumeration MillimetersOfMercury
enumeration Pascals
source <xsd:attribute name="unit" type="pressureUnitEnum"/>

element DesignTemp
diagram GreenBuildingXML_Ver7.02_p111.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element TemperatureControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
source <xsd:element name="DesignTemp">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute DesignTemp/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element Dimensions
diagram GreenBuildingXML_Ver7.02_p112.png
namespace http://www.gbxml.org/schema
properties
content complex
children Height Width Length
used by
element LightingSystem
source <xsd:element name="Dimensions">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Height" minOccurs="0"/>

<xsd:element ref="Width" minOccurs="0"/>

<xsd:element ref="Length" minOccurs="0"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element DocumentHistory
diagram GreenBuildingXML_Ver7.02_p113.png
namespace http://www.gbxml.org/schema
properties
content complex
children CreatedBy ProgramInfo PersonInfo ModifiedBy
used by
element gbXML
annotation
documentation
Contains details about people and programs that created and modified this file
source <xsd:element name="DocumentHistory">

<xsd:annotation>

<xsd:documentation>Contains details about people and programs that created and modified this file</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="2" maxOccurs="unbounded">

<xsd:element ref="CreatedBy" minOccurs="1" maxOccurs="1"/>

<xsd:element ref="ProgramInfo" minOccurs="1" maxOccurs="unbounded"/>

<xsd:element ref="PersonInfo" minOccurs="1" maxOccurs="unbounded"/>

<xsd:element ref="ModifiedBy" minOccurs="1" maxOccurs="unbounded"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element EconomizerLockout
diagram GreenBuildingXML_Ver7.02_p114.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  economizerLockoutEnum
source <xsd:element name="EconomizerLockout">

<xsd:complexType>

<xsd:attribute name="unit" type="economizerLockoutEnum"/>

</xsd:complexType>
</xsd:element>

attribute EconomizerLockout/@unit
type economizerLockoutEnum
facets
Kind Value Annotation
enumeration NoLockout
enumeration LockoutWithHeating
enumeration LockoutWithCompressor
source <xsd:attribute name="unit" type="economizerLockoutEnum"/>

element Efficiency
diagram GreenBuildingXML_Ver7.02_p115.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment ExtEquip HydronicLoopEquipment IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
standardsType  standardsTypeEnum
documentation
Use the standardsType attribute when the efficiency is measured at standard conditions.
efficiencyType  efficiencyTypeEnum  required
operationType  conditioningTypeEnum
documentation
Use this attribute for conditioning units with both heating and cooling.
performanceId  xsd:IDREF
documentation
Use this attribute to point to a performance curve if one is provided
source <xsd:element name="Efficiency">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="standardsType" type="standardsTypeEnum">

<xsd:annotation>

<xsd:documentation>Use the standardsType attribute when the efficiency is measured at standard conditions.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="efficiencyType" type="efficiencyTypeEnum" use="required"/>

<xsd:attribute name="operationType" type="conditioningTypeEnum">

<xsd:annotation>

<xsd:documentation>Use this attribute for conditioning units with both heating and cooling.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="performanceId" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Use this attribute to point to a performance curve if one is provided</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Efficiency/@standardsType
type standardsTypeEnum
facets
Kind Value Annotation
enumeration DOE
documentation
Department of Energy
enumeration ARI
documentation
Air-Conditioning and Refrigeration Institute
enumeration ANSI
documentation
American National Standards Institute
enumeration NEMA
documentation
National Electrical Manufacturers Association
annotation
documentation
Use the standardsType attribute when the efficiency is measured at standard conditions.
source <xsd:attribute name="standardsType" type="standardsTypeEnum">

<xsd:annotation>

<xsd:documentation>Use the standardsType attribute when the efficiency is measured at standard conditions.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Efficiency/@efficiencyType
type efficiencyTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration COP
documentation
Coefficient of Performance
enumeration EER
documentation
Energy Efficiency Ratio
enumeration SEER
documentation
Seasonal Energy Efficiency Ratio
enumeration AFUE
documentation
Annual Fuel Utilization Efficiency
enumeration HSPF
documentation
Heating Seasonal Performance Factor
enumeration effectiveness
enumeration EnergyFactor
enumeration ThermalEff
documentation
Thermal Efficiency
enumeration MotorEff
documentation
Motor Efficiency
enumeration FanEff
documentation
Fan Efficiency
enumeration MechanicalEff
documentation
Mechanical Efficiency
enumeration BoilerEff
documentation
Boiler Efficiency
enumeration kWPerTon
enumeration kWPerkW
enumeration BTUPerHourPerF
enumeration kWPerC
source <xsd:attribute name="efficiencyType" type="efficiencyTypeEnum" use="required"/>

attribute Efficiency/@operationType
type conditioningTypeEnum
facets
Kind Value Annotation
enumeration Heating
enumeration Cooling
enumeration HeatingAndCooling
annotation
documentation
Use this attribute for conditioning units with both heating and cooling.
source <xsd:attribute name="operationType" type="conditioningTypeEnum">

<xsd:annotation>

<xsd:documentation>Use this attribute for conditioning units with both heating and cooling.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Efficiency/@performanceId
type xsd:IDREF
annotation
documentation
Use this attribute to point to a performance curve if one is provided
source <xsd:attribute name="performanceId" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Use this attribute to point to a performance curve if one is provided</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element ElecLoad
diagram GreenBuildingXML_Ver7.02_p116.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements ExtEquip IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  powerUnitEnum  required
annotation
documentation
Electric load
source <xsd:element name="ElecLoad">

<xsd:annotation>

<xsd:documentation>Electric load</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="powerUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute ElecLoad/@unit
type powerUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Watt
enumeration Kilowatt
enumeration Horsepower
enumeration KilogramForceMeterPerSecond
enumeration BtuPerSecond
enumeration FootPoundForcePerSecond
enumeration KilocaloriesPerSecond
enumeration BtuPerHour
source <xsd:attribute name="unit" type="powerUnitEnum" use="required"/>

element Elevation
diagram GreenBuildingXML_Ver7.02_p117.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Location
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  lengthUnitEnum
annotation
documentation
Height above sea level
source <xsd:element name="Elevation">

<xsd:annotation>

<xsd:documentation>Height above sea level</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="lengthUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Elevation/@unit
type lengthUnitEnum
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum"/>

element Email1Address
diagram GreenBuildingXML_Ver7.02_p118.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="Email1Address" type="xsd:string"/>

element EmissionRate
diagram GreenBuildingXML_Ver7.02_p119.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element IndoorAirQuality
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  emissionUnitEnum  required
source <xsd:element name="EmissionRate">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="emissionUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute EmissionRate/@unit
type emissionUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration PoundsPerHour
enumeration KilogramsPerHour
enumeration GramsPerHour
source <xsd:attribute name="unit" type="emissionUnitEnum" use="required"/>

element Emittance
diagram GreenBuildingXML_Ver7.02_p120.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Blind Construction FireFace Glaze Material Opening WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
type  emittanceTypeEnum  required
surfaceType  surfaceDescriptionEnum  required
annotation
documentation
Infra-red emissivity
source <xsd:element name="Emittance">

<xsd:annotation>

<xsd:documentation>Infra-red emissivity</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

<xsd:attribute name="type" type="emittanceTypeEnum" use="required"/>

<xsd:attribute name="surfaceType" type="surfaceDescriptionEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Emittance/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

attribute Emittance/@type
type emittanceTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration IntIR
enumeration ExtIR
source <xsd:attribute name="type" type="emittanceTypeEnum" use="required"/>

attribute Emittance/@surfaceType
type surfaceDescriptionEnum
properties
use required
facets
Kind Value Annotation
enumeration 1
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 1, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 1 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 1 represents the surface that points away from the building interior.
enumeration 2
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 2, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 2 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 2 represents the surface that points towards the building interior.
enumeration Both
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to Both, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated both Surface 1 and Surface 2 of the material's 2 surfaces [it is assumed that the material is a large planar object].  See the enumerations above for a description of Surface 1 and 2.
source <xsd:attribute name="surfaceType" type="surfaceDescriptionEnum" use="required"/>

element EndDate
diagram GreenBuildingXML_Ver7.02_p121.png
namespace http://www.gbxml.org/schema
type xsd:date
properties
content simple
used by
elements YearModeled YearSchedule
annotation
documentation
Month and day year schedule ends
source <xsd:element name="EndDate" type="xsd:date">

<xsd:annotation>

<xsd:documentation>Month and day year schedule ends</xsd:documentation>

</xsd:annotation>
</xsd:element>

element Energy
diagram GreenBuildingXML_Ver7.02_p122.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment ExtEquip HydronicLoopEquipment IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  energyUnitEnum  required
valueType  valueTypeEnum  required
timePeriod  timePeriodEnum  required
resourceType  resourceTypeEnum  required
meterIdRef  xsd:IDREF
documentation
ID for a resource meter
source <xsd:element name="Energy">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="energyUnitEnum" use="required"/>

<xsd:attribute name="valueType" type="valueTypeEnum" use="required"/>

<xsd:attribute name="timePeriod" type="timePeriodEnum" use="required"/>

<xsd:attribute name="resourceType" type="resourceTypeEnum" use="required"/>

<xsd:attribute name="meterIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for a resource meter</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Energy/@unit
type energyUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration KilowattHours
enumeration Joules
enumeration BTU
enumeration Therms
source <xsd:attribute name="unit" type="energyUnitEnum" use="required"/>

attribute Energy/@valueType
type valueTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Historical
enumeration Simulated
enumeration Rated
enumeration Measured
source <xsd:attribute name="valueType" type="valueTypeEnum" use="required"/>

attribute Energy/@timePeriod
type timePeriodEnum
properties
use required
facets
Kind Value Annotation
enumeration Annual
enumeration Jan
enumeration Feb
enumeration Mar
enumeration Apr
enumeration May
enumeration Jun
enumeration Jul
enumeration Aug
enumeration Sep
enumeration Oct
enumeration Nov
enumeration Dec
source <xsd:attribute name="timePeriod" type="timePeriodEnum" use="required"/>

attribute Energy/@resourceType
type resourceTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Electricity
enumeration NaturalGas
enumeration Propane
enumeration FuelOil1
enumeration FuelOil2
enumeration FuelOil4
enumeration Water
enumeration ChilledWater
enumeration HotWater
enumeration Steam
source <xsd:attribute name="resourceType" type="resourceTypeEnum" use="required"/>

attribute Energy/@meterIdRef
type xsd:IDREF
annotation
documentation
ID for a resource meter
source <xsd:attribute name="meterIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for a resource meter</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Enthalpy
diagram GreenBuildingXML_Ver7.02_p123.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  enthalpyUnitEnum  required
enthalpyType  enthalpyTypeEnum  optional
annotation
documentation
Minimum enthalpy setpoint for air-side economizer.
source <xsd:element name="Enthalpy">

<xsd:annotation>

<xsd:documentation>Minimum enthalpy setpoint for air-side economizer.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="enthalpyUnitEnum" use="required"/>

<xsd:attribute name="enthalpyType" type="enthalpyTypeEnum" use="optional"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Enthalpy/@unit
type enthalpyUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration BTUPerLb
enumeration KJPerKg
source <xsd:attribute name="unit" type="enthalpyUnitEnum" use="required"/>

attribute Enthalpy/@enthalpyType
type enthalpyTypeEnum
properties
use optional
facets
Kind Value Annotation
enumeration EconomizerUpperLimit
enumeration AirSideEconomizerMinSetpoint
enumeration EconomizerMaxLimit
source <xsd:attribute name="enthalpyType" type="enthalpyTypeEnum" use="optional"/>

element Equation
diagram GreenBuildingXML_Ver7.02_p124.png
namespace http://www.gbxml.org/schema
properties
content complex
children Expression IndependentVariable DependentVariable
used by
element Performance
annotation
documentation
The Equation element allows data for n-dimensional algebraic data to be entered. The Expression element should contain an dependent variable followed by an = sign and an equation containing independent variables. The independent and dependent variables are then defined by their respective tags. The only mathematical operations allowed are ^ (power), + (addition), - (subtraction), / (division), and * (multiplication). Example: z=x+2*y^2 would have an DependentVariable with a name = z, and two IndependentVariable(s) with names of x and y. Descriptions would be included for each variable, along with unit and dataType information identifying the variable and its role.
source <xsd:element name="Equation">

<xsd:annotation>

<xsd:documentation>The Equation element allows data for n-dimensional algebraic data to be entered. The Expression element should contain an dependent variable followed by an = sign and an equation containing independent variables. The independent and dependent variables are then defined by their respective tags. The only mathematical operations allowed are ^ (power), + (addition), - (subtraction), / (division), and * (multiplication). Example: z=x+2*y^2 would have an DependentVariable with a name = z, and two IndependentVariable(s) with names of x and y. Descriptions would be included for each variable, along with unit and dataType information identifying the variable and its role. </xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Expression"/>

<xsd:element ref="IndependentVariable" maxOccurs="unbounded"/>

<xsd:element ref="DependentVariable" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element EquipPowerPerArea
diagram GreenBuildingXML_Ver7.02_p125.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Space
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  powerPerAreaUnitEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Amount of power used by equipment in a given area
source <xsd:element name="EquipPowerPerArea">

<xsd:annotation>

<xsd:documentation>Amount of power used by equipment in a given area</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="powerPerAreaUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute EquipPowerPerArea/@unit
type powerPerAreaUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration WattPerSquareMeter
enumeration WattPerSquareFoot
source <xsd:attribute name="unit" type="powerPerAreaUnitEnum" use="required"/>

attribute EquipPowerPerArea/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Expression
diagram GreenBuildingXML_Ver7.02_p126.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element Equation
source <xsd:element name="Expression" type="xsd:string"/>

element ExtEquip
diagram GreenBuildingXML_Ver7.02_p127.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Manufacturer Model ElecLoad FuelLoad LatentLoad WindSpeed Efficiency Performance Cost Weight WasteWaterHREff WaterUsePerCycle RatedFlow Power CyclesPerWeek Energy GeneralGeometry ShellGeometry IndoorAirQuality Age Reference CADObjectId
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
scheduleIdRef  xsd:IDREF
documentation
ID for the schedule of transmittance of a shading surface
waterTempScheduleIdRef  xsd:IDREF
hydronicLoopIdRef  xsd:IDREF
documentation
ID pointing to a hydronic loop
waterScheduleIdRef  xsd:IDREF
waterMeterIdRef  xsd:IDREF
type  extEquipTypeEnum  required
airLoopIdRef  xsd:IDREF
documentation
ID pointing to an air loop
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
External equipment. This is generalized to be able to contain any type of external equipment.
source <xsd:element name="ExtEquip">

<xsd:annotation>

<xsd:documentation>External equipment. This is generalized to be able to contain any type of external equipment.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Manufacturer" minOccurs="0"/>

<xsd:element ref="Model" minOccurs="0"/>

<xsd:element ref="ElecLoad" minOccurs="0"/>

<xsd:element ref="FuelLoad" minOccurs="0"/>

<xsd:element ref="LatentLoad" minOccurs="0"/>

<xsd:element ref="WindSpeed" minOccurs="0"/>

<xsd:element ref="Efficiency" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Performance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Weight" minOccurs="0"/>

<xsd:element ref="WasteWaterHREff" minOccurs="0"/>

<xsd:element ref="WaterUsePerCycle" minOccurs="0"/>

<xsd:element ref="RatedFlow" minOccurs="0"/>

<xsd:element ref="Power" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CyclesPerWeek" minOccurs="0"/>

<xsd:element ref="Energy" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="GeneralGeometry" minOccurs="0"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

<xsd:element ref="IndoorAirQuality" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Age" minOccurs="0"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="waterTempScheduleIdRef" type="xsd:IDREF"/>

<xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to a hydronic loop </xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="waterScheduleIdRef" type="xsd:IDREF"/>

<xsd:attribute name="waterMeterIdRef" type="xsd:IDREF"/>

<xsd:attribute name="type" type="extEquipTypeEnum" use="required"/>

<xsd:attribute name="airLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to an air loop</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute ExtEquip/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute ExtEquip/@scheduleIdRef
type xsd:IDREF
annotation
documentation
ID for the schedule of transmittance of a shading surface
source <xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ExtEquip/@waterTempScheduleIdRef
type xsd:IDREF
source <xsd:attribute name="waterTempScheduleIdRef" type="xsd:IDREF"/>

attribute ExtEquip/@hydronicLoopIdRef
type xsd:IDREF
annotation
documentation
ID pointing to a hydronic loop
source <xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to a hydronic loop </xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ExtEquip/@waterScheduleIdRef
type xsd:IDREF
source <xsd:attribute name="waterScheduleIdRef" type="xsd:IDREF"/>

attribute ExtEquip/@waterMeterIdRef
type xsd:IDREF
source <xsd:attribute name="waterMeterIdRef" type="xsd:IDREF"/>

attribute ExtEquip/@type
type extEquipTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Sprinkler
enumeration LawnMower
enumeration GeneralPlugload
enumeration Fountain
enumeration Refrigerator
enumeration Freezer
enumeration Pool
enumeration HotTub
enumeration Pump
enumeration Sauna
enumeration BatteryCharger
enumeration Furnace
enumeration IndustrialEquip
enumeration Irrigation
enumeration MiscEquip
enumeration Vending
enumeration Elevator
enumeration Escalator
enumeration WindTurbine
enumeration Photovoltaic
enumeration CogenDiesel
enumeration CogenFuelCell
enumeration CogenGasTurbine
source <xsd:attribute name="type" type="extEquipTypeEnum" use="required"/>

attribute ExtEquip/@airLoopIdRef
type xsd:IDREF
annotation
documentation
ID pointing to an air loop
source <xsd:attribute name="airLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to an air loop</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ExtEquip/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element ExtEquipId
diagram GreenBuildingXML_Ver7.02_p128.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
elements Campus Construction WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
extEquipIdRef  xsd:IDREF
source <xsd:element name="ExtEquipId">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="extEquipIdRef" type="xsd:IDREF"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute ExtEquipId/@extEquipIdRef
type xsd:IDREF
source <xsd:attribute name="extEquipIdRef" type="xsd:IDREF"/>

element FamilyName
diagram GreenBuildingXML_Ver7.02_p129.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element Surface
source <xsd:element name="FamilyName" type="xsd:string"/>

element FileName
diagram GreenBuildingXML_Ver7.02_p130.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element ProjectEntity
source <xsd:element name="FileName" type="xsd:string"/>

element Fire
diagram GreenBuildingXML_Ver7.02_p131.png
namespace http://www.gbxml.org/schema
properties
content complex
children Thickness Conductivity Density SpecificHeat
used by
element Material
annotation
documentation
Properties of a material under fire conditions.
source <xsd:element name="Fire">

<xsd:annotation>

<xsd:documentation>Properties of a material under fire conditions.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0">

<xsd:element ref="Thickness"/>

<xsd:element ref="Conductivity"/>

<xsd:element ref="Density"/>

<xsd:element ref="SpecificHeat"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element FireFace
diagram GreenBuildingXML_Ver7.02_p132.png
namespace http://www.gbxml.org/schema
properties
content complex
children Absorptance Reflectance Emittance
used by
element Construction
annotation
documentation
Properties of a construction under fire conditions.
source <xsd:element name="FireFace">

<xsd:annotation>

<xsd:documentation>Properties of a construction under fire conditions.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0">

<xsd:element ref="Absorptance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Reflectance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Emittance" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element FirstName
diagram GreenBuildingXML_Ver7.02_p133.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="FirstName" type="xsd:string"/>

element FloorSlabHeatLossCoefficient
diagram GreenBuildingXML_Ver7.02_p134.png
namespace http://www.gbxml.org/schema
type extension of xsd:float
properties
content complex
used by
element LoadCalcInputParameters
attributes
Name  Type  Use  Default  Fixed  Annotation
floorSlabPerimeterHeatLossCoefficientUnitTypeEnum  floorSlabPerimeterHeatLossCoefficientUnitTypeEnum
annotation
documentation
Specifies the heat loss from a floor in terms of the amount of heat lost per length of exposed perimeter. Used with both commercial and residential load calculation methods.
source <xsd:element name="FloorSlabHeatLossCoefficient">

<xsd:annotation>

<xsd:documentation>Specifies the heat loss from a floor in terms of the amount of heat lost per length of exposed perimeter. Used with both commercial and residential load calculation methods.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:float">

<xsd:attribute name="floorSlabPerimeterHeatLossCoefficientUnitTypeEnum" type="floorSlabPerimeterHeatLossCoefficientUnitTypeEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute FloorSlabHeatLossCoefficient/@floorSlabPerimeterHeatLossCoefficientUnitTypeEnum
type floorSlabPerimeterHeatLossCoefficientUnitTypeEnum
facets
Kind Value Annotation
enumeration btuPerHourDegreeFPerLinearFoot
enumeration wattDegreeCPerLinearMeter
source <xsd:attribute name="floorSlabPerimeterHeatLossCoefficientUnitTypeEnum" type="floorSlabPerimeterHeatLossCoefficientUnitTypeEnum"/>

element Flow
diagram GreenBuildingXML_Ver7.02_p135.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="Flow">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Flow/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

attribute Flow/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element FlowControl
diagram GreenBuildingXML_Ver7.02_p136.png
namespace http://www.gbxml.org/schema
properties
content complex
children DesignFlow MinimumFlow MaximumFlow RecircFlow
used by
element HydronicLoop
attributes
Name  Type  Use  Default  Fixed  Annotation
processScheduleId  xsd:IDREF  optional
annotation
documentation
Use this element to describe how the fluid flow is controlled. The temperatures specified in this element should be measured just upstream of the chiller.
source <xsd:element name="FlowControl">

<xsd:annotation>

<xsd:documentation>Use this element to describe how the fluid flow is controlled. The temperatures specified in this element should be measured just upstream of the chiller.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="DesignFlow" minOccurs="0"/>

<xsd:element ref="MinimumFlow" minOccurs="0"/>

<xsd:element ref="MaximumFlow" minOccurs="0"/>

<xsd:element ref="RecircFlow" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="processScheduleId" type="xsd:IDREF" use="optional"/>

</xsd:complexType>
</xsd:element>

attribute FlowControl/@processScheduleId
type xsd:IDREF
properties
use optional
source <xsd:attribute name="processScheduleId" type="xsd:IDREF" use="optional"/>

element FlowPerArea
diagram GreenBuildingXML_Ver7.02_p137.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowPerAreaUnitEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="FlowPerArea">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowPerAreaUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute FlowPerArea/@unit
type flowPerAreaUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFMPerSquareFoot
enumeration LPerSecPerSquareM
enumeration CubicMPerSecPerSquareM
enumeration CubicMPerHourPerSquareM
source <xsd:attribute name="unit" type="flowPerAreaUnitEnum" use="required"/>

attribute FlowPerArea/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element FlowPerPerson
diagram GreenBuildingXML_Ver7.02_p138.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="FlowPerPerson">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute FlowPerPerson/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

attribute FlowPerPerson/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element FlowType
diagram GreenBuildingXML_Ver7.02_p139.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
flowType  flowTypeEnum  required
source <xsd:element name="FlowType">

<xsd:complexType>

<xsd:attribute name="flowType" type="flowTypeEnum" use="required"/>

</xsd:complexType>
</xsd:element>

attribute FlowType/@flowType
type flowTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Series
enumeration Parallel
enumeration SeriesFromPlenum
enumeration ParallelFromPlenum
source <xsd:attribute name="flowType" type="flowTypeEnum" use="required"/>

element FractionOnCyclePowerUse
diagram GreenBuildingXML_Ver7.02_p140.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Fraction of on-cycle power use
source <xsd:element name="FractionOnCyclePowerUse" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Fraction of on-cycle power use</xsd:documentation>

</xsd:annotation>
</xsd:element>

element Frame
diagram GreenBuildingXML_Ver7.02_p141.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Width
used by
element WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
type  frameTypeEnum  required
DOELibIdRef  xsd:string
documentation
Use this attribute to reference objects in the DOE2 library
source <xsd:element name="Frame">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Width" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="type" type="frameTypeEnum" use="required"/>

<xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Frame/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Frame/@type
type frameTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Wood
enumeration Vinyl
enumeration Aluminum
enumeration AluminumWithBreak
enumeration Insulated
source <xsd:attribute name="type" type="frameTypeEnum" use="required"/>

attribute Frame/@DOELibIdRef
type xsd:string
annotation
documentation
Use this attribute to reference objects in the DOE2 library
source <xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element FuelLoad
diagram GreenBuildingXML_Ver7.02_p142.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements ExtEquip IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  fuelLoadUnitEnum  required
source <xsd:element name="FuelLoad">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="fuelLoadUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute FuelLoad/@unit
type fuelLoadUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration BtuPerHour
enumeration kBtuPerHour
enumeration MBtuPerHour
enumeration Watts
enumeration kW
source <xsd:attribute name="unit" type="fuelLoadUnitEnum" use="required"/>

element Gap
diagram GreenBuildingXML_Ver7.02_p143.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Thickness Density DensityFofT Conductivity ConductivityFofT Viscosity ViscosityFofT PrandtlNumber PrandtlNumberFofT
used by
element WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
gas  gasTypeEnum  required
DOELibIdRef  xsd:string
documentation
Use this attribute to reference objects in the DOE2 library
annotation
documentation
Space between window panes
source <xsd:element name="Gap">

<xsd:annotation>

<xsd:documentation>Space between window panes</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Thickness" minOccurs="0"/>

<xsd:element ref="Density" minOccurs="0"/>

<xsd:element ref="DensityFofT" minOccurs="0"/>

<xsd:element ref="Conductivity" minOccurs="0"/>

<xsd:element ref="ConductivityFofT" minOccurs="0"/>

<xsd:element ref="Viscosity" minOccurs="0"/>

<xsd:element ref="ViscosityFofT" minOccurs="0"/>

<xsd:element ref="PrandtlNumber" minOccurs="0"/>

<xsd:element ref="PrandtlNumberFofT" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="gas" type="gasTypeEnum" use="required"/>

<xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Gap/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Gap/@gas
type gasTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Air
enumeration Argon
enumeration Krypton
enumeration CO2
enumeration SF6
enumeration Custom
source <xsd:attribute name="gas" type="gasTypeEnum" use="required"/>

attribute Gap/@DOELibIdRef
type xsd:string
annotation
documentation
Use this attribute to reference objects in the DOE2 library
source <xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element GapId
diagram GreenBuildingXML_Ver7.02_p144.png
namespace http://www.gbxml.org/schema
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
gapIdRef  xsd:IDREF  required
documentation
ID for a gap between window panes
source <xsd:element name="GapId">

<xsd:complexType>

<xsd:attribute name="gapIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID for a gap between window panes</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute GapId/@gapIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID for a gap between window panes
source <xsd:attribute name="gapIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID for a gap between window panes</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element GasPreheatCoilEfficiency
diagram GreenBuildingXML_Ver7.02_p145.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Gas preheat coil efficiency
source <xsd:element name="GasPreheatCoilEfficiency" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Gas preheat coil efficiency</xsd:documentation>

</xsd:annotation>
</xsd:element>

element GasPreheatCoilParasiticElectricLoad
diagram GreenBuildingXML_Ver7.02_p146.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Gas Preheat Coil Parasitic Electric Load
source <xsd:element name="GasPreheatCoilParasiticElectricLoad" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Gas Preheat Coil Parasitic Electric Load</xsd:documentation>

</xsd:annotation>
</xsd:element>

element gbXML
diagram GreenBuildingXML_Ver7.02_p147.png
namespace http://www.gbxml.org/schema
properties
content complex
children aecXML Campus LightingSystem LightingControl Construction Layer Material WindowType Schedule WeekSchedule DaySchedule Zone AirLoop HydronicLoop AirSystem IntEquip ExtEquip Weather Meter Results DocumentHistory SimulationParameters ZoneHVACEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
engine  derived by: xsd:NMTOKEN
documentation
Analysis engine used
temperatureUnit  temperatureUnitEnum  required
documentation
This attribute specifies the default temperature unit for the entire gbXML document, wherever the temperatureUnit simple type is used.
lengthUnit  lengthUnitEnum  required
documentation
This attribute specifies the default length unit for the entire gbXML document, wherever the lengthUnit simple type is used.
areaUnit  areaUnitEnum  required
documentation
This attribute specifies the default area unit for the entire gbXML document, wherever the areaUnit simple type is used.
volumeUnit  volumeUnitEnum  required
documentation
This attribute specifies the default volume unit for the entire gbXML document, wherever the volumeUnit simple type is used.
useSIUnitsForResults  xsd:boolean  required
documentation
Results will be given in SI or IP units. True = SI units which is the implied default. If False, results will be in english units.
version  versionEnum  required
SurfaceReferenceLocation  surfaceReferenceLocationEnum  optional
documentation
Use this attribute to determine what type of geometry information is included in the geometry elements. This is specified using an enumeration that includes shell/wall paper and centerline coordinates.
source <xsd:element name="gbXML">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="aecXML" minOccurs="0"/>

<xsd:element ref="Campus"/>

<xsd:element ref="LightingSystem" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="LightingControl" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Construction" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Layer" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Material" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="WindowType" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Schedule" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="WeekSchedule" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="DaySchedule" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Zone" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="AirLoop" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="HydronicLoop" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="AirSystem" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="IntEquip" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="ExtEquip" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Weather" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Meter" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Results" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="DocumentHistory" minOccurs="0"/>

<xsd:element ref="SimulationParameters" minOccurs="0" maxOccurs="1"/>

<xsd:element ref="ZoneHVACEquipment" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID"/>

<xsd:attribute name="engine">

<xsd:annotation>

<xsd:documentation>Analysis engine used</xsd:documentation>

</xsd:annotation>

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="DOE2.1e"/>

<xsd:enumeration value="DOE2.2"/>

<xsd:enumeration value="EnergyPlus"/>

</xsd:restriction>

</xsd:simpleType>

</xsd:attribute>

<xsd:attribute name="temperatureUnit" type="temperatureUnitEnum" use="required">

<xsd:annotation>

<xsd:documentation>This attribute specifies the default temperature unit for the entire gbXML document, wherever the temperatureUnit simple type is used.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="lengthUnit" type="lengthUnitEnum" use="required">

<xsd:annotation>

<xsd:documentation>This attribute specifies the default length unit for the entire gbXML document, wherever the lengthUnit simple type is used.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="areaUnit" type="areaUnitEnum" use="required">

<xsd:annotation>

<xsd:documentation>This attribute specifies the default area unit for the entire gbXML document, wherever the areaUnit simple type is used.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="volumeUnit" type="volumeUnitEnum" use="required">

<xsd:annotation>

<xsd:documentation>This attribute specifies the default volume unit for the entire gbXML document, wherever the volumeUnit simple type is used.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="useSIUnitsForResults" type="xsd:boolean" use="required">

<xsd:annotation>

<xsd:documentation>Results will be given in SI or IP units. True = SI units which is the implied default. If False, results will be in english units.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="version" type="versionEnum" use="required"/>

<xsd:attribute name="SurfaceReferenceLocation" type="surfaceReferenceLocationEnum" use="optional">

<xsd:annotation>

<xsd:documentation>Use this attribute to determine what type of geometry information is included in the geometry elements. This is specified using an enumeration that includes shell/wall paper and centerline coordinates.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute gbXML/@id
type xsd:ID
source <xsd:attribute name="id" type="xsd:ID"/>

attribute gbXML/@engine
type restriction of xsd:NMTOKEN
facets
Kind Value Annotation
enumeration DOE2.1e
enumeration DOE2.2
enumeration EnergyPlus
annotation
documentation
Analysis engine used
source <xsd:attribute name="engine">

<xsd:annotation>

<xsd:documentation>Analysis engine used</xsd:documentation>

</xsd:annotation>

<xsd:simpleType>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="DOE2.1e"/>

<xsd:enumeration value="DOE2.2"/>

<xsd:enumeration value="EnergyPlus"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:attribute>

attribute gbXML/@temperatureUnit
type temperatureUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
annotation
documentation
This attribute specifies the default temperature unit for the entire gbXML document, wherever the temperatureUnit simple type is used.
source <xsd:attribute name="temperatureUnit" type="temperatureUnitEnum" use="required">

<xsd:annotation>

<xsd:documentation>This attribute specifies the default temperature unit for the entire gbXML document, wherever the temperatureUnit simple type is used.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute gbXML/@lengthUnit
type lengthUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
annotation
documentation
This attribute specifies the default length unit for the entire gbXML document, wherever the lengthUnit simple type is used.
source <xsd:attribute name="lengthUnit" type="lengthUnitEnum" use="required">

<xsd:annotation>

<xsd:documentation>This attribute specifies the default length unit for the entire gbXML document, wherever the lengthUnit simple type is used.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute gbXML/@areaUnit
type areaUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration SquareKilometers
enumeration SquareMeters
enumeration SquareCentimeters
enumeration SquareMillimeters
enumeration SquareMiles
enumeration SquareYards
enumeration SquareFeet
enumeration SquareInches
annotation
documentation
This attribute specifies the default area unit for the entire gbXML document, wherever the areaUnit simple type is used.
source <xsd:attribute name="areaUnit" type="areaUnitEnum" use="required">

<xsd:annotation>

<xsd:documentation>This attribute specifies the default area unit for the entire gbXML document, wherever the areaUnit simple type is used.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute gbXML/@volumeUnit
type volumeUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CubicKilometers
enumeration CubicMeters
enumeration CubicCentimeters
enumeration CubicMillimeters
enumeration CubicMiles
enumeration CubicYards
enumeration CubicFeet
enumeration CubicInches
annotation
documentation
This attribute specifies the default volume unit for the entire gbXML document, wherever the volumeUnit simple type is used.
source <xsd:attribute name="volumeUnit" type="volumeUnitEnum" use="required">

<xsd:annotation>

<xsd:documentation>This attribute specifies the default volume unit for the entire gbXML document, wherever the volumeUnit simple type is used.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute gbXML/@useSIUnitsForResults
type xsd:boolean
properties
use required
annotation
documentation
Results will be given in SI or IP units. True = SI units which is the implied default. If False, results will be in english units.
source <xsd:attribute name="useSIUnitsForResults" type="xsd:boolean" use="required">

<xsd:annotation>

<xsd:documentation>Results will be given in SI or IP units. True = SI units which is the implied default. If False, results will be in english units.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute gbXML/@version
type versionEnum
properties
use required
facets
Kind Value Annotation
enumeration 0.35
enumeration 0.36
enumeration 0.37
enumeration 5.00
enumeration 5.01
enumeration 5.10
enumeration 5.11
enumeration 5.12
enumeration 6.00
enumeration 6.01
source <xsd:attribute name="version" type="versionEnum" use="required"/>

attribute gbXML/@SurfaceReferenceLocation
type surfaceReferenceLocationEnum
properties
use optional
facets
Kind Value Annotation
enumeration Centerline
enumeration InteriorSurface
annotation
documentation
Use this attribute to determine what type of geometry information is included in the geometry elements. This is specified using an enumeration that includes shell/wall paper and centerline coordinates.
source <xsd:attribute name="SurfaceReferenceLocation" type="surfaceReferenceLocationEnum" use="optional">

<xsd:annotation>

<xsd:documentation>Use this attribute to determine what type of geometry information is included in the geometry elements. This is specified using an enumeration that includes shell/wall paper and centerline coordinates.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element GeneralGeometry
diagram GreenBuildingXML_Ver7.02_p148.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
elements AirLoopEquipment ExtEquip HydronicLoopEquipment IntEquip Lighting LightingControl LightingSystem Transportation Vegetation
annotation
documentation
This element has been left open for use with other geometry definitions, such as X3D or BLISXML.
source <xsd:element name="GeneralGeometry">

<xsd:annotation>

<xsd:documentation>This element has been left open for use with other geometry definitions, such as X3D or BLISXML.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element Glare
diagram GreenBuildingXML_Ver7.02_p149.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element ShadeControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum
annotation
documentation
Minimum amount of glare to trigger the shades to close
source <xsd:element name="Glare">

<xsd:annotation>

<xsd:documentation>Minimum amount of glare to trigger the shades to close</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Glare/@unit
type unitlessUnitEnum
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum"/>

element Glaze
diagram GreenBuildingXML_Ver7.02_p150.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Transmittance Reflectance Emittance Thickness Conductivity Reference
used by
element WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
DOELibIdRef  xsd:string
documentation
Use this attribute to reference objects in the DOE2 library
annotation
documentation
Properties of one layer of a window
source <xsd:element name="Glaze">

<xsd:annotation>

<xsd:documentation>Properties of one layer of a window</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Transmittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Reflectance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Emittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Thickness" minOccurs="0"/>

<xsd:element ref="Conductivity" minOccurs="0"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Glaze/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Glaze/@DOELibIdRef
type xsd:string
annotation
documentation
Use this attribute to reference objects in the DOE2 library
source <xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element GlazeConductivity
diagram GreenBuildingXML_Ver7.02_p151.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Opening
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  conductivityUnitEnum  required
source <xsd:element name="GlazeConductivity">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="conductivityUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute GlazeConductivity/@unit
type conductivityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration WPerCmC
enumeration WPerMeterK
enumeration BtuPerHourFtF
source <xsd:attribute name="unit" type="conductivityUnitEnum" use="required"/>

element GlazeId
diagram GreenBuildingXML_Ver7.02_p152.png
namespace http://www.gbxml.org/schema
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
glazeIdRef  xsd:IDREF  required
documentation
ID indicating the type of glaze used
source <xsd:element name="GlazeId">

<xsd:complexType>

<xsd:attribute name="glazeIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID indicating the type of glaze used</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute GlazeId/@glazeIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID indicating the type of glaze used
source <xsd:attribute name="glazeIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID indicating the type of glaze used</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element GroundTemp
diagram GreenBuildingXML_Ver7.02_p153.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Monthly ground temperatures, 12 values
source <xsd:element name="GroundTemp">

<xsd:annotation>

<xsd:documentation>Monthly ground temperatures, 12 values</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute GroundTemp/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element GroundTempValue
diagram GreenBuildingXML_Ver7.02_p154.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
source <xsd:element name="GroundTempValue" type="xsd:decimal"/>

element GUID
diagram GreenBuildingXML_Ver7.02_p155.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
element ProjectEntity
attributes
Name  Type  Use  Default  Fixed  Annotation
entity  entityTypeEnum  required
source <xsd:element name="GUID">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="entity" type="entityTypeEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute GUID/@entity
type entityTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration File
enumeration Model
enumeration Project
enumeration Run
source <xsd:attribute name="entity" type="entityTypeEnum" use="required"/>

element HDD
diagram GreenBuildingXML_Ver7.02_p156.png
namespace http://www.gbxml.org/schema
properties
content complex
children Temperature HDDValue
used by
element Weather
annotation
documentation
Heating degree days. HDD is calculated as the number of degrees a mean daily temperature is below a value (specified as the Temperature element), for each day. For example, if the mean temperature in a region drops to 64 degrees for four days during a year, the rest of the time staying above 65, and the Temperature element is set at 65, then HDD = 4.
source <xsd:element name="HDD">

<xsd:annotation>

<xsd:documentation>Heating degree days. HDD is calculated as the number of degrees a mean daily temperature is below a value (specified as the Temperature element), for each day. For example, if the mean temperature in a region drops to 64 degrees for four days during a year, the rest of the time staying above 65, and the Temperature element is set at 65, then HDD = 4.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Temperature"/>

<xsd:element ref="HDDValue"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element HDDValue
diagram GreenBuildingXML_Ver7.02_p157.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element HDD
source <xsd:element name="HDDValue" type="xsd:decimal"/>

element HeatingCoilSetpointResetType
diagram GreenBuildingXML_Ver7.02_p158.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  heatingCoilSetpointResetTypeEnum
source <xsd:element name="HeatingCoilSetpointResetType">

<xsd:complexType>

<xsd:attribute name="unit" type="heatingCoilSetpointResetTypeEnum"/>

</xsd:complexType>
</xsd:element>

attribute HeatingCoilSetpointResetType/@unit
type heatingCoilSetpointResetTypeEnum
facets
Kind Value Annotation
enumeration None
enumeration OutdoorAirTemperatureReset
source <xsd:attribute name="unit" type="heatingCoilSetpointResetTypeEnum"/>

element HeatingSizingFactor
diagram GreenBuildingXML_Ver7.02_p159.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Zone
source <xsd:element name="HeatingSizingFactor" type="xsd:decimal"/>

element HeatPumpDefrostControl
diagram GreenBuildingXML_Ver7.02_p160.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
defrostControlType  defrostControlEnum  required
source <xsd:element name="HeatPumpDefrostControl">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="defrostControlType" type="defrostControlEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute HeatPumpDefrostControl/@defrostControlType
type defrostControlEnum
properties
use required
facets
Kind Value Annotation
enumeration Timed
enumeration OnDemand
source <xsd:attribute name="defrostControlType" type="defrostControlEnum" use="required"/>

element HeatPumpDefrostStrategy
diagram GreenBuildingXML_Ver7.02_p161.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  defrostStrategyEnum
source <xsd:element name="HeatPumpDefrostStrategy">

<xsd:complexType>

<xsd:attribute name="unit" type="defrostStrategyEnum"/>

</xsd:complexType>
</xsd:element>

attribute HeatPumpDefrostStrategy/@unit
type defrostStrategyEnum
facets
Kind Value Annotation
enumeration ReverseCycle
enumeration Resistive
source <xsd:attribute name="unit" type="defrostStrategyEnum"/>

element HeatPumpFanDelayTime
diagram GreenBuildingXML_Ver7.02_p162.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Heat pump fan delay time (s)
source <xsd:element name="HeatPumpFanDelayTime" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Heat pump fan delay time (s)</xsd:documentation>

</xsd:annotation>
</xsd:element>

element HeatPumpTimeConstant
diagram GreenBuildingXML_Ver7.02_p163.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Heat pump time constant (s)
source <xsd:element name="HeatPumpTimeConstant" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Heat pump time constant (s)</xsd:documentation>

</xsd:annotation>
</xsd:element>

element HeatRecoveryType
diagram GreenBuildingXML_Ver7.02_p164.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  heatRecoveryTypeEnum
source <xsd:element name="HeatRecoveryType">

<xsd:complexType>

<xsd:attribute name="unit" type="heatRecoveryTypeEnum"/>

</xsd:complexType>
</xsd:element>

attribute HeatRecoveryType/@unit
type heatRecoveryTypeEnum
facets
Kind Value Annotation
enumeration None
enumeration Sensible
enumeration Enthalpy
source <xsd:attribute name="unit" type="heatRecoveryTypeEnum"/>

element HeatRejectedtoSpace
diagram GreenBuildingXML_Ver7.02_p165.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
The amount of heat from this equipment rejected to this space. For condensors exterior to building, this value will be 0.
source <xsd:element name="HeatRejectedtoSpace">

<xsd:annotation>

<xsd:documentation>The amount of heat from this equipment rejected to this space. For condensors exterior to building, this value will be 0.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute HeatRejectedtoSpace/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element Height
diagram GreenBuildingXML_Ver7.02_p166.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Dimensions RectangularGeometry
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  lengthUnitEnum
source <xsd:element name="Height">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="lengthUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Height/@unit
type lengthUnitEnum
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum"/>

element HighLimit
diagram GreenBuildingXML_Ver7.02_p167.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element IndoorAirQuality
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessSmallUnitEnum  required
source <xsd:element name="HighLimit">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessSmallUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute HighLimit/@unit
type unitlessSmallUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration PartPerMillionByVolume
enumeration milliGramsPerCubicMeter
source <xsd:attribute name="unit" type="unitlessSmallUnitEnum" use="required"/>

element HighValue
diagram GreenBuildingXML_Ver7.02_p168.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element OperationRange
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  conditioningUnitEnum  required
source <xsd:element name="HighValue">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="conditioningUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute HighValue/@unit
type conditioningUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration kBtu
enumeration Btu
enumeration kW
enumeration Tons
source <xsd:attribute name="unit" type="conditioningUnitEnum" use="required"/>

element HolidayDate
diagram GreenBuildingXML_Ver7.02_p169.png
namespace http://www.gbxml.org/schema
type xsd:date
properties
content simple
used by
element HolidaysModeled
annotation
documentation
Date of holiday modeled
source <xsd:element name="HolidayDate" type="xsd:date">

<xsd:annotation>

<xsd:documentation>Date of holiday modeled</xsd:documentation>

</xsd:annotation>
</xsd:element>

element HolidaysModeled
diagram GreenBuildingXML_Ver7.02_p170.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description HolidayDate
used by
element YearModeled
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
source <xsd:element name="HolidaysModeled">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

<xsd:complexType>

<xsd:all>

<xsd:element ref="Name" minOccurs="1"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="HolidayDate" minOccurs="1"/>

</xsd:all>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>
</xsd:element>

attribute HolidaysModeled/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

element HorizontalSolar
diagram GreenBuildingXML_Ver7.02_p171.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element ShadeControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  powerPerAreaUnitEnum  required
annotation
documentation
Amount of horizontal solar radiation striking the opening before a shade is closed.
source <xsd:element name="HorizontalSolar">

<xsd:annotation>

<xsd:documentation>Amount of horizontal solar radiation striking the opening before a shade is closed.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="powerPerAreaUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute HorizontalSolar/@unit
type powerPerAreaUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration WattPerSquareMeter
enumeration WattPerSquareFoot
source <xsd:attribute name="unit" type="powerPerAreaUnitEnum" use="required"/>

element HOutside
diagram GreenBuildingXML_Ver7.02_p172.png
namespace http://www.gbxml.org/schema
type extension of xsd:float
properties
content complex
used by
elements Layer RTSParameters
attributes
Name  Type  Use  Default  Fixed  Annotation
hOutsideUnitTypeEnum  hOutsideUnitTypeEnum
documentation
Used by the hOutsideUnitType attribute.
annotation
documentation
h (Outside) is the combined coefficient of heat transfer by long-wave radiation and convection at outer surface, Btu/h-sf-F. See 2001 HoF Chapter 25 Table 1.
source <xsd:element name="HOutside">

<xsd:annotation>

<xsd:documentation>h (Outside) is the combined coefficient of heat transfer by long-wave radiation and convection at outer surface, Btu/h-sf-F. See 2001 HoF Chapter 25 Table 1.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:float">

<xsd:attribute name="hOutsideUnitTypeEnum" type="hOutsideUnitTypeEnum">

<xsd:annotation>

<xsd:documentation>Used by the hOutsideUnitType attribute.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute HOutside/@hOutsideUnitTypeEnum
type hOutsideUnitTypeEnum
facets
Kind Value Annotation
enumeration BTUPerHourSquareFootDegreeF
enumeration WattsPerSecondSquareMeterDegreeC
annotation
documentation
Used by the hOutsideUnitType attribute.
source <xsd:attribute name="hOutsideUnitTypeEnum" type="hOutsideUnitTypeEnum">

<xsd:annotation>

<xsd:documentation>Used by the hOutsideUnitType attribute.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element HydronicLoop
diagram GreenBuildingXML_Ver7.02_p173.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Cost Reference HydronicLoopEquipment FlowControl TemperatureControl DesignCoolT CADObjectId HydronicLoopId AnalysisParameter
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
loopType  loopTypeEnum  required
controlZoneIdRef  xsd:IDREF
primaryLoopId  xsd:IDREF
fluidType  fluidTypeEnum  required
chillerType  chillerTypeEnum  optional
id  xsd:ID  required
documentation
Only use this attribute for secondary loops to reference the primary loop.
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
The HydronicLoop element represents the equipment serving one path of water, or other liquid
source <xsd:element name="HydronicLoop">

<xsd:annotation>

<xsd:documentation>The HydronicLoop element represents the equipment serving one path of water, or other liquid</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="HydronicLoopEquipment" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="FlowControl" minOccurs="0"/>

<xsd:element ref="TemperatureControl" minOccurs="0"/>

<xsd:element ref="DesignCoolT" minOccurs="0"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="HydronicLoopId" minOccurs="0" maxOccurs="unbounded">

<xsd:annotation>

<xsd:documentation>This child element is used by Revit Systems Analysis.</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="AnalysisParameter" minOccurs="0" maxOccurs="unbounded">

<xsd:annotation>

<xsd:documentation>This child element is used by Revit Systems Analysis.</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:choice>

<xsd:attribute name="loopType" type="loopTypeEnum" use="required"/>

<xsd:attribute name="controlZoneIdRef" type="xsd:IDREF"/>

<xsd:attribute name="primaryLoopId" type="xsd:IDREF"/>

<xsd:attribute name="fluidType" type="fluidTypeEnum" use="required"/>

<xsd:attribute name="chillerType" type="chillerTypeEnum" use="optional"/>

<xsd:attribute name="id" type="xsd:ID" use="required">

<xsd:annotation>

<xsd:documentation>Only use this attribute for secondary loops to reference the primary loop.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute HydronicLoop/@loopType
type loopTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration PrimaryChilledWater
enumeration SecondaryChilledWater
enumeration HotWater
enumeration CondenserWater
enumeration DomesticHotWater
enumeration WaterLoopHeatPump
enumeration TwoPipe
enumeration PotableWaterLoop
enumeration VRFLoop
source <xsd:attribute name="loopType" type="loopTypeEnum" use="required"/>

attribute HydronicLoop/@controlZoneIdRef
type xsd:IDREF
source <xsd:attribute name="controlZoneIdRef" type="xsd:IDREF"/>

attribute HydronicLoop/@primaryLoopId
type xsd:IDREF
source <xsd:attribute name="primaryLoopId" type="xsd:IDREF"/>

attribute HydronicLoop/@fluidType
type fluidTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Water
enumeration Brine
enumeration Glycol
enumeration Refrigerant
source <xsd:attribute name="fluidType" type="fluidTypeEnum" use="required"/>

attribute HydronicLoop/@chillerType
type chillerTypeEnum
properties
use optional
facets
Kind Value Annotation
enumeration AirCooled
enumeration WaterCooled
source <xsd:attribute name="chillerType" type="chillerTypeEnum" use="optional"/>

attribute HydronicLoop/@id
type xsd:ID
properties
use required
annotation
documentation
Only use this attribute for secondary loops to reference the primary loop.
source <xsd:attribute name="id" type="xsd:ID" use="required">

<xsd:annotation>

<xsd:documentation>Only use this attribute for secondary loops to reference the primary loop.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute HydronicLoop/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element HydronicLoopEquipment
diagram GreenBuildingXML_Ver7.02_p174.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Manufacturer Model OperationSchedule Temp ResetTemperature HydronicLoopId RatedFlow MinFlow DeltaT DeltaP Power Capacity Efficiency Control Performance Cost Weight Life RefrigerantType Energy Age Reference CADObjectId GeneralGeometry ShellGeometry
used by
element HydronicLoop
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
equipmentType  hydronicEquipTypeEnum  required
waterMeterIdRef  xsd:IDREF
waterScheduleIdRef  xsd:IDREF
primaryLoopId  xsd:IDREF
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
A piece of equipment serving a hydronic loop (most commonly a water loop). This is generalized to be able to contain any type of hydronic loop equipment.
source <xsd:element name="HydronicLoopEquipment">

<xsd:annotation>

<xsd:documentation>A piece of equipment serving a hydronic loop (most commonly a water loop). This is generalized to be able to contain any type of hydronic loop equipment.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Manufacturer" minOccurs="0"/>

<xsd:element ref="Model" minOccurs="0"/>

<xsd:element ref="OperationSchedule" minOccurs="0"/>

<xsd:element ref="Temp" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="ResetTemperature" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="HydronicLoopId" minOccurs="0" maxOccurs="unbounded">

<xsd:annotation>

<xsd:documentation>Use this element to point to another loop. For instance if this is a chiller and is a child of a chilled water loop, use this element to point at a cooling water loop.</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="RatedFlow" minOccurs="0" maxOccurs="2"/>

<xsd:element ref="MinFlow" minOccurs="0" maxOccurs="2"/>

<xsd:element ref="DeltaT" minOccurs="0" maxOccurs="2"/>

<xsd:element ref="DeltaP" minOccurs="0" maxOccurs="2"/>

<xsd:element ref="Power" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Capacity" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Efficiency" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Control" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Performance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Weight" minOccurs="0"/>

<xsd:element ref="Life" minOccurs="0"/>

<xsd:element ref="RefrigerantType" minOccurs="0"/>

<xsd:element ref="Energy" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Age" minOccurs="0"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="GeneralGeometry" minOccurs="0"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="equipmentType" type="hydronicEquipTypeEnum" use="required"/>

<xsd:attribute name="waterMeterIdRef" type="xsd:IDREF"/>

<xsd:attribute name="waterScheduleIdRef" type="xsd:IDREF"/>

<xsd:attribute name="primaryLoopId" type="xsd:IDREF"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute HydronicLoopEquipment/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute HydronicLoopEquipment/@equipmentType
type hydronicEquipTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Chiller
enumeration CoolingTower
enumeration Condenser
enumeration Boiler
enumeration HeatExchanger
enumeration Pump
enumeration RadiantPanel
enumeration HotWaterHeater
enumeration SolarPanels
enumeration Earth
enumeration Pipe
enumeration Storage
enumeration Coil
enumeration Radiator
enumeration TwoWayValve
enumeration ThreeWayValve
source <xsd:attribute name="equipmentType" type="hydronicEquipTypeEnum" use="required"/>

attribute HydronicLoopEquipment/@waterMeterIdRef
type xsd:IDREF
source <xsd:attribute name="waterMeterIdRef" type="xsd:IDREF"/>

attribute HydronicLoopEquipment/@waterScheduleIdRef
type xsd:IDREF
source <xsd:attribute name="waterScheduleIdRef" type="xsd:IDREF"/>

attribute HydronicLoopEquipment/@primaryLoopId
type xsd:IDREF
source <xsd:attribute name="primaryLoopId" type="xsd:IDREF"/>

attribute HydronicLoopEquipment/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element HydronicLoopEquipmentId
diagram GreenBuildingXML_Ver7.02_p175.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Space
attributes
Name  Type  Use  Default  Fixed  Annotation
hydronicLoopEquipIdRef  xsd:IDREF  required
documentation
ID pointing at a hydronic loop equipment object
source <xsd:element name="HydronicLoopEquipmentId">

<xsd:complexType>

<xsd:attribute name="hydronicLoopEquipIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing at a hydronic loop equipment object</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute HydronicLoopEquipmentId/@hydronicLoopEquipIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID pointing at a hydronic loop equipment object
source <xsd:attribute name="hydronicLoopEquipIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing at a hydronic loop equipment object</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element HydronicLoopId
diagram GreenBuildingXML_Ver7.02_p176.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
elements AirLoopEquipment AirSystem HydronicLoop HydronicLoopEquipment Space Zone ZoneHVACEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
hydronicLoopIdRef  xsd:IDREF  required
documentation
ID pointing to a hydronic loop
hydronicLoopType  loopTypeEnum  required
documentation
Type of hydronic loop
coilType  coilTypeEnum  optional
documentation
The type of coil for the hydronic loop.
source <xsd:element name="HydronicLoopId">

<xsd:complexType>

<xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing to a hydronic loop </xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="hydronicLoopType" type="loopTypeEnum" use="required">

<xsd:annotation>

<xsd:documentation>Type of hydronic loop </xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="coilType" type="coilTypeEnum" use="optional">

<xsd:annotation>

<xsd:documentation>The type of coil for the hydronic loop.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute HydronicLoopId/@hydronicLoopIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID pointing to a hydronic loop
source <xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing to a hydronic loop </xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute HydronicLoopId/@hydronicLoopType
type loopTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration PrimaryChilledWater
enumeration SecondaryChilledWater
enumeration HotWater
enumeration CondenserWater
enumeration DomesticHotWater
enumeration WaterLoopHeatPump
enumeration TwoPipe
enumeration PotableWaterLoop
enumeration VRFLoop
annotation
documentation
Type of hydronic loop
source <xsd:attribute name="hydronicLoopType" type="loopTypeEnum" use="required">

<xsd:annotation>

<xsd:documentation>Type of hydronic loop </xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute HydronicLoopId/@coilType
type coilTypeEnum
properties
use optional
facets
Kind Value Annotation
enumeration Preheat
enumeration Heating
enumeration Cooling
annotation
documentation
The type of coil for the hydronic loop.
source <xsd:attribute name="coilType" type="coilTypeEnum" use="optional">

<xsd:annotation>

<xsd:documentation>The type of coil for the hydronic loop.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Illuminance
diagram GreenBuildingXML_Ver7.02_p177.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element LightingControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  illuminanceUnitEnum  required
source <xsd:element name="Illuminance">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="illuminanceUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Illuminance/@unit
type illuminanceUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Footcandles
enumeration Lux
enumeration Phot
source <xsd:attribute name="unit" type="illuminanceUnitEnum" use="required"/>

element ImageTexture
diagram GreenBuildingXML_Ver7.02_p178.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Material
attributes
Name  Type  Use  Default  Fixed  Annotation
url  xsd:string  required
documentation
Specifies location of the image. From X3D specification: The texture is read from the URL specified by the url field. When the url field contains no values, texturing is disabled. Browsers shall support the JPEG and PNG image file formats. In addition, browsers may support other image formats (e.g. CGM) which can be rendered into a 2D image. Support for the GIF format is also recommended (including transparency).
repeatS  xsd:boolean  required
documentation
From X3D specification: If repeatS is TRUE, the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the S direction so that it fills the shape. If repeatS is FALSE, the texture coordinates are clamped in the S direction to lie within the [0.0, 1.0] range.
repeatT  xsd:boolean  required
documentation
From X3D specification: If repeatT is TRUE, the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the T direction so that it fills the shape. If repeatT is FALSE, the texture coordinates are clamped in the T direction to lie within the [0.0, 1.0] range.
annotation
documentation
This is an X3D element to map a texture to this material. From X3D specification: The ImageTexture node defines a texture map by specifying an image file and general parameters for mapping to geometry. Texture maps are defined in a 2D coordinate system (s, t) that ranges from [0.0, 1.0] in both directions. The bottom edge of the image corresponds to the S-axis of the texture map, and left edge of the image corresponds to the T-axis of the texture map. The lower-left pixel of the image corresponds to s=0, t=0, and the top-right pixel of the image corresponds to s=1, t=1. <!--When fixed: add type="x3d:ImageTexture"-->
source <xsd:element name="ImageTexture">

<xsd:annotation>

<xsd:documentation>This is an X3D element to map a texture to this material. From X3D specification: The ImageTexture node defines a texture map by specifying an image file and general parameters for mapping to geometry. Texture maps are defined in a 2D coordinate system (s, t) that ranges from [0.0, 1.0] in both directions. The bottom edge of the image corresponds to the S-axis of the texture map, and left edge of the image corresponds to the T-axis of the texture map. The lower-left pixel of the image corresponds to s=0, t=0, and the top-right pixel of the image corresponds to s=1, t=1. <!--When fixed: add type="x3d:ImageTexture"-->

</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:attribute name="url" type="xsd:string" use="required">

<xsd:annotation>

<xsd:documentation>Specifies location of the image. From X3D specification: The texture is read from the URL specified by the url field. When the url field contains no values, texturing is disabled. Browsers shall support the JPEG and PNG image file formats. In addition, browsers may support other image formats (e.g. CGM) which can be rendered into a 2D image. Support for the GIF format is also recommended (including transparency). </xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="repeatS" type="xsd:boolean" use="required">

<xsd:annotation>

<xsd:documentation>From X3D specification: If repeatS is TRUE, the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the S direction so that it fills the shape. If repeatS is FALSE, the texture coordinates are clamped in the S direction to lie within the [0.0, 1.0] range. </xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="repeatT" type="xsd:boolean" use="required">

<xsd:annotation>

<xsd:documentation>From X3D specification: If repeatT is TRUE, the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the T direction so that it fills the shape. If repeatT is FALSE, the texture coordinates are clamped in the T direction to lie within the [0.0, 1.0] range. </xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute ImageTexture/@url
type xsd:string
properties
use required
annotation
documentation
Specifies location of the image. From X3D specification: The texture is read from the URL specified by the url field. When the url field contains no values, texturing is disabled. Browsers shall support the JPEG and PNG image file formats. In addition, browsers may support other image formats (e.g. CGM) which can be rendered into a 2D image. Support for the GIF format is also recommended (including transparency).
source <xsd:attribute name="url" type="xsd:string" use="required">

<xsd:annotation>

<xsd:documentation>Specifies location of the image. From X3D specification: The texture is read from the URL specified by the url field. When the url field contains no values, texturing is disabled. Browsers shall support the JPEG and PNG image file formats. In addition, browsers may support other image formats (e.g. CGM) which can be rendered into a 2D image. Support for the GIF format is also recommended (including transparency). </xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ImageTexture/@repeatS
type xsd:boolean
properties
use required
annotation
documentation
From X3D specification: If repeatS is TRUE, the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the S direction so that it fills the shape. If repeatS is FALSE, the texture coordinates are clamped in the S direction to lie within the [0.0, 1.0] range.
source <xsd:attribute name="repeatS" type="xsd:boolean" use="required">

<xsd:annotation>

<xsd:documentation>From X3D specification: If repeatS is TRUE, the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the S direction so that it fills the shape. If repeatS is FALSE, the texture coordinates are clamped in the S direction to lie within the [0.0, 1.0] range. </xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ImageTexture/@repeatT
type xsd:boolean
properties
use required
annotation
documentation
From X3D specification: If repeatT is TRUE, the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the T direction so that it fills the shape. If repeatT is FALSE, the texture coordinates are clamped in the T direction to lie within the [0.0, 1.0] range.
source <xsd:attribute name="repeatT" type="xsd:boolean" use="required">

<xsd:annotation>

<xsd:documentation>From X3D specification: If repeatT is TRUE, the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the T direction so that it fills the shape. If repeatT is FALSE, the texture coordinates are clamped in the T direction to lie within the [0.0, 1.0] range. </xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element IndependentValue
diagram GreenBuildingXML_Ver7.02_p179.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Data
annotation
documentation
Value of the independent variable for this data point
source <xsd:element name="IndependentValue" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Value of the independent variable for this data point</xsd:documentation>

</xsd:annotation>
</xsd:element>

element IndependentVariable
diagram GreenBuildingXML_Ver7.02_p180.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description
used by
elements Equation PointData
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  xsd:string  required
dataType  xsd:string  required
source <xsd:element name="IndependentVariable">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="unit" type="xsd:string" use="required"/>

<xsd:attribute name="dataType" type="xsd:string" use="required"/>

</xsd:complexType>
</xsd:element>

attribute IndependentVariable/@unit
type xsd:string
properties
use required
source <xsd:attribute name="unit" type="xsd:string" use="required"/>

attribute IndependentVariable/@dataType
type xsd:string
properties
use required
source <xsd:attribute name="dataType" type="xsd:string" use="required"/>

element IndoorAirQuality
diagram GreenBuildingXML_Ver7.02_p181.png
namespace http://www.gbxml.org/schema
properties
content complex
children EmissionRate SinkRate HighLimit
used by
elements ExtEquip IntEquip Material Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
scheduleIdRef  xsd:IDREF
documentation
ID for the schedule of transmittance of a shading surface
source <xsd:element name="IndoorAirQuality">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="EmissionRate" minOccurs="0"/>

<xsd:element ref="SinkRate" minOccurs="0"/>

<xsd:element ref="HighLimit" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute IndoorAirQuality/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute IndoorAirQuality/@scheduleIdRef
type xsd:IDREF
annotation
documentation
ID for the schedule of transmittance of a shading surface
source <xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element InfiltrationFlow
diagram GreenBuildingXML_Ver7.02_p182.png
namespace http://www.gbxml.org/schema
properties
content complex
children BlowerDoorValue Reference
used by
elements Building Space
attributes
Name  Type  Use  Default  Fixed  Annotation
type  infiltrationTypeEnum
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Flow of air through building envelope
source <xsd:element name="InfiltrationFlow">

<xsd:annotation>

<xsd:documentation>Flow of air through building envelope</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="BlowerDoorValue" minOccurs="0"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="type" type="infiltrationTypeEnum"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute InfiltrationFlow/@type
type infiltrationTypeEnum
facets
Kind Value Annotation
enumeration Loose
enumeration Average
enumeration Tight
source <xsd:attribute name="type" type="infiltrationTypeEnum"/>

attribute InfiltrationFlow/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element InputWatts
diagram GreenBuildingXML_Ver7.02_p183.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element LightingSystem
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  powerUnitEnum  required
source <xsd:element name="InputWatts">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="powerUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute InputWatts/@unit
type powerUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Watt
enumeration Kilowatt
enumeration Horsepower
enumeration KilogramForceMeterPerSecond
enumeration BtuPerSecond
enumeration FootPoundForcePerSecond
enumeration KilocaloriesPerSecond
enumeration BtuPerHour
source <xsd:attribute name="unit" type="powerUnitEnum" use="required"/>

element InsideAirFilmResistance
diagram GreenBuildingXML_Ver7.02_p184.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Layer
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  resistanceUnitEnum  required
annotation
documentation
Thermal resistance of the internal air film in a layer
source <xsd:element name="InsideAirFilmResistance">

<xsd:annotation>

<xsd:documentation>Thermal resistance of the internal air film in a layer</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="resistanceUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute InsideAirFilmResistance/@unit
type resistanceUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration SquareMeterKPerW
enumeration HrSquareFtFPerBTU
source <xsd:attribute name="unit" type="resistanceUnitEnum" use="required"/>

element IntEquip
diagram GreenBuildingXML_Ver7.02_p185.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Manufacturer Model ElecLoad FuelLoad LatentLoad Efficiency Performance Cost Weight WasteWaterHREff WaterUsePerCycle RatedFlow HeatRejectedtoSpace Power CyclesPerWeek Energy GeneralGeometry ShellGeometry IndoorAirQuality Age Reference CADObjectId
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
scheduleIdRef  xsd:IDREF
documentation
ID for the schedule of transmittance of a shading surface
waterTempScheduleIdRef  xsd:IDREF
hydronicLoopIdRef  xsd:IDREF
documentation
ID pointing to a hydronic loop
waterScheduleIdRef  xsd:IDREF
waterMeterIdRef  xsd:IDREF
type  intEquipTypeEnum  required
airLoopIdRef  xsd:IDREF
documentation
ID pointing to an air loop
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Interior equipment. This is generalized to be able to contain any type of internal equipment.
source <xsd:element name="IntEquip">

<xsd:annotation>

<xsd:documentation>Interior equipment. This is generalized to be able to contain any type of internal equipment.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Manufacturer" minOccurs="0"/>

<xsd:element ref="Model" minOccurs="0"/>

<xsd:element ref="ElecLoad" minOccurs="0"/>

<xsd:element ref="FuelLoad" minOccurs="0"/>

<xsd:element ref="LatentLoad" minOccurs="0"/>

<xsd:element ref="Efficiency" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Performance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Weight" minOccurs="0"/>

<xsd:element ref="WasteWaterHREff" minOccurs="0"/>

<xsd:element ref="WaterUsePerCycle" minOccurs="0"/>

<xsd:element ref="RatedFlow" minOccurs="0"/>

<xsd:element ref="HeatRejectedtoSpace" minOccurs="0"/>

<xsd:element ref="Power" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CyclesPerWeek" minOccurs="0"/>

<xsd:element ref="Energy" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="GeneralGeometry" minOccurs="0"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

<xsd:element ref="IndoorAirQuality" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Age" minOccurs="0"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="waterTempScheduleIdRef" type="xsd:IDREF"/>

<xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to a hydronic loop </xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="waterScheduleIdRef" type="xsd:IDREF"/>

<xsd:attribute name="waterMeterIdRef" type="xsd:IDREF"/>

<xsd:attribute name="type" type="intEquipTypeEnum" use="required"/>

<xsd:attribute name="airLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to an air loop</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute IntEquip/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute IntEquip/@scheduleIdRef
type xsd:IDREF
annotation
documentation
ID for the schedule of transmittance of a shading surface
source <xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute IntEquip/@waterTempScheduleIdRef
type xsd:IDREF
source <xsd:attribute name="waterTempScheduleIdRef" type="xsd:IDREF"/>

attribute IntEquip/@hydronicLoopIdRef
type xsd:IDREF
annotation
documentation
ID pointing to a hydronic loop
source <xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to a hydronic loop </xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute IntEquip/@waterScheduleIdRef
type xsd:IDREF
source <xsd:attribute name="waterScheduleIdRef" type="xsd:IDREF"/>

attribute IntEquip/@waterMeterIdRef
type xsd:IDREF
source <xsd:attribute name="waterMeterIdRef" type="xsd:IDREF"/>

attribute IntEquip/@type
type intEquipTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration GeneralPlugload
enumeration Computer
enumeration Copier
enumeration Refrigerator
enumeration Stove
enumeration Cooktop
enumeration Fryer
enumeration Freezer
enumeration ClothesDryer
enumeration ClothesWasher
enumeration Dishwasher
enumeration TV
enumeration VCR
enumeration Microwave
enumeration Fan
enumeration AudioEquip
enumeration MiscEquip
enumeration Toilet
enumeration Urinal
enumeration Shower
enumeration Sink
enumeration Pool
enumeration HotTub
enumeration Sauna
enumeration BatteryCharger
enumeration Furnace
enumeration IndustrialEquip
enumeration Printer
enumeration Vending
enumeration Elevator
enumeration Escalator
enumeration GeneralLaundryEquip
enumeration GeneralKitchenEquip
enumeration GeneralMedicalEquip
enumeration GeneralOfficeEquip
enumeration GeneralEntertainmentEquip
enumeration GeneralRefrigerationEquip
enumeration GeneralFitnessEquip
enumeration GeneralVideoEquip
enumeration GeneralToilet
source <xsd:attribute name="type" type="intEquipTypeEnum" use="required"/>

attribute IntEquip/@airLoopIdRef
type xsd:IDREF
annotation
documentation
ID pointing to an air loop
source <xsd:attribute name="airLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to an air loop</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute IntEquip/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element IntEquipId
diagram GreenBuildingXML_Ver7.02_p186.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
elements Building Space
attributes
Name  Type  Use  Default  Fixed  Annotation
intEquipIdRef  xsd:IDREF  required
documentation
ID pointing at an interior equipment object
source <xsd:element name="IntEquipId">

<xsd:complexType>

<xsd:attribute name="intEquipIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing at an interior equipment object</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute IntEquipId/@intEquipIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID pointing at an interior equipment object
source <xsd:attribute name="intEquipIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID pointing at an interior equipment object</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Lamp
diagram GreenBuildingXML_Ver7.02_p187.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element LightingSystem
annotation
documentation
Type of lamp used
source <xsd:element name="Lamp" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Type of lamp used</xsd:documentation>

</xsd:annotation>
</xsd:element>

element LastName
diagram GreenBuildingXML_Ver7.02_p188.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="LastName" type="xsd:string"/>

element LatentHeatRecoveryEffectiveness
diagram GreenBuildingXML_Ver7.02_p189.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
source <xsd:element name="LatentHeatRecoveryEffectiveness" type="xsd:decimal"/>

element LatentLoad
diagram GreenBuildingXML_Ver7.02_p190.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements ExtEquip IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  loadUnitEnum  required
source <xsd:element name="LatentLoad">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="loadUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute LatentLoad/@unit
type loadUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration BtuPerHour
enumeration Watt
source <xsd:attribute name="unit" type="loadUnitEnum" use="required"/>

element Latitude
diagram GreenBuildingXML_Ver7.02_p191.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Location
annotation
documentation
Degrees north of the equator, in decimal degrees. Locations south of the equator are negative.
source <xsd:element name="Latitude" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Degrees north of the equator, in decimal degrees. Locations south of the equator are negative.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element Layer
diagram GreenBuildingXML_Ver7.02_p192.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Cost InsideAirFilmResistance MaterialId HOutside
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
DOELibIdRef  xsd:string
documentation
Use this attribute to reference objects in the DOE2 library
annotation
documentation
A Layer is a description of a material in a composite construction.  Its id attribute is referenced in the Contstruction element's LayerId
source <xsd:element name="Layer">

<xsd:annotation>

<xsd:documentation>A Layer is a description of a material in a composite construction.  Its id attribute is referenced in the Contstruction element's LayerId </xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="InsideAirFilmResistance" minOccurs="0"/>

<xsd:element ref="MaterialId" maxOccurs="1"/>

<xsd:element ref="HOutside" minOccurs="0" maxOccurs="1"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Layer/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Layer/@DOELibIdRef
type xsd:string
annotation
documentation
Use this attribute to reference objects in the DOE2 library
source <xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element LayerId
diagram GreenBuildingXML_Ver7.02_p193.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Construction
attributes
Name  Type  Use  Default  Fixed  Annotation
layerIdRef  xsd:IDREF  required
documentation
ID identifying a layer in this construction. Multiple layers in Constructions are in order from outside to inside.
source <xsd:element name="LayerId">

<xsd:complexType>

<xsd:attribute name="layerIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID identifying a layer in this construction. Multiple layers in Constructions are in order from outside to inside.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute LayerId/@layerIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID identifying a layer in this construction. Multiple layers in Constructions are in order from outside to inside.
source <xsd:attribute name="layerIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID identifying a layer in this construction. Multiple layers in Constructions are in order from outside to inside.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Length
diagram GreenBuildingXML_Ver7.02_p194.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Dimensions
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  lengthUnitEnum
source <xsd:element name="Length">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="lengthUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Length/@unit
type lengthUnitEnum
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum"/>

element Level
diagram GreenBuildingXML_Ver7.02_p195.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element BuildingStorey
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  lengthUnitEnum
annotation
documentation
Building storey Local Placement Z coordinate.
source <xsd:element name="Level">

<xsd:annotation>

<xsd:documentation>Building storey Local Placement Z coordinate.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="lengthUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Level/@unit
type lengthUnitEnum
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum"/>

element Life
diagram GreenBuildingXML_Ver7.02_p196.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment Campus HydronicLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  lifeUnitEnum  required
source <xsd:element name="Life">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="lifeUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Life/@unit
type lifeUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Months
enumeration Years
enumeration Cycles
enumeration MillionCycles
source <xsd:attribute name="unit" type="lifeUnitEnum" use="required"/>

element LightControlId
diagram GreenBuildingXML_Ver7.02_p197.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
element Campus
attributes
Name  Type  Use  Default  Fixed  Annotation
scheduleIdRef  xsd:IDREF
documentation
ID for the schedule of transmittance of a shading surface
source <xsd:element name="LightControlId">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute LightControlId/@scheduleIdRef
type xsd:IDREF
annotation
documentation
ID for the schedule of transmittance of a shading surface
source <xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element LightId
diagram GreenBuildingXML_Ver7.02_p198.png
namespace http://www.gbxml.org/schema
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
lightIdRef  xsd:IDREF  required
documentation
Identifier pointing at a light object
source <xsd:element name="LightId">

<xsd:complexType>

<xsd:attribute name="lightIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>Identifier pointing at a light object</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute LightId/@lightIdRef
type xsd:IDREF
properties
use required
annotation
documentation
Identifier pointing at a light object
source <xsd:attribute name="lightIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>Identifier pointing at a light object</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Lighting
diagram GreenBuildingXML_Ver7.02_p199.png
namespace http://www.gbxml.org/schema
properties
content complex
children GeneralGeometry ShellGeometry CoefficientOfUtilization PhotometryOrientation
used by
elements Building Campus Space
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
lightingSystemIdRef  xsd:IDREF
lightingControlIdRef  xsd:IDREF
meterIdRef  xsd:IDREF
documentation
ID for a resource meter
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="Lighting">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="GeneralGeometry" minOccurs="0"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

<xsd:element ref="CoefficientOfUtilization" minOccurs="0"/>

<xsd:element ref="PhotometryOrientation" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="lightingSystemIdRef" type="xsd:IDREF"/>

<xsd:attribute name="lightingControlIdRef" type="xsd:IDREF"/>

<xsd:attribute name="meterIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for a resource meter</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Lighting/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Lighting/@lightingSystemIdRef
type xsd:IDREF
source <xsd:attribute name="lightingSystemIdRef" type="xsd:IDREF"/>

attribute Lighting/@lightingControlIdRef
type xsd:IDREF
source <xsd:attribute name="lightingControlIdRef" type="xsd:IDREF"/>

attribute Lighting/@meterIdRef
type xsd:IDREF
annotation
documentation
ID for a resource meter
source <xsd:attribute name="meterIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for a resource meter</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Lighting/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element LightingControl
diagram GreenBuildingXML_Ver7.02_p200.png
namespace http://www.gbxml.org/schema
properties
content complex
children GeneralGeometry ShellGeometry Illuminance CartesianPoint MinPowerFrac MinLightFrac PercentAreaDaylitControlled
used by
elements gbXML Space
attributes
Name  Type  Use  Default  Fixed  Annotation
type  lightControlTypeEnum  required
id  xsd:ID  required
lightingSystemIdRef  xsd:IDREF
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="LightingControl">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="GeneralGeometry" minOccurs="0"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

<xsd:element ref="Illuminance" minOccurs="0">

<xsd:annotation>

<xsd:documentation>Illuminance level that the lights are maintained if daylighting controls present (lightControlTypeEnum not equal to on off).</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="CartesianPoint" minOccurs="0">

<xsd:annotation>

<xsd:documentation>Location where Illuminance value is specified.</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="MinPowerFrac" minOccurs="0"/>

<xsd:element ref="MinLightFrac" minOccurs="0"/>

<xsd:element ref="PercentAreaDaylitControlled" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="type" type="lightControlTypeEnum" use="required"/>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="lightingSystemIdRef" type="xsd:IDREF"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute LightingControl/@type
type lightControlTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Continuous
enumeration OnOff
enumeration Stepped2
enumeration Stepped3
enumeration Stepped4
enumeration Stepped5
enumeration Stepped6
enumeration Stepped7
enumeration Stepped8
enumeration Stepped9
enumeration Stepped10
enumeration Stepped11
enumeration Stepped12
enumeration Stepped13
enumeration Stepped14
enumeration Stepped15
enumeration Stepped16
enumeration Stepped17
enumeration Stepped18
enumeration Stepped19
enumeration Stepped20
enumeration ContinuousOff
enumeration MotionSensor
enumeration Photocell
source <xsd:attribute name="type" type="lightControlTypeEnum" use="required"/>

attribute LightingControl/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute LightingControl/@lightingSystemIdRef
type xsd:IDREF
source <xsd:attribute name="lightingSystemIdRef" type="xsd:IDREF"/>

attribute LightingControl/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element LightingSystem
diagram GreenBuildingXML_Ver7.02_p201.png
namespace http://www.gbxml.org/schema
properties
content complex
children Manufacturer NumberOfLamps LumensPerLamp Dimensions InputWatts Ballast Lamp Luminaire Photometry CoefficientOfUtilization Cost GeneralGeometry ShellGeometry Reference
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="LightingSystem">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Manufacturer" minOccurs="0"/>

<xsd:element ref="NumberOfLamps" minOccurs="0"/>

<xsd:element ref="LumensPerLamp" minOccurs="0"/>

<xsd:element ref="Dimensions" minOccurs="0"/>

<xsd:element ref="InputWatts" minOccurs="0"/>

<xsd:element ref="Ballast" minOccurs="0"/>

<xsd:element ref="Lamp" maxOccurs="unbounded"/>

<xsd:element ref="Luminaire" minOccurs="0"/>

<xsd:element ref="Photometry" minOccurs="0"/>

<xsd:element ref="CoefficientOfUtilization" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="GeneralGeometry" minOccurs="0"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute LightingSystem/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute LightingSystem/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element LightPowerPerArea
diagram GreenBuildingXML_Ver7.02_p202.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Space
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  powerPerAreaUnitEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Amount of power used by lighting in a given area
source <xsd:element name="LightPowerPerArea">

<xsd:annotation>

<xsd:documentation>Amount of power used by lighting in a given area</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="powerPerAreaUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute LightPowerPerArea/@unit
type powerPerAreaUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration WattPerSquareMeter
enumeration WattPerSquareFoot
source <xsd:attribute name="unit" type="powerPerAreaUnitEnum" use="required"/>

attribute LightPowerPerArea/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element LoadCalcInputParameters
diagram GreenBuildingXML_Ver7.02_p203.png
namespace http://www.gbxml.org/schema
properties
content complex
children RTSParameters CLTDParameters ManualJ8Parameters FloorSlabHeatLossCoefficient
used by
element Construction
source <xsd:element name="LoadCalcInputParameters">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="RTSParameters" minOccurs="0"/>

<xsd:element ref="CLTDParameters" minOccurs="0"/>

<xsd:element ref="ManualJ8Parameters" minOccurs="0"/>

<xsd:element ref="FloorSlabHeatLossCoefficient" minOccurs="0"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element Location
diagram GreenBuildingXML_Ver7.02_p204.png
namespace http://www.gbxml.org/schema
properties
content complex
children StationId Name Description ZipcodeOrPostalCode Longitude Latitude Elevation CADModelAzimuth
used by
elements Campus Weather
annotation
documentation
The Location element describes the location of the global origin for this campus. This element can be used in a general sense by using the Name and Description elements for a physical address or landmark, or Location can be made precise by specifying the Elevation, Longitude, and Latitude of the origin.
source <xsd:element name="Location">

<xsd:annotation>

<xsd:documentation>The Location element describes the location of the global origin for this campus. This element can be used in a general sense by using the Name and Description elements for a physical address or landmark, or Location can be made precise by specifying the Elevation, Longitude, and Latitude of the origin.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:all>

<xsd:element ref="StationId" minOccurs="0"/>

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="ZipcodeOrPostalCode" minOccurs="1"/>

<xsd:element ref="Longitude" minOccurs="0"/>

<xsd:element ref="Latitude" minOccurs="0"/>

<xsd:element ref="Elevation" minOccurs="0"/>

<xsd:element ref="CADModelAzimuth" minOccurs="0"/>

</xsd:all>

</xsd:complexType>
</xsd:element>

element Longitude
diagram GreenBuildingXML_Ver7.02_p205.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Location
annotation
documentation
Degrees east of Greenwich, in decimal degrees. Locations west of Greenwich are negative.
source <xsd:element name="Longitude" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Degrees east of Greenwich, in decimal degrees. Locations west of Greenwich are negative.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element LowerLimitValue
diagram GreenBuildingXML_Ver7.02_p206.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element ScheduleTypeLimits
source <xsd:element name="LowerLimitValue" type="xsd:decimal"/>

element LowValue
diagram GreenBuildingXML_Ver7.02_p207.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element OperationRange
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  conditioningUnitEnum  required
source <xsd:element name="LowValue">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="conditioningUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute LowValue/@unit
type conditioningUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration kBtu
enumeration Btu
enumeration kW
enumeration Tons
source <xsd:attribute name="unit" type="conditioningUnitEnum" use="required"/>

element LumensPerLamp
diagram GreenBuildingXML_Ver7.02_p208.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element LightingSystem
source <xsd:element name="LumensPerLamp" type="xsd:decimal"/>

element Luminaire
diagram GreenBuildingXML_Ver7.02_p209.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element LightingSystem
annotation
documentation
Type of luminaire used
source <xsd:element name="Luminaire" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Type of luminaire used</xsd:documentation>

</xsd:annotation>
</xsd:element>

element ManualJ8Parameters
diagram GreenBuildingXML_Ver7.02_p210.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element LoadCalcInputParameters
attributes
Name  Type  Use  Default  Fixed  Annotation
wallGroupManualJ  wallGroupManualJEnum
documentation
Specifies the group code for the wall, which determines how quickly the wall delivers heat into the space. See Table 4C, page T4C-1 ACCA Manual J Eighth Edition.
roofCLTDIndex  roofCLTDIndexEnum
documentation
Specifies the array of CLTD values to use for the roof, which determines how quickly the roof delivers heat into the space. See Table 4A page T4A-18 and following, ACCA Manual J Eighth Edition.
floorIsRadiant  xsd:boolean
documentation
Specifies whether or not to use a higher heating temperature difference value in calculating the heating loss for a floor (25 degrees F higher value is used in formula if floor is radiant). See Figure A5-5, page A5-8, ACCA Manual J Eighth Edition.
floorCrawlSpaceWallUValue  xsd:float
documentation
Specifies the u-value of the crawl space wall that is associated with the floor, which affects both the heating and cooling load. See Figure A5-5, page A5-8, and Figure A5-17, page A5-16, ACCA Manual J Eighth Edition.
floorCrawlSpaceIsSealed  xsd:boolean
documentation
Specifies whether or not the crawl space wall associated with this floor is well sealed from the outdoor air, which affects both the heating and cooling loads. See Figure A5-5, page A5-8, and Figure A5-17 page A5-16, ACCA Manual J Eighth Edition.
floorCategory  floorCategoryEnum
documentation
Specifies the type of floor being considered, which affects both the heating and the cooling loads. See Table 4A, pages T4A-27 and following, ACCA Manual J Eighth Edition.
annotation
documentation
Parameters required by the ACCA Manual J Eighth Edition load calculation method. Ignore this element and all elements under it if you are not planning to use that method.
source <xsd:element name="ManualJ8Parameters">

<xsd:annotation>

<xsd:documentation>Parameters required by the ACCA Manual J Eighth Edition load calculation method. Ignore this element and all elements under it if you are not planning to use that method.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:attribute name="wallGroupManualJ" type="wallGroupManualJEnum">

<xsd:annotation>

<xsd:documentation>Specifies the group code for the wall, which determines how quickly the wall delivers heat into the space. See Table 4C, page T4C-1 ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="roofCLTDIndex" type="roofCLTDIndexEnum">

<xsd:annotation>

<xsd:documentation>Specifies the array of CLTD values to use for the roof, which determines how quickly the roof delivers heat into the space. See Table 4A page T4A-18 and following, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="floorIsRadiant" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>Specifies whether or not to use a higher heating temperature difference value in calculating the heating loss for a floor (25 degrees F higher value is used in formula if floor is radiant). See Figure A5-5, page A5-8, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="floorCrawlSpaceWallUValue" type="xsd:float">

<xsd:annotation>

<xsd:documentation>Specifies the u-value of the crawl space wall that is associated with the floor, which affects both the heating and cooling load. See Figure A5-5, page A5-8, and Figure A5-17, page A5-16, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="floorCrawlSpaceIsSealed" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>Specifies whether or not the crawl space wall associated with this floor is well sealed from the outdoor air, which affects both the heating and cooling loads. See Figure A5-5, page A5-8, and Figure A5-17 page A5-16, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="floorCategory" type="floorCategoryEnum">

<xsd:annotation>

<xsd:documentation>Specifies the type of floor being considered, which affects both the heating and the cooling loads. See Table 4A, pages T4A-27 and following, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute ManualJ8Parameters/@wallGroupManualJ
type wallGroupManualJEnum
facets
Kind Value Annotation
enumeration A
documentation
Fastest heat transfer
enumeration B
enumeration C
enumeration D
enumeration E
enumeration F
documentation
Medium heat transfer
enumeration G
enumeration H
enumeration I
enumeration J
enumeration K
documentation
Slowest heat transfer
annotation
documentation
Specifies the group code for the wall, which determines how quickly the wall delivers heat into the space. See Table 4C, page T4C-1 ACCA Manual J Eighth Edition.
source <xsd:attribute name="wallGroupManualJ" type="wallGroupManualJEnum">

<xsd:annotation>

<xsd:documentation>Specifies the group code for the wall, which determines how quickly the wall delivers heat into the space. See Table 4C, page T4C-1 ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ManualJ8Parameters/@roofCLTDIndex
type roofCLTDIndexEnum
facets
Kind Value Annotation
enumeration 1
documentation
Under attic or knee wall, U-value = 0.408 - 0.018, Unvented Attic, No Radiant Barrier, Any Roofing Material, Any Roof Color
enumeration 2
documentation
Under attic or knee wall, U-value = 0.408 - 0.018, Vented Attic, No Radiant Barrier, Dark Asphalt Shingles or Dark Metal, Tar and Gravel or Membrane
enumeration 3
documentation
Under attic or knee wall, U-value = 0.408 - 0.018, Vented Attic, No Radiant Barrier, White or Light Color Shingles, Any Wood Shake Light Metal, Tar and Gravel or Membrane
enumeration 4
documentation
Under attic or knee wall, U-value = 0.408 - 0.02, Vented Attic, No Radiant Barrier, Dark Tile, Slate or Concrete
enumeration 5
documentation
Under attic or knee wall, U-value = 0.408 - 0.02, Vented Attic, No Radiant Barrier, Light Tile, Slate or Concrete
enumeration 6
documentation
Under attic or knee wall, U-value = 0.408 - 0.02, Vented Attic, No Radiant Barrier, White Tile, Slate or Concrete, White Metal or White Membrane
enumeration 7
documentation
On exposed beams, U-value = 0.287 - 0.134, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 8
documentation
On exposed beams, U-value = 0.118 - 0.091, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 9
documentation
On exposed beams, U-value = 0.074 - 0.063, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 10
documentation
On exposed beams, U-value = 0.054, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 11
documentation
On exposed beams, U-value = 0.048, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 12
documentation
On exposed beams, U-value = 0.043 - 0.039, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 13
documentation
On exposed beams, U-value = 0.035, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 14
documentation
On exposed beams, U-value = 0.032 - 0.027, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 15
documentation
On exposed beams, U-value = 0.287 - 0.134, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 16
documentation
On exposed beams, U-value = 0.118 - 0.091, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 17
documentation
On exposed beams, U-value = 0.074 - 0.063, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 18
documentation
On exposed beams, U-value = 0.054, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 19
documentation
On exposed beams, U-value = 0.048, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 20
documentation
On exposed beams, U-value = 0.043 - 0.039, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 21
documentation
On exposed beams, U-value = 0.035, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 22
documentation
On exposed beams, U-value = 0.032 - 0.027, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 23
documentation
On exposed beams, U-value = 0.287 - 0.134, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 24
documentation
On exposed beams, U-value = 0.118 - 0.091, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 25
documentation
On exposed beams, U-value = 0.074 - 0.063, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 26
documentation
On exposed beams, U-value = 0.054, White or Light Color Tile Slate or Concrete, White Metal, White Membrane
enumeration 27
documentation
On exposed beams, U-value = 0.048, White or Light Color Tile Slate or Concrete, White Metal, White Membrane
enumeration 28
documentation
On exposed beams, U-value = 0.043 - 0.039, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 29
documentation
On exposed beams, U-value = 0.035, White or Light Color Tile Slate or Concrete, White Metal, White Membrane
enumeration 30
documentation
On exposed beams, U-value = 0.032 - 0.027, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 31
documentation
Below roof joists, U-value = 0.241 - 0.109, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 32
documentation
Below roof joists, U-value = 0.09 - 0.076, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 33
documentation
Below roof joists, U-value = 0.069, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 34
documentation
Below roof joists, U-value = 0.051 - 0.047, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 35
documentation
Below roof joists, U-value = 0.034, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 36
documentation
Below roof joists, U-value = 0.029, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 37
documentation
Below roof joists, U-value = 0.241 - 0.109, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 38
documentation
Below roof joists, U-value = 0.09 - 0.076, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 39
documentation
Below roof joists, U-value = 0.069, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 40
documentation
Below roof joists, U-value = 0.051 - 0.047, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 41
documentation
Below roof joists, U-value = 0.034, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 42
documentation
Below roof joists, U-value = 0.029, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 43
documentation
Below roof joists, U-value = 0.241 - 0.109, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 44
documentation
Below roof joists, U-value = 0.09 - 0.076, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 45
documentation
Below roof joists, U-value = 0.069, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 46
documentation
Below roof joists, U-value = 0.051 - 0.034, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 47
documentation
Below roof joists, U-value = 0.029, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
annotation
documentation
Specifies the array of CLTD values to use for the roof, which determines how quickly the roof delivers heat into the space. See Table 4A page T4A-18 and following, ACCA Manual J Eighth Edition.
source <xsd:attribute name="roofCLTDIndex" type="roofCLTDIndexEnum">

<xsd:annotation>

<xsd:documentation>Specifies the array of CLTD values to use for the roof, which determines how quickly the roof delivers heat into the space. See Table 4A page T4A-18 and following, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ManualJ8Parameters/@floorIsRadiant
type xsd:boolean
annotation
documentation
Specifies whether or not to use a higher heating temperature difference value in calculating the heating loss for a floor (25 degrees F higher value is used in formula if floor is radiant). See Figure A5-5, page A5-8, ACCA Manual J Eighth Edition.
source <xsd:attribute name="floorIsRadiant" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>Specifies whether or not to use a higher heating temperature difference value in calculating the heating loss for a floor (25 degrees F higher value is used in formula if floor is radiant). See Figure A5-5, page A5-8, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ManualJ8Parameters/@floorCrawlSpaceWallUValue
type xsd:float
annotation
documentation
Specifies the u-value of the crawl space wall that is associated with the floor, which affects both the heating and cooling load. See Figure A5-5, page A5-8, and Figure A5-17, page A5-16, ACCA Manual J Eighth Edition.
source <xsd:attribute name="floorCrawlSpaceWallUValue" type="xsd:float">

<xsd:annotation>

<xsd:documentation>Specifies the u-value of the crawl space wall that is associated with the floor, which affects both the heating and cooling load. See Figure A5-5, page A5-8, and Figure A5-17, page A5-16, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ManualJ8Parameters/@floorCrawlSpaceIsSealed
type xsd:boolean
annotation
documentation
Specifies whether or not the crawl space wall associated with this floor is well sealed from the outdoor air, which affects both the heating and cooling loads. See Figure A5-5, page A5-8, and Figure A5-17 page A5-16, ACCA Manual J Eighth Edition.
source <xsd:attribute name="floorCrawlSpaceIsSealed" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>Specifies whether or not the crawl space wall associated with this floor is well sealed from the outdoor air, which affects both the heating and cooling loads. See Figure A5-5, page A5-8, and Figure A5-17 page A5-16, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ManualJ8Parameters/@floorCategory
type floorCategoryEnum
facets
Kind Value Annotation
enumeration OverEnclosedCrawlSpaceOrBasement
enumeration OverOpenCrawlSpaceOrGarage
enumeration Basement
enumeration SlabOnGrade
annotation
documentation
Specifies the type of floor being considered, which affects both the heating and the cooling loads. See Table 4A, pages T4A-27 and following, ACCA Manual J Eighth Edition.
source <xsd:attribute name="floorCategory" type="floorCategoryEnum">

<xsd:annotation>

<xsd:documentation>Specifies the type of floor being considered, which affects both the heating and the cooling loads. See Table 4A, pages T4A-27 and following, ACCA Manual J Eighth Edition.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Manufacturer
diagram GreenBuildingXML_Ver7.02_p211.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements AirLoopEquipment ExtEquip HydronicLoopEquipment IntEquip LightingSystem
source <xsd:element name="Manufacturer" type="xsd:string"/>

element Material
diagram GreenBuildingXML_Ver7.02_p212.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Absorptance Roughness Albedo Reflectance Transmittance Emittance ImageTexture R-value Thickness Conductivity Density SpecificHeat Permeance Porosity RecycledContent Fire Cost IndoorAirQuality CADMaterialId Reference
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
DOELibIdRef  xsd:string
documentation
Use this attribute to reference objects in the DOE2 library
source <xsd:element name="Material">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Absorptance" minOccurs="0"/>

<xsd:element ref="Roughness" minOccurs="0"/>

<xsd:element ref="Albedo" minOccurs="0"/>

<xsd:element ref="Reflectance" minOccurs="0"/>

<xsd:element ref="Transmittance" minOccurs="0"/>

<xsd:element ref="Emittance" minOccurs="0"/>

<xsd:element ref="ImageTexture" minOccurs="0"/>

<xsd:element ref="R-value" minOccurs="0"/>

<xsd:element ref="Thickness" minOccurs="0"/>

<xsd:element ref="Conductivity" minOccurs="0"/>

<xsd:element ref="Density" minOccurs="0"/>

<xsd:element ref="SpecificHeat" minOccurs="0"/>

<xsd:element ref="Permeance" minOccurs="0"/>

<xsd:element ref="Porosity" minOccurs="0"/>

<xsd:element ref="RecycledContent" minOccurs="0"/>

<xsd:element ref="Fire" minOccurs="0"/>

<xsd:element ref="Cost" minOccurs="0"/>

<xsd:element ref="IndoorAirQuality" minOccurs="0"/>

<xsd:element ref="CADMaterialId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Material/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Material/@DOELibIdRef
type xsd:string
annotation
documentation
Use this attribute to reference objects in the DOE2 library
source <xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element MaterialId
diagram GreenBuildingXML_Ver7.02_p213.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Layer
attributes
Name  Type  Use  Default  Fixed  Annotation
materialIdRef  xsd:IDREF  required
documentation
ID identifying a material in a Layer element.
percentOfLayer  xsd:double
documentation
Percentage (1-100%) of this layer that this material is made from.
source <xsd:element name="MaterialId">

<xsd:complexType>

<xsd:attribute name="materialIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID identifying a material in a Layer element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="percentOfLayer" type="xsd:double">

<xsd:annotation>

<xsd:documentation>Percentage (1-100%) of this layer that this material is made from. </xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute MaterialId/@materialIdRef
type xsd:IDREF
properties
use required
annotation
documentation
ID identifying a material in a Layer element.
source <xsd:attribute name="materialIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>ID identifying a material in a Layer element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute MaterialId/@percentOfLayer
type xsd:double
annotation
documentation
Percentage (1-100%) of this layer that this material is made from.
source <xsd:attribute name="percentOfLayer" type="xsd:double">

<xsd:annotation>

<xsd:documentation>Percentage (1-100%) of this layer that this material is made from. </xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element MaximumFlow
diagram GreenBuildingXML_Ver7.02_p214.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment FlowControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum
source <xsd:element name="MaximumFlow">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MaximumFlow/@unit
type flowUnitEnum
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum"/>

element MaximumFlowFractionDuringReheat
diagram GreenBuildingXML_Ver7.02_p215.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
source <xsd:element name="MaximumFlowFractionDuringReheat" type="xsd:decimal"/>

element MaxOAFlowPerZone
diagram GreenBuildingXML_Ver7.02_p216.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
programId  xsd:IDREF  optional
annotation
documentation
Maximum outdoor air flow per zone
source <xsd:element name="MaxOAFlowPerZone">

<xsd:annotation>

<xsd:documentation>Maximum outdoor air flow per zone</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MaxOAFlowPerZone/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

attribute MaxOAFlowPerZone/@programId
type xsd:IDREF
properties
use optional
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional"/>

element MaxPressure
diagram GreenBuildingXML_Ver7.02_p217.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element PressureControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  pressureUnitEnum
source <xsd:element name="MaxPressure">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="pressureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MaxPressure/@unit
type pressureUnitEnum
facets
Kind Value Annotation
enumeration PSI
enumeration kPa
enumeration Atmospheres
enumeration InchesOfH2O
enumeration CentimetersOfH2O
enumeration InchesOfMercury
enumeration CentimetersOfMercury
enumeration MillimetersOfMercury
enumeration Pascals
source <xsd:attribute name="unit" type="pressureUnitEnum"/>

element MaxRelativeHumidity
diagram GreenBuildingXML_Ver7.02_p218.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
source <xsd:element name="MaxRelativeHumidity">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MaxRelativeHumidity/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element MaxTemp
diagram GreenBuildingXML_Ver7.02_p219.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element TemperatureControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
source <xsd:element name="MaxTemp">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MaxTemp/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element Meter
diagram GreenBuildingXML_Ver7.02_p220.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description UtilityRate
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
resourceType  resourceTypeEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Description of a resource measurement
source <xsd:element name="Meter">

<xsd:annotation>

<xsd:documentation>Description of a resource measurement</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="UtilityRate" minOccurs="0"/>

<xsd:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="resourceType" type="resourceTypeEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Meter/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Meter/@resourceType
type resourceTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Electricity
enumeration NaturalGas
enumeration Propane
enumeration FuelOil1
enumeration FuelOil2
enumeration FuelOil4
enumeration Water
enumeration ChilledWater
enumeration HotWater
enumeration Steam
source <xsd:attribute name="resourceType" type="resourceTypeEnum" use="required"/>

attribute Meter/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element MeterId
diagram GreenBuildingXML_Ver7.02_p221.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
elements AltEnergySource Building Campus Space
attributes
Name  Type  Use  Default  Fixed  Annotation
meterIdRef  xsd:IDREF
documentation
ID for a resource meter
source <xsd:element name="MeterId">

<xsd:complexType>

<xsd:attribute name="meterIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for a resource meter</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute MeterId/@meterIdRef
type xsd:IDREF
annotation
documentation
ID for a resource meter
source <xsd:attribute name="meterIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for a resource meter</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element MiddleName
diagram GreenBuildingXML_Ver7.02_p222.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="MiddleName" type="xsd:string"/>

element MinFlow
diagram GreenBuildingXML_Ver7.02_p223.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment HydronicLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  derived by: flowUnitEnum  required
hydronicLoopIdRef  xsd:IDREF
hydronicLoopType  loopTypeEnum
annotation
documentation
Minimum flow
source <xsd:element name="MinFlow">

<xsd:annotation>

<xsd:documentation>Minimum flow</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" use="required">

<xsd:simpleType>

<xsd:union memberTypes="flowUnitEnum unitlessUnitEnum"/>

</xsd:simpleType>

</xsd:attribute>

<xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF"/>

<xsd:attribute name="hydronicLoopType" type="loopTypeEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MinFlow/@unit
type union of (flowUnitEnum, unitlessUnitEnum)
properties
use required
source <xsd:attribute name="unit" use="required">

<xsd:simpleType>

<xsd:union memberTypes="flowUnitEnum unitlessUnitEnum"/>

</xsd:simpleType>
</xsd:attribute>

attribute MinFlow/@hydronicLoopIdRef
type xsd:IDREF
source <xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF"/>

attribute MinFlow/@hydronicLoopType
type loopTypeEnum
facets
Kind Value Annotation
enumeration PrimaryChilledWater
enumeration SecondaryChilledWater
enumeration HotWater
enumeration CondenserWater
enumeration DomesticHotWater
enumeration WaterLoopHeatPump
enumeration TwoPipe
enumeration PotableWaterLoop
enumeration VRFLoop
source <xsd:attribute name="hydronicLoopType" type="loopTypeEnum"/>

element MinimumFlow
diagram GreenBuildingXML_Ver7.02_p224.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element FlowControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum
source <xsd:element name="MinimumFlow">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MinimumFlow/@unit
type flowUnitEnum
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum"/>

element MinimumOutdoorAirControlType
diagram GreenBuildingXML_Ver7.02_p225.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  minimumOutdoorAirControlTypeEnum
source <xsd:element name="MinimumOutdoorAirControlType">

<xsd:complexType>

<xsd:attribute name="unit" type="minimumOutdoorAirControlTypeEnum"/>

</xsd:complexType>
</xsd:element>

attribute MinimumOutdoorAirControlType/@unit
type minimumOutdoorAirControlTypeEnum
facets
Kind Value Annotation
enumeration FixedMinimum
enumeration ProportionalMinimum
source <xsd:attribute name="unit" type="minimumOutdoorAirControlTypeEnum"/>

element MinLightFrac
diagram GreenBuildingXML_Ver7.02_p226.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element LightingControl
annotation
documentation
Fraction of light illuminance used at minimum setting.
source <xsd:element name="MinLightFrac" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Fraction of light illuminance used at minimum setting.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element MinOAFlowPerZone
diagram GreenBuildingXML_Ver7.02_p227.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
programId  xsd:IDREF  optional
annotation
documentation
Minimum outdoor air flow per zone
source <xsd:element name="MinOAFlowPerZone">

<xsd:annotation>

<xsd:documentation>Minimum outdoor air flow per zone</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MinOAFlowPerZone/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

attribute MinOAFlowPerZone/@programId
type xsd:IDREF
properties
use optional
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional"/>

element MinPowerFrac
diagram GreenBuildingXML_Ver7.02_p228.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element LightingControl
annotation
documentation
Fraction of power used at minimum setting.
source <xsd:element name="MinPowerFrac" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Fraction of power used at minimum setting.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element MinPressure
diagram GreenBuildingXML_Ver7.02_p229.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element PressureControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  pressureUnitEnum
source <xsd:element name="MinPressure">

<xsd:complexType>

<xsd:attribute name="unit" type="pressureUnitEnum"/>

</xsd:complexType>
</xsd:element>

attribute MinPressure/@unit
type pressureUnitEnum
facets
Kind Value Annotation
enumeration PSI
enumeration kPa
enumeration Atmospheres
enumeration InchesOfH2O
enumeration CentimetersOfH2O
enumeration InchesOfMercury
enumeration CentimetersOfMercury
enumeration MillimetersOfMercury
enumeration Pascals
source <xsd:attribute name="unit" type="pressureUnitEnum"/>

element MinRelativeHumidity
diagram GreenBuildingXML_Ver7.02_p230.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
source <xsd:element name="MinRelativeHumidity">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MinRelativeHumidity/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element MinTemp
diagram GreenBuildingXML_Ver7.02_p231.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element TemperatureControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
source <xsd:element name="MinTemp">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute MinTemp/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element Model
diagram GreenBuildingXML_Ver7.02_p232.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements AirLoopEquipment ExtEquip HydronicLoopEquipment IntEquip
source <xsd:element name="Model" type="xsd:string"/>

element ModifiedBy
diagram GreenBuildingXML_Ver7.02_p233.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element DocumentHistory
attributes
Name  Type  Use  Default  Fixed  Annotation
personId  xsd:IDREF  required
programId  xsd:IDREF  required
date  xsd:dateTime  required
annotation
documentation
Denotes the time this file has been modified, as well as the person and program used to modify this file.
source <xsd:element name="ModifiedBy">

<xsd:annotation>

<xsd:documentation>Denotes the time this file has been modified, as well as the person and program used to modify this file.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:attribute name="personId" type="xsd:IDREF" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="required"/>

<xsd:attribute name="date" type="xsd:dateTime" use="required"/>

</xsd:complexType>
</xsd:element>

attribute ModifiedBy/@personId
type xsd:IDREF
properties
use required
source <xsd:attribute name="personId" type="xsd:IDREF" use="required"/>

attribute ModifiedBy/@programId
type xsd:IDREF
properties
use required
source <xsd:attribute name="programId" type="xsd:IDREF" use="required"/>

attribute ModifiedBy/@date
type xsd:dateTime
properties
use required
source <xsd:attribute name="date" type="xsd:dateTime" use="required"/>

element MotorInAirstream
diagram GreenBuildingXML_Ver7.02_p234.png
namespace http://www.gbxml.org/schema
type xsd:boolean
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Indicates if the motor is located in the path of the air stream.
source <xsd:element name="MotorInAirstream" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>Indicates if the motor is located in the path of the air stream.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element Name
diagram GreenBuildingXML_Ver7.02_p235.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements AirLoop AirLoopEquipment AirSystem AnalysisParameter Blind Building BuildingStorey Campus Construction DaySchedule DependentVariable ExtEquip Frame Gap Glaze HolidaysModeled HydronicLoop HydronicLoopEquipment IndependentVariable IntEquip Layer Location Material Meter Opening Results Schedule ShellGeometry Space Surface Weather WeekSchedule WindowType XAxis YAxis YearSchedule Zone ZoneHVACEquipment
source <xsd:element name="Name" type="xsd:string"/>

element NaturalVentHiTemp
diagram GreenBuildingXML_Ver7.02_p236.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Opening
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Natural ventilation does not occur above this temperature.
source <xsd:element name="NaturalVentHiTemp">

<xsd:annotation>

<xsd:documentation>Natural ventilation does not occur above this temperature.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute NaturalVentHiTemp/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element NaturalVentLoTemp
diagram GreenBuildingXML_Ver7.02_p237.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Opening
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
annotation
documentation
Natural ventilation does not occur below this temperature.
source <xsd:element name="NaturalVentLoTemp">

<xsd:annotation>

<xsd:documentation>Natural ventilation does not occur below this temperature.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute NaturalVentLoTemp/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

element NaturalVentOccDep
diagram GreenBuildingXML_Ver7.02_p238.png
namespace http://www.gbxml.org/schema
type xsd:boolean
properties
content simple
used by
element Opening
annotation
documentation
Occupancy dependence of natural ventilation. If true, then natural ventilation only occurs when people are present.
source <xsd:element name="NaturalVentOccDep" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>Occupancy dependence of natural ventilation. If true, then natural ventilation only occurs when people are present.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element NightCycleControl
diagram GreenBuildingXML_Ver7.02_p239.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  nightCycleControlEnum
source <xsd:element name="NightCycleControl">

<xsd:complexType>

<xsd:attribute name="unit" type="nightCycleControlEnum"/>

</xsd:complexType>
</xsd:element>

attribute NightCycleControl/@unit
type nightCycleControlEnum
facets
Kind Value Annotation
enumeration StayOff
enumeration CycleOnAny
enumeration CycleOnControlZone
source <xsd:attribute name="unit" type="nightCycleControlEnum"/>

element NumberOfLamps
diagram GreenBuildingXML_Ver7.02_p240.png
namespace http://www.gbxml.org/schema
type xsd:integer
properties
content simple
used by
element LightingSystem
source <xsd:element name="NumberOfLamps" type="xsd:integer"/>

element OAFlowPerArea
diagram GreenBuildingXML_Ver7.02_p241.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowPerAreaUnitEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Outside air flow per area
source <xsd:element name="OAFlowPerArea">

<xsd:annotation>

<xsd:documentation>Outside air flow per area</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowPerAreaUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute OAFlowPerArea/@unit
type flowPerAreaUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFMPerSquareFoot
enumeration LPerSecPerSquareM
enumeration CubicMPerSecPerSquareM
enumeration CubicMPerHourPerSquareM
source <xsd:attribute name="unit" type="flowPerAreaUnitEnum" use="required"/>

attribute OAFlowPerArea/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element OAFlowPerPerson
diagram GreenBuildingXML_Ver7.02_p242.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Outside air flow per person
source <xsd:element name="OAFlowPerPerson">

<xsd:annotation>

<xsd:documentation>Outside air flow per person</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute OAFlowPerPerson/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

attribute OAFlowPerPerson/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element OAFlowPerZone
diagram GreenBuildingXML_Ver7.02_p243.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Outside air flow per zone
source <xsd:element name="OAFlowPerZone">

<xsd:annotation>

<xsd:documentation>Outside air flow per zone</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute OAFlowPerZone/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

attribute OAFlowPerZone/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element ObjectId
diagram GreenBuildingXML_Ver7.02_p244.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element Results
annotation
documentation
Indicates which object or objects the results apply to, if any
source <xsd:element name="ObjectId" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Indicates which object or objects the results apply to, if any</xsd:documentation>

</xsd:annotation>
</xsd:element>

element Opening
diagram GreenBuildingXML_Ver7.02_p245.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description ShadeControl U-value ShadingCoeff SolarHeatGainCoeff Transmittance Reflectance GlazeConductivity Emittance Setback NaturalVentHiTemp NaturalVentLoTemp NaturalVentOccDep RectangularGeometry PlanarGeometry CADObjectId
used by
element Surface
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
coordinatesAbsolute  xsd:boolean
documentation
coordinatesAbsolute is a boolean value for an Opening element, which if true, specifies that the coordinates in RectangularGeometry and PlanarGeometry are relative to the origin of the project's global reference frame.  If this attribute is set to false, this means the coordinates in in RectangularGeometry and PlanarGeometry are relative to a local origin, defined as the lower left hand corner of its parent wall (when viewing the wall looking towards it outward-facing normal (i.e. - "outside looking in")).
interiorShadeType  shadeOperationEnum
exteriorShadeType  shadeOperationEnum
windowTypeIdRef  xsd:IDREF
constructionIdRef  xsd:IDREF
documentation
Identifier pointing to a construction
openingType  openingTypeEnum  required
ifcGUID  xsd:string  optional
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:element name="Opening">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="ShadeControl" minOccurs="0"/>

<xsd:element ref="U-value" minOccurs="0"/>

<xsd:element ref="ShadingCoeff" minOccurs="0"/>

<xsd:element ref="SolarHeatGainCoeff" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Transmittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Reflectance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="GlazeConductivity" minOccurs="0"/>

<xsd:element ref="Emittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Setback" minOccurs="0"/>

<xsd:element ref="NaturalVentHiTemp" minOccurs="0"/>

<xsd:element ref="NaturalVentLoTemp" minOccurs="0"/>

<xsd:element ref="NaturalVentOccDep" minOccurs="0"/>

<xsd:element ref="RectangularGeometry"/>

<xsd:element ref="PlanarGeometry"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="coordinatesAbsolute" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>coordinatesAbsolute is a boolean value for an Opening element, which if true, specifies that the coordinates in RectangularGeometry and PlanarGeometry are relative to the origin of the project's global reference frame.  If this attribute is set to false, this means the coordinates in in RectangularGeometry and PlanarGeometry are relative to a local origin, defined as the lower left hand corner of its parent wall (when viewing the wall looking towards it outward-facing normal (i.e. - "outside looking in")).</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="interiorShadeType" type="shadeOperationEnum"/>

<xsd:attribute name="exteriorShadeType" type="shadeOperationEnum"/>

<xsd:attribute name="windowTypeIdRef" type="xsd:IDREF"/>

<xsd:attribute name="constructionIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Identifier pointing to a construction</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="openingType" type="openingTypeEnum" use="required"/>

<xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Opening/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Opening/@coordinatesAbsolute
type xsd:boolean
annotation
documentation
coordinatesAbsolute is a boolean value for an Opening element, which if true, specifies that the coordinates in RectangularGeometry and PlanarGeometry are relative to the origin of the project's global reference frame.  If this attribute is set to false, this means the coordinates in in RectangularGeometry and PlanarGeometry are relative to a local origin, defined as the lower left hand corner of its parent wall (when viewing the wall looking towards it outward-facing normal (i.e. - "outside looking in")).
source <xsd:attribute name="coordinatesAbsolute" type="xsd:boolean">

<xsd:annotation>

<xsd:documentation>coordinatesAbsolute is a boolean value for an Opening element, which if true, specifies that the coordinates in RectangularGeometry and PlanarGeometry are relative to the origin of the project's global reference frame.  If this attribute is set to false, this means the coordinates in in RectangularGeometry and PlanarGeometry are relative to a local origin, defined as the lower left hand corner of its parent wall (when viewing the wall looking towards it outward-facing normal (i.e. - "outside looking in")).</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Opening/@interiorShadeType
type shadeOperationEnum
facets
Kind Value Annotation
enumeration Fixed
enumeration Operable
source <xsd:attribute name="interiorShadeType" type="shadeOperationEnum"/>

attribute Opening/@exteriorShadeType
type shadeOperationEnum
facets
Kind Value Annotation
enumeration Fixed
enumeration Operable
source <xsd:attribute name="exteriorShadeType" type="shadeOperationEnum"/>

attribute Opening/@windowTypeIdRef
type xsd:IDREF
source <xsd:attribute name="windowTypeIdRef" type="xsd:IDREF"/>

attribute Opening/@constructionIdRef
type xsd:IDREF
annotation
documentation
Identifier pointing to a construction
source <xsd:attribute name="constructionIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Identifier pointing to a construction</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Opening/@openingType
type openingTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration FixedWindow
documentation
Opening in a surface with a tilt between 45° and 149.99° with a non-operable glazed opening in it.
enumeration OperableWindow
documentation
Opening in a surface with a tilt between 45° and 149.99° with a operable glazed opening in it.
enumeration FixedSkylight
documentation
Opening in a surface with a tilt between 0° and 44.99° with a non-operable glazed opening in it.
enumeration OperableSkylight
documentation
Opening in a surface with a tilt between 0° and 44.99° with a operable glazed opening in it.
enumeration SlidingDoor
documentation
Opening in a surface with a tilt between 45° and 149.99° with a sliding door in it.
enumeration NonSlidingDoor
documentation
Opening in a surface with a tilt between 45° and 149.99° with a non-sliding door in it.
enumeration Air
documentation
Opening in a surface with a tilt between 0° and 180° with nothing in it.
source <xsd:attribute name="openingType" type="openingTypeEnum" use="required"/>

attribute Opening/@ifcGUID
type xsd:string
properties
use optional
annotation
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element OperationRange
diagram GreenBuildingXML_Ver7.02_p246.png
namespace http://www.gbxml.org/schema
properties
content complex
children LowValue HighValue
used by
element OperationSchedule
source <xsd:element name="OperationRange">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="LowValue"/>

<xsd:element ref="HighValue"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element OperationSchedule
diagram GreenBuildingXML_Ver7.02_p247.png
namespace http://www.gbxml.org/schema
properties
content complex
children OperationRange
used by
elements AirLoopEquipment HydronicLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
scheduleIdRef  xsd:IDREF
documentation
Schedule of operation for a piece of equipment. For heating and cooling equipment (such as a boiler or chiller) this is the availability schedule, the schedule of temperatures that, when reached, the piece of equipment will be available.
source <xsd:element name="OperationSchedule">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="OperationRange"/>

</xsd:choice>

<xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Schedule of operation for a piece of equipment. For heating and cooling equipment (such as a boiler or chiller) this is the availability schedule, the schedule of temperatures that, when reached, the piece of equipment will be available.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute OperationSchedule/@scheduleIdRef
type xsd:IDREF
annotation
documentation
Schedule of operation for a piece of equipment. For heating and cooling equipment (such as a boiler or chiller) this is the availability schedule, the schedule of temperatures that, when reached, the piece of equipment will be available.
source <xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Schedule of operation for a piece of equipment. For heating and cooling equipment (such as a boiler or chiller) this is the availability schedule, the schedule of temperatures that, when reached, the piece of equipment will be available.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element ParallelFanOnFlowFraction
diagram GreenBuildingXML_Ver7.02_p248.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element AirLoopEquipment
annotation
documentation
Parallel fan flow fraction
source <xsd:element name="ParallelFanOnFlowFraction">

<xsd:annotation>

<xsd:documentation>Parallel fan flow fraction</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal"/>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

element PeakDomesticHotWaterFlow
diagram GreenBuildingXML_Ver7.02_p249.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Building
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
hydronicLoopIdRef  xsd:IDREF  required
waterUseScheduleIdRef  xsd:IDREF  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Use this element to report overall domestic hot water use for the domestic hot water loop referenced with the hydronicLoopIdRef attribute. The schedule referenced by waterUseScheduleIdRef defines a hot water use fraction schedule, which when combined with the value of PeakDomesticHotWaterFlow fully describe the hot water use of this building.
source <xsd:element name="PeakDomesticHotWaterFlow">

<xsd:annotation>

<xsd:documentation>Use this element to report overall domestic hot water use for the domestic hot water loop referenced with the hydronicLoopIdRef attribute. The schedule referenced by waterUseScheduleIdRef defines a hot water use fraction schedule, which when combined with the value of PeakDomesticHotWaterFlow fully describe the hot water use of this building.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

<xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF" use="required"/>

<xsd:attribute name="waterUseScheduleIdRef" type="xsd:IDREF" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute PeakDomesticHotWaterFlow/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

attribute PeakDomesticHotWaterFlow/@hydronicLoopIdRef
type xsd:IDREF
properties
use required
source <xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF" use="required"/>

attribute PeakDomesticHotWaterFlow/@waterUseScheduleIdRef
type xsd:IDREF
properties
use required
source <xsd:attribute name="waterUseScheduleIdRef" type="xsd:IDREF" use="required"/>

attribute PeakDomesticHotWaterFlow/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element PeopleHeatGain
diagram GreenBuildingXML_Ver7.02_p250.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Space
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  peopleHeatGainUnitEnum  required
heatGainType  peopleHeatGainTypeEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Amount of heat added to the space by people
source <xsd:element name="PeopleHeatGain">

<xsd:annotation>

<xsd:documentation>Amount of heat added to the space by people</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="peopleHeatGainUnitEnum" use="required"/>

<xsd:attribute name="heatGainType" type="peopleHeatGainTypeEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute PeopleHeatGain/@unit
type peopleHeatGainUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration WattPerPerson
enumeration BtuPerHourPerson
source <xsd:attribute name="unit" type="peopleHeatGainUnitEnum" use="required"/>

attribute PeopleHeatGain/@heatGainType
type peopleHeatGainTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Total
enumeration Sensible
enumeration Latent
source <xsd:attribute name="heatGainType" type="peopleHeatGainTypeEnum" use="required"/>

attribute PeopleHeatGain/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element PeopleNumber
diagram GreenBuildingXML_Ver7.02_p251.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Space
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  peopleNumberUnitEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Occupancy of the space
source <xsd:element name="PeopleNumber">

<xsd:annotation>

<xsd:documentation>Occupancy of the space</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="peopleNumberUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute PeopleNumber/@unit
type peopleNumberUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration NumberOfPeople
enumeration SquareFtPerPerson
enumeration SquareMPerPerson
source <xsd:attribute name="unit" type="peopleNumberUnitEnum" use="required"/>

attribute PeopleNumber/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element PercentAreaDaylitControlled
diagram GreenBuildingXML_Ver7.02_p252.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element LightingControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
Percent of space area whose lights are controlled by a daylight sensor. Only applicable when LightPowerPerArea is used at the space level and not Lighting Systems.
source <xsd:element name="PercentAreaDaylitControlled">

<xsd:annotation>

<xsd:documentation>Percent of space area whose lights are controlled by a daylight sensor. Only applicable when LightPowerPerArea is used at the space level and not Lighting Systems.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute PercentAreaDaylitControlled/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element PercentExisting
diagram GreenBuildingXML_Ver7.02_p253.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Construction
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
Percent of original building shell used in renovation
source <xsd:element name="PercentExisting">

<xsd:annotation>

<xsd:documentation>Percent of original building shell used in renovation</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute PercentExisting/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element Performance
diagram GreenBuildingXML_Ver7.02_p254.png
namespace http://www.gbxml.org/schema
properties
content complex
children PointData Equation
used by
elements AirLoopEquipment ExtEquip HydronicLoopEquipment IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
performanceType  xsd:string
annotation
documentation
Used to represent part-load performance and other performance metrics
source <xsd:element name="Performance">

<xsd:annotation>

<xsd:documentation>Used to represent part-load performance and other performance metrics</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="PointData" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Equation" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID"/>

<xsd:attribute name="performanceType" type="xsd:string"/>

</xsd:complexType>
</xsd:element>

attribute Performance/@id
type xsd:ID
source <xsd:attribute name="id" type="xsd:ID"/>

attribute Performance/@performanceType
type xsd:string
source <xsd:attribute name="performanceType" type="xsd:string"/>

element Permeance
diagram GreenBuildingXML_Ver7.02_p255.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  permUnitEnum  required
annotation
documentation
The rate water vapor is allowed through a surface
source <xsd:element name="Permeance">

<xsd:annotation>

<xsd:documentation>The rate water vapor is allowed through a surface</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="permUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Permeance/@unit
type permUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration PermSI
enumeration PermIP
source <xsd:attribute name="unit" type="permUnitEnum" use="required"/>

element PersonInfo
diagram GreenBuildingXML_Ver7.02_p256.png
namespace http://www.gbxml.org/schema
properties
content complex
children FirstName LastName MiddleName Address1 Address2 City State ZipCode Country PhoneNumber Email1Address WebPage CompanyName
used by
element DocumentHistory
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
annotation
documentation
Contains information about people that created and modified this file
source <xsd:element name="PersonInfo">

<xsd:annotation>

<xsd:documentation>Contains information about people that created and modified this file</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="FirstName"/>

<xsd:element ref="LastName"/>

<xsd:element ref="MiddleName" minOccurs="0"/>

<xsd:element ref="Address1" minOccurs="0"/>

<xsd:element ref="Address2" minOccurs="0"/>

<xsd:element ref="City" minOccurs="0"/>

<xsd:element ref="State" minOccurs="0"/>

<xsd:element ref="ZipCode" minOccurs="0"/>

<xsd:element ref="Country" minOccurs="0"/>

<xsd:element ref="PhoneNumber" minOccurs="0"/>

<xsd:element ref="Email1Address" minOccurs="0"/>

<xsd:element ref="WebPage" minOccurs="0"/>

<xsd:element ref="CompanyName" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>
</xsd:element>

attribute PersonInfo/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

element PhoneNumber
diagram GreenBuildingXML_Ver7.02_p257.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="PhoneNumber" type="xsd:string"/>

element Photometry
diagram GreenBuildingXML_Ver7.02_p258.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element LightingSystem
annotation
documentation
This element has been left open for use with other photometry definitions. Photometric data is required for various forms of lighting analysis. This tag provides a way for the photometric data to be passed. Since this can be done in a variety of ways (iesna LM-63, cibse TM14, ELUMDAT, etc.) a specific format is not being specified.
source <xsd:element name="Photometry" type="xsd:string">

<xsd:annotation>

<xsd:documentation>This element has been left open for use with other photometry definitions. Photometric data is required for various forms of lighting analysis. This tag provides a way for the photometric data to be passed. Since this can be done in a variety of ways (iesna LM-63, cibse TM14, ELUMDAT, etc.) a specific format is not being specified.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element PhotometryOrientation
diagram GreenBuildingXML_Ver7.02_p259.png
namespace http://www.gbxml.org/schema
properties
content complex
children CartesianPoint
used by
element Lighting
annotation
documentation
This element specifies the position and the x, y and z axis of the light source. This element must have four Coordinate elements which represent the position and the x, y and z axis in order. The first CartesianPoint element specifies the position of the light source. The second, third and fourth CartesianPoint elements specifies the displacement points for the positive x, positive y and positive z axis.
source <xsd:element name="PhotometryOrientation">

<xsd:annotation>

<xsd:documentation>This element specifies the position and the x, y and z axis of the light source. This element must have four Coordinate elements which represent the position and the x, y and z axis in order. The first CartesianPoint element specifies the position of the light source. The second, third and fourth CartesianPoint elements specifies the displacement points for the positive x, positive y and positive z axis.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0">

<xsd:element ref="CartesianPoint" minOccurs="4" maxOccurs="4"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element PlanarGeometry
diagram GreenBuildingXML_Ver7.02_p260.png
namespace http://www.gbxml.org/schema
properties
content complex
children PolyLoop
used by
elements BuildingStorey Opening Space SpaceBoundary Surface
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
unit  lengthUnitEnum
annotation
documentation
List of points defining a loop. There are no repeated points in the list. All data are global, with the assumption that positive Z is up, and if CADModelAzimuth is undefined or zero, positive X is East and positive Y is North. If CADModelAzimuth is defined it is the angle of positive Y to North, positive X is the vectorial product of Y and Z. If geometry is to be precise, use Longitude, Latitude and Elevation in the Location element to define the origin. Otherwise the origin is an arbitrary point. Use PlanarGeometry to define a three dimensional polygon that lies on a plane, and has no self-intersection.
source <xsd:element name="PlanarGeometry">

<xsd:annotation>

<xsd:documentation>List of points defining a loop. There are no repeated points in the list. All data are global, with the assumption that positive Z is up, and if CADModelAzimuth is undefined or zero, positive X is East and positive Y is North. If CADModelAzimuth is defined it is the angle of positive Y to North, positive X is the vectorial product of Y and Z. If geometry is to be precise, use Longitude, Latitude and Elevation in the Location element to define the origin. Otherwise the origin is an arbitrary point. Use PlanarGeometry to define a three dimensional polygon that lies on a plane, and has no self-intersection.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="PolyLoop"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID"/>

<xsd:attribute name="unit" type="lengthUnitEnum"/>

</xsd:complexType>
</xsd:element>

attribute PlanarGeometry/@id
type xsd:ID
source <xsd:attribute name="id" type="xsd:ID"/>

attribute PlanarGeometry/@unit
type lengthUnitEnum
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum"/>

element Platform
diagram GreenBuildingXML_Ver7.02_p261.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element ProgramInfo
source <xsd:element name="Platform" type="xsd:string"/>

element PointData
diagram GreenBuildingXML_Ver7.02_p262.png
namespace http://www.gbxml.org/schema
properties
content complex
children IndependentVariable DependentVariable Data
used by
element Performance
annotation
documentation
The PointData element allows for graph or tabular information to be entered. The data type and units of the independent and dependent variables are defined in their respective elements. Each Data element represent a data point, with each Value element representing the value of a variable - starting with the independent variable, then each dependent variable listed in the order defined.
source <xsd:element name="PointData">

<xsd:annotation>

<xsd:documentation>The PointData element allows for graph or tabular information to be entered. The data type and units of the independent and dependent variables are defined in their respective elements. Each Data element represent a data point, with each Value element representing the value of a variable - starting with the independent variable, then each dependent variable listed in the order defined.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="IndependentVariable" maxOccurs="unbounded"/>

<xsd:element ref="DependentVariable" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Data" maxOccurs="unbounded"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element PolyLoop
diagram GreenBuildingXML_Ver7.02_p263.png
namespace http://www.gbxml.org/schema
properties
content complex
children CartesianPoint
used by
elements ClosedShell PlanarGeometry RectangularGeometry
annotation
documentation
This is a list of coordinates that make up a polygon in three-dimensional space. All coordinates must lie on the same plane. The right-hand rule applies for defining the outward normal of a surface: For every surface, points must be defined in order, such that the direction of (the average cross-product between (any point, the centroid of the surface, and the next point)) points in the direction of the outward normal, which is a vector pointing away from the first AdjacentSpaceID listed.
appinfo
<xhtml:a href="http://cig.bre.co.uk/iai_uk/documentation/IfcR2x_Final/ifctopologyresource/lexical/ifcpolyloop.html">IfcPolyLoop</xhtml:a>
source <xsd:element name="PolyLoop">

<xsd:annotation>

<xsd:documentation>This is a list of coordinates that make up a polygon in three-dimensional space. All coordinates must lie on the same plane. The right-hand rule applies for defining the outward normal of a surface: For every surface, points must be defined in order, such that the direction of (the average cross-product between (any point, the centroid of the surface, and the next point)) points in the direction of the outward normal, which is a vector pointing away from the first AdjacentSpaceID listed.</xsd:documentation>

<xsd:appinfo>

<xhtml:a href="http://cig.bre.co.uk/iai_uk/documentation/IfcR2x_Final/ifctopologyresource/lexical/ifcpolyloop.html">IfcPolyLoop</xhtml:a>

</xsd:appinfo>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="CartesianPoint" minOccurs="3" maxOccurs="unbounded"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element Porosity
diagram GreenBuildingXML_Ver7.02_p264.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
the ratio of the total amount of void space in a material (due to poses, small channels, and so on) to the bulk volume occupied by the material.
source <xsd:element name="Porosity">

<xsd:annotation>

<xsd:documentation>the ratio of the total amount of void space in a material (due to poses, small channels, and so on) to the bulk volume occupied by the material. </xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Porosity/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element Power
diagram GreenBuildingXML_Ver7.02_p265.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment ExtEquip HydronicLoopEquipment IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  powerUnitEnum  required
powerType  powerTypeEnum  required
useType  powerUseTypeEnum  required
meterIdRef  xsd:IDREF
documentation
ID for a resource meter
annotation
documentation
Maximum consumption of energy (power input)
source <xsd:element name="Power">

<xsd:annotation>

<xsd:documentation>Maximum consumption of energy (power input)</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="powerUnitEnum" use="required"/>

<xsd:attribute name="powerType" type="powerTypeEnum" use="required"/>

<xsd:attribute name="useType" type="powerUseTypeEnum" use="required"/>

<xsd:attribute name="meterIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for a resource meter</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Power/@unit
type powerUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Watt
enumeration Kilowatt
enumeration Horsepower
enumeration KilogramForceMeterPerSecond
enumeration BtuPerSecond
enumeration FootPoundForcePerSecond
enumeration KilocaloriesPerSecond
enumeration BtuPerHour
source <xsd:attribute name="unit" type="powerUnitEnum" use="required"/>

attribute Power/@powerType
type powerTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Electricity
enumeration NaturalGas
enumeration Propane
enumeration FuelOil1
enumeration FuelOil2
enumeration FuelOil4
enumeration Water
enumeration ChilledWater
enumeration HotWater
enumeration Steam
enumeration Diesel
enumeration Biogas
source <xsd:attribute name="powerType" type="powerTypeEnum" use="required"/>

attribute Power/@useType
type powerUseTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Heating
enumeration Cooling
enumeration Both
enumeration ElectricityGeneration
enumeration Other
source <xsd:attribute name="useType" type="powerUseTypeEnum" use="required"/>

attribute Power/@meterIdRef
type xsd:IDREF
annotation
documentation
ID for a resource meter
source <xsd:attribute name="meterIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for a resource meter</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element PrandtlNumber
diagram GreenBuildingXML_Ver7.02_p266.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Gap
source <xsd:element name="PrandtlNumber" type="xsd:decimal"/>

element PrandtlNumberFofT
diagram GreenBuildingXML_Ver7.02_p267.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Gap
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  inverseTempUnitEnum  required
annotation
documentation
Prandtl number as a function of temperature
source <xsd:element name="PrandtlNumberFofT">

<xsd:annotation>

<xsd:documentation>Prandtl number as a function of temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="inverseTempUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute PrandtlNumberFofT/@unit
type inverseTempUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration PerK
enumeration PerF
source <xsd:attribute name="unit" type="inverseTempUnitEnum" use="required"/>

element PreheatCoilType
diagram GreenBuildingXML_Ver7.02_p268.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  preheatCoilTypeEnum
source <xsd:element name="PreheatCoilType">

<xsd:complexType>

<xsd:attribute name="unit" type="preheatCoilTypeEnum"/>

</xsd:complexType>
</xsd:element>

attribute PreheatCoilType/@unit
type preheatCoilTypeEnum
facets
Kind Value Annotation
enumeration None
enumeration Electric
enumeration Gas
source <xsd:attribute name="unit" type="preheatCoilTypeEnum"/>

element PressureControl
diagram GreenBuildingXML_Ver7.02_p269.png
namespace http://www.gbxml.org/schema
properties
content complex
children DesignPressure MinPressure MaxPressure
used by
element AirLoop
annotation
documentation
Use this element to describe how the air pressure is controlled. The temperatures specified in this element should be measured just upstream of the air handlers.
source <xsd:element name="PressureControl">

<xsd:annotation>

<xsd:documentation>Use this element to describe how the air pressure is controlled. The temperatures specified in this element should be measured just upstream of the air handlers.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="DesignPressure" minOccurs="0"/>

<xsd:element ref="MinPressure" minOccurs="0"/>

<xsd:element ref="MaxPressure" minOccurs="0"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element ProductName
diagram GreenBuildingXML_Ver7.02_p270.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
element ProgramInfo
source <xsd:element name="ProductName">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string"/>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

element ProgramInfo
diagram GreenBuildingXML_Ver7.02_p271.png
namespace http://www.gbxml.org/schema
properties
content complex
children CompanyName ProductName Version Platform ProjectEntity
used by
element DocumentHistory
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
annotation
documentation
Contains information about programs that created and modified this file
source <xsd:element name="ProgramInfo">

<xsd:annotation>

<xsd:documentation>Contains information about programs that created and modified this file</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="CompanyName" minOccurs="0"/>

<xsd:element ref="ProductName" minOccurs="1"/>

<xsd:element ref="Version" minOccurs="1"/>

<xsd:element ref="Platform" minOccurs="1"/>

<xsd:element ref="ProjectEntity" minOccurs="1"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>
</xsd:element>

attribute ProgramInfo/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

element ProjectEntity
diagram GreenBuildingXML_Ver7.02_p272.png
namespace http://www.gbxml.org/schema
properties
content complex
children FileName URI GUID
used by
element ProgramInfo
annotation
documentation
Contains information about the originating or modifying file or service that created or modified this file
source <xsd:element name="ProjectEntity">

<xsd:annotation>

<xsd:documentation>Contains information about the originating or modifying file or service that created or modified this file</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="FileName" minOccurs="0"/>

<xsd:element ref="URI" minOccurs="1"/>

<xsd:element ref="GUID" minOccurs="1"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element R-value
diagram GreenBuildingXML_Ver7.02_p273.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  resistanceUnitEnum  required
annotation
documentation
Resistance of material
source <xsd:element name="R-value">

<xsd:annotation>

<xsd:documentation>Resistance of material</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="resistanceUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute R-value/@unit
type resistanceUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration SquareMeterKPerW
enumeration HrSquareFtFPerBTU
source <xsd:attribute name="unit" type="resistanceUnitEnum" use="required"/>

element RatedFlow
diagram GreenBuildingXML_Ver7.02_p274.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment ExtEquip HydronicLoopEquipment IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
hydronicLoopIdRef  xsd:IDREF
hydronicLoopType  loopTypeEnum
source <xsd:element name="RatedFlow">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

<xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF"/>

<xsd:attribute name="hydronicLoopType" type="loopTypeEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute RatedFlow/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

attribute RatedFlow/@hydronicLoopIdRef
type xsd:IDREF
source <xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF"/>

attribute RatedFlow/@hydronicLoopType
type loopTypeEnum
facets
Kind Value Annotation
enumeration PrimaryChilledWater
enumeration SecondaryChilledWater
enumeration HotWater
enumeration CondenserWater
enumeration DomesticHotWater
enumeration WaterLoopHeatPump
enumeration TwoPipe
enumeration PotableWaterLoop
enumeration VRFLoop
source <xsd:attribute name="hydronicLoopType" type="loopTypeEnum"/>

element RecircFlow
diagram GreenBuildingXML_Ver7.02_p275.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element FlowControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum
source <xsd:element name="RecircFlow">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute RecircFlow/@unit
type flowUnitEnum
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum"/>

element RectangularGeometry
diagram GreenBuildingXML_Ver7.02_p276.png
namespace http://www.gbxml.org/schema
properties
content complex
children Azimuth CartesianPoint Tilt Height Width PolyLoop
used by
elements Opening Surface
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
unit  lengthUnitEnum
annotation
documentation
Geometry data in a form typically used in simulation engines. For surfaces, specify the location of the bottom-left corner with the CartesianPoint element when facing it from the outside. Also for surfaces, Tilt and Azimuth must be specified. If CADModelAzimuth is defined, the Azimuth value is relative to the CADModelAzimuth value rather then North. For openings, the third Coordinate should be zero or left missing. For openings, these Coordinates represent the distance of the bottom-left of the opening to the bottom-left corner of the parent surface. Azimuth and Tilt should not be specified for opening. There is an optional PolyLoop element, which may be used for describing the polygon shape of the surface.
source <xsd:element name="RectangularGeometry">

<xsd:annotation>

<xsd:documentation>Geometry data in a form typically used in simulation engines. For surfaces, specify the location of the bottom-left corner with the CartesianPoint element when facing it from the outside. Also for surfaces, Tilt and Azimuth must be specified. If CADModelAzimuth is defined, the Azimuth value is relative to the CADModelAzimuth value rather then North. For openings, the third Coordinate should be zero or left missing. For openings, these Coordinates represent the distance of the bottom-left of the opening to the bottom-left corner of the parent surface. Azimuth and Tilt should not be specified for opening. There is an optional PolyLoop element, which may be used for describing the polygon shape of the surface.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Azimuth"/>

<xsd:element ref="CartesianPoint"/>

<xsd:element ref="Tilt"/>

<xsd:element ref="Height"/>

<xsd:element ref="Width"/>

<xsd:element ref="PolyLoop" minOccurs="0">

<xsd:annotation>

<xsd:documentation>This is a two-dimensional polygon, with the origin at the point specified with RectangularGeometry/CartesianPoint. </xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID"/>

<xsd:attribute name="unit" type="lengthUnitEnum"/>

</xsd:complexType>
</xsd:element>

attribute RectangularGeometry/@id
type xsd:ID
source <xsd:attribute name="id" type="xsd:ID"/>

attribute RectangularGeometry/@unit
type lengthUnitEnum
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum"/>

element RecycledContent
diagram GreenBuildingXML_Ver7.02_p277.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
source <xsd:element name="RecycledContent">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute RecycledContent/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element Reference
diagram GreenBuildingXML_Ver7.02_p278.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements AirLoop AirLoopEquipment Cost ExtEquip Glaze HydronicLoop HydronicLoopEquipment InfiltrationFlow IntEquip LightingSystem Material Weather
source <xsd:element name="Reference" type="xsd:string"/>

element Reflectance
diagram GreenBuildingXML_Ver7.02_p279.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Blind Construction FireFace Glaze Material Opening WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
type  reflectanceTypeEnum  required
surfaceType  surfaceDescriptionEnum  required
source <xsd:element name="Reflectance">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

<xsd:attribute name="type" type="reflectanceTypeEnum" use="required"/>

<xsd:attribute name="surfaceType" type="surfaceDescriptionEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Reflectance/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

attribute Reflectance/@type
type reflectanceTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Ground
enumeration IntSolar
enumeration IntIR
enumeration IntVisible
enumeration ExtSolar
enumeration ExtVisible
enumeration ExtIR
source <xsd:attribute name="type" type="reflectanceTypeEnum" use="required"/>

attribute Reflectance/@surfaceType
type surfaceDescriptionEnum
properties
use required
facets
Kind Value Annotation
enumeration 1
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 1, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 1 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 1 represents the surface that points away from the building interior.
enumeration 2
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 2, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 2 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 2 represents the surface that points towards the building interior.
enumeration Both
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to Both, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated both Surface 1 and Surface 2 of the material's 2 surfaces [it is assumed that the material is a large planar object].  See the enumerations above for a description of Surface 1 and 2.
source <xsd:attribute name="surfaceType" type="surfaceDescriptionEnum" use="required"/>

element RefrigerantType
diagram GreenBuildingXML_Ver7.02_p280.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements AirLoopEquipment HydronicLoopEquipment
source <xsd:element name="RefrigerantType" type="xsd:string"/>

element ResetTemperature
diagram GreenBuildingXML_Ver7.02_p281.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment HydronicLoopEquipment TemperatureControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum  required
type  resetTemperatureTypeEnum  required
resetSchedIdRef  xsd:IDREF
annotation
documentation
Cooling and Heating Reset Temperature Type
source <xsd:element name="ResetTemperature">

<xsd:annotation>

<xsd:documentation>Cooling and Heating Reset Temperature Type</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum" use="required"/>

<xsd:attribute name="type" type="resetTemperatureTypeEnum" use="required"/>

<xsd:attribute name="resetSchedIdRef" type="xsd:IDREF"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute ResetTemperature/@unit
type temperatureUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum" use="required"/>

attribute ResetTemperature/@type
type resetTemperatureTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration None
enumeration Automatic
enumeration OutdoorAirBased
enumeration Scheduled
source <xsd:attribute name="type" type="resetTemperatureTypeEnum" use="required"/>

attribute ResetTemperature/@resetSchedIdRef
type xsd:IDREF
source <xsd:attribute name="resetSchedIdRef" type="xsd:IDREF"/>

element Results
diagram GreenBuildingXML_Ver7.02_p282.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Value ObjectId CADObjectId CartesianPoint
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
unit  derived by: loadUnitEnum  required
currency  currencyTypeEnum
resultsType  resultsTypeEnum
resourceType  resourceTypeEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that generated the results using the id of the ProgramInfo element.
valueType  valueTypeEnum
documentation
Please specify how the values were obtained.
startTime  xsd:dateTime  required
documentation
Use the startTime attribute to define the start of the first Value element.
timeIncrement  xsd:duration  optional
documentation
This specifies the duration of time between each Value element. This is required if more than one Value element exists in a this Results element.
source <xsd:element name="Results">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Value" maxOccurs="unbounded"/>

<xsd:element ref="ObjectId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CartesianPoint" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="unit" use="required">

<xsd:simpleType>

<xsd:union memberTypes="loadUnitEnum unitlessSmallUnitEnum energyUnitEnum powerUnitEnum temperatureUnitEnum unitlessUnitEnum illuminanceUnitEnum flowUnitEnum"/>

</xsd:simpleType>

</xsd:attribute>

<xsd:attribute name="currency" type="currencyTypeEnum"/>

<xsd:attribute name="resultsType" type="resultsTypeEnum"/>

<xsd:attribute name="resourceType" type="resourceTypeEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that generated the results using the id of the ProgramInfo element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="valueType" type="valueTypeEnum">

<xsd:annotation>

<xsd:documentation>Please specify how the values were obtained.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="startTime" type="xsd:dateTime" use="required">

<xsd:annotation>

<xsd:documentation>Use the startTime attribute to define the start of the first Value element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="timeIncrement" type="xsd:duration" use="optional">

<xsd:annotation>

<xsd:documentation>This specifies the duration of time between each Value element. This is required if more than one Value element exists in a this Results element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Results/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Results/@unit
type union of (loadUnitEnum, unitlessSmallUnitEnum, energyUnitEnum, powerUnitEnum, temperatureUnitEnum, unitlessUnitEnum, illuminanceUnitEnum, flowUnitEnum)
properties
use required
source <xsd:attribute name="unit" use="required">

<xsd:simpleType>

<xsd:union memberTypes="loadUnitEnum unitlessSmallUnitEnum energyUnitEnum powerUnitEnum temperatureUnitEnum unitlessUnitEnum illuminanceUnitEnum flowUnitEnum"/>

</xsd:simpleType>
</xsd:attribute>

attribute Results/@currency
type currencyTypeEnum
facets
Kind Value Annotation
enumeration USDollars
enumeration CanadianDollars
enumeration Pesos
enumeration Euros
enumeration Yen
enumeration IndianRupee
enumeration Yuan
enumeration TaiwanDollar
enumeration EnglishPound
enumeration Mark
enumeration Franc
enumeration Ruble
enumeration Real
enumeration NewZealandDollar
enumeration AustralianDollar
source <xsd:attribute name="currency" type="currencyTypeEnum"/>

attribute Results/@resultsType
type resultsTypeEnum
facets
Kind Value Annotation
enumeration HeatLoad
enumeration CoolingLoad
enumeration CO2
enumeration SO2
enumeration NOx
enumeration Energy
enumeration Power
enumeration Cost
enumeration EnergyCost
enumeration DemandCost
enumeration CommodityCost
enumeration TransportationCost
enumeration DryBulbTemperature
enumeration WetBulbTemperature
enumeration DewPointTemperature
enumeration FootCandles
enumeration Humidity
enumeration MoistureContent
enumeration Flow
enumeration Capacity
source <xsd:attribute name="resultsType" type="resultsTypeEnum"/>

attribute Results/@resourceType
type resourceTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Electricity
enumeration NaturalGas
enumeration Propane
enumeration FuelOil1
enumeration FuelOil2
enumeration FuelOil4
enumeration Water
enumeration ChilledWater
enumeration HotWater
enumeration Steam
source <xsd:attribute name="resourceType" type="resourceTypeEnum" use="required"/>

attribute Results/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that generated the results using the id of the ProgramInfo element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that generated the results using the id of the ProgramInfo element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Results/@valueType
type valueTypeEnum
facets
Kind Value Annotation
enumeration Historical
enumeration Simulated
enumeration Rated
enumeration Measured
annotation
documentation
Please specify how the values were obtained.
source <xsd:attribute name="valueType" type="valueTypeEnum">

<xsd:annotation>

<xsd:documentation>Please specify how the values were obtained.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Results/@startTime
type xsd:dateTime
properties
use required
annotation
documentation
Use the startTime attribute to define the start of the first Value element.
source <xsd:attribute name="startTime" type="xsd:dateTime" use="required">

<xsd:annotation>

<xsd:documentation>Use the startTime attribute to define the start of the first Value element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Results/@timeIncrement
type xsd:duration
properties
use optional
annotation
documentation
This specifies the duration of time between each Value element. This is required if more than one Value element exists in a this Results element.
source <xsd:attribute name="timeIncrement" type="xsd:duration" use="optional">

<xsd:annotation>

<xsd:documentation>This specifies the duration of time between each Value element. This is required if more than one Value element exists in a this Results element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Roughness
diagram GreenBuildingXML_Ver7.02_p283.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
elements Construction Material
attributes
Name  Type  Use  Default  Fixed  Annotation
value  roughnessValueEnum  required
annotation
documentation
Roughness of the outside surface
source <xsd:element name="Roughness">

<xsd:annotation>

<xsd:documentation>Roughness of the outside surface</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:attribute name="value" type="roughnessValueEnum" use="required"/>

</xsd:complexType>
</xsd:element>

attribute Roughness/@value
type roughnessValueEnum
properties
use required
facets
Kind Value Annotation
enumeration VeryRough
enumeration MediumRough
enumeration Rough
enumeration Smooth
enumeration MediumSmooth
enumeration VerySmooth
source <xsd:attribute name="value" type="roughnessValueEnum" use="required"/>

element RTSParameters
diagram GreenBuildingXML_Ver7.02_p284.png
namespace http://www.gbxml.org/schema
properties
content complex
children HOutside
used by
element LoadCalcInputParameters
attributes
Name  Type  Use  Default  Fixed  Annotation
roofCTSType  roofCTSTypeEnum
documentation
Specifies which Conduction Time Series to use for the roof. See Table 21, page 29.30, 2001 ASHRAE Handbook, Fundamentals volume. Only used if the construction is a roof and you are using the RTS calculation method.
wallCTSType  wallCTSTypeEnum
documentation
Specifies which Conduction Time Series to use for the wall. See Table 20, page 29.28, 2001 ASHRAE Handbook, Fundamentals volume. Only used if the construction is a wall and you are using the RTS calculation method.
annotation
documentation
Parameters required by RTS load calculation method, as described in pages 29.25 and following of the 2001 ASHRAE Handbook, Fundamentals volume. Ignore this element and all elements under it if you are not planning to use that method.
source <xsd:element name="RTSParameters">

<xsd:annotation>

<xsd:documentation>Parameters required by RTS load calculation method, as described in pages 29.25 and following of the 2001 ASHRAE Handbook, Fundamentals volume. Ignore this element and all elements under it if you are not planning to use that method.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice>

<xsd:element ref="HOutside"/>

</xsd:choice>

<xsd:attribute name="roofCTSType" type="roofCTSTypeEnum">

<xsd:annotation>

<xsd:documentation>Specifies which Conduction Time Series to use for the roof. See Table 21, page 29.30, 2001 ASHRAE Handbook, Fundamentals volume. Only used if the construction is a roof and you are using the RTS calculation method.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="wallCTSType" type="wallCTSTypeEnum">

<xsd:annotation>

<xsd:documentation>Specifies which Conduction Time Series to use for the wall. See Table 20, page 29.28, 2001 ASHRAE Handbook, Fundamentals volume. Only used if the construction is a wall and you are using the RTS calculation method.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute RTSParameters/@roofCTSType
type roofCTSTypeEnum
facets
Kind Value Annotation
enumeration 1
documentation
Metal Roof, R-19 Batt Insulation, Gyp Board
enumeration 2
documentation
Metal Roof, R-19 Batt Insulation, Suspended Acoustical Ceiling
enumeration 3
documentation
Metal Roof, R-19 Batt Insulation
enumeration 4
documentation
Asphalt Shingles, Wood Sheathing, R-19 Batt Insulation, Gyp Board
enumeration 5
documentation
Slate or Tile, Wood Sheathing, R-19 Batt Insulation, Gyp Board
enumeration 6
documentation
Wood Shingles, Wood Sheathing, R-19 Batt Insulation, Gyp Board
enumeration 7
documentation
Membrane, Sheathing, R-10 Insulation Board, Wood Deck
enumeration 8
documentation
Membrane, Sheathing, R-10 Insulation Board, Wood Deck Suspended Acoustical Ceiling
enumeration 9
documentation
Membrane, Sheathing, R-10 Insulation Board, Metal Deck
enumeration 10
documentation
Membrane, Sheathing, R-10 Insulation Board, Metal Deck Suspended Acoustical Ceiling
enumeration 11
documentation
Membrane, Sheathing, R-15 Insulation Board, Metal Deck
enumeration 12
documentation
Membrane, Sheathing, R-10 plus R-15 Insulation Boards, Metal Deck
enumeration 13
documentation
2" Concrete Roof Ballast, Membrane, Sheathing, R-15 Insulation Board, Metal Deck
enumeration 14
documentation
Membrane, Sheathing, R-15 Insulation Board, 4" LW Concrete
enumeration 15
documentation
Membrane, Sheathing, R-15 Insulation Board, 6" LW Concrete
enumeration 16
documentation
Membrane, Sheathing, R-15 Insulation Board, 8" LW Concrete
enumeration 17
documentation
Membrane, Sheathing, R-15 Insulation Board, 6" HW Concrete
enumeration 18
documentation
Membrane, Sheathing, R-15 Insulation Board, 8" HW Concrete
enumeration 19
documentation
Membrane, 6" HW Concrete, R-19 Batt Insulation, Suspended Acoustical Ceiling
annotation
documentation
Specifies which Conduction Time Series to use for the roof. See Table 21, page 29.30, 2001 ASHRAE Handbook, Fundamentals volume. Only used if the construction is a roof and you are using the RTS calculation method.
source <xsd:attribute name="roofCTSType" type="roofCTSTypeEnum">

<xsd:annotation>

<xsd:documentation>Specifies which Conduction Time Series to use for the roof. See Table 21, page 29.30, 2001 ASHRAE Handbook, Fundamentals volume. Only used if the construction is a roof and you are using the RTS calculation method.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute RTSParameters/@wallCTSType
type wallCTSTypeEnum
facets
Kind Value Annotation
enumeration 1
documentation
Spandrel Glass, R-10 Insulation Board, Gyp Board
enumeration 2
documentation
Metal Wall Panel, R-10 Insulation Board, Gyp Board
enumeration 3
documentation
1" Stone, R-10 Insulation Board, Gyp Board
enumeration 4
documentation
Metal Wall Panel, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 5
documentation
1" Stone, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 6
documentation
Wood Siding, Sheathing, R-11 Batt Insulation, 1/2"
Wood
enumeration 7
documentation
1" Stucco, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 8
documentation
EIFS Finish, R-5 Insulation Board, Sheathing, Gyp Board
enumeration 9
documentation
EIFS Finish, R-5 Insulation Board, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 10
documentation
EIFS Finish, R-5 Insulation Board, Sheathing, 8" LW CMU, Gyp Board
enumeration 11
documentation
Brick, R-5 Insulation Board, Sheathing, Gyp Board
enumeration 12
documentation
Brick, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 13
documentation
Brick, R-5 Insulation Board, Sheathing, R-11 Batt Insulation Gyp Board
enumeration 14
documentation
Brick, R-5 Insulation Board, 8" LW CMU
enumeration 15
documentation
Brick, 8" LW CMU, R-11 Batt Insulation, Gyp Board
enumeration 16
documentation
Brick, R-5 Insulation Board, 8" HW CMU, Gyp Board
enumeration 17
documentation
Brick, R-5 Insulation Board, Brick
enumeration 18
documentation
Brick, R-5 Insulation Board, 8" LW Concrete, Gyp Board
enumeration 19
documentation
Brick, R-5 Insulation Board, 12" HW Concrete, Gyp Board
enumeration 20
documentation
Brick, 8" HW Concrete, R-11 Batt Insulation, Gyp Board
enumeration 21
documentation
8" LW CMU, R-11 Batt Insulation, Gyp Board
enumeration 22
documentation
8" LW CMU w Fill Insulation, R-11 Batt Insulation, Gyp Board
enumeration 23
documentation
1" Stucco, 8" HW CMU, R-11 Batt Insulation, Gyp Board
enumeration 24
documentation
8" LW CMU w Fill Insulation
enumeration 25
documentation
8" LW CMU w Fill Insulation, Gyp Board
enumeration 26
documentation
12" LW CMU w Fill Insulation, Gyp Board
enumeration 27
documentation
4" LW Concrete. R-5 Board Insulation, Gyp Board
enumeration 28
documentation
4" LW Concrete. R-11 Batt Insulation, Gyp Board
enumeration 29
documentation
4" LW Concrete. R-10 Board Insulation, 4" LW Concrete
enumeration 30
documentation
EIFS Finish, R-5 Insulation Board, 8" LW Concrete, Gyp Board
enumeration 31
documentation
8" LW Concrete. R-11 Batt Insulation, Gyp Board
enumeration 32
documentation
EIFS Finish, R-10 Insulation Board, 8" HW Concrete, Gyp Board
enumeration 33
documentation
8" HW Concrete. R-11 Batt Insulation, Gyp Board
enumeration 34
documentation
12" HW Concrete. R-19 Batt Insulation, Gyp Board
enumeration 35
documentation
12" HW Concrete
annotation
documentation
Specifies which Conduction Time Series to use for the wall. See Table 20, page 29.28, 2001 ASHRAE Handbook, Fundamentals volume. Only used if the construction is a wall and you are using the RTS calculation method.
source <xsd:attribute name="wallCTSType" type="wallCTSTypeEnum">

<xsd:annotation>

<xsd:documentation>Specifies which Conduction Time Series to use for the wall. See Table 20, page 29.28, 2001 ASHRAE Handbook, Fundamentals volume. Only used if the construction is a wall and you are using the RTS calculation method.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Schedule
diagram GreenBuildingXML_Ver7.02_p285.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description YearSchedule
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
type  scheduleTypeEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
List of year schedules that make up an entire calendar year.
source <xsd:element name="Schedule">

<xsd:annotation>

<xsd:documentation>List of year schedules that make up an entire calendar year.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="YearSchedule" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="type" type="scheduleTypeEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Schedule/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Schedule/@type
type scheduleTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Temp
enumeration Fraction
enumeration OnOff
enumeration ResetTemp
enumeration ActivityLevel
source <xsd:attribute name="type" type="scheduleTypeEnum" use="required"/>

attribute Schedule/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element ScheduleTypeLimits
diagram GreenBuildingXML_Ver7.02_p286.png
namespace http://www.gbxml.org/schema
properties
content complex
children LowerLimitValue UpperLimitValue
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
type  scheduleTypeLimitsEnum  required
source <xsd:element name="ScheduleTypeLimits">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="LowerLimitValue" minOccurs="0" maxOccurs="1"/>

<xsd:element ref="UpperLimitValue" minOccurs="0" maxOccurs="1"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="type" type="scheduleTypeLimitsEnum" use="required"/>

</xsd:complexType>
</xsd:element>

attribute ScheduleTypeLimits/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute ScheduleTypeLimits/@type
type scheduleTypeLimitsEnum
properties
use required
facets
Kind Value Annotation
enumeration Continuous
enumeration Discrete
source <xsd:attribute name="type" type="scheduleTypeLimitsEnum" use="required"/>

element ScheduleValue
diagram GreenBuildingXML_Ver7.02_p287.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element DaySchedule
attributes
Name  Type  Use  Default  Fixed  Annotation
OutsideHighReset  xsd:decimal  optional
documentation
Value of the outside drybulb temperature for when defining HVAC system lower supply reset temperature
OutsideLowReset  xsd:decimal  optional
documentation
Value of the outside drybulb temperature for when defining HVAC system upper supply reset temperature
SupplyHighReset  xsd:decimal  optional
documentation
Value of the upper supply air setpoint temperature for reset of cooling air or heating air temperature
SupplyLowReset  xsd:decimal  optional
documentation
Value of the lower supply air setpoint temperature for reset of cooling air or heating air temperature
annotation
documentation
Value for one block of time. Divides a day evenly into number of ScheduleValue elements defined in DaySchedule. Example: If 12 ScheduleValue elements are defined, each will represent two hours
source <xsd:element name="ScheduleValue">

<xsd:annotation>

<xsd:documentation>Value for one block of time. Divides a day evenly into number of ScheduleValue elements defined in DaySchedule. Example: If 12 ScheduleValue elements are defined, each will represent two hours</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="OutsideHighReset" type="xsd:decimal" use="optional">

<xsd:annotation>

<xsd:documentation>Value of the outside drybulb temperature for when defining HVAC system lower supply reset temperature
</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="OutsideLowReset" type="xsd:decimal" use="optional">

<xsd:annotation>

<xsd:documentation>Value of the outside drybulb temperature for when defining HVAC system upper supply reset temperature
</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="SupplyHighReset" type="xsd:decimal" use="optional">

<xsd:annotation>

<xsd:documentation>Value of the upper supply air setpoint temperature for reset of cooling air or heating air temperature
</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="SupplyLowReset" type="xsd:decimal" use="optional">

<xsd:annotation>

<xsd:documentation>Value of the lower supply air setpoint temperature for reset of cooling air or heating air temperature
</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute ScheduleValue/@OutsideHighReset
type xsd:decimal
properties
use optional
annotation
documentation
Value of the outside drybulb temperature for when defining HVAC system lower supply reset temperature
source <xsd:attribute name="OutsideHighReset" type="xsd:decimal" use="optional">

<xsd:annotation>

<xsd:documentation>Value of the outside drybulb temperature for when defining HVAC system lower supply reset temperature
</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ScheduleValue/@OutsideLowReset
type xsd:decimal
properties
use optional
annotation
documentation
Value of the outside drybulb temperature for when defining HVAC system upper supply reset temperature
source <xsd:attribute name="OutsideLowReset" type="xsd:decimal" use="optional">

<xsd:annotation>

<xsd:documentation>Value of the outside drybulb temperature for when defining HVAC system upper supply reset temperature
</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ScheduleValue/@SupplyHighReset
type xsd:decimal
properties
use optional
annotation
documentation
Value of the upper supply air setpoint temperature for reset of cooling air or heating air temperature
source <xsd:attribute name="SupplyHighReset" type="xsd:decimal" use="optional">

<xsd:annotation>

<xsd:documentation>Value of the upper supply air setpoint temperature for reset of cooling air or heating air temperature
</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute ScheduleValue/@SupplyLowReset
type xsd:decimal
properties
use optional
annotation
documentation
Value of the lower supply air setpoint temperature for reset of cooling air or heating air temperature
source <xsd:attribute name="SupplyLowReset" type="xsd:decimal" use="optional">

<xsd:annotation>

<xsd:documentation>Value of the lower supply air setpoint temperature for reset of cooling air or heating air temperature
</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element SecondaryFlow
diagram GreenBuildingXML_Ver7.02_p288.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
programId  xsd:IDREF  optional
documentation
Secondary supply air maximum flow rate
source <xsd:element name="SecondaryFlow">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Secondary supply air maximum flow rate</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute SecondaryFlow/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

attribute SecondaryFlow/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Secondary supply air maximum flow rate
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Secondary supply air maximum flow rate</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element SensibleHeatRecoveryEffectiveness
diagram GreenBuildingXML_Ver7.02_p289.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
source <xsd:element name="SensibleHeatRecoveryEffectiveness" type="xsd:decimal"/>

element Setback
diagram GreenBuildingXML_Ver7.02_p290.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Opening
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  lengthUnitEnum
annotation
documentation
Distance from outside surface of window to outside surface of wall
source <xsd:element name="Setback">

<xsd:annotation>

<xsd:documentation>Distance from outside surface of window to outside surface of wall</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="lengthUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Setback/@unit
type lengthUnitEnum
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum"/>

element ShadeControl
diagram GreenBuildingXML_Ver7.02_p291.png
namespace http://www.gbxml.org/schema
properties
content complex
children ShadeSchedule SolarOnOpening HorizontalSolar AirTemperature ZoneCoolingLoad Glare
used by
element Opening
attributes
Name  Type  Use  Default  Fixed  Annotation
type  shadeTypeEnum  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="ShadeControl">

<xsd:complexType>

<xsd:annotation>

<xsd:documentation>The ShadeControl element is a bit complex, as shading control is handled differently in different simulation engines. Each child of ShadeControl represents a criteria to help determine if the shades will be open or closed. The resulting shade action should be a union of these. Example: You have included a ShadeSchedule, which is a 1 on weekdays and a 0 on weekends, and a SolarOnOpening. The shade will be drawn when the solar radiation on this opening is greater than SolarOnOpening and it is a weekday.</xsd:documentation>

</xsd:annotation>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="ShadeSchedule" minOccurs="0"/>

<xsd:element ref="SolarOnOpening" minOccurs="0"/>

<xsd:element ref="HorizontalSolar" minOccurs="0"/>

<xsd:element ref="AirTemperature" minOccurs="0"/>

<xsd:element ref="ZoneCoolingLoad" minOccurs="0"/>

<xsd:element ref="Glare" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="type" type="shadeTypeEnum" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute ShadeControl/@type
type shadeTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration InteriorInsulated
enumeration InteriorUnInsulated
enumeration ExternalInsulated
enumeration ExternalUnInsulated
source <xsd:attribute name="type" type="shadeTypeEnum" use="required"/>

attribute ShadeControl/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element ShadeSchedule
diagram GreenBuildingXML_Ver7.02_p292.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element ShadeControl
attributes
Name  Type  Use  Default  Fixed  Annotation
scheduleIdRef  xsd:ID  required
annotation
documentation
Use this element to define schedules for a shade.
source <xsd:element name="ShadeSchedule">

<xsd:annotation>

<xsd:documentation>Use this element to define schedules for a shade.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:attribute name="scheduleIdRef" type="xsd:ID" use="required"/>

</xsd:complexType>
</xsd:element>

attribute ShadeSchedule/@scheduleIdRef
type xsd:ID
properties
use required
source <xsd:attribute name="scheduleIdRef" type="xsd:ID" use="required"/>

element ShadingCoeff
diagram GreenBuildingXML_Ver7.02_p293.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Opening WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
Shading Coefficient: The ratio of total solar transmittance for the specified glazing system to the total solar transmittance for the standard reference glazing (1/8" clear).
source <xsd:element name="ShadingCoeff">

<xsd:annotation>

<xsd:documentation>Shading Coefficient: The ratio of total solar transmittance for the specified glazing system to the total solar transmittance for the standard reference glazing (1/8" clear).</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute ShadingCoeff/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element ShellGeometry
diagram GreenBuildingXML_Ver7.02_p294.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description ClosedShell
used by
elements AirLoopEquipment Building Campus ExtEquip HydronicLoopEquipment IntEquip Lighting LightingControl LightingSystem Space Transportation Vegetation
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
unit  lengthUnitEnum    Meters
annotation
documentation
All data are global, with the assumption that positive Z is up, and if CADModelAzimuth is undefined or zero, positive X is East and positive Y is North. If CADModelAzimuth is defined it is the angle of positive Y to North, positive X is the vectorial product of Y and Z. If geometry is to be precise, use Longitude Latitude, and Elevation in the Location element to define the origin. Otherwise the origin is an arbitrary point. ShellGeometry is used to define a union of closed shells, where there is no intersection of any two of the given shells.
source <xsd:element name="ShellGeometry">

<xsd:annotation>

<xsd:documentation>All data are global, with the assumption that positive Z is up, and if CADModelAzimuth is undefined or zero, positive X is East and positive Y is North. If CADModelAzimuth is defined it is the angle of positive Y to North, positive X is the vectorial product of Y and Z. If geometry is to be precise, use Longitude Latitude, and Elevation in the Location element to define the origin. Otherwise the origin is an arbitrary point. ShellGeometry is used to define a union of closed shells, where there is no intersection of any two of the given shells.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="ClosedShell"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="unit" type="lengthUnitEnum" default="Meters"/>

</xsd:complexType>
</xsd:element>

attribute ShellGeometry/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute ShellGeometry/@unit
type lengthUnitEnum
properties
default Meters
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum" default="Meters"/>

element SimulationParameters
diagram GreenBuildingXML_Ver7.02_p295.png
namespace http://www.gbxml.org/schema
properties
content complex
children ConvergenceLimits
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
version  xsd:string
timestep  xsd:decimal
annotation
documentation
Simulation parameters refer to simulation engine settings that are used during simulation run-time.  These parameters are instructions for a simulation engine to take into account features such as simulation timestep (entered as a number of minutes which should be evenly divisible into 60, see timestep attribute), convergence limits (see ConvergenceLimits), and the version of the simulation engine (version attribute).  This element intends to maintain a record of the settings used to run a simulation, which may be important if gbxml stores simulation results, as a user may wish to know what settings and version of the simulation engine were used for analysis.
source <xsd:element name="SimulationParameters">

<xsd:annotation>

<xsd:documentation>Simulation parameters refer to simulation engine settings that are used during simulation run-time.  These parameters are instructions for a simulation engine to take into account features such as simulation timestep (entered as a number of minutes which should be evenly divisible into 60, see timestep attribute), convergence limits (see ConvergenceLimits), and the version of the simulation engine (version attribute).  This element intends to maintain a record of the settings used to run a simulation, which may be important if gbxml stores simulation results, as a user may wish to know what settings and version of the simulation engine were used for analysis.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="1">

<xsd:element ref="ConvergenceLimits" minOccurs="0" maxOccurs="1"/>

</xsd:choice>

<xsd:attribute name="version" type="xsd:string"/>

<xsd:attribute name="timestep" type="xsd:decimal"/>

</xsd:complexType>
</xsd:element>

attribute SimulationParameters/@version
type xsd:string
source <xsd:attribute name="version" type="xsd:string"/>

attribute SimulationParameters/@timestep
type xsd:decimal
source <xsd:attribute name="timestep" type="xsd:decimal"/>

element SinkRate
diagram GreenBuildingXML_Ver7.02_p296.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element IndoorAirQuality
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  sinkRateUnitEnum  required
source <xsd:element name="SinkRate">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="sinkRateUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute SinkRate/@unit
type sinkRateUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration PoundsPerHour
enumeration KilogramsPerHour
enumeration GramsPerHour
source <xsd:attribute name="unit" type="sinkRateUnitEnum" use="required"/>

element SolarHeatGainCoeff
diagram GreenBuildingXML_Ver7.02_p297.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Opening WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
solarIncidentAngle  xsd:decimal  optional
annotation
documentation
When element is a child of WindowType: The center of glass solar heat gain coefficient. When element is a child of Opening: The overall solar heat gain coefficient for the window assembly.
source <xsd:element name="SolarHeatGainCoeff">

<xsd:annotation>

<xsd:documentation>When element is a child of WindowType: The center of glass solar heat gain coefficient. When element is a child of Opening: The overall solar heat gain coefficient for the window assembly.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

<xsd:attribute name="solarIncidentAngle" type="xsd:decimal" use="optional"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute SolarHeatGainCoeff/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

attribute SolarHeatGainCoeff/@solarIncidentAngle
type xsd:decimal
properties
use optional
source <xsd:attribute name="solarIncidentAngle" type="xsd:decimal" use="optional"/>

element SolarOnOpening
diagram GreenBuildingXML_Ver7.02_p298.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element ShadeControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  powerPerAreaUnitEnum  required
annotation
documentation
Amount of solar radiation striking the opening before a shade is closed.
source <xsd:element name="SolarOnOpening">

<xsd:annotation>

<xsd:documentation>Amount of solar radiation striking the opening before a shade is closed.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="powerPerAreaUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute SolarOnOpening/@unit
type powerPerAreaUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration WattPerSquareMeter
enumeration WattPerSquareFoot
source <xsd:attribute name="unit" type="powerPerAreaUnitEnum" use="required"/>

element Space
diagram GreenBuildingXML_Ver7.02_p299.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Lighting LightingControl InfiltrationFlow PeopleNumber PeopleHeatGain LightPowerPerArea EquipPowerPerArea AirChangesPerHour Area Temperature Volume AnalysisParameter PlanarGeometry ShellGeometry AirLoopId HydronicLoopId MeterId IntEquipId AirLoopEquipmentId HydronicLoopEquipmentId CADObjectId TypeCode SpaceBoundary
used by
element Building
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
spaceType  spaceTypeEnum
documentation
spaceType represents how a space is used.
appinfo
<xhtml:a href="http://206.55.31.90/cgi-bin/lpd/ShowSpaceTypes.pl">IfcPolyLoop</xhtml:a>, an IESNA and ASHRAE project for determining lighting power density for individual spaces.
zoneIdRef  xsd:IDREF
scheduleIdRef  xsd:IDREF
documentation
ID for the schedule of transmittance of a shading surface
lightScheduleIdRef  xsd:IDREF
documentation
ID of the schedule for lights contained in this space
equipmentScheduleIdRef  xsd:IDREF
documentation
ID for schedule of equipment use
peopleScheduleIdRef  xsd:IDREF
documentation
ID for schedule of people in this space
conditionType  conditionTypeEnum
buildingStoreyIdRef  xsd:IDREF
documentation
ID for BuildingStorey this space is on.
ifcGUID  xsd:string  optional
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
annotation
documentation
A space represents a volume enclosed by surfaces.
source <xsd:element name="Space">

<xsd:annotation>

<xsd:documentation>A space represents a volume enclosed by surfaces.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Lighting" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="LightingControl" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="InfiltrationFlow" minOccurs="0"/>

<xsd:element ref="PeopleNumber" minOccurs="0"/>

<xsd:element ref="PeopleHeatGain" minOccurs="0" maxOccurs="3"/>

<xsd:element ref="LightPowerPerArea" minOccurs="0"/>

<xsd:element ref="EquipPowerPerArea" minOccurs="0"/>

<xsd:element ref="AirChangesPerHour" minOccurs="0"/>

<xsd:element ref="Area" minOccurs="1"/>

<xsd:element ref="Temperature" minOccurs="0"/>

<xsd:element ref="Volume" minOccurs="1"/>

<xsd:element ref="AnalysisParameter" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="PlanarGeometry" minOccurs="0">

<xsd:annotation>

<xsd:documentation>Planar polygon that represents the perimeter of space and whose area is equal to the floor area of the space.</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="ShellGeometry" minOccurs="0">

<xsd:annotation>

<xsd:documentation>Planar polygons that represent the interior surfaces bounding the space and whose volume is equal to the volume of the space.</xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="AirLoopId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="HydronicLoopId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="MeterId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="IntEquipId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="AirLoopEquipmentId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="HydronicLoopEquipmentId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="TypeCode" minOccurs="0"/>

<xsd:element ref="SpaceBoundary" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="spaceType" type="spaceTypeEnum">

<xsd:annotation>

<xsd:documentation>spaceType represents how a space is used.</xsd:documentation>

<xsd:appinfo>

<xhtml:a href="http://206.55.31.90/cgi-bin/lpd/ShowSpaceTypes.pl">IfcPolyLoop</xhtml:a>, an IESNA and ASHRAE project for determining lighting power density for individual spaces. </xsd:appinfo>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="zoneIdRef" type="xsd:IDREF"/>

<xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="lightScheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID of the schedule for lights contained in this space</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="equipmentScheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for schedule of equipment use</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="peopleScheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for schedule of people in this space</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="conditionType" type="conditionTypeEnum"/>

<xsd:attribute name="buildingStoreyIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for BuildingStorey this space is on.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Space/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Space/@spaceType
type spaceTypeEnum
facets
Kind Value Annotation
enumeration ActiveStorage
enumeration ActiveStorageHospitalOrHealthcare
enumeration AirOrTrainOrBusBaggageArea
enumeration AirportConcourse
enumeration AtriumEachAdditionalFloor
enumeration AtriumFirstThreeFloors
enumeration AudienceOrSeatingAreaPenitentiary
enumeration AudienceOrSeatingAreaExerciseCenter
enumeration AudienceOrSeatingAreaGymnasium
enumeration AudienceOrSeatingAreaSportsArena
enumeration AudienceOrSeatingAreaConventionCenter
enumeration AudienceOrSeatingAreaMotionPictureTheatre
enumeration AudienceOrSeatingAreaPerformingArtsTheatre
enumeration AudienceOrSeatingAreaReligious
enumeration AudienceOrSeatingAreaPoliceOrFireStations
enumeration AudienceOrSeatingAreaCourtHouse
enumeration AudienceOrSeatingAreaAuditorium
enumeration BankCustomerArea
enumeration BankingActivityAreaOffice
enumeration BarberAndBeautyParlor
enumeration CardFileAndCataloguingLibrary
enumeration ClassroomOrLectureOrTrainingPenitentiary
enumeration ClassroomOrLectureOrTraining
enumeration ConfinementCellsPenitentiary
enumeration ConfinementCellsCourtHouse
enumeration ConferenceMeetingOrMultipurpose
enumeration CorridorOrTransition
enumeration CorridorOrTransitionManufacturingFacility
enumeration CorridorsWithPatientWaitingExamHospitalOrHealthcare
enumeration CourtSportsAreaSportsArena
enumeration CourtroomCourtHouse
enumeration DepartmentStoreSalesAreaRetail
enumeration DetailedManufacturingFacility
enumeration DiningArea
enumeration DiningAreaHotel
enumeration DiningAreaFamilyDining
enumeration DiningAreaLoungeOrLeisureDining
enumeration DiningAreaMotel
enumeration DiningAreaTransportation
enumeration DiningAreaPenitentiary
enumeration DiningAreaCivilServices
enumeration DormitoryBedroom
enumeration DormitoryStudyHall
enumeration DressingOrLockerOrFittingRoomGymnasium
enumeration DressingOrLockerOrFittingRoomCourtHouse
enumeration DressingOrLockerOrFittingRoomPerformingArtsTheatre
enumeration DressingOrLockerOrFittingRoomAuditorium
enumeration DressingOrLockerOrFittingRoomExerciseCenter
enumeration ElectricalOrMechanical
enumeration ElevatorLobbies
enumeration EmergencyHospitalOrHealthcare
enumeration EquipmentRoomManufacturingFacility
enumeration ExamOrTreatmentHospitalOrHealthcare
enumeration ExcerciseAreaExerciseCenter
enumeration ExcerciseAreaGymnasium
enumeration ExhibitSpaceConventionCenter
enumeration FellowshipHallReligiousBuildings
enumeration FineMaterialWarehouse
enumeration FineMerchandiseSalesAreaRetail
enumeration FireStationEngineRoomPoliceOrFireStation
enumeration FoodPreparation
enumeration GarageServiceOrRepairAutomotiveFacility
enumeration GeneralHighBayManufacturingFacility
enumeration GeneralLowBayManufacturingFacility
enumeration GeneralExhibitionMuseum
enumeration HospitalNurseryHospitalOrHealthcare
enumeration HospitalOrMedicalSuppliesHospitalOrHealthcare
enumeration HospitalOrRadiologyHospitalOrHealthcare
enumeration HotelOrConferenceCenterConferenceOrMeeting
enumeration InactiveStorage
enumeration JudgesChambersCourtHouse
enumeration LaboratoryOffice
enumeration LaundryIroningAndSorting
enumeration LaundryWashingHospitalOrHealthcare
enumeration LibraryAudioVisualLibraryAudioVisual
enumeration LivingQuartersDormitory
enumeration LivingQuartersMotel
enumeration LivingQuartersHotel
enumeration Lobby
enumeration LobbyReligiousBuildings
enumeration LobbyMotionPictureTheatre
enumeration LobbyAuditorium
enumeration LobbyPerformingArtsTheatre
enumeration LobbyPostOffice
enumeration LobbyHotel
enumeration LoungeOrRecreation
enumeration MallConcourseSalesAreaRetail
enumeration MassMerchandisingSalesAreaRetail
enumeration MediumOrBulkyMaterialWarehouse
enumeration MerchandisingSalesAreaRetail
enumeration MuseumAndGalleryStorage
enumeration NurseStationHospitalOrHealthcare
enumeration OfficeEnclosed
enumeration OfficeOpenPlan
enumeration OfficeCommonActivityAreasInactiveStorage
enumeration OperatingRoomHospitalOrHealthcare
enumeration OtherTelevisedPlayingAreaSportsArena
enumeration ParkingAreaAttendantOnlyParkingGarage
enumeration ParkingAreaPedestrianParkingGarage
enumeration PatientRoomHospitalOrHealthcare
enumeration PersonalServicesSalesAreaRetail
enumeration PharmacyHospitalOrHealthcare
enumeration PhysicalTherapyHospitalOrHealthcare
enumeration PlayingAreaGymnasium
enumeration Plenum
enumeration PoliceStationLaboratoryPoliceOrFireStations
enumeration PublicAndStaffLoungeHospitalOrHealthcare
enumeration ReadingAreaLibrary
enumeration ReceptionOrWaitingTransportation
enumeration ReceptionOrWaitingMotel
enumeration ReceptionOrWaitingHotel
enumeration RecoveryHospitalOrHealthcare
enumeration RestorationMuseum
enumeration Restrooms
enumeration RingSportsAreaSportsArena
enumeration ServerRoom
enumeration SleepingQuartersPoliceOrFireStation
enumeration SortingAreaPostOffice
enumeration SpecialtyStoreSalesAreaRetail
enumeration StacksLibrary
enumeration StairsInactive
enumeration Stairway
enumeration SupermarketSalesAreaRetail
enumeration TerminalTicketCounterTransportation
enumeration WorkshopWorkshop
enumeration WorshipPulpitChoirReligious
annotation
documentation
spaceType represents how a space is used.
appinfo
<xhtml:a href="http://206.55.31.90/cgi-bin/lpd/ShowSpaceTypes.pl">IfcPolyLoop</xhtml:a>, an IESNA and ASHRAE project for determining lighting power density for individual spaces.
source <xsd:attribute name="spaceType" type="spaceTypeEnum">

<xsd:annotation>

<xsd:documentation>spaceType represents how a space is used.</xsd:documentation>

<xsd:appinfo>

<xhtml:a href="http://206.55.31.90/cgi-bin/lpd/ShowSpaceTypes.pl">IfcPolyLoop</xhtml:a>, an IESNA and ASHRAE project for determining lighting power density for individual spaces. </xsd:appinfo>

</xsd:annotation>
</xsd:attribute>

attribute Space/@zoneIdRef
type xsd:IDREF
source <xsd:attribute name="zoneIdRef" type="xsd:IDREF"/>

attribute Space/@scheduleIdRef
type xsd:IDREF
annotation
documentation
ID for the schedule of transmittance of a shading surface
source <xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Space/@lightScheduleIdRef
type xsd:IDREF
annotation
documentation
ID of the schedule for lights contained in this space
source <xsd:attribute name="lightScheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID of the schedule for lights contained in this space</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Space/@equipmentScheduleIdRef
type xsd:IDREF
annotation
documentation
ID for schedule of equipment use
source <xsd:attribute name="equipmentScheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for schedule of equipment use</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Space/@peopleScheduleIdRef
type xsd:IDREF
annotation
documentation
ID for schedule of people in this space
source <xsd:attribute name="peopleScheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for schedule of people in this space</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Space/@conditionType
type conditionTypeEnum
facets
Kind Value Annotation
enumeration Heated
enumeration Cooled
enumeration HeatedAndCooled
enumeration Unconditioned
enumeration Vented
enumeration NaturallyVentedOnly
source <xsd:attribute name="conditionType" type="conditionTypeEnum"/>

attribute Space/@buildingStoreyIdRef
type xsd:IDREF
annotation
documentation
ID for BuildingStorey this space is on.
source <xsd:attribute name="buildingStoreyIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for BuildingStorey this space is on.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Space/@ifcGUID
type xsd:string
properties
use optional
annotation
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element SpaceBoundary
diagram GreenBuildingXML_Ver7.02_p300.png
namespace http://www.gbxml.org/schema
properties
content complex
children PlanarGeometry
used by
elements Building Space
attributes
Name  Type  Use  Default  Fixed  Annotation
ifcGUID  xsd:string  optional
documentation
Global Unique ID from Industry Foundation Class (IFC)
file.
isSecondLevelBoundary  xsd:boolean  optional
documentation
If this attribute is set to true, the boundary is important in heat flow calculation.
surfaceIdRef  xsd:IDREF  optional
documentation
Connects the space boundary to a surface representing a building element (or representing the open air).
oppositeIdRef  xsd:IDREF  optional
documentation
If surface referenced by SpaceBoundary is adjacent to two spaces, then this references the corresponding SpaceBoundary of the opposite space.
annotation
documentation
This element establishes the logical relation of a given part of the space ShellGeometry such that its PlanarGeometry is part of an interior surface bounding the space.
source <xsd:element name="SpaceBoundary">

<xsd:annotation>

<xsd:documentation>This element establishes the logical relation of a given part of the space ShellGeometry such that its PlanarGeometry is part of an interior surface bounding the space.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice>

<xsd:element ref="PlanarGeometry"/>

</xsd:choice>

<xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC)
file.
</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="isSecondLevelBoundary" type="xsd:boolean" use="optional">

<xsd:annotation>

<xsd:documentation>If this attribute is set to true, the boundary is important in heat flow calculation.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="surfaceIdRef" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Connects the space boundary to a surface representing a building element (or representing the open air).</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="oppositeIdRef" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>If surface referenced by SpaceBoundary is adjacent to two spaces, then this references the corresponding SpaceBoundary of the opposite space.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute SpaceBoundary/@ifcGUID
type xsd:string
properties
use optional
annotation
documentation
Global Unique ID from Industry Foundation Class (IFC)
file.
source <xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC)
file.
</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute SpaceBoundary/@isSecondLevelBoundary
type xsd:boolean
properties
use optional
annotation
documentation
If this attribute is set to true, the boundary is important in heat flow calculation.
source <xsd:attribute name="isSecondLevelBoundary" type="xsd:boolean" use="optional">

<xsd:annotation>

<xsd:documentation>If this attribute is set to true, the boundary is important in heat flow calculation.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute SpaceBoundary/@surfaceIdRef
type xsd:IDREF
properties
use optional
annotation
documentation
Connects the space boundary to a surface representing a building element (or representing the open air).
source <xsd:attribute name="surfaceIdRef" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Connects the space boundary to a surface representing a building element (or representing the open air).</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute SpaceBoundary/@oppositeIdRef
type xsd:IDREF
properties
use optional
annotation
documentation
If surface referenced by SpaceBoundary is adjacent to two spaces, then this references the corresponding SpaceBoundary of the opposite space.
source <xsd:attribute name="oppositeIdRef" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>If surface referenced by SpaceBoundary is adjacent to two spaces, then this references the corresponding SpaceBoundary of the opposite space.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element SpecificHeat
diagram GreenBuildingXML_Ver7.02_p301.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Fire Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  specificHeatUnitEnum  required
source <xsd:element name="SpecificHeat">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="specificHeatUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute SpecificHeat/@unit
type specificHeatUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration JPerKgK
enumeration BTUPerLbF
source <xsd:attribute name="unit" type="specificHeatUnitEnum" use="required"/>

element State
diagram GreenBuildingXML_Ver7.02_p302.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="State" type="xsd:string"/>

element StateOrProvince
diagram GreenBuildingXML_Ver7.02_p303.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element Weather
source <xsd:element name="StateOrProvince" type="xsd:string"/>

element StationId
diagram GreenBuildingXML_Ver7.02_p304.png
namespace http://www.gbxml.org/schema
type extension of xsd:string
properties
content complex
used by
element Location
attributes
Name  Type  Use  Default  Fixed  Annotation
IDType  stationIdTypeEnum
source <xsd:element name="StationId">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:string">

<xsd:attribute name="IDType" type="stationIdTypeEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute StationId/@IDType
type stationIdTypeEnum
facets
Kind Value Annotation
enumeration WMO
documentation
A five-digit station identifier assigned by the World Meteorological Organization (WMO), used for international weather data exchange and station documentation.
enumeration WBAN
documentation
Weather-Bureau-Army-Navy station id. A five-digit station identifier used at National Climatic Data Center (NCDC) for digital data storage and general station identification purposes.
enumeration ICAO
documentation
A 4-letter indicator for geographical locations throughout the world, managed by the International Civil Aviation Organization (ICAO).
enumeration NWSLI
documentation
A 3- to 5-character alpha-numeric identifier assigned by the US National Weather Service (NWS), used for site identification in the NWS communications systems (e.g. AFOS, ROSA, SHEF, etc.).
enumeration FAACallSign
documentation
An alpha-numeric identifier of up to 4-characters managed by the USDT Federal Aviation Administration (FAA), used for site identification of airports, weather stations and other sites vital to navigation.
enumeration COOP
documentation
A 6-digit number identifying a station in the NWS Cooperative Network.
enumeration Modeled
documentation
A custom code identifying a virtual station for a particular grid location on the planet that was modeled by a simulation program such as MM5, WRF, or other weather simulation programs.
source <xsd:attribute name="IDType" type="stationIdTypeEnum"/>

element StreetAddress
diagram GreenBuildingXML_Ver7.02_p305.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element Building
source <xsd:element name="StreetAddress" type="xsd:string"/>

element SupplementalGasHeatingCoilEfficiency
diagram GreenBuildingXML_Ver7.02_p306.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Supplemental heating coil efficiency
source <xsd:element name="SupplementalGasHeatingCoilEfficiency" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Supplemental heating coil efficiency</xsd:documentation>

</xsd:annotation>
</xsd:element>

element SupplementalGasHeatingCoilParasiticElectricLoad
diagram GreenBuildingXML_Ver7.02_p307.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Supplemental heating coil parasitic electric load
source <xsd:element name="SupplementalGasHeatingCoilParasiticElectricLoad" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Supplemental heating coil parasitic electric load</xsd:documentation>

</xsd:annotation>
</xsd:element>

element SupplementalHeatingCoilCapacity
diagram GreenBuildingXML_Ver7.02_p308.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element AirLoopEquipment
annotation
documentation
Supplemental heating coil capacity.
source <xsd:element name="SupplementalHeatingCoilCapacity" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Supplemental heating coil capacity.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element SupplementalHeatingCoilType
diagram GreenBuildingXML_Ver7.02_p309.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  supplementalHeatingCoilTypeEnum
source <xsd:element name="SupplementalHeatingCoilType">

<xsd:complexType>

<xsd:attribute name="unit" type="supplementalHeatingCoilTypeEnum"/>

</xsd:complexType>
</xsd:element>

attribute SupplementalHeatingCoilType/@unit
type supplementalHeatingCoilTypeEnum
facets
Kind Value Annotation
enumeration Electric
enumeration Gas
enumeration HotWater
source <xsd:attribute name="unit" type="supplementalHeatingCoilTypeEnum"/>

element Surface
diagram GreenBuildingXML_Ver7.02_p310.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description FamilyName AdjacentSpaceId RectangularGeometry PlanarGeometry Opening CADObjectId
used by
element Campus
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
surfaceType  surfaceTypeEnum  required
constructionIdRef  xsd:IDREF  required
documentation
Identifier pointing to a construction
scheduleShadeIdRef  xsd:IDREF
documentation
ID for the schedule of transmittance of a shading surface
exposedToSun  xsd:boolean    true
documentation
This attribute specifies whether or not direct beam radiation from the sun will ever hit this surface. Only relevant to exterior surface types.
ifcGUID  xsd:string  optional
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:element name="Surface">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="FamilyName" minOccurs="0"/>

<xsd:element ref="AdjacentSpaceId" minOccurs="1" maxOccurs="2">

<xsd:annotation>

<xsd:documentation>First AdjacentSpaceId entered will determine how the referenced construction layers are ordered with the first construction layer being in contact with the outside or 2nd space listed and the last layer in contact with the first space listed. </xsd:documentation>

</xsd:annotation>

</xsd:element>

<xsd:element ref="RectangularGeometry"/>

<xsd:element ref="PlanarGeometry"/>

<xsd:element ref="Opening" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="surfaceType" type="surfaceTypeEnum" use="required"/>

<xsd:attribute name="constructionIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>Identifier pointing to a construction</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="scheduleShadeIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="exposedToSun" type="xsd:boolean" default="true">

<xsd:annotation>

<xsd:documentation>This attribute specifies whether or not direct beam radiation from the sun will ever hit this surface. Only relevant to exterior surface types.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Surface/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Surface/@surfaceType
type surfaceTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration InteriorWall
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to two conditioned or unconditioned spaces and that is vertical or tilted at an angle of 60° from horizontal or greater.
enumeration ExteriorWall
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and that is vertical or tilted at an angle of 60° from horizontal or greater.
enumeration Roof
documentation
The upper portion of the building envelope, including opaque areas and fenestration, that is adjacent to one conditioned or unconditioned space and that is horizontal or tilted at an angle of less than 60° from horizontal.
enumeration InteriorFloor
documentation
The lower portion of the building envelope, including opaque area and fenestration, that has conditioned or semiheated space above and is horizontal or tilted at an angle of less than 60 degrees from horizontal but excluding slab-on-grade floors.
enumeration ExposedFloor
documentation
The floor area exposed to non-conditioned space or outside.
enumeration Shade
documentation
Surface not adjacent to any spaces with tilt between 0° and 180°.
enumeration UndergroundWall
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) and that is vertical or tilted at an angle of 60° from horizontal or greater.
enumeration UndergroundSlab
documentation
Surface adjacent to one conditioned or unconditioned space and earth (soil) below grade with a tilt between 150° and 180°.
enumeration Ceiling
documentation
The upper portion of the building envelope that is adjacent to two conditioned or unconditioned spaces and that is horizontal or tilted at an angle of less than 60° from horizontal.
enumeration Air
documentation
Air membrane between two conditioned or unconditioned spaces with a tilt between 0° and 180°.
enumeration UndergroundCeiling
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) and that is horizontal or tilted at an angle of less than 60° from horizontal.
enumeration RaisedFloor
documentation
The lower portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and the outside and is horizontal or tilted at an angle between 150° and 180°.
enumeration SlabOnGrade
documentation
The lower portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) at grade with a tilt between 150° and 180°.
enumeration FreestandingColumn
documentation
Freestanding column in space specified by its top surface having the same ifcGUID.
enumeration EmbeddedColumn
documentation
Embedded column in wall specified by a surface which is coplanar with (one of) the embedding wall(s).
source <xsd:attribute name="surfaceType" type="surfaceTypeEnum" use="required"/>

attribute Surface/@constructionIdRef
type xsd:IDREF
properties
use required
annotation
documentation
Identifier pointing to a construction
source <xsd:attribute name="constructionIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>Identifier pointing to a construction</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Surface/@scheduleShadeIdRef
type xsd:IDREF
annotation
documentation
ID for the schedule of transmittance of a shading surface
source <xsd:attribute name="scheduleShadeIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Surface/@exposedToSun
type xsd:boolean
properties
default true
annotation
documentation
This attribute specifies whether or not direct beam radiation from the sun will ever hit this surface. Only relevant to exterior surface types.
source <xsd:attribute name="exposedToSun" type="xsd:boolean" default="true">

<xsd:annotation>

<xsd:documentation>This attribute specifies whether or not direct beam radiation from the sun will ever hit this surface. Only relevant to exterior surface types.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Surface/@ifcGUID
type xsd:string
properties
use optional
annotation
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Temp
diagram GreenBuildingXML_Ver7.02_p311.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment HydronicLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
tempType  tempTypeEnum  required
annotation
documentation
Temperature
source <xsd:element name="Temp">

<xsd:annotation>

<xsd:documentation>Temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

<xsd:attribute name="tempType" type="tempTypeEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Temp/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

attribute Temp/@tempType
type tempTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Max
enumeration Min
enumeration Design
enumeration CoolDesign
enumeration HeatDesign
enumeration Throttle
enumeration Range
enumeration Approach
enumeration EnteringWetBulb
enumeration LeavingDryBulb
enumeration EnteringDryBulb
enumeration LeavingWetBulb
enumeration ChilledWaterSupply
enumeration CondenserWaterSupply
enumeration LeavingChilledWater
enumeration LeavingCondenserWater
enumeration HighTempLockout
enumeration LowTempLockout
enumeration EconomizerMaxLimitDewpoint
enumeration HeatPumpDefrostMaxOADryBulb
enumeration SupplementalHeatingCoilMaxOADryBulb
enumeration PreheatCoilDesignSetpoint
source <xsd:attribute name="tempType" type="tempTypeEnum" use="required"/>

element Temperature
diagram GreenBuildingXML_Ver7.02_p312.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements CDD HDD Space
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="Temperature">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Temperature/@unit
type temperatureUnitEnum
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum"/>

attribute Temperature/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element TemperatureControl
diagram GreenBuildingXML_Ver7.02_p313.png
namespace http://www.gbxml.org/schema
properties
content complex
children DesignTemp MinTemp MaxTemp ResetTemperature
used by
elements AirLoop HydronicLoop
annotation
documentation
Use this element to describe how the temperature is controlled. The temperatures specified in this element should be measured just upstream of the most critical piece of equipment (air handlers for a chilled water and hot water loops the chiller for the cooling water loop).
source <xsd:element name="TemperatureControl">

<xsd:annotation>

<xsd:documentation>Use this element to describe how the temperature is controlled. The temperatures specified in this element should be measured just upstream of the most critical piece of equipment (air handlers for a chilled water and hot water loops the chiller for the cooling water loop).</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="DesignTemp" minOccurs="0"/>

<xsd:element ref="MinTemp" minOccurs="0"/>

<xsd:element ref="MaxTemp" minOccurs="0"/>

<xsd:element ref="ResetTemperature" minOccurs="0"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element Thickness
diagram GreenBuildingXML_Ver7.02_p314.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Blind Fire Gap Glaze Material
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  lengthUnitEnum
source <xsd:element name="Thickness">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="lengthUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Thickness/@unit
type lengthUnitEnum
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum"/>

element Tilt
diagram GreenBuildingXML_Ver7.02_p315.png
namespace http://www.gbxml.org/schema
type restriction of xsd:double
properties
content simple
used by
element RectangularGeometry
facets
Kind Value Annotation
minInclusive 0
maxInclusive 180
annotation
documentation
The number of degrees from up that the outside of the surface is tilted in relation to the bottom-left corner.
source <xsd:element name="Tilt">

<xsd:annotation>

<xsd:documentation>The number of degrees from up that the outside of the surface is tilted in relation to the bottom-left corner.</xsd:documentation>

</xsd:annotation>

<xsd:simpleType>

<xsd:restriction base="xsd:double">

<xsd:minInclusive value="0"/>

<xsd:maxInclusive value="180"/>

</xsd:restriction>

</xsd:simpleType>
</xsd:element>

element TimeIncrement
diagram GreenBuildingXML_Ver7.02_p316.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
timeUnit  timeUnitEnum  required
annotation
documentation
Time or period that results represent. Example: if timeType = Month and TimeIncrement = 1 the Value would be for the month of January or if timeType = Hour and TimeIncrement = 4 the 81st the Value would be for January 14 at noon.
source <xsd:element name="TimeIncrement">

<xsd:annotation>

<xsd:documentation>Time or period that results represent. Example: if timeType = Month and TimeIncrement = 1 the Value would be for the month of January or if timeType = Hour and TimeIncrement = 4 the 81st the Value would be for January 14 at noon.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="timeUnit" type="timeUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute TimeIncrement/@timeUnit
type timeUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Year
enumeration Month
enumeration Week
enumeration Day
enumeration Hour
enumeration Minute
source <xsd:attribute name="timeUnit" type="timeUnitEnum" use="required"/>

element Transmittance
diagram GreenBuildingXML_Ver7.02_p317.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Blind Construction Glaze Material Opening WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
type  radiationWavelengthTypeEnum  required
surfaceType  surfaceDescriptionEnum  required
annotation
documentation
Transmittance of shading surface
source <xsd:element name="Transmittance">

<xsd:annotation>

<xsd:documentation>Transmittance of shading surface</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

<xsd:attribute name="type" type="radiationWavelengthTypeEnum" use="required"/>

<xsd:attribute name="surfaceType" type="surfaceDescriptionEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Transmittance/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

attribute Transmittance/@type
type radiationWavelengthTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Solar
enumeration IR
enumeration Visible
source <xsd:attribute name="type" type="radiationWavelengthTypeEnum" use="required"/>

attribute Transmittance/@surfaceType
type surfaceDescriptionEnum
properties
use required
facets
Kind Value Annotation
enumeration 1
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 1, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 1 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 1 represents the surface that points away from the building interior.
enumeration 2
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 2, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 2 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 2 represents the surface that points towards the building interior.
enumeration Both
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to Both, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated both Surface 1 and Surface 2 of the material's 2 surfaces [it is assumed that the material is a large planar object].  See the enumerations above for a description of Surface 1 and 2.
source <xsd:attribute name="surfaceType" type="surfaceDescriptionEnum" use="required"/>

element Transportation
diagram GreenBuildingXML_Ver7.02_p318.png
namespace http://www.gbxml.org/schema
properties
content complex
children GeneralGeometry ShellGeometry Cost
used by
element Campus
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
transportationType  transportationTypeEnum  required
scheduleIdRef  xsd:IDREF
documentation
ID for the schedule of transmittance of a shading surface
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Public transportation
source <xsd:element name="Transportation">

<xsd:annotation>

<xsd:documentation>Public transportation</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="GeneralGeometry" minOccurs="0"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="transportationType" type="transportationTypeEnum" use="required"/>

<xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Transportation/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Transportation/@transportationType
type transportationTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Bus
enumeration Train
enumeration Car
enumeration LightRail
enumeration Ferry
enumeration Airplane
enumeration Monorail
enumeration Bike
source <xsd:attribute name="transportationType" type="transportationTypeEnum" use="required"/>

attribute Transportation/@scheduleIdRef
type xsd:IDREF
annotation
documentation
ID for the schedule of transmittance of a shading surface
source <xsd:attribute name="scheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID for the schedule of transmittance of a shading surface</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Transportation/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element TypeCode
diagram GreenBuildingXML_Ver7.02_p319.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
elements Space Zone
annotation
documentation
User/project defined Code for Space or Zone.
source <xsd:element name="TypeCode" type="xsd:string">

<xsd:annotation>

<xsd:documentation>User/project defined Code for Space or Zone.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element U-value
diagram GreenBuildingXML_Ver7.02_p320.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Construction Opening WindowType
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  uValueUnitEnum  required
annotation
documentation
Overall conductance
source <xsd:element name="U-value">

<xsd:annotation>

<xsd:documentation>Overall conductance</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="uValueUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute U-value/@unit
type uValueUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration WPerSquareMeterK
enumeration BtuPerHourSquareFtF
source <xsd:attribute name="unit" type="uValueUnitEnum" use="required"/>

element UpperLimitValue
diagram GreenBuildingXML_Ver7.02_p321.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element ScheduleTypeLimits
source <xsd:element name="UpperLimitValue" type="xsd:decimal"/>

element URI
diagram GreenBuildingXML_Ver7.02_p322.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element ProjectEntity
source <xsd:element name="URI" type="xsd:string"/>

element UtilityRate
diagram GreenBuildingXML_Ver7.02_p323.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Meter
annotation
documentation
We have left the UtilityRate element open to allow for use with billing schemas.
source <xsd:element name="UtilityRate">

<xsd:annotation>

<xsd:documentation>We have left the UtilityRate element open to allow for use with billing schemas.</xsd:documentation>

</xsd:annotation>

<xsd:complexType/>
</xsd:element>

element Value
diagram GreenBuildingXML_Ver7.02_p324.png
namespace http://www.gbxml.org/schema
type xsd:decimal
properties
content simple
used by
element Results
annotation
documentation
Contains the actual numerical result value. If series result type each Value element contains the one value and is in sequential order for the series.
source <xsd:element name="Value" type="xsd:decimal">

<xsd:annotation>

<xsd:documentation>Contains the actual numerical result value. If series result type each Value element contains the one value and is in sequential order for the series.</xsd:documentation>

</xsd:annotation>
</xsd:element>

element Vegetation
diagram GreenBuildingXML_Ver7.02_p325.png
namespace http://www.gbxml.org/schema
properties
content complex
children GeneralGeometry ShellGeometry WaterRate BiomassDensity Cost
used by
element Campus
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
vegetationType  vegetationTypeEnum  required
waterScheduleIdRef  xsd:IDREF
waterMeterIdRef  xsd:IDREF
shadeScheduleIdRef  xsd:IDREF
documentation
Refers to a building-level surface.
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
Plants, trees, etc. on a campus
source <xsd:element name="Vegetation">

<xsd:annotation>

<xsd:documentation>Plants, trees, etc. on a campus</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="GeneralGeometry" minOccurs="0"/>

<xsd:element ref="ShellGeometry" minOccurs="0"/>

<xsd:element ref="WaterRate" minOccurs="0"/>

<xsd:element ref="BiomassDensity" minOccurs="0"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="vegetationType" type="vegetationTypeEnum" use="required"/>

<xsd:attribute name="waterScheduleIdRef" type="xsd:IDREF"/>

<xsd:attribute name="waterMeterIdRef" type="xsd:IDREF"/>

<xsd:attribute name="shadeScheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Refers to a building-level surface.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Vegetation/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Vegetation/@vegetationType
type vegetationTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Trees
enumeration Bushes
enumeration Plants
enumeration Grass
enumeration Moss
enumeration EvergreenTrees
enumeration EvergreenShrubs
enumeration DeciduousTrees
enumeration DeciduousShrubs
source <xsd:attribute name="vegetationType" type="vegetationTypeEnum" use="required"/>

attribute Vegetation/@waterScheduleIdRef
type xsd:IDREF
source <xsd:attribute name="waterScheduleIdRef" type="xsd:IDREF"/>

attribute Vegetation/@waterMeterIdRef
type xsd:IDREF
source <xsd:attribute name="waterMeterIdRef" type="xsd:IDREF"/>

attribute Vegetation/@shadeScheduleIdRef
type xsd:IDREF
annotation
documentation
Refers to a building-level surface.
source <xsd:attribute name="shadeScheduleIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Refers to a building-level surface.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Vegetation/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element Version
diagram GreenBuildingXML_Ver7.02_p326.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element ProgramInfo
source <xsd:element name="Version" type="xsd:string"/>

element Viscosity
diagram GreenBuildingXML_Ver7.02_p327.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Gap
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  viscosityUnitEnum  required
source <xsd:element name="Viscosity">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="viscosityUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Viscosity/@unit
type viscosityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration KgPerMSec
enumeration PoundPerFootSec
source <xsd:attribute name="unit" type="viscosityUnitEnum" use="required"/>

element ViscosityFofT
diagram GreenBuildingXML_Ver7.02_p328.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Gap
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  viscosityFofTUnitEnum  required
annotation
documentation
Viscosity as a function of temperature
source <xsd:element name="ViscosityFofT">

<xsd:annotation>

<xsd:documentation>Viscosity as a function of temperature</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="viscosityFofTUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute ViscosityFofT/@unit
type viscosityFofTUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration KgPerMSecK
enumeration PoundPerFootSecF
source <xsd:attribute name="unit" type="viscosityFofTUnitEnum" use="required"/>

element Volume
diagram GreenBuildingXML_Ver7.02_p329.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Space
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  volumeUnitEnum
annotation
documentation
Specifies the volume of the space. This value should be equal to the volume enclosed by the actual physical boundaries of the space, as defined by the volumetric model's interior surfaces bounding that space.
source <xsd:element name="Volume">

<xsd:annotation>

<xsd:documentation>Specifies the volume of the space. This value should be equal to the volume enclosed by the actual physical boundaries of the space, as defined by the volumetric model's interior surfaces bounding that space.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="volumeUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Volume/@unit
type volumeUnitEnum
facets
Kind Value Annotation
enumeration CubicKilometers
enumeration CubicMeters
enumeration CubicCentimeters
enumeration CubicMillimeters
enumeration CubicMiles
enumeration CubicYards
enumeration CubicFeet
enumeration CubicInches
source <xsd:attribute name="unit" type="volumeUnitEnum"/>

element WasteWaterHREff
diagram GreenBuildingXML_Ver7.02_p330.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements ExtEquip IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
airLoopIdRef  xsd:IDREF
documentation
ID pointing to an air loop
hydronicLoopIdRef  xsd:IDREF
documentation
ID pointing to a hydronic loop
annotation
documentation
Waste water heat recovery efficiency
source <xsd:element name="WasteWaterHREff">

<xsd:annotation>

<xsd:documentation>Waste water heat recovery efficiency</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

<xsd:attribute name="airLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to an air loop</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to a hydronic loop </xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WasteWaterHREff/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

attribute WasteWaterHREff/@airLoopIdRef
type xsd:IDREF
annotation
documentation
ID pointing to an air loop
source <xsd:attribute name="airLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to an air loop</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute WasteWaterHREff/@hydronicLoopIdRef
type xsd:IDREF
annotation
documentation
ID pointing to a hydronic loop
source <xsd:attribute name="hydronicLoopIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID pointing to a hydronic loop </xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element WaterLoss
diagram GreenBuildingXML_Ver7.02_p331.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element AirLoopEquipment
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
This includes blowdown (draining a cooling tower to clean), drift (water loss from water sprayed), and evaporation in cooling towers.
source <xsd:element name="WaterLoss">

<xsd:annotation>

<xsd:documentation>This includes blowdown (draining a cooling tower to clean), drift (water loss from water sprayed), and evaporation in cooling towers.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WaterLoss/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element WaterRate
diagram GreenBuildingXML_Ver7.02_p332.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Vegetation
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  flowUnitEnum  required
source <xsd:element name="WaterRate">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WaterRate/@unit
type flowUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:attribute name="unit" type="flowUnitEnum" use="required"/>

element WaterUsePerCycle
diagram GreenBuildingXML_Ver7.02_p333.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements ExtEquip IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  waterUseUnitEnum  required
annotation
documentation
Amount of water used for water using equipment per cycle of operation.
source <xsd:element name="WaterUsePerCycle">

<xsd:annotation>

<xsd:documentation>Amount of water used for water using equipment per cycle of operation.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="waterUseUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WaterUsePerCycle/@unit
type waterUseUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration CubicMeters
enumeration Gallons
enumeration Tons
enumeration Kilograms
enumeration Liters
source <xsd:attribute name="unit" type="waterUseUnitEnum" use="required"/>

element Weather
diagram GreenBuildingXML_Ver7.02_p334.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Location City StateOrProvince Country HDD CDD DDDBCool DDHiHrCool DDWBCool DDDBRangeCool DDLoHrCool DDPressureCool DDWindSpeedCool DDWindDirCool DDSkyClearnessCool DDRainCool DDSnowCool DDMonthCool DDDayCool DDDaylightCool DDGroundTCool DDDBHeat DDHiHrHeat DDWBHeat DDDBRangeHeat DDLoHrHeat DDPressureHeat DDWindSpeedHeat DDWindDirHeat DDSkyClearnessHeat DDRainHeat DDSnowHeat DDMonthHeat DDDayHeat DDDaylightHeat DDGroundTHeat GroundTemp WFTDTemp WFTDRelHumidity WFTDWindSpeed WFTDWindDir WFTDPressure Reference
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="Weather">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Location" minOccurs="1"/>

<xsd:element ref="City" minOccurs="0"/>

<xsd:element ref="StateOrProvince" minOccurs="0"/>

<xsd:element ref="Country" minOccurs="0"/>

<xsd:element ref="HDD" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CDD" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="DDDBCool" minOccurs="0"/>

<xsd:element ref="DDHiHrCool" minOccurs="0"/>

<xsd:element ref="DDWBCool" minOccurs="0"/>

<xsd:element ref="DDDBRangeCool" minOccurs="0"/>

<xsd:element ref="DDLoHrCool" minOccurs="0"/>

<xsd:element ref="DDPressureCool" minOccurs="0"/>

<xsd:element ref="DDWindSpeedCool" minOccurs="0"/>

<xsd:element ref="DDWindDirCool" minOccurs="0"/>

<xsd:element ref="DDSkyClearnessCool" minOccurs="0"/>

<xsd:element ref="DDRainCool" minOccurs="0"/>

<xsd:element ref="DDSnowCool" minOccurs="0"/>

<xsd:element ref="DDMonthCool" minOccurs="0"/>

<xsd:element ref="DDDayCool" minOccurs="0"/>

<xsd:element ref="DDDaylightCool" minOccurs="0"/>

<xsd:element ref="DDGroundTCool" minOccurs="0"/>

<xsd:element ref="DDDBHeat" minOccurs="0"/>

<xsd:element ref="DDHiHrHeat" minOccurs="0"/>

<xsd:element ref="DDWBHeat" minOccurs="0"/>

<xsd:element ref="DDDBRangeHeat" minOccurs="0"/>

<xsd:element ref="DDLoHrHeat" minOccurs="0"/>

<xsd:element ref="DDPressureHeat" minOccurs="0"/>

<xsd:element ref="DDWindSpeedHeat" minOccurs="0"/>

<xsd:element ref="DDWindDirHeat" minOccurs="0"/>

<xsd:element ref="DDSkyClearnessHeat" minOccurs="0"/>

<xsd:element ref="DDRainHeat" minOccurs="0"/>

<xsd:element ref="DDSnowHeat" minOccurs="0"/>

<xsd:element ref="DDMonthHeat" minOccurs="0"/>

<xsd:element ref="DDDayHeat" minOccurs="0"/>

<xsd:element ref="DDDaylightHeat" minOccurs="0"/>

<xsd:element ref="DDGroundTHeat" minOccurs="0"/>

<xsd:element ref="GroundTemp" minOccurs="0"/>

<xsd:element ref="WFTDTemp" minOccurs="0"/>

<xsd:element ref="WFTDRelHumidity" minOccurs="0"/>

<xsd:element ref="WFTDWindSpeed" minOccurs="0"/>

<xsd:element ref="WFTDWindDir" minOccurs="0"/>

<xsd:element ref="WFTDPressure" minOccurs="0"/>

<xsd:element ref="Reference" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Weather/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Weather/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element WebPage
diagram GreenBuildingXML_Ver7.02_p335.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="WebPage" type="xsd:string"/>

element WeekSchedule
diagram GreenBuildingXML_Ver7.02_p336.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Day
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
scheduleType  scheduleTypeEnum  required
scheduleTypeLimitsId  xsd:string
annotation
documentation
Set of day schedules all assigned to a unique particular period of the week using the day type attribute. Do not schedule conflicting day types to the same week schedule.
source <xsd:element name="WeekSchedule">

<xsd:annotation>

<xsd:documentation>Set of day schedules all assigned to a unique particular period of the week using the day type attribute. Do not schedule conflicting day types to the same week schedule.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Day" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="scheduleType" type="scheduleTypeEnum" use="required"/>

<xsd:attribute name="scheduleTypeLimitsId" type="xsd:string"/>

</xsd:complexType>
</xsd:element>

attribute WeekSchedule/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute WeekSchedule/@scheduleType
type scheduleTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Temp
enumeration Fraction
enumeration OnOff
enumeration ResetTemp
enumeration ActivityLevel
source <xsd:attribute name="scheduleType" type="scheduleTypeEnum" use="required"/>

attribute WeekSchedule/@scheduleTypeLimitsId
type xsd:string
source <xsd:attribute name="scheduleTypeLimitsId" type="xsd:string"/>

element WeekScheduleId
diagram GreenBuildingXML_Ver7.02_p337.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element YearSchedule
attributes
Name  Type  Use  Default  Fixed  Annotation
weekScheduleIdRef  xsd:IDREF  required
source <xsd:element name="WeekScheduleId">

<xsd:complexType>

<xsd:attribute name="weekScheduleIdRef" type="xsd:IDREF" use="required"/>

</xsd:complexType>
</xsd:element>

attribute WeekScheduleId/@weekScheduleIdRef
type xsd:IDREF
properties
use required
source <xsd:attribute name="weekScheduleIdRef" type="xsd:IDREF" use="required"/>

element Weight
diagram GreenBuildingXML_Ver7.02_p338.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements AirLoopEquipment ExtEquip HydronicLoopEquipment IntEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  weightUnitEnum  required
source <xsd:element name="Weight">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="weightUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Weight/@unit
type weightUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Pounds
enumeration Kilograms
enumeration Tons
source <xsd:attribute name="unit" type="weightUnitEnum" use="required"/>

element WFTDPressure
diagram GreenBuildingXML_Ver7.02_p339.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  pressureUnitEnum  required
annotation
documentation
Wildfire threat design atomospheric pressure.
source <xsd:element name="WFTDPressure">

<xsd:annotation>

<xsd:documentation>Wildfire threat design atomospheric pressure.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="pressureUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WFTDPressure/@unit
type pressureUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration PSI
enumeration kPa
enumeration Atmospheres
enumeration InchesOfH2O
enumeration CentimetersOfH2O
enumeration InchesOfMercury
enumeration CentimetersOfMercury
enumeration MillimetersOfMercury
enumeration Pascals
source <xsd:attribute name="unit" type="pressureUnitEnum" use="required"/>

element WFTDRelHumidity
diagram GreenBuildingXML_Ver7.02_p340.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  unitlessUnitEnum  required
annotation
documentation
Wildfire threat design relative humidity.
source <xsd:element name="WFTDRelHumidity">

<xsd:annotation>

<xsd:documentation>Wildfire threat design relative humidity.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WFTDRelHumidity/@unit
type unitlessUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:attribute name="unit" type="unitlessUnitEnum" use="required"/>

element WFTDTemp
diagram GreenBuildingXML_Ver7.02_p341.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  temperatureUnitEnum  required
annotation
documentation
Wildfire threat design dry bulb temperature.
source <xsd:element name="WFTDTemp">

<xsd:annotation>

<xsd:documentation>Wildfire threat design dry bulb temperature.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="temperatureUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WFTDTemp/@unit
type temperatureUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:attribute name="unit" type="temperatureUnitEnum" use="required"/>

element WFTDWindDir
diagram GreenBuildingXML_Ver7.02_p342.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  directionUnitEnum  required
annotation
documentation
Wildfire threat design wind direction
source <xsd:element name="WFTDWindDir">

<xsd:annotation>

<xsd:documentation>Wildfire threat design wind direction</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="directionUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WFTDWindDir/@unit
type directionUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration DegreeDecimalFromNorth
source <xsd:attribute name="unit" type="directionUnitEnum" use="required"/>

element WFTDWindSpeed
diagram GreenBuildingXML_Ver7.02_p343.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element Weather
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  velocityUnitEnum  required
annotation
documentation
Wildfire threat design wind speed.
source <xsd:element name="WFTDWindSpeed">

<xsd:annotation>

<xsd:documentation>Wildfire threat design wind speed.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="velocityUnitEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WFTDWindSpeed/@unit
type velocityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration MetersPerSecond
enumeration MilesPerHour
enumeration Knots
source <xsd:attribute name="unit" type="velocityUnitEnum" use="required"/>

element Width
diagram GreenBuildingXML_Ver7.02_p344.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
elements Dimensions Frame RectangularGeometry
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  lengthUnitEnum
source <xsd:element name="Width">

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="lengthUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute Width/@unit
type lengthUnitEnum
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:attribute name="unit" type="lengthUnitEnum"/>

element WindowType
diagram GreenBuildingXML_Ver7.02_p345.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description U-value ShadingCoeff SolarHeatGainCoeff Transmittance Reflectance Emittance Blind Frame Gap Glaze Cost ExtEquipId
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
windowTypeIsSchematic  xsd:boolean  required
DOELibIdRef  xsd:string
documentation
Use this attribute to reference objects in the DOE2 library
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
annotation
documentation
One WindowType should be created for each type of window. Create a Blind, Frame, and Cost for each OpeningType, and then add as many Glaze and Gaps as exist in the window. Place these Glaze and Gap elements in order from outside to inside. For instance, a two pane window will have Glaze Gap Glaze, where the first Glaze represents the outside surface.
source <xsd:element name="WindowType">

<xsd:annotation>

<xsd:documentation>One WindowType should be created for each type of window. Create a Blind, Frame, and Cost for each OpeningType, and then add as many Glaze and Gaps as exist in the window. Place these Glaze and Gap elements in order from outside to inside. For instance, a two pane window will have Glaze Gap Glaze, where the first Glaze represents the outside surface.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="U-value" minOccurs="0"/>

<xsd:element ref="ShadingCoeff" minOccurs="0"/>

<xsd:element ref="SolarHeatGainCoeff" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Transmittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Reflectance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Emittance" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Blind" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Frame" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Gap" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Glaze" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="Cost" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="ExtEquipId" minOccurs="0" maxOccurs="1">

<xsd:annotation>

<xsd:documentation>This element is for purposes of modeling BIPV (building integrated photovoltaics).</xsd:documentation>

</xsd:annotation>

</xsd:element>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="windowTypeIsSchematic" type="xsd:boolean" use="required"/>

<xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute WindowType/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute WindowType/@windowTypeIsSchematic
type xsd:boolean
properties
use required
source <xsd:attribute name="windowTypeIsSchematic" type="xsd:boolean" use="required"/>

attribute WindowType/@DOELibIdRef
type xsd:string
annotation
documentation
Use this attribute to reference objects in the DOE2 library
source <xsd:attribute name="DOELibIdRef" type="xsd:string">

<xsd:annotation>

<xsd:documentation>Use this attribute to reference objects in the DOE2 library</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute WindowType/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element WindSpeed
diagram GreenBuildingXML_Ver7.02_p346.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element ExtEquip
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  velocityUnitEnum  required
type  windSpeedEnum  required
annotation
documentation
Wind speed for wind turbine.
source <xsd:element name="WindSpeed">

<xsd:annotation>

<xsd:documentation>Wind speed for wind turbine.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="velocityUnitEnum" use="required"/>

<xsd:attribute name="type" type="windSpeedEnum" use="required"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute WindSpeed/@unit
type velocityUnitEnum
properties
use required
facets
Kind Value Annotation
enumeration MetersPerSecond
enumeration MilesPerHour
enumeration Knots
source <xsd:attribute name="unit" type="velocityUnitEnum" use="required"/>

attribute WindSpeed/@type
type windSpeedEnum
properties
use required
facets
Kind Value Annotation
enumeration RatedWindSpeed
enumeration CutInWindSpeed
enumeration CutOutWindSpeed
source <xsd:attribute name="type" type="windSpeedEnum" use="required"/>

element XAxis
diagram GreenBuildingXML_Ver7.02_p347.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  xsd:string  required
dataType  xsd:string  required
source <xsd:element name="XAxis">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name"/>

<xsd:element ref="Description" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="unit" type="xsd:string" use="required"/>

<xsd:attribute name="dataType" type="xsd:string" use="required"/>

</xsd:complexType>
</xsd:element>

attribute XAxis/@unit
type xsd:string
properties
use required
source <xsd:attribute name="unit" type="xsd:string" use="required"/>

attribute XAxis/@dataType
type xsd:string
properties
use required
source <xsd:attribute name="dataType" type="xsd:string" use="required"/>

element YAxis
diagram GreenBuildingXML_Ver7.02_p348.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  xsd:string  required
dataType  xsd:string  required
source <xsd:element name="YAxis">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name"/>

<xsd:element ref="Description" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="unit" type="xsd:string" use="required"/>

<xsd:attribute name="dataType" type="xsd:string" use="required"/>

</xsd:complexType>
</xsd:element>

attribute YAxis/@unit
type xsd:string
properties
use required
source <xsd:attribute name="unit" type="xsd:string" use="required"/>

attribute YAxis/@dataType
type xsd:string
properties
use required
source <xsd:attribute name="dataType" type="xsd:string" use="required"/>

element YearModeled
diagram GreenBuildingXML_Ver7.02_p349.png
namespace http://www.gbxml.org/schema
properties
content complex
children BeginDate EndDate HolidaysModeled
used by
element Campus
annotation
documentation
Year of simulation to use
source <xsd:element name="YearModeled">

<xsd:annotation>

<xsd:documentation>Year of simulation to use</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="2" maxOccurs="unbounded">

<xsd:element ref="BeginDate" minOccurs="1"/>

<xsd:element ref="EndDate" minOccurs="1"/>

<xsd:element ref="HolidaysModeled" maxOccurs="1"/>

</xsd:choice>

</xsd:complexType>
</xsd:element>

element YearSchedule
diagram GreenBuildingXML_Ver7.02_p350.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description BeginDate EndDate WeekScheduleId
used by
element Schedule
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
scheduleTypeLimitsId  xsd:string
annotation
documentation
Set of week schedules all assigned for a particular time period during the year defined by the begin and end date elements. These must not span more than one calendar year.
source <xsd:element name="YearSchedule">

<xsd:annotation>

<xsd:documentation>Set of week schedules all assigned for a particular time period during the year defined by the begin and end date elements. These must not span more than one calendar year.</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="BeginDate"/>

<xsd:element ref="EndDate"/>

<xsd:element ref="WeekScheduleId"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="scheduleTypeLimitsId" type="xsd:string"/>

</xsd:complexType>
</xsd:element>

attribute YearSchedule/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute YearSchedule/@scheduleTypeLimitsId
type xsd:string
source <xsd:attribute name="scheduleTypeLimitsId" type="xsd:string"/>

element ZipCode
diagram GreenBuildingXML_Ver7.02_p351.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element PersonInfo
source <xsd:element name="ZipCode" type="xsd:string"/>

element ZipcodeOrPostalCode
diagram GreenBuildingXML_Ver7.02_p352.png
namespace http://www.gbxml.org/schema
type xsd:string
properties
content simple
used by
element Location
source <xsd:element name="ZipcodeOrPostalCode" type="xsd:string"/>

element Zone
diagram GreenBuildingXML_Ver7.02_p353.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description Flow SecondaryFlow AirChangesPerHour FlowPerArea FlowPerPerson OAFlowPerArea OAFlowPerPerson OAFlowPerZone MaxOAFlowPerZone MinOAFlowPerZone MinimumOutdoorAirControlType DesignHeatT DesignCoolT DesignHeatRH DesignCoolRH IndoorAirQuality HydronicLoopId AirLoopId ZoneHVACEquipmentId CADObjectId TypeCode CoolingSizingFactor HeatingSizingFactor BaseboardHeatingType BaseboardHeatingCapacity
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
heatSchedIdRef  xsd:IDREF
documentation
ID of heating schedule
coolSchedIdRef  xsd:IDREF
documentation
Design temperature for cooling
outAirSchedIdRef  xsd:IDREF
documentation
Outside air schedule ID
airChangesSchedIdRef  xsd:IDREF
documentation
Air changes schedule ID
fanSchedIdRef  xsd:IDREF
documentation
ID of the fan schedule for this zone
fanTempSchedIdRef  xsd:IDREF  optional
documentation
ID of the fan temperature schedule for this zone
ifcGUID  xsd:string  optional
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
programId  xsd:IDREF  optional
documentation
Please specify the program that added this element.
source <xsd:element name="Zone">

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="Flow" minOccurs="0"/>

<xsd:element ref="SecondaryFlow" minOccurs="0"/>

<xsd:element ref="AirChangesPerHour" minOccurs="0"/>

<xsd:element ref="FlowPerArea" minOccurs="0"/>

<xsd:element ref="FlowPerPerson" minOccurs="0"/>

<xsd:element ref="OAFlowPerArea" minOccurs="0"/>

<xsd:element ref="OAFlowPerPerson" minOccurs="0"/>

<xsd:element ref="OAFlowPerZone" minOccurs="0"/>

<xsd:element ref="MaxOAFlowPerZone" minOccurs="0"/>

<xsd:element ref="MinOAFlowPerZone" minOccurs="0"/>

<xsd:element ref="MinimumOutdoorAirControlType" minOccurs="0"/>

<xsd:element ref="DesignHeatT" minOccurs="0"/>

<xsd:element ref="DesignCoolT" minOccurs="0"/>

<xsd:element ref="DesignHeatRH" minOccurs="0"/>

<xsd:element ref="DesignCoolRH" minOccurs="0"/>

<xsd:element ref="IndoorAirQuality" minOccurs="0"/>

<xsd:element ref="HydronicLoopId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="AirLoopId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="ZoneHVACEquipmentId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="CADObjectId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="TypeCode" minOccurs="0"/>

<xsd:element ref="CoolingSizingFactor" minOccurs="0"/>

<xsd:element ref="HeatingSizingFactor" minOccurs="0"/>

<xsd:element ref="BaseboardHeatingType" minOccurs="0"/>

<xsd:element ref="BaseboardHeatingCapacity" minOccurs="0"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="heatSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID of heating schedule</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="coolSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Design temperature for cooling</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="outAirSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Outside air schedule ID</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="airChangesSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Air changes schedule ID</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="fanSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID of the fan schedule for this zone</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="fanTempSchedIdRef" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>ID of the fan temperature schedule for this zone</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

<xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute Zone/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute Zone/@heatSchedIdRef
type xsd:IDREF
annotation
documentation
ID of heating schedule
source <xsd:attribute name="heatSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID of heating schedule</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Zone/@coolSchedIdRef
type xsd:IDREF
annotation
documentation
Design temperature for cooling
source <xsd:attribute name="coolSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Design temperature for cooling</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Zone/@outAirSchedIdRef
type xsd:IDREF
annotation
documentation
Outside air schedule ID
source <xsd:attribute name="outAirSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Outside air schedule ID</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Zone/@airChangesSchedIdRef
type xsd:IDREF
annotation
documentation
Air changes schedule ID
source <xsd:attribute name="airChangesSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>Air changes schedule ID</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Zone/@fanSchedIdRef
type xsd:IDREF
annotation
documentation
ID of the fan schedule for this zone
source <xsd:attribute name="fanSchedIdRef" type="xsd:IDREF">

<xsd:annotation>

<xsd:documentation>ID of the fan schedule for this zone</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Zone/@fanTempSchedIdRef
type xsd:IDREF
properties
use optional
annotation
documentation
ID of the fan temperature schedule for this zone
source <xsd:attribute name="fanTempSchedIdRef" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>ID of the fan temperature schedule for this zone</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Zone/@ifcGUID
type xsd:string
properties
use optional
annotation
documentation
Global Unique ID from Industry Foundation Class (IFC) file.
source <xsd:attribute name="ifcGUID" type="xsd:string" use="optional">

<xsd:annotation>

<xsd:documentation>Global Unique ID from Industry Foundation Class (IFC) file.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

attribute Zone/@programId
type xsd:IDREF
properties
use optional
annotation
documentation
Please specify the program that added this element.
source <xsd:attribute name="programId" type="xsd:IDREF" use="optional">

<xsd:annotation>

<xsd:documentation>Please specify the program that added this element.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

element ZoneCoolingLoad
diagram GreenBuildingXML_Ver7.02_p354.png
namespace http://www.gbxml.org/schema
type extension of xsd:decimal
properties
content complex
used by
element ShadeControl
attributes
Name  Type  Use  Default  Fixed  Annotation
unit  loadUnitEnum
annotation
documentation
Minimum cooling load that triggers the shades to close
source <xsd:element name="ZoneCoolingLoad">

<xsd:annotation>

<xsd:documentation>Minimum cooling load that triggers the shades to close</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:simpleContent>

<xsd:extension base="xsd:decimal">

<xsd:attribute name="unit" type="loadUnitEnum"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
</xsd:element>

attribute ZoneCoolingLoad/@unit
type loadUnitEnum
facets
Kind Value Annotation
enumeration BtuPerHour
enumeration Watt
source <xsd:attribute name="unit" type="loadUnitEnum"/>

element ZoneHVACEquipment
diagram GreenBuildingXML_Ver7.02_p355.png
namespace http://www.gbxml.org/schema
properties
content complex
children Name Description CADObjectId HydronicLoopId AirSystemId AnalysisParameter
used by
element gbXML
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  required
zoneHVACEquipmentType  zoneHVACEquipmentTypeEnum  required
heatingCoilType  heatingCoilTypeEnum  optional
coolingCoilType  coolingCoilTypeEnum  optional
drawVentilation  xsd:boolean  optional
annotation
documentation
Represents an early-stage equipment placeholder that provides heating or cooling to part of an air system or a water loop (EnergyPlus and Open Studio).
source <xsd:element name="ZoneHVACEquipment">

<xsd:annotation>

<xsd:documentation>Represents an early-stage equipment placeholder that provides heating or cooling to part of an air system or a water loop (EnergyPlus and Open Studio).</xsd:documentation>

</xsd:annotation>

<xsd:complexType>

<xsd:choice minOccurs="0" maxOccurs="unbounded">

<xsd:element ref="Name" minOccurs="0"/>

<xsd:element ref="Description" minOccurs="0"/>

<xsd:element ref="CADObjectId" minOccurs="0"/>

<xsd:element ref="HydronicLoopId" minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref="AirSystemId" minOccurs="0"/>

<xsd:element ref="AnalysisParameter" minOccurs="0" maxOccurs="unbounded"/>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

<xsd:attribute name="zoneHVACEquipmentType" type="zoneHVACEquipmentTypeEnum" use="required"/>

<xsd:attribute name="heatingCoilType" type="heatingCoilTypeEnum" use="optional"/>

<xsd:attribute name="coolingCoilType" type="coolingCoilTypeEnum" use="optional"/>

<xsd:attribute name="drawVentilation" type="xsd:boolean" use="optional"/>

</xsd:complexType>
</xsd:element>

attribute ZoneHVACEquipment/@id
type xsd:ID
properties
use required
source <xsd:attribute name="id" type="xsd:ID" use="required"/>

attribute ZoneHVACEquipment/@zoneHVACEquipmentType
type zoneHVACEquipmentTypeEnum
properties
use required
facets
Kind Value Annotation
enumeration Undefined
enumeration UnConditioned
enumeration ChilledBeamActive
enumeration FourPipeFanCoil
enumeration PackagedTerminalAirConditioner
enumeration PackagedTerminalHeatPump
enumeration ParallelFanPoweredBox
enumeration VAVBox
enumeration BaseBoardConvective
enumeration BaseBoardRadiant
enumeration CAVBox
enumeration RadiantPanel
enumeration SeriesFanPoweredBox
enumeration UnitHeater
enumeration UnitVentilator
enumeration WaterSourceHeatPump
enumeration ChilledBeamPassive
enumeration VRFFanCoil
source <xsd:attribute name="zoneHVACEquipmentType" type="zoneHVACEquipmentTypeEnum" use="required"/>

attribute ZoneHVACEquipment/@heatingCoilType
type heatingCoilTypeEnum
properties
use optional
facets
Kind Value Annotation
enumeration ElectricResistance
enumeration Furnace
enumeration HotWater
source <xsd:attribute name="heatingCoilType" type="heatingCoilTypeEnum" use="optional"/>

attribute ZoneHVACEquipment/@coolingCoilType
type coolingCoilTypeEnum
properties
use optional
facets
Kind Value Annotation
enumeration ChilledWater
enumeration ChilledWaterDetailedFlatModel
enumeration DirectExpansion
source <xsd:attribute name="coolingCoilType" type="coolingCoilTypeEnum" use="optional"/>

attribute ZoneHVACEquipment/@drawVentilation
type xsd:boolean
properties
use optional
source <xsd:attribute name="drawVentilation" type="xsd:boolean" use="optional"/>

element ZoneHVACEquipmentId
diagram GreenBuildingXML_Ver7.02_p356.png
namespace http://www.gbxml.org/schema
properties
content complex
used by
element Zone
attributes
Name  Type  Use  Default  Fixed  Annotation
zoneHVACEquipmentIdRef  xsd:IDREF  required
documentation
An unique identifier referencing a zone equipment.
source <xsd:element name="ZoneHVACEquipmentId">

<xsd:complexType>

<xsd:attribute name="zoneHVACEquipmentIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>An unique identifier referencing a zone equipment.</xsd:documentation>

</xsd:annotation>

</xsd:attribute>

</xsd:complexType>
</xsd:element>

attribute ZoneHVACEquipmentId/@zoneHVACEquipmentIdRef
type xsd:IDREF
properties
use required
annotation
documentation
An unique identifier referencing a zone equipment.
source <xsd:attribute name="zoneHVACEquipmentIdRef" type="xsd:IDREF" use="required">

<xsd:annotation>

<xsd:documentation>An unique identifier referencing a zone equipment.</xsd:documentation>

</xsd:annotation>
</xsd:attribute>

simpleType absorptanceUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Absorptance/@type
facets
Kind Value Annotation
enumeration IntIR
enumeration IntSolar
enumeration IntVisible
enumeration IntTotal
enumeration ExtIR
enumeration ExtSolar
enumeration ExtVisible
enumeration ExtTotal
source <xsd:simpleType name="absorptanceUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="IntIR"/>

<xsd:enumeration value="IntSolar"/>

<xsd:enumeration value="IntVisible"/>

<xsd:enumeration value="IntTotal"/>

<xsd:enumeration value="ExtIR"/>

<xsd:enumeration value="ExtSolar"/>

<xsd:enumeration value="ExtVisible"/>

<xsd:enumeration value="ExtTotal"/>

</xsd:restriction>
</xsd:simpleType>

simpleType airTemperatureTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute AirTemperature/@type
facets
Kind Value Annotation
enumeration Outside
enumeration Zone
source <xsd:simpleType name="airTemperatureTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Outside"/>

<xsd:enumeration value="Zone"/>

</xsd:restriction>
</xsd:simpleType>

simpleType areaUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes gbXML/@areaUnit Area/@unit
facets
Kind Value Annotation
enumeration SquareKilometers
enumeration SquareMeters
enumeration SquareCentimeters
enumeration SquareMillimeters
enumeration SquareMiles
enumeration SquareYards
enumeration SquareFeet
enumeration SquareInches
source <xsd:simpleType name="areaUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="SquareKilometers"/>

<xsd:enumeration value="SquareMeters"/>

<xsd:enumeration value="SquareCentimeters"/>

<xsd:enumeration value="SquareMillimeters"/>

<xsd:enumeration value="SquareMiles"/>

<xsd:enumeration value="SquareYards"/>

<xsd:enumeration value="SquareFeet"/>

<xsd:enumeration value="SquareInches"/>

</xsd:restriction>
</xsd:simpleType>

simpleType baseboardHeatingTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute BaseboardHeatingType/@unit
facets
Kind Value Annotation
enumeration ACH
enumeration HotWater
enumeration Electric
source <xsd:simpleType name="baseboardHeatingTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="ACH"/>

<xsd:enumeration value="HotWater"/>

<xsd:enumeration value="Electric"/>

</xsd:restriction>
</xsd:simpleType>

simpleType blowerDoorUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute BlowerDoorValue/@unit
facets
Kind Value Annotation
enumeration ACH
enumeration AirChangesPerHour
enumeration SquareFeet
enumeration SquareMeter
source <xsd:simpleType name="blowerDoorUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="ACH"/>

<xsd:enumeration value="AirChangesPerHour"/>

<xsd:enumeration value="SquareFeet"/>

<xsd:enumeration value="SquareMeter"/>

</xsd:restriction>
</xsd:simpleType>

simpleType buildingTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Building/@buildingType
facets
Kind Value Annotation
enumeration AutomotiveFacility
enumeration ConventionCenter
enumeration Courthouse
enumeration DataCenter
enumeration DiningBarLoungeOrLeisure
enumeration DiningCafeteriaFastFood
enumeration DiningFamily
enumeration Dormitory
enumeration ExerciseCenter
enumeration FireStation
enumeration Gymnasium
enumeration HospitalOrHealthcare
enumeration Hotel
enumeration Library
enumeration Manufacturing
enumeration Motel
enumeration MotionPictureTheatre
enumeration MultiFamily
enumeration Museum
enumeration Office
enumeration ParkingGarage
enumeration Penitentiary
enumeration PerformingArtsTheater
enumeration PoliceStation
enumeration PostOffice
enumeration ReligiousBuilding
enumeration Retail
enumeration SchoolOrUniversity
enumeration SingleFamily
enumeration SportsArena
enumeration TownHall
enumeration Transportation
enumeration Unknown
documentation
Enumeration value to be used when there is no building type information available.
enumeration Warehouse
enumeration Workshop
annotation
documentation
Use to specify the most predominant building use type.
source <xsd:simpleType name="buildingTypeEnum">

<xsd:annotation>

<xsd:documentation>Use to specify the most predominant building use type.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="AutomotiveFacility"/>

<xsd:enumeration value="ConventionCenter"/>

<xsd:enumeration value="Courthouse"/>

<xsd:enumeration value="DataCenter"/>

<xsd:enumeration value="DiningBarLoungeOrLeisure"/>

<xsd:enumeration value="DiningCafeteriaFastFood"/>

<xsd:enumeration value="DiningFamily"/>

<xsd:enumeration value="Dormitory"/>

<xsd:enumeration value="ExerciseCenter"/>

<xsd:enumeration value="FireStation"/>

<xsd:enumeration value="Gymnasium"/>

<xsd:enumeration value="HospitalOrHealthcare"/>

<xsd:enumeration value="Hotel"/>

<xsd:enumeration value="Library"/>

<xsd:enumeration value="Manufacturing"/>

<xsd:enumeration value="Motel"/>

<xsd:enumeration value="MotionPictureTheatre"/>

<xsd:enumeration value="MultiFamily"/>

<xsd:enumeration value="Museum"/>

<xsd:enumeration value="Office"/>

<xsd:enumeration value="ParkingGarage"/>

<xsd:enumeration value="Penitentiary"/>

<xsd:enumeration value="PerformingArtsTheater"/>

<xsd:enumeration value="PoliceStation"/>

<xsd:enumeration value="PostOffice"/>

<xsd:enumeration value="ReligiousBuilding"/>

<xsd:enumeration value="Retail"/>

<xsd:enumeration value="SchoolOrUniversity"/>

<xsd:enumeration value="SingleFamily"/>

<xsd:enumeration value="SportsArena"/>

<xsd:enumeration value="TownHall"/>

<xsd:enumeration value="Transportation"/>

<xsd:enumeration value="Unknown">

<xsd:annotation>

<xsd:documentation>Enumeration value to be used when there is no building type information available.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Warehouse"/>

<xsd:enumeration value="Workshop"/>

</xsd:restriction>
</xsd:simpleType>

simpleType capacityTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Capacity/@capacityType
facets
Kind Value Annotation
enumeration Heating
enumeration CoolingTotal
enumeration CoolingSensible
enumeration CoolingLatent
enumeration CoolingSHR
enumeration Volume
source <xsd:simpleType name="capacityTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Heating"/>

<xsd:enumeration value="CoolingTotal"/>

<xsd:enumeration value="CoolingSensible"/>

<xsd:enumeration value="CoolingLatent"/>

<xsd:enumeration value="CoolingSHR"/>

<xsd:enumeration value="Volume"/>

</xsd:restriction>
</xsd:simpleType>

simpleType capacityUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Capacity/@unit
facets
Kind Value Annotation
enumeration Tons
enumeration kW
enumeration BtuPerHour
enumeration kBtuPerHour
enumeration Gallons
enumeration Liters
enumeration CubicMeters
enumeration CubicFeet
source <xsd:simpleType name="capacityUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Tons"/>

<xsd:enumeration value="kW"/>

<xsd:enumeration value="BtuPerHour"/>

<xsd:enumeration value="kBtuPerHour"/>

<xsd:enumeration value="Gallons"/>

<xsd:enumeration value="Liters"/>

<xsd:enumeration value="CubicMeters"/>

<xsd:enumeration value="CubicFeet"/>

</xsd:restriction>
</xsd:simpleType>

simpleType chillerTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute HydronicLoop/@chillerType
facets
Kind Value Annotation
enumeration AirCooled
enumeration WaterCooled
source <xsd:simpleType name="chillerTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="AirCooled"/>

<xsd:enumeration value="WaterCooled"/>

</xsd:restriction>
</xsd:simpleType>

simpleType coilTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute HydronicLoopId/@coilType
facets
Kind Value Annotation
enumeration Preheat
enumeration Heating
enumeration Cooling
source <xsd:simpleType name="coilTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Preheat"/>

<xsd:enumeration value="Heating"/>

<xsd:enumeration value="Cooling"/>

</xsd:restriction>
</xsd:simpleType>

simpleType conditioningTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes DeltaP/@conditioningType DeltaT/@conditioningType Efficiency/@operationType
facets
Kind Value Annotation
enumeration Heating
enumeration Cooling
enumeration HeatingAndCooling
source <xsd:simpleType name="conditioningTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Heating"/>

<xsd:enumeration value="Cooling"/>

<xsd:enumeration value="HeatingAndCooling"/>

</xsd:restriction>
</xsd:simpleType>

simpleType conditioningUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes HighValue/@unit LowValue/@unit
facets
Kind Value Annotation
enumeration kBtu
enumeration Btu
enumeration kW
enumeration Tons
source <xsd:simpleType name="conditioningUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="kBtu"/>

<xsd:enumeration value="Btu"/>

<xsd:enumeration value="kW"/>

<xsd:enumeration value="Tons"/>

</xsd:restriction>
</xsd:simpleType>

simpleType conditionTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Space/@conditionType
facets
Kind Value Annotation
enumeration Heated
enumeration Cooled
enumeration HeatedAndCooled
enumeration Unconditioned
enumeration Vented
enumeration NaturallyVentedOnly
source <xsd:simpleType name="conditionTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Heated"/>

<xsd:enumeration value="Cooled"/>

<xsd:enumeration value="HeatedAndCooled"/>

<xsd:enumeration value="Unconditioned"/>

<xsd:enumeration value="Vented"/>

<xsd:enumeration value="NaturallyVentedOnly"/>

</xsd:restriction>
</xsd:simpleType>

simpleType conductivityFofTUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ConductivityFofT/@unit
facets
Kind Value Annotation
enumeration WPerMSquareK
enumeration BtuPerHourFtSquareF
source <xsd:simpleType name="conductivityFofTUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="WPerMSquareK"/>

<xsd:enumeration value="BtuPerHourFtSquareF"/>

</xsd:restriction>
</xsd:simpleType>

simpleType conductivityUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes Conductivity/@unit GlazeConductivity/@unit
facets
Kind Value Annotation
enumeration WPerCmC
enumeration WPerMeterK
enumeration BtuPerHourFtF
source <xsd:simpleType name="conductivityUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="WPerCmC"/>

<xsd:enumeration value="WPerMeterK"/>

<xsd:enumeration value="BtuPerHourFtF"/>

</xsd:restriction>
</xsd:simpleType>

simpleType controlTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Control/@controlType
facets
Kind Value Annotation
enumeration Boiler
enumeration Chiller
enumeration Damper
enumeration Fan
enumeration Pump
enumeration Valve
source <xsd:simpleType name="controlTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Boiler"/>

<xsd:enumeration value="Chiller"/>

<xsd:enumeration value="Damper"/>

<xsd:enumeration value="Fan"/>

<xsd:enumeration value="Pump"/>

<xsd:enumeration value="Valve"/>

</xsd:restriction>
</xsd:simpleType>

simpleType coolingCoilSetpointResetTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute CoolingCoilSetpointResetType/@unit
facets
Kind Value Annotation
enumeration None
enumeration Warmest
enumeration OutdoorAirTemperatureReset
enumeration WarmestTemperatureFirst
source <xsd:simpleType name="coolingCoilSetpointResetTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="None"/>

<xsd:enumeration value="Warmest"/>

<xsd:enumeration value="OutdoorAirTemperatureReset"/>

<xsd:enumeration value="WarmestTemperatureFirst"/>

</xsd:restriction>
</xsd:simpleType>

simpleType coolingCoilTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes AirSystem/@coolingCoilType ZoneHVACEquipment/@coolingCoilType CoolingCoilType/@unit
facets
Kind Value Annotation
enumeration ChilledWater
enumeration ChilledWaterDetailedFlatModel
enumeration DirectExpansion
source <xsd:simpleType name="coolingCoilTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="ChilledWater"/>

<xsd:enumeration value="ChilledWaterDetailedFlatModel"/>

<xsd:enumeration value="DirectExpansion"/>

</xsd:restriction>
</xsd:simpleType>

simpleType costTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Cost/@costType
facets
Kind Value Annotation
enumeration CO2
enumeration SOx
enumeration NOx
enumeration EmbodiedEnergyTransportation
enumeration EmbodiedEnergyManufacture
enumeration EmbodiedEnergyInstallation
enumeration EmbodiedEnergyTotal
enumeration PurchaseCost
enumeration DeliveryCost
enumeration FirstCost
enumeration MonthlyCost
enumeration AnnualCost
enumeration MaintenanceCost
enumeration OverhaulCost
enumeration InstallationCost
source <xsd:simpleType name="costTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="CO2"/>

<xsd:enumeration value="SOx"/>

<xsd:enumeration value="NOx"/>

<xsd:enumeration value="EmbodiedEnergyTransportation"/>

<xsd:enumeration value="EmbodiedEnergyManufacture"/>

<xsd:enumeration value="EmbodiedEnergyInstallation"/>

<xsd:enumeration value="EmbodiedEnergyTotal"/>

<xsd:enumeration value="PurchaseCost"/>

<xsd:enumeration value="DeliveryCost"/>

<xsd:enumeration value="FirstCost"/>

<xsd:enumeration value="MonthlyCost"/>

<xsd:enumeration value="AnnualCost"/>

<xsd:enumeration value="MaintenanceCost"/>

<xsd:enumeration value="OverhaulCost"/>

<xsd:enumeration value="InstallationCost"/>

</xsd:restriction>
</xsd:simpleType>

simpleType currencyTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes CostValue/@currency Results/@currency
facets
Kind Value Annotation
enumeration USDollars
enumeration CanadianDollars
enumeration Pesos
enumeration Euros
enumeration Yen
enumeration IndianRupee
enumeration Yuan
enumeration TaiwanDollar
enumeration EnglishPound
enumeration Mark
enumeration Franc
enumeration Ruble
enumeration Real
enumeration NewZealandDollar
enumeration AustralianDollar
source <xsd:simpleType name="currencyTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="USDollars"/>

<xsd:enumeration value="CanadianDollars"/>

<xsd:enumeration value="Pesos"/>

<xsd:enumeration value="Euros"/>

<xsd:enumeration value="Yen"/>

<xsd:enumeration value="IndianRupee"/>

<xsd:enumeration value="Yuan"/>

<xsd:enumeration value="TaiwanDollar"/>

<xsd:enumeration value="EnglishPound"/>

<xsd:enumeration value="Mark"/>

<xsd:enumeration value="Franc"/>

<xsd:enumeration value="Ruble"/>

<xsd:enumeration value="Real"/>

<xsd:enumeration value="NewZealandDollar"/>

<xsd:enumeration value="AustralianDollar"/>

</xsd:restriction>
</xsd:simpleType>

simpleType damperHeatingActionEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute DamperHeatingAction/@unit
facets
Kind Value Annotation
enumeration Normal
enumeration Reverse
source <xsd:simpleType name="damperHeatingActionEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Normal"/>

<xsd:enumeration value="Reverse"/>

</xsd:restriction>
</xsd:simpleType>

simpleType dayTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Day/@dayType
facets
Kind Value Annotation
enumeration Weekday
enumeration Weekend
enumeration Holiday
enumeration WeekendOrHoliday
enumeration HeatingDesignDay
enumeration CoolingDesignDay
enumeration Sun
enumeration Mon
enumeration Tue
enumeration Wed
enumeration Thu
enumeration Fri
enumeration Sat
enumeration Custom
enumeration All
source <xsd:simpleType name="dayTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Weekday"/>

<xsd:enumeration value="Weekend"/>

<xsd:enumeration value="Holiday"/>

<xsd:enumeration value="WeekendOrHoliday"/>

<xsd:enumeration value="HeatingDesignDay"/>

<xsd:enumeration value="CoolingDesignDay"/>

<xsd:enumeration value="Sun"/>

<xsd:enumeration value="Mon"/>

<xsd:enumeration value="Tue"/>

<xsd:enumeration value="Wed"/>

<xsd:enumeration value="Thu"/>

<xsd:enumeration value="Fri"/>

<xsd:enumeration value="Sat"/>

<xsd:enumeration value="Custom"/>

<xsd:enumeration value="All"/>

</xsd:restriction>
</xsd:simpleType>

simpleType defrostControlEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute HeatPumpDefrostControl/@defrostControlType
facets
Kind Value Annotation
enumeration Timed
enumeration OnDemand
source <xsd:simpleType name="defrostControlEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Timed"/>

<xsd:enumeration value="OnDemand"/>

</xsd:restriction>
</xsd:simpleType>

simpleType defrostStrategyEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute HeatPumpDefrostStrategy/@unit
facets
Kind Value Annotation
enumeration ReverseCycle
enumeration Resistive
source <xsd:simpleType name="defrostStrategyEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="ReverseCycle"/>

<xsd:enumeration value="Resistive"/>

</xsd:restriction>
</xsd:simpleType>

simpleType deltaPUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute DeltaP/@unit
facets
Kind Value Annotation
enumeration PSI
enumeration kPa
enumeration Atmospheres
enumeration InchesOfH2O
enumeration CentimetersOfH2O
enumeration InchesOfMercury
enumeration CentimetersOfMercury
enumeration MillimetersOfMercury
enumeration Pascals
source <xsd:simpleType name="deltaPUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="PSI"/>

<xsd:enumeration value="kPa"/>

<xsd:enumeration value="Atmospheres"/>

<xsd:enumeration value="InchesOfH2O"/>

<xsd:enumeration value="CentimetersOfH2O"/>

<xsd:enumeration value="InchesOfMercury"/>

<xsd:enumeration value="CentimetersOfMercury"/>

<xsd:enumeration value="MillimetersOfMercury"/>

<xsd:enumeration value="Pascals"/>

</xsd:restriction>
</xsd:simpleType>

simpleType densityFofTUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute DensityFofT/@unit
facets
Kind Value Annotation
enumeration LbsPerCubicFtF
enumeration KgPerCubicMK
source <xsd:simpleType name="densityFofTUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="LbsPerCubicFtF"/>

<xsd:enumeration value="KgPerCubicMK"/>

</xsd:restriction>
</xsd:simpleType>

simpleType densityUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes BiomassDensity/@unit Density/@unit
facets
Kind Value Annotation
enumeration GramsPerCubicCm
enumeration LbsPerCubicIn
enumeration LbsPerCubicFt
enumeration KgPerCubicM
source <xsd:simpleType name="densityUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="GramsPerCubicCm"/>

<xsd:enumeration value="LbsPerCubicIn"/>

<xsd:enumeration value="LbsPerCubicFt"/>

<xsd:enumeration value="KgPerCubicM"/>

</xsd:restriction>
</xsd:simpleType>

simpleType directionUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes DDWindDirCool/@unit DDWindDirHeat/@unit WFTDWindDir/@unit
facets
Kind Value Annotation
enumeration DegreeDecimalFromNorth
source <xsd:simpleType name="directionUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="DegreeDecimalFromNorth"/>

</xsd:restriction>
</xsd:simpleType>

simpleType economizerLockoutEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute EconomizerLockout/@unit
facets
Kind Value Annotation
enumeration NoLockout
enumeration LockoutWithHeating
enumeration LockoutWithCompressor
source <xsd:simpleType name="economizerLockoutEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="NoLockout"/>

<xsd:enumeration value="LockoutWithHeating"/>

<xsd:enumeration value="LockoutWithCompressor"/>

</xsd:restriction>
</xsd:simpleType>

simpleType efficiencyTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Efficiency/@efficiencyType
facets
Kind Value Annotation
enumeration COP
documentation
Coefficient of Performance
enumeration EER
documentation
Energy Efficiency Ratio
enumeration SEER
documentation
Seasonal Energy Efficiency Ratio
enumeration AFUE
documentation
Annual Fuel Utilization Efficiency
enumeration HSPF
documentation
Heating Seasonal Performance Factor
enumeration effectiveness
enumeration EnergyFactor
enumeration ThermalEff
documentation
Thermal Efficiency
enumeration MotorEff
documentation
Motor Efficiency
enumeration FanEff
documentation
Fan Efficiency
enumeration MechanicalEff
documentation
Mechanical Efficiency
enumeration BoilerEff
documentation
Boiler Efficiency
enumeration kWPerTon
enumeration kWPerkW
enumeration BTUPerHourPerF
enumeration kWPerC
source <xsd:simpleType name="efficiencyTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="COP">

<xsd:annotation>

<xsd:documentation>Coefficient of Performance</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="EER">

<xsd:annotation>

<xsd:documentation>Energy Efficiency Ratio</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="SEER">

<xsd:annotation>

<xsd:documentation>Seasonal Energy Efficiency Ratio</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="AFUE">

<xsd:annotation>

<xsd:documentation>Annual Fuel Utilization Efficiency</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="HSPF">

<xsd:annotation>

<xsd:documentation>Heating Seasonal Performance Factor</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="effectiveness"/>

<xsd:enumeration value="EnergyFactor"/>

<xsd:enumeration value="ThermalEff">

<xsd:annotation>

<xsd:documentation>Thermal Efficiency</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="MotorEff">

<xsd:annotation>

<xsd:documentation>Motor Efficiency</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="FanEff">

<xsd:annotation>

<xsd:documentation>Fan Efficiency</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="MechanicalEff">

<xsd:annotation>

<xsd:documentation>Mechanical Efficiency</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="BoilerEff">

<xsd:annotation>

<xsd:documentation>Boiler Efficiency</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="kWPerTon"/>

<xsd:enumeration value="kWPerkW"/>

<xsd:enumeration value="BTUPerHourPerF"/>

<xsd:enumeration value="kWPerC"/>

</xsd:restriction>
</xsd:simpleType>

simpleType emissionUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute EmissionRate/@unit
facets
Kind Value Annotation
enumeration PoundsPerHour
enumeration KilogramsPerHour
enumeration GramsPerHour
source <xsd:simpleType name="emissionUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="PoundsPerHour"/>

<xsd:enumeration value="KilogramsPerHour"/>

<xsd:enumeration value="GramsPerHour"/>

</xsd:restriction>
</xsd:simpleType>

simpleType emittanceTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Emittance/@type
facets
Kind Value Annotation
enumeration IntIR
enumeration ExtIR
source <xsd:simpleType name="emittanceTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="IntIR"/>

<xsd:enumeration value="ExtIR"/>

</xsd:restriction>
</xsd:simpleType>

simpleType energyUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes Energy/@unit Results/@unit
facets
Kind Value Annotation
enumeration KilowattHours
enumeration Joules
enumeration BTU
enumeration Therms
source <xsd:simpleType name="energyUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="KilowattHours"/>

<xsd:enumeration value="Joules"/>

<xsd:enumeration value="BTU"/>

<xsd:enumeration value="Therms"/>

</xsd:restriction>
</xsd:simpleType>

simpleType enthalpyTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Enthalpy/@enthalpyType
facets
Kind Value Annotation
enumeration EconomizerUpperLimit
enumeration AirSideEconomizerMinSetpoint
enumeration EconomizerMaxLimit
source <xsd:simpleType name="enthalpyTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="EconomizerUpperLimit"/>

<xsd:enumeration value="AirSideEconomizerMinSetpoint"/>

<xsd:enumeration value="EconomizerMaxLimit"/>

</xsd:restriction>
</xsd:simpleType>

simpleType enthalpyUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Enthalpy/@unit
facets
Kind Value Annotation
enumeration BTUPerLb
enumeration KJPerKg
source <xsd:simpleType name="enthalpyUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="BTUPerLb"/>

<xsd:enumeration value="KJPerKg"/>

</xsd:restriction>
</xsd:simpleType>

simpleType entityTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute GUID/@entity
facets
Kind Value Annotation
enumeration File
enumeration Model
enumeration Project
enumeration Run
source <xsd:simpleType name="entityTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="File"/>

<xsd:enumeration value="Model"/>

<xsd:enumeration value="Project"/>

<xsd:enumeration value="Run"/>

</xsd:restriction>
</xsd:simpleType>

simpleType equipmentTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute AirLoopEquipment/@equipmentType
facets
Kind Value Annotation
enumeration Fan
enumeration HeatExchanger
enumeration Coil
enumeration Furnace
enumeration Evaporative
enumeration Radiant
enumeration Economizer
enumeration Duct
enumeration Humidifier
enumeration Dehumidifier
enumeration UnitaryAC
enumeration UnitaryHP
enumeration SplitAC
enumeration SplitHP
enumeration TerminalUnit
enumeration Register
enumeration VAVBox
enumeration EvaporativePreCooler
enumeration PreheatCoil
source <xsd:simpleType name="equipmentTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Fan"/>

<xsd:enumeration value="HeatExchanger"/>

<xsd:enumeration value="Coil"/>

<xsd:enumeration value="Furnace"/>

<xsd:enumeration value="Evaporative"/>

<xsd:enumeration value="Radiant"/>

<xsd:enumeration value="Economizer"/>

<xsd:enumeration value="Duct"/>

<xsd:enumeration value="Humidifier"/>

<xsd:enumeration value="Dehumidifier"/>

<xsd:enumeration value="UnitaryAC"/>

<xsd:enumeration value="UnitaryHP"/>

<xsd:enumeration value="SplitAC"/>

<xsd:enumeration value="SplitHP"/>

<xsd:enumeration value="TerminalUnit"/>

<xsd:enumeration value="Register"/>

<xsd:enumeration value="VAVBox"/>

<xsd:enumeration value="EvaporativePreCooler"/>

<xsd:enumeration value="PreheatCoil"/>

</xsd:restriction>
</xsd:simpleType>

simpleType extEquipTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ExtEquip/@type
facets
Kind Value Annotation
enumeration Sprinkler
enumeration LawnMower
enumeration GeneralPlugload
enumeration Fountain
enumeration Refrigerator
enumeration Freezer
enumeration Pool
enumeration HotTub
enumeration Pump
enumeration Sauna
enumeration BatteryCharger
enumeration Furnace
enumeration IndustrialEquip
enumeration Irrigation
enumeration MiscEquip
enumeration Vending
enumeration Elevator
enumeration Escalator
enumeration WindTurbine
enumeration Photovoltaic
enumeration CogenDiesel
enumeration CogenFuelCell
enumeration CogenGasTurbine
source <xsd:simpleType name="extEquipTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Sprinkler"/>

<xsd:enumeration value="LawnMower"/>

<xsd:enumeration value="GeneralPlugload"/>

<xsd:enumeration value="Fountain"/>

<xsd:enumeration value="Refrigerator"/>

<xsd:enumeration value="Freezer"/>

<xsd:enumeration value="Pool"/>

<xsd:enumeration value="HotTub"/>

<xsd:enumeration value="Pump"/>

<xsd:enumeration value="Sauna"/>

<xsd:enumeration value="BatteryCharger"/>

<xsd:enumeration value="Furnace"/>

<xsd:enumeration value="IndustrialEquip"/>

<xsd:enumeration value="Irrigation"/>

<xsd:enumeration value="MiscEquip"/>

<xsd:enumeration value="Vending"/>

<xsd:enumeration value="Elevator"/>

<xsd:enumeration value="Escalator"/>

<xsd:enumeration value="WindTurbine"/>

<xsd:enumeration value="Photovoltaic"/>

<xsd:enumeration value="CogenDiesel"/>

<xsd:enumeration value="CogenFuelCell"/>

<xsd:enumeration value="CogenGasTurbine"/>

</xsd:restriction>
</xsd:simpleType>

simpleType fanTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute AirSystem/Fan/@fanType
facets
Kind Value Annotation
enumeration ConstantVolume
enumeration VariableVolume
source <xsd:simpleType name="fanTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="ConstantVolume"/>

<xsd:enumeration value="VariableVolume"/>

</xsd:restriction>
</xsd:simpleType>

simpleType floorCategoryEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ManualJ8Parameters/@floorCategory
facets
Kind Value Annotation
enumeration OverEnclosedCrawlSpaceOrBasement
enumeration OverOpenCrawlSpaceOrGarage
enumeration Basement
enumeration SlabOnGrade
annotation
documentation
Used with the floorCategory attribute.
source <xsd:simpleType name="floorCategoryEnum">

<xsd:annotation>

<xsd:documentation>Used with the floorCategory attribute.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="OverEnclosedCrawlSpaceOrBasement">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="OverOpenCrawlSpaceOrGarage">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Basement">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="SlabOnGrade">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType floorSlabPerimeterHeatLossCoefficientUnitTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute FloorSlabHeatLossCoefficient/@floorSlabPerimeterHeatLossCoefficientUnitTypeEnum
facets
Kind Value Annotation
enumeration btuPerHourDegreeFPerLinearFoot
enumeration wattDegreeCPerLinearMeter
annotation
documentation
Used with the floorSlabPerimeterHeatLossCoefficientUnitType attribute.
source <xsd:simpleType name="floorSlabPerimeterHeatLossCoefficientUnitTypeEnum">

<xsd:annotation>

<xsd:documentation>Used with the floorSlabPerimeterHeatLossCoefficientUnitType attribute.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="btuPerHourDegreeFPerLinearFoot">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="wattDegreeCPerLinearMeter">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType flowPerAreaUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes FlowPerArea/@unit OAFlowPerArea/@unit
facets
Kind Value Annotation
enumeration CFMPerSquareFoot
enumeration LPerSecPerSquareM
enumeration CubicMPerSecPerSquareM
enumeration CubicMPerHourPerSquareM
source <xsd:simpleType name="flowPerAreaUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="CFMPerSquareFoot"/>

<xsd:enumeration value="LPerSecPerSquareM"/>

<xsd:enumeration value="CubicMPerSecPerSquareM"/>

<xsd:enumeration value="CubicMPerHourPerSquareM"/>

</xsd:restriction>
</xsd:simpleType>

simpleType flowTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute FlowType/@flowType
facets
Kind Value Annotation
enumeration Series
enumeration Parallel
enumeration SeriesFromPlenum
enumeration ParallelFromPlenum
source <xsd:simpleType name="flowTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Series"/>

<xsd:enumeration value="Parallel"/>

<xsd:enumeration value="SeriesFromPlenum"/>

<xsd:enumeration value="ParallelFromPlenum"/>

</xsd:restriction>
</xsd:simpleType>

simpleType flowUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes DesignFlow/@unit RecircFlow/@unit Flow/@unit FlowPerPerson/@unit MaxOAFlowPerZone/@unit MaximumFlow/@unit MinFlow/@unit MinimumFlow/@unit MinOAFlowPerZone/@unit OAFlowPerPerson/@unit OAFlowPerZone/@unit PeakDomesticHotWaterFlow/@unit RatedFlow/@unit Results/@unit SecondaryFlow/@unit WaterRate/@unit
facets
Kind Value Annotation
enumeration CFM
enumeration CubicMPerHr
enumeration LPerSec
enumeration LPM
enumeration GPH
enumeration GPM
enumeration Fraction
source <xsd:simpleType name="flowUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="CFM"/>

<xsd:enumeration value="CubicMPerHr"/>

<xsd:enumeration value="LPerSec"/>

<xsd:enumeration value="LPM"/>

<xsd:enumeration value="GPH"/>

<xsd:enumeration value="GPM"/>

<xsd:enumeration value="Fraction"/>

</xsd:restriction>
</xsd:simpleType>

simpleType fluidTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute HydronicLoop/@fluidType
facets
Kind Value Annotation
enumeration Water
enumeration Brine
enumeration Glycol
enumeration Refrigerant
source <xsd:simpleType name="fluidTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Water"/>

<xsd:enumeration value="Brine"/>

<xsd:enumeration value="Glycol"/>

<xsd:enumeration value="Refrigerant"/>

</xsd:restriction>
</xsd:simpleType>

simpleType frameTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Frame/@type
facets
Kind Value Annotation
enumeration Wood
enumeration Vinyl
enumeration Aluminum
enumeration AluminumWithBreak
enumeration Insulated
source <xsd:simpleType name="frameTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Wood"/>

<xsd:enumeration value="Vinyl"/>

<xsd:enumeration value="Aluminum"/>

<xsd:enumeration value="AluminumWithBreak"/>

<xsd:enumeration value="Insulated"/>

</xsd:restriction>
</xsd:simpleType>

simpleType fuelLoadUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute FuelLoad/@unit
facets
Kind Value Annotation
enumeration BtuPerHour
enumeration kBtuPerHour
enumeration MBtuPerHour
enumeration Watts
enumeration kW
source <xsd:simpleType name="fuelLoadUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="BtuPerHour"/>

<xsd:enumeration value="kBtuPerHour"/>

<xsd:enumeration value="MBtuPerHour"/>

<xsd:enumeration value="Watts"/>

<xsd:enumeration value="kW"/>

</xsd:restriction>
</xsd:simpleType>

simpleType gasTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Gap/@gas
facets
Kind Value Annotation
enumeration Air
enumeration Argon
enumeration Krypton
enumeration CO2
enumeration SF6
enumeration Custom
source <xsd:simpleType name="gasTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Air"/>

<xsd:enumeration value="Argon"/>

<xsd:enumeration value="Krypton"/>

<xsd:enumeration value="CO2"/>

<xsd:enumeration value="SF6"/>

<xsd:enumeration value="Custom"/>

</xsd:restriction>
</xsd:simpleType>

simpleType heatExchangerTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute AirSystem/HeatExchanger/@heatExchangerType
facets
Kind Value Annotation
enumeration Enthalpy
enumeration Sensible
source <xsd:simpleType name="heatExchangerTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Enthalpy"/>

<xsd:enumeration value="Sensible"/>

</xsd:restriction>
</xsd:simpleType>

simpleType heatingCoilSetpointResetTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute HeatingCoilSetpointResetType/@unit
facets
Kind Value Annotation
enumeration None
enumeration OutdoorAirTemperatureReset
source <xsd:simpleType name="heatingCoilSetpointResetTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="None"/>

<xsd:enumeration value="OutdoorAirTemperatureReset"/>

</xsd:restriction>
</xsd:simpleType>

simpleType heatingCoilTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes AirSystem/@heatingCoilType ZoneHVACEquipment/@heatingCoilType AirSystem/@preheatCoilType
facets
Kind Value Annotation
enumeration ElectricResistance
enumeration Furnace
enumeration HotWater
annotation
documentation
The type of heating coil.
source <xsd:simpleType name="heatingCoilTypeEnum">

<xsd:annotation>

<xsd:documentation>The type of heating coil.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="ElectricResistance"/>

<xsd:enumeration value="Furnace"/>

<xsd:enumeration value="HotWater"/>

</xsd:restriction>
</xsd:simpleType>

simpleType heatRecoveryTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute HeatRecoveryType/@unit
facets
Kind Value Annotation
enumeration None
enumeration Sensible
enumeration Enthalpy
source <xsd:simpleType name="heatRecoveryTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="None"/>

<xsd:enumeration value="Sensible"/>

<xsd:enumeration value="Enthalpy"/>

</xsd:restriction>
</xsd:simpleType>

simpleType hOutsideUnitTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute HOutside/@hOutsideUnitTypeEnum
facets
Kind Value Annotation
enumeration BTUPerHourSquareFootDegreeF
enumeration WattsPerSecondSquareMeterDegreeC
annotation
documentation
Used with the hOutsideUnitType attribute.
source <xsd:simpleType name="hOutsideUnitTypeEnum">

<xsd:annotation>

<xsd:documentation>Used with the hOutsideUnitType attribute.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="BTUPerHourSquareFootDegreeF">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="WattsPerSecondSquareMeterDegreeC">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType hydronicEquipTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute HydronicLoopEquipment/@equipmentType
facets
Kind Value Annotation
enumeration Chiller
enumeration CoolingTower
enumeration Condenser
enumeration Boiler
enumeration HeatExchanger
enumeration Pump
enumeration RadiantPanel
enumeration HotWaterHeater
enumeration SolarPanels
enumeration Earth
enumeration Pipe
enumeration Storage
enumeration Coil
enumeration Radiator
enumeration TwoWayValve
enumeration ThreeWayValve
source <xsd:simpleType name="hydronicEquipTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Chiller"/>

<xsd:enumeration value="CoolingTower"/>

<xsd:enumeration value="Condenser"/>

<xsd:enumeration value="Boiler"/>

<xsd:enumeration value="HeatExchanger"/>

<xsd:enumeration value="Pump"/>

<xsd:enumeration value="RadiantPanel"/>

<xsd:enumeration value="HotWaterHeater"/>

<xsd:enumeration value="SolarPanels"/>

<xsd:enumeration value="Earth"/>

<xsd:enumeration value="Pipe"/>

<xsd:enumeration value="Storage"/>

<xsd:enumeration value="Coil"/>

<xsd:enumeration value="Radiator"/>

<xsd:enumeration value="TwoWayValve"/>

<xsd:enumeration value="ThreeWayValve"/>

</xsd:restriction>
</xsd:simpleType>

simpleType illuminanceUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes Illuminance/@unit Results/@unit
facets
Kind Value Annotation
enumeration Footcandles
enumeration Lux
enumeration Phot
source <xsd:simpleType name="illuminanceUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Footcandles"/>

<xsd:enumeration value="Lux"/>

<xsd:enumeration value="Phot"/>

</xsd:restriction>
</xsd:simpleType>

simpleType infiltrationTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute InfiltrationFlow/@type
facets
Kind Value Annotation
enumeration Loose
enumeration Average
enumeration Tight
source <xsd:simpleType name="infiltrationTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Loose"/>

<xsd:enumeration value="Average"/>

<xsd:enumeration value="Tight"/>

</xsd:restriction>
</xsd:simpleType>

simpleType intEquipTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute IntEquip/@type
facets
Kind Value Annotation
enumeration GeneralPlugload
enumeration Computer
enumeration Copier
enumeration Refrigerator
enumeration Stove
enumeration Cooktop
enumeration Fryer
enumeration Freezer
enumeration ClothesDryer
enumeration ClothesWasher
enumeration Dishwasher
enumeration TV
enumeration VCR
enumeration Microwave
enumeration Fan
enumeration AudioEquip
enumeration MiscEquip
enumeration Toilet
enumeration Urinal
enumeration Shower
enumeration Sink
enumeration Pool
enumeration HotTub
enumeration Sauna
enumeration BatteryCharger
enumeration Furnace
enumeration IndustrialEquip
enumeration Printer
enumeration Vending
enumeration Elevator
enumeration Escalator
enumeration GeneralLaundryEquip
enumeration GeneralKitchenEquip
enumeration GeneralMedicalEquip
enumeration GeneralOfficeEquip
enumeration GeneralEntertainmentEquip
enumeration GeneralRefrigerationEquip
enumeration GeneralFitnessEquip
enumeration GeneralVideoEquip
enumeration GeneralToilet
source <xsd:simpleType name="intEquipTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="GeneralPlugload"/>

<xsd:enumeration value="Computer"/>

<xsd:enumeration value="Copier"/>

<xsd:enumeration value="Refrigerator"/>

<xsd:enumeration value="Stove"/>

<xsd:enumeration value="Cooktop"/>

<xsd:enumeration value="Fryer"/>

<xsd:enumeration value="Freezer"/>

<xsd:enumeration value="ClothesDryer"/>

<xsd:enumeration value="ClothesWasher"/>

<xsd:enumeration value="Dishwasher"/>

<xsd:enumeration value="TV"/>

<xsd:enumeration value="VCR"/>

<xsd:enumeration value="Microwave"/>

<xsd:enumeration value="Fan"/>

<xsd:enumeration value="AudioEquip"/>

<xsd:enumeration value="MiscEquip"/>

<xsd:enumeration value="Toilet"/>

<xsd:enumeration value="Urinal"/>

<xsd:enumeration value="Shower"/>

<xsd:enumeration value="Sink"/>

<xsd:enumeration value="Pool"/>

<xsd:enumeration value="HotTub"/>

<xsd:enumeration value="Sauna"/>

<xsd:enumeration value="BatteryCharger"/>

<xsd:enumeration value="Furnace"/>

<xsd:enumeration value="IndustrialEquip"/>

<xsd:enumeration value="Printer"/>

<xsd:enumeration value="Vending"/>

<xsd:enumeration value="Elevator"/>

<xsd:enumeration value="Escalator"/>

<xsd:enumeration value="GeneralLaundryEquip"/>

<xsd:enumeration value="GeneralKitchenEquip"/>

<xsd:enumeration value="GeneralMedicalEquip"/>

<xsd:enumeration value="GeneralOfficeEquip"/>

<xsd:enumeration value="GeneralEntertainmentEquip"/>

<xsd:enumeration value="GeneralRefrigerationEquip"/>

<xsd:enumeration value="GeneralFitnessEquip"/>

<xsd:enumeration value="GeneralVideoEquip"/>

<xsd:enumeration value="GeneralToilet"/>

</xsd:restriction>
</xsd:simpleType>

simpleType interactionType
namespace http://www.gbxml.org/schema
type restriction of xsd:string
properties
base xsd:string
facets
Kind Value Annotation
enumeration TurnOn
documentation
Set the value of a parameter to 1.
enumeration TurnOff
documentation
Set the value of a parameter to 0.
enumeration SetToControlValue
documentation
Set the value of a parameter to a desired value when event occurs.
annotation
documentation
There are three types of interactions: TurnOn: set the value of a parameter to 1; TurnOff: set the value of a parameter to 0; and SetToControlValue: set the value of a parameter to a desired value.
source <xsd:simpleType name="interactionType">

<xsd:annotation>

<xsd:documentation>There are three types of interactions: TurnOn: set the value of a parameter to 1; TurnOff: set the value of a parameter to 0; and SetToControlValue: set the value of a parameter to a desired value.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:string">

<xsd:enumeration value="TurnOn">

<xsd:annotation>

<xsd:documentation>Set the value of a parameter to 1.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="TurnOff">

<xsd:annotation>

<xsd:documentation>Set the value of a parameter to 0.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="SetToControlValue">

<xsd:annotation>

<xsd:documentation>Set the value of a parameter to a desired value when event occurs.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType inverseTempUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute PrandtlNumberFofT/@unit
facets
Kind Value Annotation
enumeration PerK
enumeration PerF
source <xsd:simpleType name="inverseTempUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="PerK"/>

<xsd:enumeration value="PerF"/>

</xsd:restriction>
</xsd:simpleType>

simpleType lengthUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes gbXML/@lengthUnit Elevation/@unit Height/@unit Length/@unit Level/@unit PlanarGeometry/@unit RectangularGeometry/@unit Setback/@unit ShellGeometry/@unit Thickness/@unit Width/@unit
facets
Kind Value Annotation
enumeration Kilometers
enumeration Meters
enumeration Centimeters
enumeration Millimeters
enumeration Miles
enumeration Yards
enumeration Feet
enumeration Inches
source <xsd:simpleType name="lengthUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Kilometers"/>

<xsd:enumeration value="Meters"/>

<xsd:enumeration value="Centimeters"/>

<xsd:enumeration value="Millimeters"/>

<xsd:enumeration value="Miles"/>

<xsd:enumeration value="Yards"/>

<xsd:enumeration value="Feet"/>

<xsd:enumeration value="Inches"/>

</xsd:restriction>
</xsd:simpleType>

simpleType lifeUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Life/@unit
facets
Kind Value Annotation
enumeration Months
enumeration Years
enumeration Cycles
enumeration MillionCycles
source <xsd:simpleType name="lifeUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Months"/>

<xsd:enumeration value="Years"/>

<xsd:enumeration value="Cycles"/>

<xsd:enumeration value="MillionCycles"/>

</xsd:restriction>
</xsd:simpleType>

simpleType lightControlTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute LightingControl/@type
facets
Kind Value Annotation
enumeration Continuous
enumeration OnOff
enumeration Stepped2
enumeration Stepped3
enumeration Stepped4
enumeration Stepped5
enumeration Stepped6
enumeration Stepped7
enumeration Stepped8
enumeration Stepped9
enumeration Stepped10
enumeration Stepped11
enumeration Stepped12
enumeration Stepped13
enumeration Stepped14
enumeration Stepped15
enumeration Stepped16
enumeration Stepped17
enumeration Stepped18
enumeration Stepped19
enumeration Stepped20
enumeration ContinuousOff
enumeration MotionSensor
enumeration Photocell
source <xsd:simpleType name="lightControlTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Continuous"/>

<xsd:enumeration value="OnOff"/>

<xsd:enumeration value="Stepped2"/>

<xsd:enumeration value="Stepped3"/>

<xsd:enumeration value="Stepped4"/>

<xsd:enumeration value="Stepped5"/>

<xsd:enumeration value="Stepped6"/>

<xsd:enumeration value="Stepped7"/>

<xsd:enumeration value="Stepped8"/>

<xsd:enumeration value="Stepped9"/>

<xsd:enumeration value="Stepped10"/>

<xsd:enumeration value="Stepped11"/>

<xsd:enumeration value="Stepped12"/>

<xsd:enumeration value="Stepped13"/>

<xsd:enumeration value="Stepped14"/>

<xsd:enumeration value="Stepped15"/>

<xsd:enumeration value="Stepped16"/>

<xsd:enumeration value="Stepped17"/>

<xsd:enumeration value="Stepped18"/>

<xsd:enumeration value="Stepped19"/>

<xsd:enumeration value="Stepped20"/>

<xsd:enumeration value="ContinuousOff"/>

<xsd:enumeration value="MotionSensor"/>

<xsd:enumeration value="Photocell"/>

</xsd:restriction>
</xsd:simpleType>

simpleType loadUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes LatentLoad/@unit Results/@unit ZoneCoolingLoad/@unit
facets
Kind Value Annotation
enumeration BtuPerHour
enumeration Watt
source <xsd:simpleType name="loadUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="BtuPerHour"/>

<xsd:enumeration value="Watt"/>

</xsd:restriction>
</xsd:simpleType>

simpleType loopTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes DeltaP/@hydronicLoopType HydronicLoopId/@hydronicLoopType MinFlow/@hydronicLoopType RatedFlow/@hydronicLoopType HydronicLoop/@loopType
facets
Kind Value Annotation
enumeration PrimaryChilledWater
enumeration SecondaryChilledWater
enumeration HotWater
enumeration CondenserWater
enumeration DomesticHotWater
enumeration WaterLoopHeatPump
enumeration TwoPipe
enumeration PotableWaterLoop
enumeration VRFLoop
source <xsd:simpleType name="loopTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="PrimaryChilledWater"/>

<xsd:enumeration value="SecondaryChilledWater"/>

<xsd:enumeration value="HotWater"/>

<xsd:enumeration value="CondenserWater"/>

<xsd:enumeration value="DomesticHotWater"/>

<xsd:enumeration value="WaterLoopHeatPump"/>

<xsd:enumeration value="TwoPipe"/>

<xsd:enumeration value="PotableWaterLoop"/>

<xsd:enumeration value="VRFLoop"/>

</xsd:restriction>
</xsd:simpleType>

simpleType minimumOutdoorAirControlTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute MinimumOutdoorAirControlType/@unit
facets
Kind Value Annotation
enumeration FixedMinimum
enumeration ProportionalMinimum
source <xsd:simpleType name="minimumOutdoorAirControlTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="FixedMinimum"/>

<xsd:enumeration value="ProportionalMinimum"/>

</xsd:restriction>
</xsd:simpleType>

simpleType nightCycleControlEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute NightCycleControl/@unit
facets
Kind Value Annotation
enumeration StayOff
enumeration CycleOnAny
enumeration CycleOnControlZone
source <xsd:simpleType name="nightCycleControlEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="StayOff"/>

<xsd:enumeration value="CycleOnAny"/>

<xsd:enumeration value="CycleOnControlZone"/>

</xsd:restriction>
</xsd:simpleType>

simpleType openingTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Opening/@openingType
facets
Kind Value Annotation
enumeration FixedWindow
documentation
Opening in a surface with a tilt between 45° and 149.99° with a non-operable glazed opening in it.
enumeration OperableWindow
documentation
Opening in a surface with a tilt between 45° and 149.99° with a operable glazed opening in it.
enumeration FixedSkylight
documentation
Opening in a surface with a tilt between 0° and 44.99° with a non-operable glazed opening in it.
enumeration OperableSkylight
documentation
Opening in a surface with a tilt between 0° and 44.99° with a operable glazed opening in it.
enumeration SlidingDoor
documentation
Opening in a surface with a tilt between 45° and 149.99° with a sliding door in it.
enumeration NonSlidingDoor
documentation
Opening in a surface with a tilt between 45° and 149.99° with a non-sliding door in it.
enumeration Air
documentation
Opening in a surface with a tilt between 0° and 180° with nothing in it.
source <xsd:simpleType name="openingTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="FixedWindow">

<xsd:annotation>

<xsd:documentation>Opening in a surface with a tilt between 45° and 149.99° with a non-operable glazed opening in it. </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="OperableWindow">

<xsd:annotation>

<xsd:documentation>Opening in a surface with a tilt between 45° and 149.99° with a operable glazed opening in it. </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="FixedSkylight">

<xsd:annotation>

<xsd:documentation>Opening in a surface with a tilt between 0° and 44.99° with a non-operable glazed opening in it. </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="OperableSkylight">

<xsd:annotation>

<xsd:documentation>Opening in a surface with a tilt between 0° and 44.99° with a operable glazed opening in it. </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="SlidingDoor">

<xsd:annotation>

<xsd:documentation>Opening in a surface with a tilt between 45° and 149.99° with a sliding door in it. </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="NonSlidingDoor">

<xsd:annotation>

<xsd:documentation>Opening in a surface with a tilt between 45° and 149.99° with a non-sliding door in it. </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Air">

<xsd:annotation>

<xsd:documentation>Opening in a surface with a tilt between 0° and 180° with nothing in it. </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType operationTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Control/@operationType
facets
Kind Value Annotation
enumeration Cycling
enumeration Continuous
source <xsd:simpleType name="operationTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Cycling"/>

<xsd:enumeration value="Continuous"/>

</xsd:restriction>
</xsd:simpleType>

simpleType peopleHeatGainTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute PeopleHeatGain/@heatGainType
facets
Kind Value Annotation
enumeration Total
enumeration Sensible
enumeration Latent
source <xsd:simpleType name="peopleHeatGainTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Total"/>

<xsd:enumeration value="Sensible"/>

<xsd:enumeration value="Latent"/>

</xsd:restriction>
</xsd:simpleType>

simpleType peopleHeatGainUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute PeopleHeatGain/@unit
facets
Kind Value Annotation
enumeration WattPerPerson
enumeration BtuPerHourPerson
source <xsd:simpleType name="peopleHeatGainUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="WattPerPerson"/>

<xsd:enumeration value="BtuPerHourPerson"/>

</xsd:restriction>
</xsd:simpleType>

simpleType peopleNumberUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute PeopleNumber/@unit
facets
Kind Value Annotation
enumeration NumberOfPeople
enumeration SquareFtPerPerson
enumeration SquareMPerPerson
source <xsd:simpleType name="peopleNumberUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="NumberOfPeople"/>

<xsd:enumeration value="SquareFtPerPerson"/>

<xsd:enumeration value="SquareMPerPerson"/>

</xsd:restriction>
</xsd:simpleType>

simpleType permUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Permeance/@unit
facets
Kind Value Annotation
enumeration PermSI
enumeration PermIP
source <xsd:simpleType name="permUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="PermSI"/>

<xsd:enumeration value="PermIP"/>

</xsd:restriction>
</xsd:simpleType>

simpleType powerPerAreaUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes EquipPowerPerArea/@unit HorizontalSolar/@unit LightPowerPerArea/@unit SolarOnOpening/@unit
facets
Kind Value Annotation
enumeration WattPerSquareMeter
enumeration WattPerSquareFoot
source <xsd:simpleType name="powerPerAreaUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="WattPerSquareMeter"/>

<xsd:enumeration value="WattPerSquareFoot"/>

</xsd:restriction>
</xsd:simpleType>

simpleType powerTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Power/@powerType
facets
Kind Value Annotation
enumeration Electricity
enumeration NaturalGas
enumeration Propane
enumeration FuelOil1
enumeration FuelOil2
enumeration FuelOil4
enumeration Water
enumeration ChilledWater
enumeration HotWater
enumeration Steam
enumeration Diesel
enumeration Biogas
source <xsd:simpleType name="powerTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Electricity"/>

<xsd:enumeration value="NaturalGas"/>

<xsd:enumeration value="Propane"/>

<xsd:enumeration value="FuelOil1"/>

<xsd:enumeration value="FuelOil2"/>

<xsd:enumeration value="FuelOil4"/>

<xsd:enumeration value="Water"/>

<xsd:enumeration value="ChilledWater"/>

<xsd:enumeration value="HotWater"/>

<xsd:enumeration value="Steam"/>

<xsd:enumeration value="Diesel"/>

<xsd:enumeration value="Biogas"/>

</xsd:restriction>
</xsd:simpleType>

simpleType powerUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes ElecLoad/@unit InputWatts/@unit Power/@unit Results/@unit
facets
Kind Value Annotation
enumeration Watt
enumeration Kilowatt
enumeration Horsepower
enumeration KilogramForceMeterPerSecond
enumeration BtuPerSecond
enumeration FootPoundForcePerSecond
enumeration KilocaloriesPerSecond
enumeration BtuPerHour
source <xsd:simpleType name="powerUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Watt"/>

<xsd:enumeration value="Kilowatt"/>

<xsd:enumeration value="Horsepower"/>

<xsd:enumeration value="KilogramForceMeterPerSecond"/>

<xsd:enumeration value="BtuPerSecond"/>

<xsd:enumeration value="FootPoundForcePerSecond"/>

<xsd:enumeration value="KilocaloriesPerSecond"/>

<xsd:enumeration value="BtuPerHour"/>

</xsd:restriction>
</xsd:simpleType>

simpleType powerUseTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Power/@useType
facets
Kind Value Annotation
enumeration Heating
enumeration Cooling
enumeration Both
enumeration ElectricityGeneration
enumeration Other
source <xsd:simpleType name="powerUseTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Heating"/>

<xsd:enumeration value="Cooling"/>

<xsd:enumeration value="Both"/>

<xsd:enumeration value="ElectricityGeneration"/>

<xsd:enumeration value="Other"/>

</xsd:restriction>
</xsd:simpleType>

simpleType preheatCoilTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute PreheatCoilType/@unit
facets
Kind Value Annotation
enumeration None
enumeration Electric
enumeration Gas
source <xsd:simpleType name="preheatCoilTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="None"/>

<xsd:enumeration value="Electric"/>

<xsd:enumeration value="Gas"/>

</xsd:restriction>
</xsd:simpleType>

simpleType pressureUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes DDPressureCool/@unit DDPressureHeat/@unit DesignPressure/@unit MaxPressure/@unit MinPressure/@unit WFTDPressure/@unit
facets
Kind Value Annotation
enumeration PSI
enumeration kPa
enumeration Atmospheres
enumeration InchesOfH2O
enumeration CentimetersOfH2O
enumeration InchesOfMercury
enumeration CentimetersOfMercury
enumeration MillimetersOfMercury
enumeration Pascals
source <xsd:simpleType name="pressureUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="PSI"/>

<xsd:enumeration value="kPa"/>

<xsd:enumeration value="Atmospheres"/>

<xsd:enumeration value="InchesOfH2O"/>

<xsd:enumeration value="CentimetersOfH2O"/>

<xsd:enumeration value="InchesOfMercury"/>

<xsd:enumeration value="CentimetersOfMercury"/>

<xsd:enumeration value="MillimetersOfMercury"/>

<xsd:enumeration value="Pascals"/>

</xsd:restriction>
</xsd:simpleType>

simpleType radiationWavelengthTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Transmittance/@type
facets
Kind Value Annotation
enumeration Solar
enumeration IR
enumeration Visible
source <xsd:simpleType name="radiationWavelengthTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Solar"/>

<xsd:enumeration value="IR"/>

<xsd:enumeration value="Visible"/>

</xsd:restriction>
</xsd:simpleType>

simpleType reflectanceTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Reflectance/@type
facets
Kind Value Annotation
enumeration Ground
enumeration IntSolar
enumeration IntIR
enumeration IntVisible
enumeration ExtSolar
enumeration ExtVisible
enumeration ExtIR
source <xsd:simpleType name="reflectanceTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Ground"/>

<xsd:enumeration value="IntSolar"/>

<xsd:enumeration value="IntIR"/>

<xsd:enumeration value="IntVisible"/>

<xsd:enumeration value="ExtSolar"/>

<xsd:enumeration value="ExtVisible"/>

<xsd:enumeration value="ExtIR"/>

</xsd:restriction>
</xsd:simpleType>

simpleType resetTemperatureTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ResetTemperature/@type
facets
Kind Value Annotation
enumeration None
enumeration Automatic
enumeration OutdoorAirBased
enumeration Scheduled
source <xsd:simpleType name="resetTemperatureTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="None"/>

<xsd:enumeration value="Automatic"/>

<xsd:enumeration value="OutdoorAirBased"/>

<xsd:enumeration value="Scheduled"/>

</xsd:restriction>
</xsd:simpleType>

simpleType resistanceUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes InsideAirFilmResistance/@unit R-value/@unit
facets
Kind Value Annotation
enumeration SquareMeterKPerW
enumeration HrSquareFtFPerBTU
source <xsd:simpleType name="resistanceUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="SquareMeterKPerW"/>

<xsd:enumeration value="HrSquareFtFPerBTU"/>

</xsd:restriction>
</xsd:simpleType>

simpleType resourceTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes AltEnergySource/@resourceType Energy/@resourceType Meter/@resourceType Results/@resourceType
facets
Kind Value Annotation
enumeration Electricity
enumeration NaturalGas
enumeration Propane
enumeration FuelOil1
enumeration FuelOil2
enumeration FuelOil4
enumeration Water
enumeration ChilledWater
enumeration HotWater
enumeration Steam
source <xsd:simpleType name="resourceTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Electricity"/>

<xsd:enumeration value="NaturalGas"/>

<xsd:enumeration value="Propane"/>

<xsd:enumeration value="FuelOil1"/>

<xsd:enumeration value="FuelOil2"/>

<xsd:enumeration value="FuelOil4"/>

<xsd:enumeration value="Water"/>

<xsd:enumeration value="ChilledWater"/>

<xsd:enumeration value="HotWater"/>

<xsd:enumeration value="Steam"/>

</xsd:restriction>
</xsd:simpleType>

simpleType resultsExtraResourceTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
facets
Kind Value Annotation
enumeration Thermal
enumeration Light
enumeration Moisture
enumeration Air
enumeration Contaminant
source <xsd:simpleType name="resultsExtraResourceTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Thermal"/>

<xsd:enumeration value="Light"/>

<xsd:enumeration value="Moisture"/>

<xsd:enumeration value="Air"/>

<xsd:enumeration value="Contaminant"/>

</xsd:restriction>
</xsd:simpleType>

simpleType resultsTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Results/@resultsType
facets
Kind Value Annotation
enumeration HeatLoad
enumeration CoolingLoad
enumeration CO2
enumeration SO2
enumeration NOx
enumeration Energy
enumeration Power
enumeration Cost
enumeration EnergyCost
enumeration DemandCost
enumeration CommodityCost
enumeration TransportationCost
enumeration DryBulbTemperature
enumeration WetBulbTemperature
enumeration DewPointTemperature
enumeration FootCandles
enumeration Humidity
enumeration MoistureContent
enumeration Flow
enumeration Capacity
source <xsd:simpleType name="resultsTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="HeatLoad"/>

<xsd:enumeration value="CoolingLoad"/>

<xsd:enumeration value="CO2"/>

<xsd:enumeration value="SO2"/>

<xsd:enumeration value="NOx"/>

<xsd:enumeration value="Energy"/>

<xsd:enumeration value="Power"/>

<xsd:enumeration value="Cost"/>

<xsd:enumeration value="EnergyCost"/>

<xsd:enumeration value="DemandCost"/>

<xsd:enumeration value="CommodityCost"/>

<xsd:enumeration value="TransportationCost"/>

<xsd:enumeration value="DryBulbTemperature"/>

<xsd:enumeration value="WetBulbTemperature"/>

<xsd:enumeration value="DewPointTemperature"/>

<xsd:enumeration value="FootCandles"/>

<xsd:enumeration value="Humidity"/>

<xsd:enumeration value="MoistureContent"/>

<xsd:enumeration value="Flow"/>

<xsd:enumeration value="Capacity"/>

</xsd:restriction>
</xsd:simpleType>

simpleType roofASHRAENumberEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute CLTDParameters/@roofASHRAENumber
facets
Kind Value Annotation
enumeration 0
documentation
Undefined
enumeration 1
documentation
Steel sheet with 1 or 2 inches insulation
enumeration 2
documentation
One inch wood with 1 inch insulation
enumeration 3
documentation
Four inch light weight concrete
enumeration 4
documentation
Two inch heavy weight concrete
enumeration 5
documentation
One inch wood with 2 inch insulation
enumeration 6
documentation
Six inch light weight concrete
enumeration 7
documentation
2.5 inch wood with 1 inch insulation
enumeration 8
documentation
Eight inch light weight concrete
enumeration 9
documentation
4 inch hvy wt concrete with 1-2 inch insulation
enumeration 10
documentation
2.5 inch wood with 2 inches of insulation
enumeration 11
documentation
Roof Terrace System
enumeration 12
documentation
6 inch hvy wt concrete with 1-2 inch insulation
enumeration 13
documentation
4 inch wood with 1-2 inches of insulation
annotation
documentation
Used with the roofASHRAENumber attribute. Each annotation for the values is only one example of many possible constructions for that ASHRAE roof number. The user should select the one that best matches the thermal characteristics of the roof, not necessarily the one closest to the example description.
source <xsd:simpleType name="roofASHRAENumberEnum">

<xsd:annotation>

<xsd:documentation>Used with the roofASHRAENumber attribute. Each annotation for the values is only one example of many possible constructions for that ASHRAE roof number. The user should select the one that best matches the thermal characteristics of the roof, not necessarily the one closest to the example description.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="0">

<xsd:annotation>

<xsd:documentation>Undefined</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="1">

<xsd:annotation>

<xsd:documentation>Steel sheet with 1 or 2 inches insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="2">

<xsd:annotation>

<xsd:documentation>One inch wood with 1 inch insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="3">

<xsd:annotation>

<xsd:documentation>Four inch light weight concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="4">

<xsd:annotation>

<xsd:documentation>Two inch heavy weight concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="5">

<xsd:annotation>

<xsd:documentation>One inch wood with 2 inch insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="6">

<xsd:annotation>

<xsd:documentation>Six inch light weight concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="7">

<xsd:annotation>

<xsd:documentation>2.5 inch wood with 1 inch insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="8">

<xsd:annotation>

<xsd:documentation>Eight inch light weight concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="9">

<xsd:annotation>

<xsd:documentation>4 inch hvy wt concrete with 1-2 inch insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="10">

<xsd:annotation>

<xsd:documentation>2.5 inch wood with 2 inches of insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="11">

<xsd:annotation>

<xsd:documentation>Roof Terrace System</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="12">

<xsd:annotation>

<xsd:documentation>6 inch hvy wt concrete with 1-2 inch insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="13">

<xsd:annotation>

<xsd:documentation>4 inch wood with 1-2 inches of insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType roofCLTDIndexEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ManualJ8Parameters/@roofCLTDIndex
facets
Kind Value Annotation
enumeration 1
documentation
Under attic or knee wall, U-value = 0.408 - 0.018, Unvented Attic, No Radiant Barrier, Any Roofing Material, Any Roof Color
enumeration 2
documentation
Under attic or knee wall, U-value = 0.408 - 0.018, Vented Attic, No Radiant Barrier, Dark Asphalt Shingles or Dark Metal, Tar and Gravel or Membrane
enumeration 3
documentation
Under attic or knee wall, U-value = 0.408 - 0.018, Vented Attic, No Radiant Barrier, White or Light Color Shingles, Any Wood Shake Light Metal, Tar and Gravel or Membrane
enumeration 4
documentation
Under attic or knee wall, U-value = 0.408 - 0.02, Vented Attic, No Radiant Barrier, Dark Tile, Slate or Concrete
enumeration 5
documentation
Under attic or knee wall, U-value = 0.408 - 0.02, Vented Attic, No Radiant Barrier, Light Tile, Slate or Concrete
enumeration 6
documentation
Under attic or knee wall, U-value = 0.408 - 0.02, Vented Attic, No Radiant Barrier, White Tile, Slate or Concrete, White Metal or White Membrane
enumeration 7
documentation
On exposed beams, U-value = 0.287 - 0.134, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 8
documentation
On exposed beams, U-value = 0.118 - 0.091, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 9
documentation
On exposed beams, U-value = 0.074 - 0.063, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 10
documentation
On exposed beams, U-value = 0.054, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 11
documentation
On exposed beams, U-value = 0.048, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 12
documentation
On exposed beams, U-value = 0.043 - 0.039, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 13
documentation
On exposed beams, U-value = 0.035, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 14
documentation
On exposed beams, U-value = 0.032 - 0.027, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 15
documentation
On exposed beams, U-value = 0.287 - 0.134, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 16
documentation
On exposed beams, U-value = 0.118 - 0.091, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 17
documentation
On exposed beams, U-value = 0.074 - 0.063, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 18
documentation
On exposed beams, U-value = 0.054, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 19
documentation
On exposed beams, U-value = 0.048, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 20
documentation
On exposed beams, U-value = 0.043 - 0.039, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 21
documentation
On exposed beams, U-value = 0.035, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 22
documentation
On exposed beams, U-value = 0.032 - 0.027, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 23
documentation
On exposed beams, U-value = 0.287 - 0.134, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 24
documentation
On exposed beams, U-value = 0.118 - 0.091, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 25
documentation
On exposed beams, U-value = 0.074 - 0.063, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 26
documentation
On exposed beams, U-value = 0.054, White or Light Color Tile Slate or Concrete, White Metal, White Membrane
enumeration 27
documentation
On exposed beams, U-value = 0.048, White or Light Color Tile Slate or Concrete, White Metal, White Membrane
enumeration 28
documentation
On exposed beams, U-value = 0.043 - 0.039, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 29
documentation
On exposed beams, U-value = 0.035, White or Light Color Tile Slate or Concrete, White Metal, White Membrane
enumeration 30
documentation
On exposed beams, U-value = 0.032 - 0.027, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 31
documentation
Below roof joists, U-value = 0.241 - 0.109, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 32
documentation
Below roof joists, U-value = 0.09 - 0.076, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 33
documentation
Below roof joists, U-value = 0.069, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 34
documentation
Below roof joists, U-value = 0.051 - 0.047, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 35
documentation
Below roof joists, U-value = 0.034, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 36
documentation
Below roof joists, U-value = 0.029, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel
enumeration 37
documentation
Below roof joists, U-value = 0.241 - 0.109, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 38
documentation
Below roof joists, U-value = 0.09 - 0.076, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 39
documentation
Below roof joists, U-value = 0.069, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 40
documentation
Below roof joists, U-value = 0.051 - 0.047, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 41
documentation
Below roof joists, U-value = 0.034, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 42
documentation
Below roof joists, U-value = 0.029, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel
enumeration 43
documentation
Below roof joists, U-value = 0.241 - 0.109, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 44
documentation
Below roof joists, U-value = 0.09 - 0.076, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 45
documentation
Below roof joists, U-value = 0.069, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 46
documentation
Below roof joists, U-value = 0.051 - 0.034, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
enumeration 47
documentation
Below roof joists, U-value = 0.029, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane
annotation
documentation
Used with the roofCLTDIndex attribute.
source <xsd:simpleType name="roofCLTDIndexEnum">

<xsd:annotation>

<xsd:documentation>Used with the roofCLTDIndex attribute.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="1">

<xsd:annotation>

<xsd:documentation>Under attic or knee wall, U-value = 0.408 - 0.018, Unvented Attic, No Radiant Barrier, Any Roofing Material, Any Roof Color</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="2">

<xsd:annotation>

<xsd:documentation>Under attic or knee wall, U-value = 0.408 - 0.018, Vented Attic, No Radiant Barrier, Dark Asphalt Shingles or Dark Metal, Tar and Gravel or Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="3">

<xsd:annotation>

<xsd:documentation>Under attic or knee wall, U-value = 0.408 - 0.018, Vented Attic, No Radiant Barrier, White or Light Color Shingles, Any Wood Shake Light Metal, Tar and Gravel or Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="4">

<xsd:annotation>

<xsd:documentation>Under attic or knee wall, U-value = 0.408 - 0.02, Vented Attic, No Radiant Barrier, Dark Tile, Slate or Concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="5">

<xsd:annotation>

<xsd:documentation>Under attic or knee wall, U-value = 0.408 - 0.02, Vented Attic, No Radiant Barrier, Light Tile, Slate or Concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="6">

<xsd:annotation>

<xsd:documentation>Under attic or knee wall, U-value = 0.408 - 0.02, Vented Attic, No Radiant Barrier, White Tile, Slate or Concrete, White Metal or White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="7">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.287 - 0.134, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="8">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.118 - 0.091, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="9">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.074 - 0.063, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="10">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.054, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="11">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.048, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="12">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.043 - 0.039, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="13">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.035, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="14">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.032 - 0.027, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="15">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.287 - 0.134, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="16">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.118 - 0.091, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="17">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.074 - 0.063, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="18">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.054, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="19">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.048, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="20">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.043 - 0.039, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="21">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.035, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="22">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.032 - 0.027, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="23">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.287 - 0.134, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="24">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.118 - 0.091, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="25">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.074 - 0.063, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="26">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.054, White or Light Color Tile Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="27">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.048, White or Light Color Tile Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="28">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.043 - 0.039, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="29">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.035, White or Light Color Tile Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="30">

<xsd:annotation>

<xsd:documentation>On exposed beams, U-value = 0.032 - 0.027, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="31">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.241 - 0.109, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="32">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.09 - 0.076, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="33">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.069, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="34">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.051 - 0.047, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="35">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.034, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="36">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.029, Dark or Bold-Color Asphalt Shingle, Dark Metal, Dark Membrane, Dark Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="37">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.241 - 0.109, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="38">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.09 - 0.076, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="39">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.069, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="40">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.051 - 0.047, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="41">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.034, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="42">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.029, White or Light Color Asphalt Shingle, Any Wood Shake, Dark or Medium Color Tile, Slate or Concrete, Light or Unpainted Metal, Light or Silver Membrane, Light Tar and Gravel</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="43">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.241 - 0.109, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="44">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.09 - 0.076, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="45">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.069, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="46">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.051 - 0.034, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="47">

<xsd:annotation>

<xsd:documentation>Below roof joists, U-value = 0.029, White or Light Color Tile, Slate or Concrete, White Metal, White Membrane</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType roofColorEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute CLTDParameters/@roofColor
facets
Kind Value Annotation
enumeration Dark
documentation
Dark colored or light colored in an industrial area
enumeration Light
documentation
Permanently light colored and in a rural area
annotation
documentation
Used with the roofColor attribute. Only enter Light if the construction is a roof and if it's in a rural location.
source <xsd:simpleType name="roofColorEnum">

<xsd:annotation>

<xsd:documentation>Used with the roofColor attribute. Only enter Light if the construction is a roof and if it's in a rural location.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Dark">

<xsd:annotation>

<xsd:documentation>Dark colored or light colored in an industrial area</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Light">

<xsd:annotation>

<xsd:documentation>Permanently light colored and in a rural area</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType roofCTSTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute RTSParameters/@roofCTSType
facets
Kind Value Annotation
enumeration 1
documentation
Metal Roof, R-19 Batt Insulation, Gyp Board
enumeration 2
documentation
Metal Roof, R-19 Batt Insulation, Suspended Acoustical Ceiling
enumeration 3
documentation
Metal Roof, R-19 Batt Insulation
enumeration 4
documentation
Asphalt Shingles, Wood Sheathing, R-19 Batt Insulation, Gyp Board
enumeration 5
documentation
Slate or Tile, Wood Sheathing, R-19 Batt Insulation, Gyp Board
enumeration 6
documentation
Wood Shingles, Wood Sheathing, R-19 Batt Insulation, Gyp Board
enumeration 7
documentation
Membrane, Sheathing, R-10 Insulation Board, Wood Deck
enumeration 8
documentation
Membrane, Sheathing, R-10 Insulation Board, Wood Deck Suspended Acoustical Ceiling
enumeration 9
documentation
Membrane, Sheathing, R-10 Insulation Board, Metal Deck
enumeration 10
documentation
Membrane, Sheathing, R-10 Insulation Board, Metal Deck Suspended Acoustical Ceiling
enumeration 11
documentation
Membrane, Sheathing, R-15 Insulation Board, Metal Deck
enumeration 12
documentation
Membrane, Sheathing, R-10 plus R-15 Insulation Boards, Metal Deck
enumeration 13
documentation
2" Concrete Roof Ballast, Membrane, Sheathing, R-15 Insulation Board, Metal Deck
enumeration 14
documentation
Membrane, Sheathing, R-15 Insulation Board, 4" LW Concrete
enumeration 15
documentation
Membrane, Sheathing, R-15 Insulation Board, 6" LW Concrete
enumeration 16
documentation
Membrane, Sheathing, R-15 Insulation Board, 8" LW Concrete
enumeration 17
documentation
Membrane, Sheathing, R-15 Insulation Board, 6" HW Concrete
enumeration 18
documentation
Membrane, Sheathing, R-15 Insulation Board, 8" HW Concrete
enumeration 19
documentation
Membrane, 6" HW Concrete, R-19 Batt Insulation, Suspended Acoustical Ceiling
annotation
documentation
Used with the roofCTSType attribute. Each annotation for the values is only one example of many possible constructions for that CTS type. The user should select the one that best matches the thermal characteristics of the roof, not necessarily the one closest to the example description.
source <xsd:simpleType name="roofCTSTypeEnum">

<xsd:annotation>

<xsd:documentation>Used with the roofCTSType attribute. Each annotation for the values is only one example of many possible constructions for that CTS type. The user should select the one that best matches the thermal characteristics of the roof, not necessarily the one closest to the example description.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="1">

<xsd:annotation>

<xsd:documentation>Metal Roof, R-19 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="2">

<xsd:annotation>

<xsd:documentation>Metal Roof, R-19 Batt Insulation, Suspended Acoustical Ceiling </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="3">

<xsd:annotation>

<xsd:documentation>Metal Roof, R-19 Batt Insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="4">

<xsd:annotation>

<xsd:documentation>Asphalt Shingles, Wood Sheathing, R-19 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="5">

<xsd:annotation>

<xsd:documentation>Slate or Tile, Wood Sheathing, R-19 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="6">

<xsd:annotation>

<xsd:documentation>Wood Shingles, Wood Sheathing, R-19 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="7">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-10 Insulation Board, Wood Deck</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="8">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-10 Insulation Board, Wood Deck Suspended Acoustical Ceiling</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="9">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-10 Insulation Board, Metal Deck</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="10">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-10 Insulation Board, Metal Deck Suspended Acoustical Ceiling</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="11">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-15 Insulation Board, Metal Deck</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="12">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-10 plus R-15 Insulation Boards, Metal Deck</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="13">

<xsd:annotation>

<xsd:documentation>2" Concrete Roof Ballast, Membrane, Sheathing, R-15 Insulation Board, Metal Deck</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="14">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-15 Insulation Board, 4" LW Concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="15">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-15 Insulation Board, 6" LW Concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="16">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-15 Insulation Board, 8" LW Concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="17">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-15 Insulation Board, 6" HW Concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="18">

<xsd:annotation>

<xsd:documentation>Membrane, Sheathing, R-15 Insulation Board, 8" HW Concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="19">

<xsd:annotation>

<xsd:documentation>Membrane, 6" HW Concrete, R-19 Batt Insulation, Suspended Acoustical Ceiling</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType roughnessValueEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Roughness/@value
facets
Kind Value Annotation
enumeration VeryRough
enumeration MediumRough
enumeration Rough
enumeration Smooth
enumeration MediumSmooth
enumeration VerySmooth
source <xsd:simpleType name="roughnessValueEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="VeryRough"/>

<xsd:enumeration value="MediumRough"/>

<xsd:enumeration value="Rough"/>

<xsd:enumeration value="Smooth"/>

<xsd:enumeration value="MediumSmooth"/>

<xsd:enumeration value="VerySmooth"/>

</xsd:restriction>
</xsd:simpleType>

simpleType scheduleTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes DaySchedule/@scheduleType WeekSchedule/@scheduleType Schedule/@type
facets
Kind Value Annotation
enumeration Temp
enumeration Fraction
enumeration OnOff
enumeration ResetTemp
enumeration ActivityLevel
source <xsd:simpleType name="scheduleTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Temp"/>

<xsd:enumeration value="Fraction"/>

<xsd:enumeration value="OnOff"/>

<xsd:enumeration value="ResetTemp"/>

<xsd:enumeration value="ActivityLevel"/>

</xsd:restriction>
</xsd:simpleType>

simpleType scheduleTypeLimitsEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ScheduleTypeLimits/@type
facets
Kind Value Annotation
enumeration Continuous
enumeration Discrete
source <xsd:simpleType name="scheduleTypeLimitsEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Continuous"/>

<xsd:enumeration value="Discrete"/>

</xsd:restriction>
</xsd:simpleType>

simpleType shadeOperationEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes Opening/@exteriorShadeType Opening/@interiorShadeType
facets
Kind Value Annotation
enumeration Fixed
enumeration Operable
source <xsd:simpleType name="shadeOperationEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Fixed"/>

<xsd:enumeration value="Operable"/>

</xsd:restriction>
</xsd:simpleType>

simpleType shadeScheduleTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
facets
Kind Value Annotation
enumeration Shade
enumeration Blind
enumeration Operation
enumeration Probability
enumeration MaxSolar
source <xsd:simpleType name="shadeScheduleTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Shade"/>

<xsd:enumeration value="Blind"/>

<xsd:enumeration value="Operation"/>

<xsd:enumeration value="Probability"/>

<xsd:enumeration value="MaxSolar"/>

</xsd:restriction>
</xsd:simpleType>

simpleType shadeTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ShadeControl/@type
facets
Kind Value Annotation
enumeration InteriorInsulated
enumeration InteriorUnInsulated
enumeration ExternalInsulated
enumeration ExternalUnInsulated
source <xsd:simpleType name="shadeTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="InteriorInsulated"/>

<xsd:enumeration value="InteriorUnInsulated"/>

<xsd:enumeration value="ExternalInsulated"/>

<xsd:enumeration value="ExternalUnInsulated"/>

</xsd:restriction>
</xsd:simpleType>

simpleType sinkRateUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute SinkRate/@unit
facets
Kind Value Annotation
enumeration PoundsPerHour
enumeration KilogramsPerHour
enumeration GramsPerHour
source <xsd:simpleType name="sinkRateUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="PoundsPerHour"/>

<xsd:enumeration value="KilogramsPerHour"/>

<xsd:enumeration value="GramsPerHour"/>

</xsd:restriction>
</xsd:simpleType>

simpleType spaceTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Space/@spaceType
facets
Kind Value Annotation
enumeration ActiveStorage
enumeration ActiveStorageHospitalOrHealthcare
enumeration AirOrTrainOrBusBaggageArea
enumeration AirportConcourse
enumeration AtriumEachAdditionalFloor
enumeration AtriumFirstThreeFloors
enumeration AudienceOrSeatingAreaPenitentiary
enumeration AudienceOrSeatingAreaExerciseCenter
enumeration AudienceOrSeatingAreaGymnasium
enumeration AudienceOrSeatingAreaSportsArena
enumeration AudienceOrSeatingAreaConventionCenter
enumeration AudienceOrSeatingAreaMotionPictureTheatre
enumeration AudienceOrSeatingAreaPerformingArtsTheatre
enumeration AudienceOrSeatingAreaReligious
enumeration AudienceOrSeatingAreaPoliceOrFireStations
enumeration AudienceOrSeatingAreaCourtHouse
enumeration AudienceOrSeatingAreaAuditorium
enumeration BankCustomerArea
enumeration BankingActivityAreaOffice
enumeration BarberAndBeautyParlor
enumeration CardFileAndCataloguingLibrary
enumeration ClassroomOrLectureOrTrainingPenitentiary
enumeration ClassroomOrLectureOrTraining
enumeration ConfinementCellsPenitentiary
enumeration ConfinementCellsCourtHouse
enumeration ConferenceMeetingOrMultipurpose
enumeration CorridorOrTransition
enumeration CorridorOrTransitionManufacturingFacility
enumeration CorridorsWithPatientWaitingExamHospitalOrHealthcare
enumeration CourtSportsAreaSportsArena
enumeration CourtroomCourtHouse
enumeration DepartmentStoreSalesAreaRetail
enumeration DetailedManufacturingFacility
enumeration DiningArea
enumeration DiningAreaHotel
enumeration DiningAreaFamilyDining
enumeration DiningAreaLoungeOrLeisureDining
enumeration DiningAreaMotel
enumeration DiningAreaTransportation
enumeration DiningAreaPenitentiary
enumeration DiningAreaCivilServices
enumeration DormitoryBedroom
enumeration DormitoryStudyHall
enumeration DressingOrLockerOrFittingRoomGymnasium
enumeration DressingOrLockerOrFittingRoomCourtHouse
enumeration DressingOrLockerOrFittingRoomPerformingArtsTheatre
enumeration DressingOrLockerOrFittingRoomAuditorium
enumeration DressingOrLockerOrFittingRoomExerciseCenter
enumeration ElectricalOrMechanical
enumeration ElevatorLobbies
enumeration EmergencyHospitalOrHealthcare
enumeration EquipmentRoomManufacturingFacility
enumeration ExamOrTreatmentHospitalOrHealthcare
enumeration ExcerciseAreaExerciseCenter
enumeration ExcerciseAreaGymnasium
enumeration ExhibitSpaceConventionCenter
enumeration FellowshipHallReligiousBuildings
enumeration FineMaterialWarehouse
enumeration FineMerchandiseSalesAreaRetail
enumeration FireStationEngineRoomPoliceOrFireStation
enumeration FoodPreparation
enumeration GarageServiceOrRepairAutomotiveFacility
enumeration GeneralHighBayManufacturingFacility
enumeration GeneralLowBayManufacturingFacility
enumeration GeneralExhibitionMuseum
enumeration HospitalNurseryHospitalOrHealthcare
enumeration HospitalOrMedicalSuppliesHospitalOrHealthcare
enumeration HospitalOrRadiologyHospitalOrHealthcare
enumeration HotelOrConferenceCenterConferenceOrMeeting
enumeration InactiveStorage
enumeration JudgesChambersCourtHouse
enumeration LaboratoryOffice
enumeration LaundryIroningAndSorting
enumeration LaundryWashingHospitalOrHealthcare
enumeration LibraryAudioVisualLibraryAudioVisual
enumeration LivingQuartersDormitory
enumeration LivingQuartersMotel
enumeration LivingQuartersHotel
enumeration Lobby
enumeration LobbyReligiousBuildings
enumeration LobbyMotionPictureTheatre
enumeration LobbyAuditorium
enumeration LobbyPerformingArtsTheatre
enumeration LobbyPostOffice
enumeration LobbyHotel
enumeration LoungeOrRecreation
enumeration MallConcourseSalesAreaRetail
enumeration MassMerchandisingSalesAreaRetail
enumeration MediumOrBulkyMaterialWarehouse
enumeration MerchandisingSalesAreaRetail
enumeration MuseumAndGalleryStorage
enumeration NurseStationHospitalOrHealthcare
enumeration OfficeEnclosed
enumeration OfficeOpenPlan
enumeration OfficeCommonActivityAreasInactiveStorage
enumeration OperatingRoomHospitalOrHealthcare
enumeration OtherTelevisedPlayingAreaSportsArena
enumeration ParkingAreaAttendantOnlyParkingGarage
enumeration ParkingAreaPedestrianParkingGarage
enumeration PatientRoomHospitalOrHealthcare
enumeration PersonalServicesSalesAreaRetail
enumeration PharmacyHospitalOrHealthcare
enumeration PhysicalTherapyHospitalOrHealthcare
enumeration PlayingAreaGymnasium
enumeration Plenum
enumeration PoliceStationLaboratoryPoliceOrFireStations
enumeration PublicAndStaffLoungeHospitalOrHealthcare
enumeration ReadingAreaLibrary
enumeration ReceptionOrWaitingTransportation
enumeration ReceptionOrWaitingMotel
enumeration ReceptionOrWaitingHotel
enumeration RecoveryHospitalOrHealthcare
enumeration RestorationMuseum
enumeration Restrooms
enumeration RingSportsAreaSportsArena
enumeration ServerRoom
enumeration SleepingQuartersPoliceOrFireStation
enumeration SortingAreaPostOffice
enumeration SpecialtyStoreSalesAreaRetail
enumeration StacksLibrary
enumeration StairsInactive
enumeration Stairway
enumeration SupermarketSalesAreaRetail
enumeration TerminalTicketCounterTransportation
enumeration WorkshopWorkshop
enumeration WorshipPulpitChoirReligious
source <xsd:simpleType name="spaceTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="ActiveStorage"/>

<xsd:enumeration value="ActiveStorageHospitalOrHealthcare"/>

<xsd:enumeration value="AirOrTrainOrBusBaggageArea"/>

<xsd:enumeration value="AirportConcourse"/>

<xsd:enumeration value="AtriumEachAdditionalFloor"/>

<xsd:enumeration value="AtriumFirstThreeFloors"/>

<xsd:enumeration value="AudienceOrSeatingAreaPenitentiary"/>

<xsd:enumeration value="AudienceOrSeatingAreaExerciseCenter"/>

<xsd:enumeration value="AudienceOrSeatingAreaGymnasium"/>

<xsd:enumeration value="AudienceOrSeatingAreaSportsArena"/>

<xsd:enumeration value="AudienceOrSeatingAreaConventionCenter"/>

<xsd:enumeration value="AudienceOrSeatingAreaMotionPictureTheatre"/>

<xsd:enumeration value="AudienceOrSeatingAreaPerformingArtsTheatre"/>

<xsd:enumeration value="AudienceOrSeatingAreaReligious"/>

<xsd:enumeration value="AudienceOrSeatingAreaPoliceOrFireStations"/>

<xsd:enumeration value="AudienceOrSeatingAreaCourtHouse"/>

<xsd:enumeration value="AudienceOrSeatingAreaAuditorium"/>

<xsd:enumeration value="BankCustomerArea"/>

<xsd:enumeration value="BankingActivityAreaOffice"/>

<xsd:enumeration value="BarberAndBeautyParlor"/>

<xsd:enumeration value="CardFileAndCataloguingLibrary"/>

<xsd:enumeration value="ClassroomOrLectureOrTrainingPenitentiary"/>

<xsd:enumeration value="ClassroomOrLectureOrTraining"/>

<xsd:enumeration value="ConfinementCellsPenitentiary"/>

<xsd:enumeration value="ConfinementCellsCourtHouse"/>

<xsd:enumeration value="ConferenceMeetingOrMultipurpose"/>

<xsd:enumeration value="CorridorOrTransition"/>

<xsd:enumeration value="CorridorOrTransitionManufacturingFacility"/>

<xsd:enumeration value="CorridorsWithPatientWaitingExamHospitalOrHealthcare"/>

<xsd:enumeration value="CourtSportsAreaSportsArena"/>

<xsd:enumeration value="CourtroomCourtHouse"/>

<xsd:enumeration value="DepartmentStoreSalesAreaRetail"/>

<xsd:enumeration value="DetailedManufacturingFacility"/>

<xsd:enumeration value="DiningArea"/>

<xsd:enumeration value="DiningAreaHotel"/>

<xsd:enumeration value="DiningAreaFamilyDining"/>

<xsd:enumeration value="DiningAreaLoungeOrLeisureDining"/>

<xsd:enumeration value="DiningAreaMotel"/>

<xsd:enumeration value="DiningAreaTransportation"/>

<xsd:enumeration value="DiningAreaPenitentiary"/>

<xsd:enumeration value="DiningAreaCivilServices"/>

<xsd:enumeration value="DormitoryBedroom"/>

<xsd:enumeration value="DormitoryStudyHall"/>

<xsd:enumeration value="DressingOrLockerOrFittingRoomGymnasium"/>

<xsd:enumeration value="DressingOrLockerOrFittingRoomCourtHouse"/>

<xsd:enumeration value="DressingOrLockerOrFittingRoomPerformingArtsTheatre"/>

<xsd:enumeration value="DressingOrLockerOrFittingRoomAuditorium"/>

<xsd:enumeration value="DressingOrLockerOrFittingRoomExerciseCenter"/>

<xsd:enumeration value="ElectricalOrMechanical"/>

<xsd:enumeration value="ElevatorLobbies"/>

<xsd:enumeration value="EmergencyHospitalOrHealthcare"/>

<xsd:enumeration value="EquipmentRoomManufacturingFacility"/>

<xsd:enumeration value="ExamOrTreatmentHospitalOrHealthcare"/>

<xsd:enumeration value="ExcerciseAreaExerciseCenter"/>

<xsd:enumeration value="ExcerciseAreaGymnasium"/>

<xsd:enumeration value="ExhibitSpaceConventionCenter"/>

<xsd:enumeration value="FellowshipHallReligiousBuildings"/>

<xsd:enumeration value="FineMaterialWarehouse"/>

<xsd:enumeration value="FineMerchandiseSalesAreaRetail"/>

<xsd:enumeration value="FireStationEngineRoomPoliceOrFireStation"/>

<xsd:enumeration value="FoodPreparation"/>

<xsd:enumeration value="GarageServiceOrRepairAutomotiveFacility"/>

<xsd:enumeration value="GeneralHighBayManufacturingFacility"/>

<xsd:enumeration value="GeneralLowBayManufacturingFacility"/>

<xsd:enumeration value="GeneralExhibitionMuseum"/>

<xsd:enumeration value="HospitalNurseryHospitalOrHealthcare"/>

<xsd:enumeration value="HospitalOrMedicalSuppliesHospitalOrHealthcare"/>

<xsd:enumeration value="HospitalOrRadiologyHospitalOrHealthcare"/>

<xsd:enumeration value="HotelOrConferenceCenterConferenceOrMeeting"/>

<xsd:enumeration value="InactiveStorage"/>

<xsd:enumeration value="JudgesChambersCourtHouse"/>

<xsd:enumeration value="LaboratoryOffice"/>

<xsd:enumeration value="LaundryIroningAndSorting"/>

<xsd:enumeration value="LaundryWashingHospitalOrHealthcare"/>

<xsd:enumeration value="LibraryAudioVisualLibraryAudioVisual"/>

<xsd:enumeration value="LivingQuartersDormitory"/>

<xsd:enumeration value="LivingQuartersMotel"/>

<xsd:enumeration value="LivingQuartersHotel"/>

<xsd:enumeration value="Lobby"/>

<xsd:enumeration value="LobbyReligiousBuildings"/>

<xsd:enumeration value="LobbyMotionPictureTheatre"/>

<xsd:enumeration value="LobbyAuditorium"/>

<xsd:enumeration value="LobbyPerformingArtsTheatre"/>

<xsd:enumeration value="LobbyPostOffice"/>

<xsd:enumeration value="LobbyHotel"/>

<xsd:enumeration value="LoungeOrRecreation"/>

<xsd:enumeration value="MallConcourseSalesAreaRetail"/>

<xsd:enumeration value="MassMerchandisingSalesAreaRetail"/>

<xsd:enumeration value="MediumOrBulkyMaterialWarehouse"/>

<xsd:enumeration value="MerchandisingSalesAreaRetail"/>

<xsd:enumeration value="MuseumAndGalleryStorage"/>

<xsd:enumeration value="NurseStationHospitalOrHealthcare"/>

<xsd:enumeration value="OfficeEnclosed"/>

<xsd:enumeration value="OfficeOpenPlan"/>

<xsd:enumeration value="OfficeCommonActivityAreasInactiveStorage"/>

<xsd:enumeration value="OperatingRoomHospitalOrHealthcare"/>

<xsd:enumeration value="OtherTelevisedPlayingAreaSportsArena"/>

<xsd:enumeration value="ParkingAreaAttendantOnlyParkingGarage"/>

<xsd:enumeration value="ParkingAreaPedestrianParkingGarage"/>

<xsd:enumeration value="PatientRoomHospitalOrHealthcare"/>

<xsd:enumeration value="PersonalServicesSalesAreaRetail"/>

<xsd:enumeration value="PharmacyHospitalOrHealthcare"/>

<xsd:enumeration value="PhysicalTherapyHospitalOrHealthcare"/>

<xsd:enumeration value="PlayingAreaGymnasium"/>

<xsd:enumeration value="Plenum"/>

<xsd:enumeration value="PoliceStationLaboratoryPoliceOrFireStations"/>

<xsd:enumeration value="PublicAndStaffLoungeHospitalOrHealthcare"/>

<xsd:enumeration value="ReadingAreaLibrary"/>

<xsd:enumeration value="ReceptionOrWaitingTransportation"/>

<xsd:enumeration value="ReceptionOrWaitingMotel"/>

<xsd:enumeration value="ReceptionOrWaitingHotel"/>

<xsd:enumeration value="RecoveryHospitalOrHealthcare"/>

<xsd:enumeration value="RestorationMuseum"/>

<xsd:enumeration value="Restrooms"/>

<xsd:enumeration value="RingSportsAreaSportsArena"/>

<xsd:enumeration value="ServerRoom"/>

<xsd:enumeration value="SleepingQuartersPoliceOrFireStation"/>

<xsd:enumeration value="SortingAreaPostOffice"/>

<xsd:enumeration value="SpecialtyStoreSalesAreaRetail"/>

<xsd:enumeration value="StacksLibrary"/>

<xsd:enumeration value="StairsInactive"/>

<xsd:enumeration value="Stairway"/>

<xsd:enumeration value="SupermarketSalesAreaRetail"/>

<xsd:enumeration value="TerminalTicketCounterTransportation"/>

<xsd:enumeration value="WorkshopWorkshop"/>

<xsd:enumeration value="WorshipPulpitChoirReligious"/>

</xsd:restriction>
</xsd:simpleType>

simpleType specificHeatUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute SpecificHeat/@unit
facets
Kind Value Annotation
enumeration JPerKgK
enumeration BTUPerLbF
source <xsd:simpleType name="specificHeatUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="JPerKgK"/>

<xsd:enumeration value="BTUPerLbF"/>

</xsd:restriction>
</xsd:simpleType>

simpleType stageTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Control/@stages
facets
Kind Value Annotation
enumeration 1Stage
enumeration 2Stage
enumeration Variable
source <xsd:simpleType name="stageTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="1Stage"/>

<xsd:enumeration value="2Stage"/>

<xsd:enumeration value="Variable"/>

</xsd:restriction>
</xsd:simpleType>

simpleType standardsTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Efficiency/@standardsType
facets
Kind Value Annotation
enumeration DOE
documentation
Department of Energy
enumeration ARI
documentation
Air-Conditioning and Refrigeration Institute
enumeration ANSI
documentation
American National Standards Institute
enumeration NEMA
documentation
National Electrical Manufacturers Association
source <xsd:simpleType name="standardsTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="DOE">

<xsd:annotation>

<xsd:documentation>Department of Energy</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ARI">

<xsd:annotation>

<xsd:documentation>Air-Conditioning and Refrigeration Institute</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ANSI">

<xsd:annotation>

<xsd:documentation>American National Standards Institute</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="NEMA">

<xsd:annotation>

<xsd:documentation>National Electrical Manufacturers Association</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType stationIdTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute StationId/@IDType
facets
Kind Value Annotation
enumeration WMO
documentation
A five-digit station identifier assigned by the World Meteorological Organization (WMO), used for international weather data exchange and station documentation.
enumeration WBAN
documentation
Weather-Bureau-Army-Navy station id. A five-digit station identifier used at National Climatic Data Center (NCDC) for digital data storage and general station identification purposes.
enumeration ICAO
documentation
A 4-letter indicator for geographical locations throughout the world, managed by the International Civil Aviation Organization (ICAO).
enumeration NWSLI
documentation
A 3- to 5-character alpha-numeric identifier assigned by the US National Weather Service (NWS), used for site identification in the NWS communications systems (e.g. AFOS, ROSA, SHEF, etc.).
enumeration FAACallSign
documentation
An alpha-numeric identifier of up to 4-characters managed by the USDT Federal Aviation Administration (FAA), used for site identification of airports, weather stations and other sites vital to navigation.
enumeration COOP
documentation
A 6-digit number identifying a station in the NWS Cooperative Network.
enumeration Modeled
documentation
A custom code identifying a virtual station for a particular grid location on the planet that was modeled by a simulation program such as MM5, WRF, or other weather simulation programs.
source <xsd:simpleType name="stationIdTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="WMO">

<xsd:annotation>

<xsd:documentation>A five-digit station identifier assigned by the World Meteorological Organization (WMO), used for international weather data exchange and station documentation.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="WBAN">

<xsd:annotation>

<xsd:documentation>Weather-Bureau-Army-Navy station id. A five-digit station identifier used at National Climatic Data Center (NCDC) for digital data storage and general station identification purposes.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ICAO">

<xsd:annotation>

<xsd:documentation>A 4-letter indicator for geographical locations throughout the world, managed by the International Civil Aviation Organization (ICAO).</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="NWSLI">

<xsd:annotation>

<xsd:documentation>A 3- to 5-character alpha-numeric identifier assigned by the US National Weather Service (NWS), used for site identification in the NWS communications systems (e.g. AFOS, ROSA, SHEF, etc.).</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="FAACallSign">

<xsd:annotation>

<xsd:documentation>An alpha-numeric identifier of up to 4-characters managed by the USDT Federal Aviation Administration (FAA), used for site identification of airports, weather stations and other sites vital to navigation.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="COOP">

<xsd:annotation>

<xsd:documentation>A 6-digit number identifying a station in the NWS Cooperative Network.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Modeled">

<xsd:annotation>

<xsd:documentation>A custom code identifying a virtual station for a particular grid location on the planet that was modeled by a simulation program such as MM5, WRF, or other weather simulation programs.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType supplementalHeatingCoilTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute SupplementalHeatingCoilType/@unit
facets
Kind Value Annotation
enumeration Electric
enumeration Gas
enumeration HotWater
source <xsd:simpleType name="supplementalHeatingCoilTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Electric"/>

<xsd:enumeration value="Gas"/>

<xsd:enumeration value="HotWater"/>

</xsd:restriction>
</xsd:simpleType>

simpleType surfaceDescriptionEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes Emittance/@surfaceType Reflectance/@surfaceType Transmittance/@surfaceType
facets
Kind Value Annotation
enumeration 1
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 1, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 1 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 1 represents the surface that points away from the building interior.
enumeration 2
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 2, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 2 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 2 represents the surface that points towards the building interior.
enumeration Both
documentation
The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to Both, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated both Surface 1 and Surface 2 of the material's 2 surfaces [it is assumed that the material is a large planar object].  See the enumerations above for a description of Surface 1 and 2.
source <xsd:simpleType name="surfaceDescriptionEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="1">

<xsd:annotation>

<xsd:documentation>The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 1, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 1 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 1 represents the surface that points away from the building interior.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="2">

<xsd:annotation>

<xsd:documentation>The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to 2, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated with Surface 2 of the material's two surfaces [it is assumed that the material is a large planar object].  Surface 2 represents the surface that points towards the building interior.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Both">

<xsd:annotation>

<xsd:documentation>The surfaceDescriptionEnum allows control over the specification of material surface properties.  By setting the surfaceDescriptionEnum to Both, it is implied that the attribute (e.g. - Reflectance, Emittance, etc.) is associated both Surface 1 and Surface 2 of the material's 2 surfaces [it is assumed that the material is a large planar object].  See the enumerations above for a description of Surface 1 and 2.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType surfaceReferenceLocationEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute gbXML/@SurfaceReferenceLocation
facets
Kind Value Annotation
enumeration Centerline
enumeration InteriorSurface
source <xsd:simpleType name="surfaceReferenceLocationEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Centerline"/>

<xsd:enumeration value="InteriorSurface"/>

</xsd:restriction>
</xsd:simpleType>

simpleType surfaceTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes AdjacentSpaceId/@surfaceType Surface/@surfaceType
facets
Kind Value Annotation
enumeration InteriorWall
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to two conditioned or unconditioned spaces and that is vertical or tilted at an angle of 60° from horizontal or greater.
enumeration ExteriorWall
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and that is vertical or tilted at an angle of 60° from horizontal or greater.
enumeration Roof
documentation
The upper portion of the building envelope, including opaque areas and fenestration, that is adjacent to one conditioned or unconditioned space and that is horizontal or tilted at an angle of less than 60° from horizontal.
enumeration InteriorFloor
documentation
The lower portion of the building envelope, including opaque area and fenestration, that has conditioned or semiheated space above and is horizontal or tilted at an angle of less than 60 degrees from horizontal but excluding slab-on-grade floors.
enumeration ExposedFloor
documentation
The floor area exposed to non-conditioned space or outside.
enumeration Shade
documentation
Surface not adjacent to any spaces with tilt between 0° and 180°.
enumeration UndergroundWall
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) and that is vertical or tilted at an angle of 60° from horizontal or greater.
enumeration UndergroundSlab
documentation
Surface adjacent to one conditioned or unconditioned space and earth (soil) below grade with a tilt between 150° and 180°.
enumeration Ceiling
documentation
The upper portion of the building envelope that is adjacent to two conditioned or unconditioned spaces and that is horizontal or tilted at an angle of less than 60° from horizontal.
enumeration Air
documentation
Air membrane between two conditioned or unconditioned spaces with a tilt between 0° and 180°.
enumeration UndergroundCeiling
documentation
The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) and that is horizontal or tilted at an angle of less than 60° from horizontal.
enumeration RaisedFloor
documentation
The lower portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and the outside and is horizontal or tilted at an angle between 150° and 180°.
enumeration SlabOnGrade
documentation
The lower portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) at grade with a tilt between 150° and 180°.
enumeration FreestandingColumn
documentation
Freestanding column in space specified by its top surface having the same ifcGUID.
enumeration EmbeddedColumn
documentation
Embedded column in wall specified by a surface which is coplanar with (one of) the embedding wall(s).
source <xsd:simpleType name="surfaceTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="InteriorWall">

<xsd:annotation>

<xsd:documentation>The portion of the building envelope, including opaque area and fenestration, that is adjacent to two conditioned or unconditioned spaces and that is vertical or tilted at an angle of 60° from horizontal or greater.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ExteriorWall">

<xsd:annotation>

<xsd:documentation>The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and that is vertical or tilted at an angle of 60° from horizontal or greater.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Roof">

<xsd:annotation>

<xsd:documentation>The upper portion of the building envelope, including opaque areas and fenestration, that is adjacent to one conditioned or unconditioned space and that is horizontal or tilted at an angle of less than 60° from horizontal.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="InteriorFloor">

<xsd:annotation>

<xsd:documentation>The lower portion of the building envelope, including opaque area and fenestration, that has conditioned or semiheated space above and is horizontal or tilted at an angle of less than 60 degrees from horizontal but excluding slab-on-grade floors.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ExposedFloor">

<xsd:annotation>

<xsd:documentation>The floor area exposed to non-conditioned space or outside.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Shade">

<xsd:annotation>

<xsd:documentation>Surface not adjacent to any spaces with tilt between 0° and 180°.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="UndergroundWall">

<xsd:annotation>

<xsd:documentation>The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) and that is vertical or tilted at an angle of 60° from horizontal or greater.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="UndergroundSlab">

<xsd:annotation>

<xsd:documentation>Surface adjacent to one conditioned or unconditioned space and earth (soil) below grade with a tilt between 150° and 180°.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Ceiling">

<xsd:annotation>

<xsd:documentation>The upper portion of the building envelope that is adjacent to two conditioned or unconditioned spaces and that is horizontal or tilted at an angle of less than 60° from horizontal.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Air">

<xsd:annotation>

<xsd:documentation>Air membrane between two conditioned or unconditioned spaces with a tilt between 0° and 180°. </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="UndergroundCeiling">

<xsd:annotation>

<xsd:documentation>The portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) and that is horizontal or tilted at an angle of less than 60° from horizontal.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="RaisedFloor">

<xsd:annotation>

<xsd:documentation>The lower portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and the outside and is horizontal or tilted at an angle between 150° and 180°.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="SlabOnGrade">

<xsd:annotation>

<xsd:documentation>The lower portion of the building envelope, including opaque area and fenestration, that is adjacent to one conditioned or unconditioned space and earth (soil) at grade with a tilt between 150° and 180°.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="FreestandingColumn">

<xsd:annotation>

<xsd:documentation>Freestanding column in space specified by its top surface having the same ifcGUID.</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="EmbeddedColumn">

<xsd:annotation>

<xsd:documentation>Embedded column in wall specified by a surface which is coplanar with (one of) the embedding wall(s).</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType systemTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute AirLoop/@systemType
facets
Kind Value Annotation
enumeration SingleZoneReheat
documentation
Variable Temperature
enumeration PackagedSingleZone
documentation
Packaged Single-zone
enumeration SingleZoneCeilingInduction
documentation
Ceiling Induction
enumeration ReheatFan
documentation
Constant-volume Reheat Fan
enumeration VariableAirVolume
documentation
Variable-volume Fan
enumeration PoweredInductionUnit
documentation
Powered Induction Unit
enumeration PackagedVariableAirVolume
documentation
Packaged Variable Air Volume
enumeration PackagedVariableVolumeVariableTemperature
documentation
Packaged Variable-Volume Variable-Temperature
enumeration CeilingBypassVariableAirVolume
documentation
Ceiling Bypass
enumeration EvaporativeCooling
documentation
Evaporative Cooling
enumeration MultiZone
documentation
Multizone Fan
enumeration PackagedMultiZone
documentation
Packaged Multizone
enumeration DualDuct
documentation
Dual-duct Fan
enumeration FanCoil
documentation
Fan Coil
enumeration InductionUnit
documentation
Induction Unit
enumeration PackagedTerminalAirConditioner
documentation
Packaged Terminal Air Conditioner
enumeration WaterLoopHeatPump
documentation
Water Loop Heat Pump
enumeration ResidentialCyclingFurnaceCyclingAC
documentation
Residential with cycling furnace and cycling air-conditioner
enumeration ResidentialVariableAirVolumeVariableTemperature
documentation
Residential Variable-Volume Variable-Temperature
enumeration FloorPanelHeating
documentation
Floor Panel Heating
enumeration HeatingAndVentilating
documentation
Heating and Ventilating
enumeration UnitHeater
documentation
Unit Heater
enumeration UnitVentilator
documentation
Unit Ventilator
enumeration CentralHeatingRadiators
documentation
Central Heating Radiators
enumeration CentralHeatingConvectors
documentation
Central Heating Convectors
enumeration CentralHeatingRadiantFloor
documentation
Central Heating Radiant Floor
enumeration CentralHeatingHotAir
documentation
Central Heating Hot Air
enumeration OtherRoomHeater
documentation
Other Room Heater
enumeration RadiantHeaterNoFlue
documentation
Radiant Heater No Flue
enumeration RadiantHeaterFlue
documentation
Radiant Heater Flue
enumeration RadiantHeaterMultiburner
documentation
Radiant Heater Multiburner
enumeration ForcedConvectionHeaterFlue
documentation
Forced Convection Heater Flue
enumeration ForcedConvectionHeaterNoFlue
documentation
Forced Convection Heater No Flue
enumeration VAVSingleDuct
documentation
VAV Single Duct
enumeration VAVDualDuct
documentation
VAV Dual Duct
enumeration VAVReheatFan
documentation
VAV Reheat Fan
enumeration VAVIndoorPackagedCabinet
documentation
VAV Indoor Packaged Cabinet
enumeration ConstantVolumeFixedOA
documentation
Constant Volume Fixed OA
enumeration ConstantVolumeVariableOA
documentation
Constant Volume Variable OA
enumeration ConstantVolumeTerminalReheat
documentation
Constant Volume Terminal Reheat
enumeration MultizoneHotDeckColdDeck
documentation
Multizone Hot Deck Cold Deck
enumeration ConstantVolumeDualDuct
documentation
Constant Volume Dual Duct
enumeration RadiantCooledCeilings
documentation
Radiant Cooled Ceilings
enumeration ActiveChilledBeams
documentation
Active Chilled Beams
enumeration VariableRefrigerantFlow
documentation
Variable Refrigerant Flow
enumeration SplitSystemsWithNaturalVentilation
documentation
Split Systems With Natural Ventilation
enumeration SplitSystemsWithMechanicalVentilation
documentation
Split Systems With Mechanical Ventilation
enumeration SplitSystemsWithMechanicalVentilationWithCooling
documentation
Split Systems With Mechanical Ventilation With Cooling
enumeration Exhaust
documentation
Exhaust Air Systems
source <xsd:simpleType name="systemTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="SingleZoneReheat">

<xsd:annotation>

<xsd:documentation>Variable Temperature</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="PackagedSingleZone">

<xsd:annotation>

<xsd:documentation>Packaged Single-zone</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="SingleZoneCeilingInduction">

<xsd:annotation>

<xsd:documentation>Ceiling Induction</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ReheatFan">

<xsd:annotation>

<xsd:documentation>Constant-volume Reheat Fan</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="VariableAirVolume">

<xsd:annotation>

<xsd:documentation>Variable-volume Fan</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="PoweredInductionUnit">

<xsd:annotation>

<xsd:documentation>Powered Induction Unit</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="PackagedVariableAirVolume">

<xsd:annotation>

<xsd:documentation>Packaged Variable Air Volume</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="PackagedVariableVolumeVariableTemperature">

<xsd:annotation>

<xsd:documentation>Packaged Variable-Volume Variable-Temperature</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="CeilingBypassVariableAirVolume">

<xsd:annotation>

<xsd:documentation>Ceiling Bypass</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="EvaporativeCooling">

<xsd:annotation>

<xsd:documentation>Evaporative Cooling</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="MultiZone">

<xsd:annotation>

<xsd:documentation>Multizone Fan</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="PackagedMultiZone">

<xsd:annotation>

<xsd:documentation>Packaged Multizone</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="DualDuct">

<xsd:annotation>

<xsd:documentation>Dual-duct Fan</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="FanCoil">

<xsd:annotation>

<xsd:documentation>Fan Coil</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="InductionUnit">

<xsd:annotation>

<xsd:documentation>Induction Unit</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="PackagedTerminalAirConditioner">

<xsd:annotation>

<xsd:documentation>Packaged Terminal Air Conditioner</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="WaterLoopHeatPump">

<xsd:annotation>

<xsd:documentation>Water Loop Heat Pump</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ResidentialCyclingFurnaceCyclingAC">

<xsd:annotation>

<xsd:documentation>Residential with cycling furnace and cycling air-conditioner</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ResidentialVariableAirVolumeVariableTemperature">

<xsd:annotation>

<xsd:documentation>Residential Variable-Volume Variable-Temperature</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="FloorPanelHeating">

<xsd:annotation>

<xsd:documentation>Floor Panel Heating</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="HeatingAndVentilating">

<xsd:annotation>

<xsd:documentation>Heating and Ventilating</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="UnitHeater">

<xsd:annotation>

<xsd:documentation>Unit Heater</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="UnitVentilator">

<xsd:annotation>

<xsd:documentation>Unit Ventilator</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="CentralHeatingRadiators">

<xsd:annotation>

<xsd:documentation>Central Heating Radiators</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="CentralHeatingConvectors">

<xsd:annotation>

<xsd:documentation>Central Heating Convectors</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="CentralHeatingRadiantFloor">

<xsd:annotation>

<xsd:documentation>Central Heating Radiant Floor</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="CentralHeatingHotAir">

<xsd:annotation>

<xsd:documentation>Central Heating Hot Air</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="OtherRoomHeater">

<xsd:annotation>

<xsd:documentation>Other Room Heater</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="RadiantHeaterNoFlue">

<xsd:annotation>

<xsd:documentation>Radiant Heater No Flue</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="RadiantHeaterFlue">

<xsd:annotation>

<xsd:documentation>Radiant Heater Flue</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="RadiantHeaterMultiburner">

<xsd:annotation>

<xsd:documentation>Radiant Heater Multiburner</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ForcedConvectionHeaterFlue">

<xsd:annotation>

<xsd:documentation>Forced Convection Heater Flue</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ForcedConvectionHeaterNoFlue">

<xsd:annotation>

<xsd:documentation>Forced Convection Heater No Flue</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="VAVSingleDuct">

<xsd:annotation>

<xsd:documentation>VAV Single Duct</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="VAVDualDuct">

<xsd:annotation>

<xsd:documentation>VAV Dual Duct</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="VAVReheatFan">

<xsd:annotation>

<xsd:documentation>VAV Reheat Fan</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="VAVIndoorPackagedCabinet">

<xsd:annotation>

<xsd:documentation>VAV Indoor Packaged Cabinet</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ConstantVolumeFixedOA">

<xsd:annotation>

<xsd:documentation>Constant Volume Fixed OA</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ConstantVolumeVariableOA">

<xsd:annotation>

<xsd:documentation>Constant Volume Variable OA</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ConstantVolumeTerminalReheat">

<xsd:annotation>

<xsd:documentation>Constant Volume Terminal Reheat</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="MultizoneHotDeckColdDeck">

<xsd:annotation>

<xsd:documentation>Multizone Hot Deck Cold Deck</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ConstantVolumeDualDuct">

<xsd:annotation>

<xsd:documentation>Constant Volume Dual Duct</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="RadiantCooledCeilings">

<xsd:annotation>

<xsd:documentation>Radiant Cooled Ceilings</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="ActiveChilledBeams">

<xsd:annotation>

<xsd:documentation>Active Chilled Beams</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="VariableRefrigerantFlow">

<xsd:annotation>

<xsd:documentation>Variable Refrigerant Flow</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="SplitSystemsWithNaturalVentilation">

<xsd:annotation>

<xsd:documentation>Split Systems With Natural Ventilation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="SplitSystemsWithMechanicalVentilation">

<xsd:annotation>

<xsd:documentation>Split Systems With Mechanical Ventilation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="SplitSystemsWithMechanicalVentilationWithCooling">

<xsd:annotation>

<xsd:documentation>Split Systems With Mechanical Ventilation With Cooling</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Exhaust">

<xsd:annotation>

<xsd:documentation>Exhaust Air Systems</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType temperatureUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes gbXML/@temperatureUnit AirTemperature/@unit ResetTemperature/@unit DDDBCool/@unit DDDBHeat/@unit DDDBRangeCool/@unit DDDBRangeHeat/@unit DDGroundTCool/@unit DDGroundTHeat/@unit DDWBCool/@unit DDWBHeat/@unit DeltaT/@unit DesignCoolT/@unit DesignHeatT/@unit DesignTemp/@unit GroundTemp/@unit MaxTemp/@unit MinTemp/@unit NaturalVentHiTemp/@unit NaturalVentLoTemp/@unit Results/@unit Temp/@unit Temperature/@unit WFTDTemp/@unit
facets
Kind Value Annotation
enumeration F
enumeration C
enumeration K
enumeration R
source <xsd:simpleType name="temperatureUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="F"/>

<xsd:enumeration value="C"/>

<xsd:enumeration value="K"/>

<xsd:enumeration value="R"/>

</xsd:restriction>
</xsd:simpleType>

simpleType tempTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Temp/@tempType
facets
Kind Value Annotation
enumeration Max
enumeration Min
enumeration Design
enumeration CoolDesign
enumeration HeatDesign
enumeration Throttle
enumeration Range
enumeration Approach
enumeration EnteringWetBulb
enumeration LeavingDryBulb
enumeration EnteringDryBulb
enumeration LeavingWetBulb
enumeration ChilledWaterSupply
enumeration CondenserWaterSupply
enumeration LeavingChilledWater
enumeration LeavingCondenserWater
enumeration HighTempLockout
enumeration LowTempLockout
enumeration EconomizerMaxLimitDewpoint
enumeration HeatPumpDefrostMaxOADryBulb
enumeration SupplementalHeatingCoilMaxOADryBulb
enumeration PreheatCoilDesignSetpoint
source <xsd:simpleType name="tempTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Max"/>

<xsd:enumeration value="Min"/>

<xsd:enumeration value="Design"/>

<xsd:enumeration value="CoolDesign"/>

<xsd:enumeration value="HeatDesign"/>

<xsd:enumeration value="Throttle"/>

<xsd:enumeration value="Range"/>

<xsd:enumeration value="Approach"/>

<xsd:enumeration value="EnteringWetBulb"/>

<xsd:enumeration value="LeavingDryBulb"/>

<xsd:enumeration value="EnteringDryBulb"/>

<xsd:enumeration value="LeavingWetBulb"/>

<xsd:enumeration value="ChilledWaterSupply"/>

<xsd:enumeration value="CondenserWaterSupply"/>

<xsd:enumeration value="LeavingChilledWater"/>

<xsd:enumeration value="LeavingCondenserWater"/>

<xsd:enumeration value="HighTempLockout"/>

<xsd:enumeration value="LowTempLockout"/>

<xsd:enumeration value="EconomizerMaxLimitDewpoint"/>

<xsd:enumeration value="HeatPumpDefrostMaxOADryBulb"/>

<xsd:enumeration value="SupplementalHeatingCoilMaxOADryBulb"/>

<xsd:enumeration value="PreheatCoilDesignSetpoint"/>

</xsd:restriction>
</xsd:simpleType>

simpleType timePeriodEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Energy/@timePeriod
facets
Kind Value Annotation
enumeration Annual
enumeration Jan
enumeration Feb
enumeration Mar
enumeration Apr
enumeration May
enumeration Jun
enumeration Jul
enumeration Aug
enumeration Sep
enumeration Oct
enumeration Nov
enumeration Dec
source <xsd:simpleType name="timePeriodEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Annual"/>

<xsd:enumeration value="Jan"/>

<xsd:enumeration value="Feb"/>

<xsd:enumeration value="Mar"/>

<xsd:enumeration value="Apr"/>

<xsd:enumeration value="May"/>

<xsd:enumeration value="Jun"/>

<xsd:enumeration value="Jul"/>

<xsd:enumeration value="Aug"/>

<xsd:enumeration value="Sep"/>

<xsd:enumeration value="Oct"/>

<xsd:enumeration value="Nov"/>

<xsd:enumeration value="Dec"/>

</xsd:restriction>
</xsd:simpleType>

simpleType timeUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute TimeIncrement/@timeUnit
facets
Kind Value Annotation
enumeration Year
enumeration Month
enumeration Week
enumeration Day
enumeration Hour
enumeration Minute
source <xsd:simpleType name="timeUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Year"/>

<xsd:enumeration value="Month"/>

<xsd:enumeration value="Week"/>

<xsd:enumeration value="Day"/>

<xsd:enumeration value="Hour"/>

<xsd:enumeration value="Minute"/>

</xsd:restriction>
</xsd:simpleType>

simpleType transportationTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Transportation/@transportationType
facets
Kind Value Annotation
enumeration Bus
enumeration Train
enumeration Car
enumeration LightRail
enumeration Ferry
enumeration Airplane
enumeration Monorail
enumeration Bike
source <xsd:simpleType name="transportationTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Bus"/>

<xsd:enumeration value="Train"/>

<xsd:enumeration value="Car"/>

<xsd:enumeration value="LightRail"/>

<xsd:enumeration value="Ferry"/>

<xsd:enumeration value="Airplane"/>

<xsd:enumeration value="Monorail"/>

<xsd:enumeration value="Bike"/>

</xsd:restriction>
</xsd:simpleType>

simpleType unitlessSmallUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes HighLimit/@unit Results/@unit
facets
Kind Value Annotation
enumeration Percent
enumeration PartPerMillionByVolume
enumeration milliGramsPerCubicMeter
source <xsd:simpleType name="unitlessSmallUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Percent"/>

<xsd:enumeration value="PartPerMillionByVolume"/>

<xsd:enumeration value="milliGramsPerCubicMeter"/>

</xsd:restriction>
</xsd:simpleType>

simpleType unitlessUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes Absorptance/@unit Albedo/@unit DDSkyClearnessCool/@unit DDSkyClearnessHeat/@unit Emittance/@unit Glare/@unit MaxRelativeHumidity/@unit MinFlow/@unit MinRelativeHumidity/@unit PercentAreaDaylitControlled/@unit PercentExisting/@unit Porosity/@unit RecycledContent/@unit Reflectance/@unit Results/@unit ShadingCoeff/@unit SolarHeatGainCoeff/@unit Transmittance/@unit WasteWaterHREff/@unit WaterLoss/@unit HeatRejectedtoSpace/@unit WFTDRelHumidity/@unit
facets
Kind Value Annotation
enumeration Percent
enumeration Fraction
source <xsd:simpleType name="unitlessUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Percent"/>

<xsd:enumeration value="Fraction"/>

</xsd:restriction>
</xsd:simpleType>

simpleType uValueUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute U-value/@unit
facets
Kind Value Annotation
enumeration WPerSquareMeterK
enumeration BtuPerHourSquareFtF
source <xsd:simpleType name="uValueUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="WPerSquareMeterK"/>

<xsd:enumeration value="BtuPerHourSquareFtF"/>

</xsd:restriction>
</xsd:simpleType>

simpleType valueTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes Energy/@valueType Results/@valueType
facets
Kind Value Annotation
enumeration Historical
enumeration Simulated
enumeration Rated
enumeration Measured
source <xsd:simpleType name="valueTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Historical"/>

<xsd:enumeration value="Simulated"/>

<xsd:enumeration value="Rated"/>

<xsd:enumeration value="Measured"/>

</xsd:restriction>
</xsd:simpleType>

simpleType vegetationTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Vegetation/@vegetationType
facets
Kind Value Annotation
enumeration Trees
enumeration Bushes
enumeration Plants
enumeration Grass
enumeration Moss
enumeration EvergreenTrees
enumeration EvergreenShrubs
enumeration DeciduousTrees
enumeration DeciduousShrubs
source <xsd:simpleType name="vegetationTypeEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Trees"/>

<xsd:enumeration value="Bushes"/>

<xsd:enumeration value="Plants"/>

<xsd:enumeration value="Grass"/>

<xsd:enumeration value="Moss"/>

<xsd:enumeration value="EvergreenTrees"/>

<xsd:enumeration value="EvergreenShrubs"/>

<xsd:enumeration value="DeciduousTrees"/>

<xsd:enumeration value="DeciduousShrubs"/>

</xsd:restriction>
</xsd:simpleType>

simpleType velocityUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes DDWindSpeedCool/@unit DDWindSpeedHeat/@unit WFTDWindSpeed/@unit WindSpeed/@unit
facets
Kind Value Annotation
enumeration MetersPerSecond
enumeration MilesPerHour
enumeration Knots
source <xsd:simpleType name="velocityUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="MetersPerSecond"/>

<xsd:enumeration value="MilesPerHour"/>

<xsd:enumeration value="Knots"/>

</xsd:restriction>
</xsd:simpleType>

simpleType versionEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute gbXML/@version
facets
Kind Value Annotation
enumeration 0.35
enumeration 0.36
enumeration 0.37
enumeration 5.00
enumeration 5.01
enumeration 5.10
enumeration 5.11
enumeration 5.12
enumeration 6.00
enumeration 6.01
source <xsd:simpleType name="versionEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="0.35"/>

<xsd:enumeration value="0.36"/>

<xsd:enumeration value="0.37"/>

<xsd:enumeration value="5.00"/>

<xsd:enumeration value="5.01"/>

<xsd:enumeration value="5.10"/>

<xsd:enumeration value="5.11"/>

<xsd:enumeration value="5.12"/>

<xsd:enumeration value="6.00"/>

<xsd:enumeration value="6.01"/>

</xsd:restriction>
</xsd:simpleType>

simpleType viscosityFofTUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ViscosityFofT/@unit
facets
Kind Value Annotation
enumeration KgPerMSecK
enumeration PoundPerFootSecF
source <xsd:simpleType name="viscosityFofTUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="KgPerMSecK"/>

<xsd:enumeration value="PoundPerFootSecF"/>

</xsd:restriction>
</xsd:simpleType>

simpleType viscosityUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Viscosity/@unit
facets
Kind Value Annotation
enumeration KgPerMSec
enumeration PoundPerFootSec
source <xsd:simpleType name="viscosityUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="KgPerMSec"/>

<xsd:enumeration value="PoundPerFootSec"/>

</xsd:restriction>
</xsd:simpleType>

simpleType volumeUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attributes Volume/@unit gbXML/@volumeUnit
facets
Kind Value Annotation
enumeration CubicKilometers
enumeration CubicMeters
enumeration CubicCentimeters
enumeration CubicMillimeters
enumeration CubicMiles
enumeration CubicYards
enumeration CubicFeet
enumeration CubicInches
source <xsd:simpleType name="volumeUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="CubicKilometers"/>

<xsd:enumeration value="CubicMeters"/>

<xsd:enumeration value="CubicCentimeters"/>

<xsd:enumeration value="CubicMillimeters"/>

<xsd:enumeration value="CubicMiles"/>

<xsd:enumeration value="CubicYards"/>

<xsd:enumeration value="CubicFeet"/>

<xsd:enumeration value="CubicInches"/>

</xsd:restriction>
</xsd:simpleType>

simpleType wallASHRAEGroupEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute CLTDParameters/@wallASHRAEGroup
facets
Kind Value Annotation
enumeration A
documentation
4-in. face brick, insulation + 8-in. com. brick
enumeration B
documentation
4-in. face brick, 2-in. insul., 4-in. com. brick
enumeration C
documentation
4-in. face brick, air space + 4-in. face brick
enumeration D
documentation
4-in. face brick + 4-in. common brick
enumeration E
documentation
4-in. face brick + 4-in. block
enumeration F
documentation
4-in. block + air space or insulation
enumeration G
documentation
Metal curtain wall + 1 to 3-in. insulation
annotation
documentation
Used with the wallASHRAEGroup attribute. Each annotation for the values is only one example of many possible constructions for that ASHRAE wall group. The user should select the one that best matches the thermal characteristics of the wall, not necessarily the one closest to the example description.
source <xsd:simpleType name="wallASHRAEGroupEnum">

<xsd:annotation>

<xsd:documentation>Used with the wallASHRAEGroup attribute. Each annotation for the values is only one example of many possible constructions for that ASHRAE wall group. The user should select the one that best matches the thermal characteristics of the wall, not necessarily the one closest to the example description.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="A">

<xsd:annotation>

<xsd:documentation>4-in. face brick, insulation + 8-in. com. brick</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="B">

<xsd:annotation>

<xsd:documentation>4-in. face brick, 2-in. insul., 4-in. com. brick</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="C">

<xsd:annotation>

<xsd:documentation>4-in. face brick, air space + 4-in. face brick</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="D">

<xsd:annotation>

<xsd:documentation>4-in. face brick + 4-in. common brick</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="E">

<xsd:annotation>

<xsd:documentation>4-in. face brick + 4-in. block</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="F">

<xsd:annotation>

<xsd:documentation>4-in. block + air space or insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="G">

<xsd:annotation>

<xsd:documentation>Metal curtain wall + 1 to 3-in. insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType wallColorEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute CLTDParameters/@wallColor
facets
Kind Value Annotation
enumeration Dark
documentation
Dark colored or light colored in an industrial area
enumeration Medium
documentation
Permanently medium colored and in a rural area
enumeration Light
documentation
Permanently light colored and in a rural area
annotation
documentation
Used with the wallColor attribute. Only enter Light or Medium if the construction is a wall and if it's in a rural location.
source <xsd:simpleType name="wallColorEnum">

<xsd:annotation>

<xsd:documentation>Used with the wallColor attribute. Only enter Light or Medium if the construction is a wall and if it's in a rural location.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Dark">

<xsd:annotation>

<xsd:documentation>Dark colored or light colored in an industrial area</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Medium">

<xsd:annotation>

<xsd:documentation>Permanently medium colored and in a rural area</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="Light">

<xsd:annotation>

<xsd:documentation>Permanently light colored and in a rural area</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType wallCTSTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute RTSParameters/@wallCTSType
facets
Kind Value Annotation
enumeration 1
documentation
Spandrel Glass, R-10 Insulation Board, Gyp Board
enumeration 2
documentation
Metal Wall Panel, R-10 Insulation Board, Gyp Board
enumeration 3
documentation
1" Stone, R-10 Insulation Board, Gyp Board
enumeration 4
documentation
Metal Wall Panel, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 5
documentation
1" Stone, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 6
documentation
Wood Siding, Sheathing, R-11 Batt Insulation, 1/2"
Wood
enumeration 7
documentation
1" Stucco, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 8
documentation
EIFS Finish, R-5 Insulation Board, Sheathing, Gyp Board
enumeration 9
documentation
EIFS Finish, R-5 Insulation Board, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 10
documentation
EIFS Finish, R-5 Insulation Board, Sheathing, 8" LW CMU, Gyp Board
enumeration 11
documentation
Brick, R-5 Insulation Board, Sheathing, Gyp Board
enumeration 12
documentation
Brick, Sheathing, R-11 Batt Insulation, Gyp Board
enumeration 13
documentation
Brick, R-5 Insulation Board, Sheathing, R-11 Batt Insulation Gyp Board
enumeration 14
documentation
Brick, R-5 Insulation Board, 8" LW CMU
enumeration 15
documentation
Brick, 8" LW CMU, R-11 Batt Insulation, Gyp Board
enumeration 16
documentation
Brick, R-5 Insulation Board, 8" HW CMU, Gyp Board
enumeration 17
documentation
Brick, R-5 Insulation Board, Brick
enumeration 18
documentation
Brick, R-5 Insulation Board, 8" LW Concrete, Gyp Board
enumeration 19
documentation
Brick, R-5 Insulation Board, 12" HW Concrete, Gyp Board
enumeration 20
documentation
Brick, 8" HW Concrete, R-11 Batt Insulation, Gyp Board
enumeration 21
documentation
8" LW CMU, R-11 Batt Insulation, Gyp Board
enumeration 22
documentation
8" LW CMU w Fill Insulation, R-11 Batt Insulation, Gyp Board
enumeration 23
documentation
1" Stucco, 8" HW CMU, R-11 Batt Insulation, Gyp Board
enumeration 24
documentation
8" LW CMU w Fill Insulation
enumeration 25
documentation
8" LW CMU w Fill Insulation, Gyp Board
enumeration 26
documentation
12" LW CMU w Fill Insulation, Gyp Board
enumeration 27
documentation
4" LW Concrete. R-5 Board Insulation, Gyp Board
enumeration 28
documentation
4" LW Concrete. R-11 Batt Insulation, Gyp Board
enumeration 29
documentation
4" LW Concrete. R-10 Board Insulation, 4" LW Concrete
enumeration 30
documentation
EIFS Finish, R-5 Insulation Board, 8" LW Concrete, Gyp Board
enumeration 31
documentation
8" LW Concrete. R-11 Batt Insulation, Gyp Board
enumeration 32
documentation
EIFS Finish, R-10 Insulation Board, 8" HW Concrete, Gyp Board
enumeration 33
documentation
8" HW Concrete. R-11 Batt Insulation, Gyp Board
enumeration 34
documentation
12" HW Concrete. R-19 Batt Insulation, Gyp Board
enumeration 35
documentation
12" HW Concrete
annotation
documentation
Used with the wallCTSType attribute. Each annotation for the values is only one example of many possible constructions for that CTS type. The user should select the one that best matches the thermal characteristics of the wall, not necessarily the one closest to the example description.
source <xsd:simpleType name="wallCTSTypeEnum">

<xsd:annotation>

<xsd:documentation>Used with the wallCTSType attribute. Each annotation for the values is only one example of many possible constructions for that CTS type. The user should select the one that best matches the thermal characteristics of the wall, not necessarily the one closest to the example description.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="1">

<xsd:annotation>

<xsd:documentation>Spandrel Glass, R-10 Insulation Board, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="2">

<xsd:annotation>

<xsd:documentation>Metal Wall Panel, R-10 Insulation Board, Gyp Board </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="3">

<xsd:annotation>

<xsd:documentation>1" Stone, R-10 Insulation Board, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="4">

<xsd:annotation>

<xsd:documentation>Metal Wall Panel, Sheathing, R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="5">

<xsd:annotation>

<xsd:documentation>1" Stone, Sheathing, R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="6">

<xsd:annotation>

<xsd:documentation>Wood Siding, Sheathing, R-11 Batt Insulation, 1/2"
Wood
</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="7">

<xsd:annotation>

<xsd:documentation>1" Stucco, Sheathing, R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="8">

<xsd:annotation>

<xsd:documentation>EIFS Finish, R-5 Insulation Board, Sheathing, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="9">

<xsd:annotation>

<xsd:documentation>EIFS Finish, R-5 Insulation Board, Sheathing, R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="10">

<xsd:annotation>

<xsd:documentation>EIFS Finish, R-5 Insulation Board, Sheathing, 8" LW CMU, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="11">

<xsd:annotation>

<xsd:documentation>Brick, R-5 Insulation Board, Sheathing, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="12">

<xsd:annotation>

<xsd:documentation>Brick, Sheathing, R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="13">

<xsd:annotation>

<xsd:documentation>Brick, R-5 Insulation Board, Sheathing, R-11 Batt Insulation Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="14">

<xsd:annotation>

<xsd:documentation>Brick, R-5 Insulation Board, 8" LW CMU</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="15">

<xsd:annotation>

<xsd:documentation>Brick, 8" LW CMU, R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="16">

<xsd:annotation>

<xsd:documentation>Brick, R-5 Insulation Board, 8" HW CMU, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="17">

<xsd:annotation>

<xsd:documentation>Brick, R-5 Insulation Board, Brick</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="18">

<xsd:annotation>

<xsd:documentation>Brick, R-5 Insulation Board, 8" LW Concrete, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="19">

<xsd:annotation>

<xsd:documentation>Brick, R-5 Insulation Board, 12" HW Concrete, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="20">

<xsd:annotation>

<xsd:documentation>Brick, 8" HW Concrete, R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="21">

<xsd:annotation>

<xsd:documentation>8" LW CMU, R-11 Batt Insulation, Gyp Board </xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="22">

<xsd:annotation>

<xsd:documentation>8" LW CMU w Fill Insulation, R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="23">

<xsd:annotation>

<xsd:documentation>1" Stucco, 8" HW CMU, R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="24">

<xsd:annotation>

<xsd:documentation>8" LW CMU w Fill Insulation</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="25">

<xsd:annotation>

<xsd:documentation>8" LW CMU w Fill Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="26">

<xsd:annotation>

<xsd:documentation>12" LW CMU w Fill Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="27">

<xsd:annotation>

<xsd:documentation>4" LW Concrete. R-5 Board Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="28">

<xsd:annotation>

<xsd:documentation>4" LW Concrete. R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="29">

<xsd:annotation>

<xsd:documentation>4" LW Concrete. R-10 Board Insulation, 4" LW Concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="30">

<xsd:annotation>

<xsd:documentation>EIFS Finish, R-5 Insulation Board, 8" LW Concrete, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="31">

<xsd:annotation>

<xsd:documentation>8" LW Concrete. R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="32">

<xsd:annotation>

<xsd:documentation>EIFS Finish, R-10 Insulation Board, 8" HW Concrete, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="33">

<xsd:annotation>

<xsd:documentation>8" HW Concrete. R-11 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="34">

<xsd:annotation>

<xsd:documentation>12" HW Concrete. R-19 Batt Insulation, Gyp Board</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="35">

<xsd:annotation>

<xsd:documentation>12" HW Concrete</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType wallGroupManualJEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ManualJ8Parameters/@wallGroupManualJ
facets
Kind Value Annotation
enumeration A
documentation
Fastest heat transfer
enumeration B
enumeration C
enumeration D
enumeration E
enumeration F
documentation
Medium heat transfer
enumeration G
enumeration H
enumeration I
enumeration J
enumeration K
documentation
Slowest heat transfer
annotation
documentation
Used with the wallGroupManualJ attribute.
source <xsd:simpleType name="wallGroupManualJEnum">

<xsd:annotation>

<xsd:documentation>Used with the wallGroupManualJ attribute.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="A">

<xsd:annotation>

<xsd:documentation>Fastest heat transfer</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="B">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="C">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="D">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="E">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="F">

<xsd:annotation>

<xsd:documentation>Medium heat transfer</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="G">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="H">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="I">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="J">

<xsd:annotation>

<xsd:documentation/>

</xsd:annotation>

</xsd:enumeration>

<xsd:enumeration value="K">

<xsd:annotation>

<xsd:documentation>Slowest heat transfer</xsd:documentation>

</xsd:annotation>

</xsd:enumeration>

</xsd:restriction>
</xsd:simpleType>

simpleType waterUseUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute WaterUsePerCycle/@unit
facets
Kind Value Annotation
enumeration CubicMeters
enumeration Gallons
enumeration Tons
enumeration Kilograms
enumeration Liters
source <xsd:simpleType name="waterUseUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="CubicMeters"/>

<xsd:enumeration value="Gallons"/>

<xsd:enumeration value="Tons"/>

<xsd:enumeration value="Kilograms"/>

<xsd:enumeration value="Liters"/>

</xsd:restriction>
</xsd:simpleType>

simpleType weightUnitEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute Weight/@unit
facets
Kind Value Annotation
enumeration Pounds
enumeration Kilograms
enumeration Tons
source <xsd:simpleType name="weightUnitEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Pounds"/>

<xsd:enumeration value="Kilograms"/>

<xsd:enumeration value="Tons"/>

</xsd:restriction>
</xsd:simpleType>

simpleType windSpeedEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute WindSpeed/@type
facets
Kind Value Annotation
enumeration RatedWindSpeed
enumeration CutInWindSpeed
enumeration CutOutWindSpeed
source <xsd:simpleType name="windSpeedEnum">

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="RatedWindSpeed"/>

<xsd:enumeration value="CutInWindSpeed"/>

<xsd:enumeration value="CutOutWindSpeed"/>

</xsd:restriction>
</xsd:simpleType>

simpleType zoneHVACEquipmentTypeEnum
namespace http://www.gbxml.org/schema
type restriction of xsd:NMTOKEN
properties
base xsd:NMTOKEN
used by
attribute ZoneHVACEquipment/@zoneHVACEquipmentType
facets
Kind Value Annotation
enumeration Undefined
enumeration UnConditioned
enumeration ChilledBeamActive
enumeration FourPipeFanCoil
enumeration PackagedTerminalAirConditioner
enumeration PackagedTerminalHeatPump
enumeration ParallelFanPoweredBox
enumeration VAVBox
enumeration BaseBoardConvective
enumeration BaseBoardRadiant
enumeration CAVBox
enumeration RadiantPanel
enumeration SeriesFanPoweredBox
enumeration UnitHeater
enumeration UnitVentilator
enumeration WaterSourceHeatPump
enumeration ChilledBeamPassive
enumeration VRFFanCoil
annotation
documentation
The type of zone equipment.
source <xsd:simpleType name="zoneHVACEquipmentTypeEnum">

<xsd:annotation>

<xsd:documentation>The type of zone equipment.</xsd:documentation>

</xsd:annotation>

<xsd:restriction base="xsd:NMTOKEN">

<xsd:enumeration value="Undefined"/>

<xsd:enumeration value="UnConditioned"/>

<xsd:enumeration value="ChilledBeamActive"/>

<xsd:enumeration value="FourPipeFanCoil"/>

<xsd:enumeration value="PackagedTerminalAirConditioner"/>

<xsd:enumeration value="PackagedTerminalHeatPump"/>

<xsd:enumeration value="ParallelFanPoweredBox"/>

<xsd:enumeration value="VAVBox"/>

<xsd:enumeration value="BaseBoardConvective"/>

<xsd:enumeration value="BaseBoardRadiant"/>

<xsd:enumeration value="CAVBox"/>

<xsd:enumeration value="RadiantPanel"/>

<xsd:enumeration value="SeriesFanPoweredBox"/>

<xsd:enumeration value="UnitHeater"/>

<xsd:enumeration value="UnitVentilator"/>

<xsd:enumeration value="WaterSourceHeatPump"/>

<xsd:enumeration value="ChilledBeamPassive"/>

<xsd:enumeration value="VRFFanCoil"/>

</xsd:restriction>
</xsd:simpleType>
